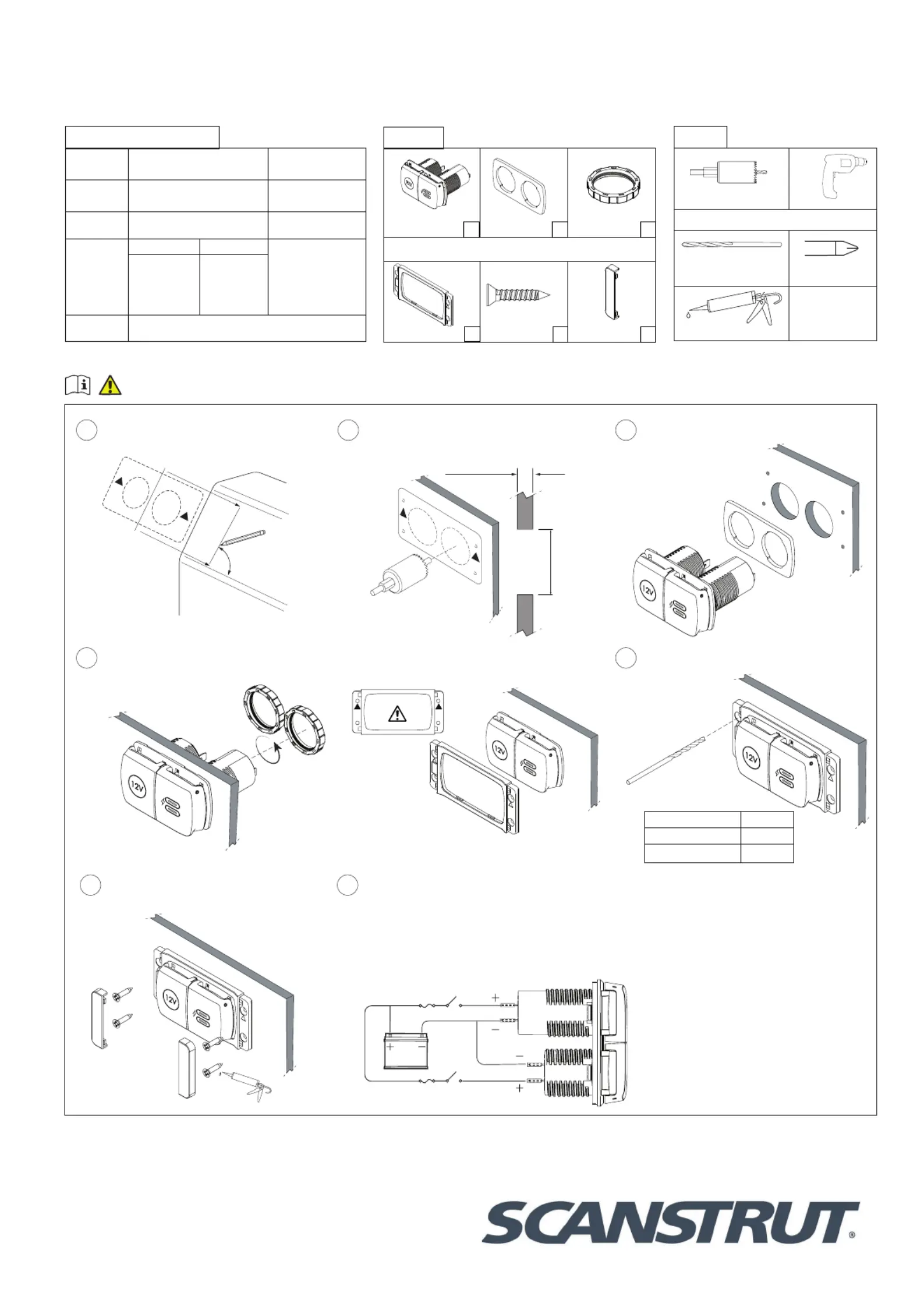

FLIP PRO MAX-DUAL USB-C & 12V POWER SOCKET
(SC-MULTI-F1)
17-05-2023 (Issue 2)
Installation Instructions
For further installation
and warranty information
please visit:
www.scanstrut.com
+1 860 308 1416
usasales@scanstrut.com
UK & International
+44 (0)1392531280
sales@scanstrut.com
Draw a centre line to align template,
ensure line is square on surface and
correct orientation.
90°
TOP
1
Use drilling template to drill x2 Ø32mm
(1 1/4”) holes (see tools required).
Ø32mm
(1.25”)
3mm (0.11”) Min
25mm (1”) Max
2
Feed Barrel through the gasket and
holes.
3
4
6
7
REAR INSTALL ONLY
Tighten lock rings onto product until
FRONT INSTALL ONLY
Push bezel onto the product, make sure
FRONT INSTALL ONLY
Apply silicone seal on xings and pilot
holes.
Connect to 12V supply, ensuring a waterproof
connection. Fuse and select cable diameter
according to input voltage and current for your
specic installation.
** If using a 24V system a voltage converter is
required on the 12V socket only**
Pilot Hole Size
Material No. 6 Screw
Soft Material e.g Plywood 2.5mm (3/32”)
Hard Material e.g Fiberglass 3mm (1/8”)
FRONT INSTALL ONLY
Drill 4 pilot holes for bezel.
5
TOP
32mm (1 1/4”) Hole saw Drill
Front install only
Drill bit 2.5mm (3/32”) or
3mm (1/8”) Pozi Screwdriver
Silicone
Tool list:
2 Socket & USB
Charger Gasket Lock Ring
Front install only
Front Fit Bezel
No.6x20mm
Screws Screw Cover
Parts list:
x1 x1
x1
x4
x2
x2
For latest tech info visit: www.scanstrut.com/USB
READ IMPORTANT SAFETY
INFORMATION BEFORE INSTALLING.
Technical information:
USB Charger 12V Socket
Input
voltage
12/24V System
10-32V DC
12V System
10-15V DC
Input
current Max
6 A 10 A
Output Type
(12V System) (24V System)
12V 10A⎓
5V 3A, ⎓
9V 3A, ⎓
12V 3A MAX⎓
5V 3A, ⎓
9V 3A, ⎓
12V 3A, ⎓
15V 3A, ⎓
20V 3A MAX⎓
Standby
draw
< 0.1W
FLIP PRO MAX-DUAL USB-C & 12V POWER SOCKET
(SC-MULTI-F1)
17-05-2023 (Issue 2)
Installation Instructions
For further installation
and warranty information
please visit:
www.scanstrut.com
+1 860 308 1416
usasales@scanstrut.com
UK & International
+44 (0)1392531280
sales@scanstrut.com

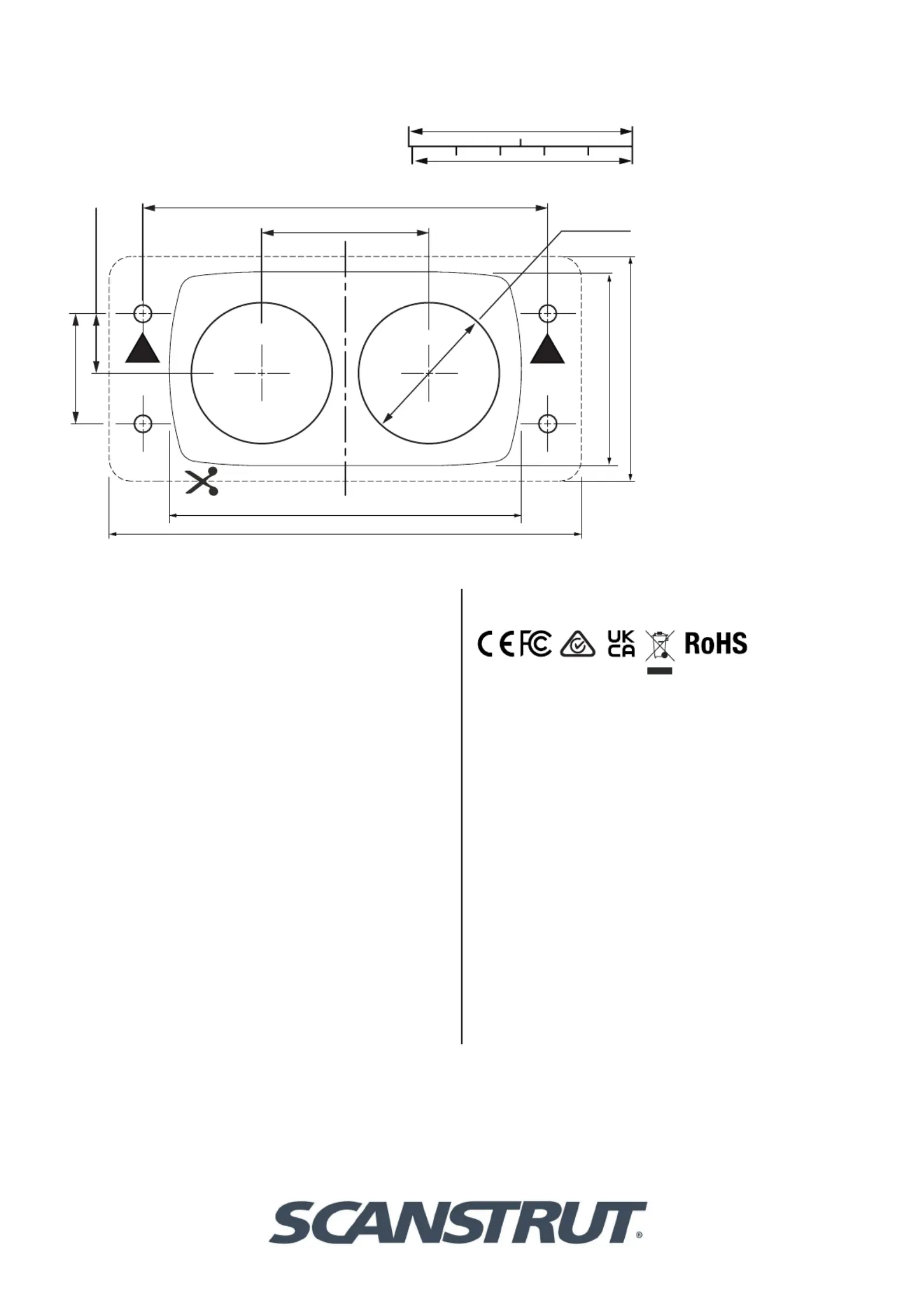

Bezel 107.3mm (4.22”)
Bezel 107.3mm (2.01”)
80.0mm (3.15”)
44.0mm (1.73”)
92.0mm (3.62”)
38mm (1.5”)
25.0mm (1”)
13.5mm (0.53”)
Ø 33.0mm
(1.26”)
50mm
2”
TOP
Drill Template:
WARNING CHECK SCALE.
WARNING:
This product is to be connected to a 12V DC or
24V DC battery power source only. The power
supply must be switched off before installation.
An appropriate fuse or circuit breaker must be
used between the battery / power source and this
product. Check for correct polarity of all wiring
before switching the power on.
This product may contain high voltages. Do not
tamper with the product.
This product is NOT approved for use in
hazardous/ammable atmospheres.
Do NOT install in a hazardous/ammable
atmosphere e.g. engine room.
Before drilling any holes, ensure the area behind
the mounting location is clear of wires, fuel and all
other hazardous objects.
Ensure any holes cut will not signicantly weaken
the structure of the mounting surface.
If the product needs to be mounted outside,
it must be mounted in a location safely above
the waterline, where it is not at risk of being
submerged.
CAUTION:
The product is specially designed
for charging QC and PD compatible devices and
12v plug only.
This product does not contain any user serviceable
parts. DO NOT attempt to repair or modify the
product in any way.
When used in high ambient temperature or
in direct sunlight, the product may turn off
temporarily, this
is a safety feature of the electronics.
The IP protection rating is only valid if the
installation is carried out correctly according to the
instructions and on a perfectly at, smooth and
non-porous surface.
When choosing a mounting location, avoid areas
exposed to heat radiation devices and areas with
poor ventilation
WIRING:
Professional electrician installation recommended,
see Technical Information for power requirements.
To achieve max power output, the specied
voltage must be at the charger. Battery
performance and voltage drop needs to be
considered for installation.
ENVIRONMENTAL PROTECTION:
Waste electrical products should not be disposed
of with household waste. Please recycle where
facilities exist. Check with your Local Authority or
retailer for recycling advice.
IMPORTANT:
Scanstrut Ltd & Inc. accepts no responsibility for
any injuries or other damages arising from the use
of their products in any circumstances.
WARRANTY:
A 2 year, non-transferrable warranty covers this
Scanstrut product only and not any devices that
are charged by it. No warranty is given for users’
devices and users expose their devices to hazards,
known or unknown, at their own risk.
FCC WARNING
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:(1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Any Changes or modications not expressly approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC RF exposure statement:
The equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
During the operation of device a distance of 15 cm surrounding the device and 20 cm above the top
surface of the device must be respected.
Scanstrut Ltd, declares the product
‘Flip Pro Max’ SKU: SC-MULTI-F1 is in compliance with EMC CE-RED Directive (2014/30/EU) & The CE
certicate of EN55032, EN55035, EN61000 conformity can be found at
www.scanstrut.com/uk/compliance
Certication.
