FLIP PRO PLUS - FAST CHARGE USB-A & USB-C SOCKET (SC-USB-F4)
(not illustrated)
SC-USB-F4-001 Deutsch Connector
SC-USB-F4-002 Flying Lead
17-011-2023 (Issue 1)

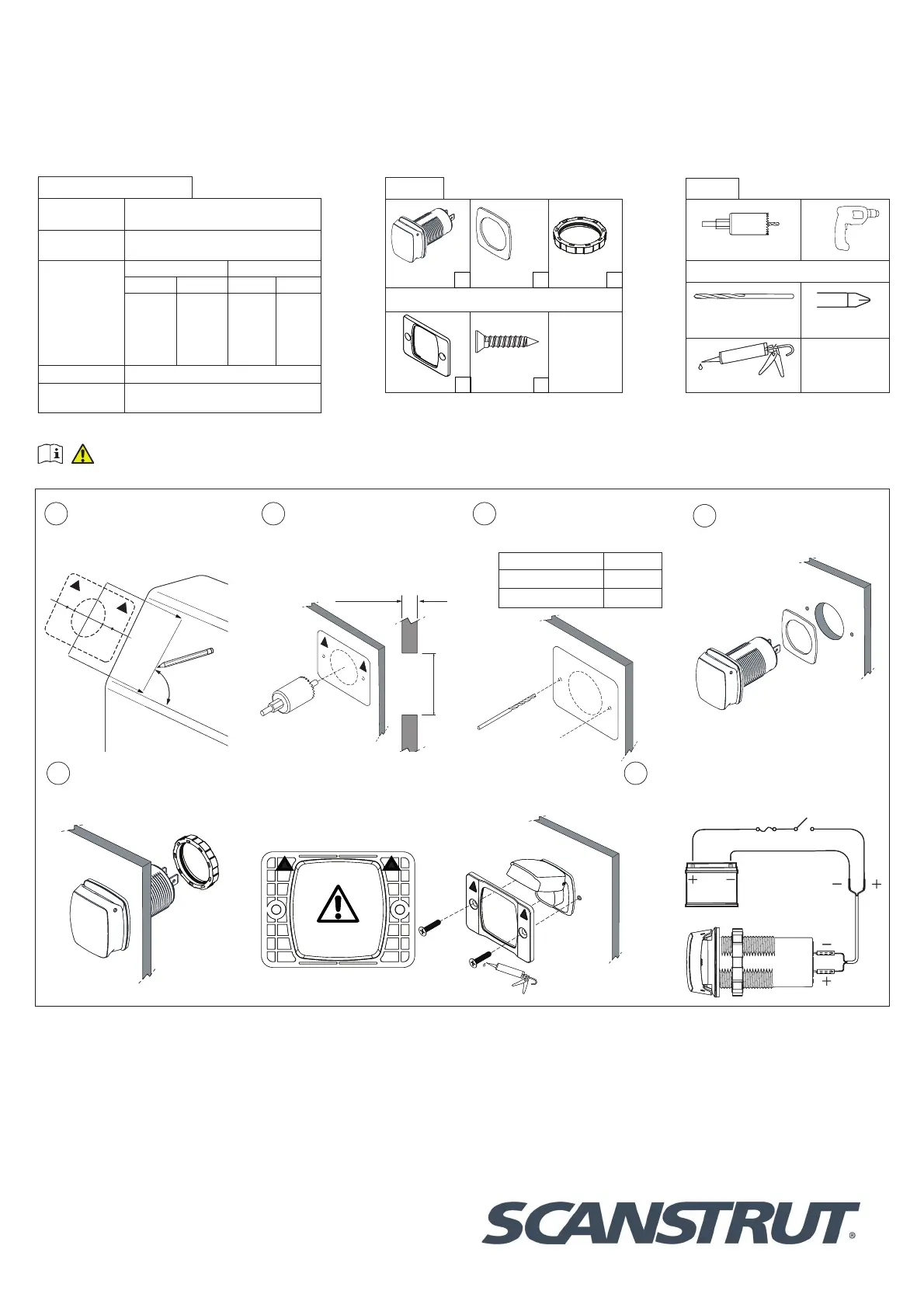

Installation Instructions
For further installation
and warranty information
please visit:
www.scanstrut.com
USA
+1 860 308 1416
usasales@scanstrut.com
UK & International
+44 (0)1392531280
sales@scanstrut.com
50mm
2”
55.0mm
(2.17”)
ø32.0mm
1mm (6/64”)
(ø1.26 ”)
BEZEL 68.1mm
(2.68”)
BEZEL 51.0mm
(2.01”)
42.0mm
(1.65”)
44.1mm
(1.73”)
TOP

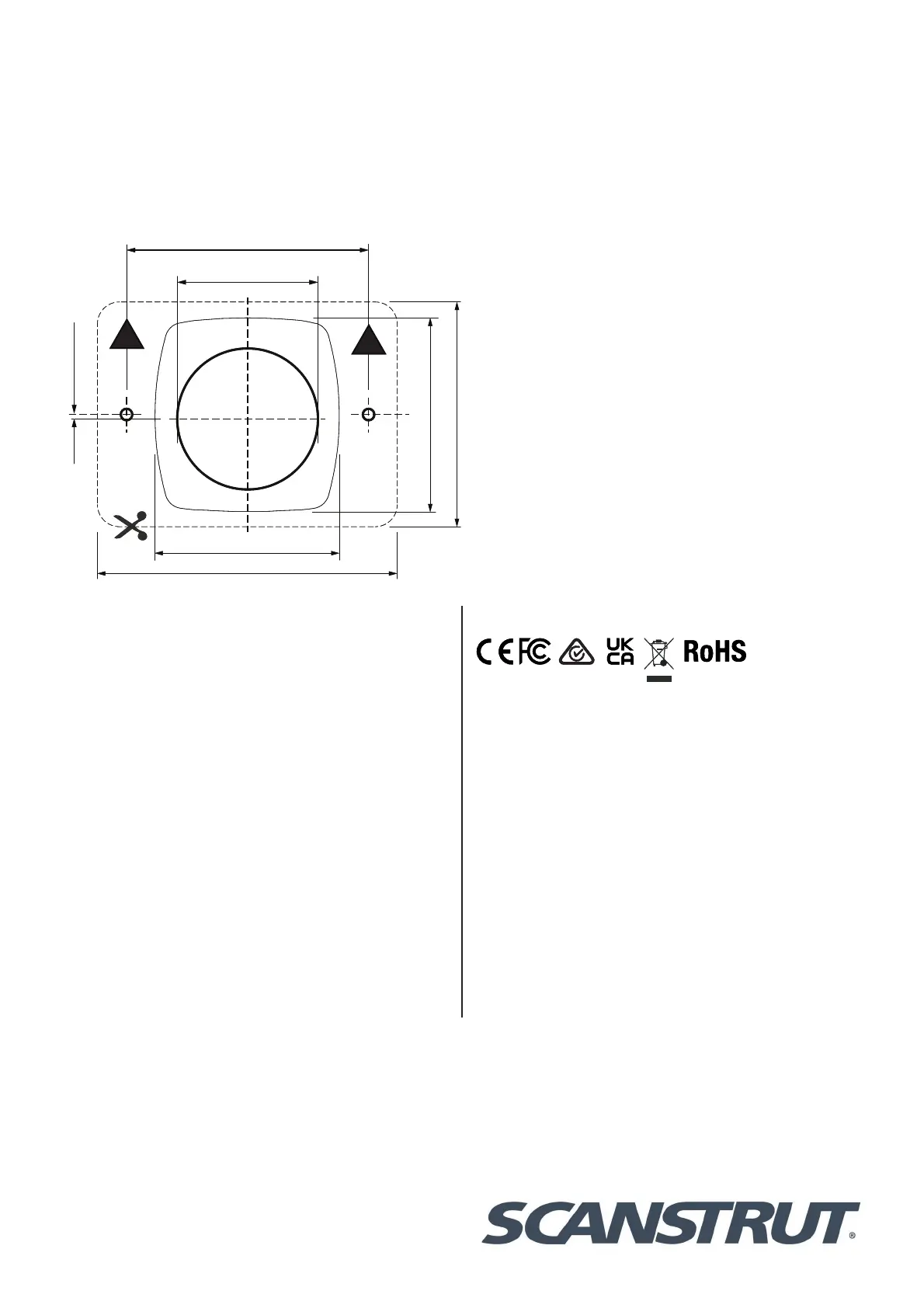

Drilling template:
WARNING CHECK SCALE 1:1
Certication.
Scanstrut Ltd, declares the product
‘Flip Pro Plus’ SKU: SC-USB-F4 is in compliance with EMC CE-RED Directive (2014/30/EU) & The CE
certicate of EN55032, EN55035, EN61000 conformity can be found at
www.scanstrut.com/support/compliance
WARNING:
This product is to be connected to a 12V DC or 24V
DC battery power source only. The power supply
must be switched off before installation.
An appropriate fuse or circuit breaker must be
used between the battery / power source and this
product. Check for correct polarity of all wiring before
switching the power on.
This product may contain high voltages. Do not
tamper with the product.
This product is NOT approved for use in hazardous/
ammable atmospheres.
DO NOT install in a hazardous/ammable
atmosphere e.g. engine room.
Before drilling any holes, ensure the area behind the
mounting location is clear of wires, fuel and all other
hazardous objects.
Ensure any holes cut will not signicantly weaken the
structure of the mounting surface.
If the product needs to be mounted outside, it must
be mounted in a location safely above the waterline,
where it is not at risk of being submerged.
CAUTION:
The product is specially designed
for charging QC and PD compatible devices.
This product does not contain any user serviceable
parts. DO NOT attempt to repair or modify the
product in any way.
When used in high ambient temperature or in direct
sunlight, the product may turn off temporarily, this is
a safety feature of the electronics.
The IP protection rating is only valid if the installation
is carried out correctly according to the instructions
and on a perfectly at, smooth and non-porous
surface.
When choosing a mounting location, avoid areas
exposed to heat radiation devices and areas with
poor ventilation.
WIRING:
Professional electrician installation recommended,
see Technical Information for power requirements.
To achieve max power output, the specied voltage
must be at the charger. Battery performance and
voltage drop needs to be considered for installation.
ENVIRONMENTAL PROTECTION:
Waste electrical products should not be disposed of
with household waste. Please recycle where facilities
exist. Check with your Local Authority or retailer for
recycling advice.
IMPORTANT:
Scanstrut Ltd & Inc. accepts no responsibility for any
injuries or other damages arising from the use of their
products in any circumstances.
WARRANTY:
A 2 year, non-transferrable warranty covers this
Scanstrut product only and not any devices that are
charged by it. No warranty is given for users’ devices
and users expose their devices to hazards, known or
unknown, at their own risk.
FCC Warning
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:(1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Any Changes or modications not expressly approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC RF exposure statement:
The equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
During the operation of device a distance of 15 cm surrounding the device and 20 cm above the top
surface of the device must be respected.
