Drill bit (for pilot hole)

Material No. 8 Screw

Soft Material

E.g Plywood

3.5mm

(9/64”)

Hard Material

E.g Fiberglass

Acrylic, Hardwood

3mm

(1/8”)

WARNING:

This product is to be connected to a 12V DC or 24V

DC battery power source only. The power supply must

be switched off before installation.

An appropriate fuse or circuit breaker must be used

between the battery/power source and this product.

Check for correct polarity of all wiring before switching

the power on.

This product may contain high voltages. Do not tamper

with the product.

This product is NOT approved for use in hazardous/

ammable atmospheres. Do NOT install in a

hazardous/ammable atmosphere e.g. engine room.

Before drilling any holes, ensure the area behind the

mounting location is clear of wires, fuel and all other

hazardous objects.

Ensure any holes cut will not signicantly weaken the

structure of the mounting surface.

If the product needs to be mounted outside, it must

be mounted in a location safely above the waterline,

where it is not at risk of being submerged.

CAUTION:

The product is specially designed

for charging QC and PD compatible devices.

This product does not contain any user serviceable

parts. DO NOT attempt to repair or modify the product

in any way.

When used in high ambient temperature or in direct

sunlight, the product may turn off temporarily, this is a

safety feature of the electronics.

The IP protection rating is only valid if the installation is

carried out correctly according to the instructions and

on a perfectly at, smooth and non-porous surface.

When choosing a mounting location, avoid areas

exposed to heat radiation devices and areas with poor

ventilation

WIRING:

Professional electrician installation recommended, see

Technical Information for power requirements.

To achieve max power output, the specied voltage

must be at the charger. Battery performance and

voltage drop needs to be considered for installation.

ENVIRONMENTAL PROTECTION:

Waste electrical products should not be disposed of

with household waste. Please recycle where facilities

exist. Check with your Local Authority or retailer for

recycling advice.

IMPORTANT:

Scanstrut Ltd & Inc. accepts no responsibility for any

injuries or other damages arising from the use of their

products in any circumstances.

WARRANTY:

A 2 year, non-transferrable warranty covers this

Scanstrut product only and not any devices that are

charged by it. No warranty is given for users’ devices

and users expose their devices to hazards, known or

unknown, at their own risk.

90°

Connect to 12/24V supply,

ensuring a waterproof

connection. Fuse and select

cable diameter according to

input voltage and current for

your specic installation.

–Feed SC-USB-F1 through

the gasket and hole

–Tighten lock ring onto

product until securely xed.

Drill ø29mm (1 1/8”) holeMark hole centre for drilling

Ø29mm

3mm Min

25mm Max

Drill 2 pilot holes for front t

bezel.

–Place the front t bezel over

charger.

–Use silicone seal for xings.

–Optional, tighten lock ring

onto product until secure.

1 2 3

4 6

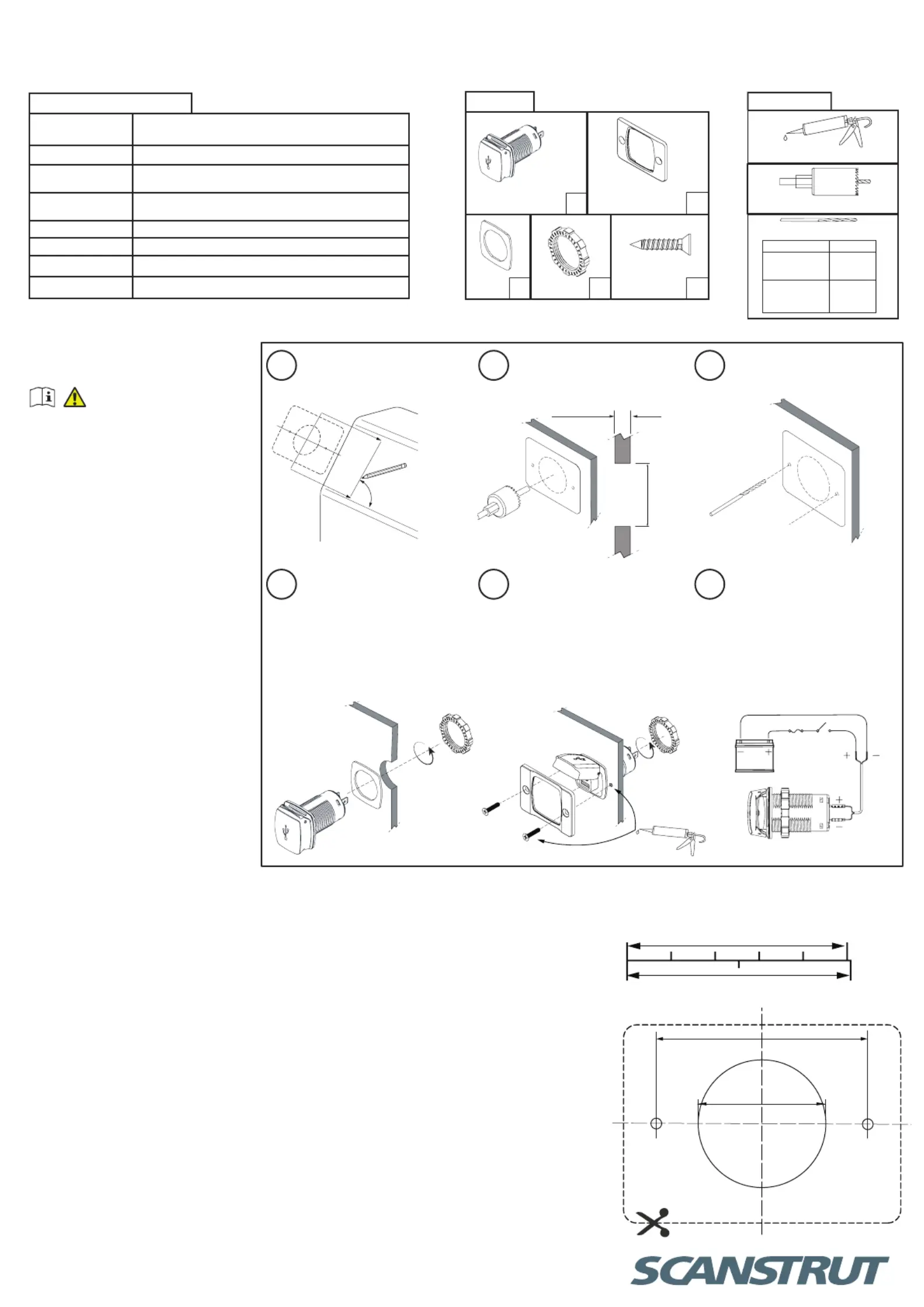

08-04-2022 (Issue 1)

Flip Pro Front Fit Bezel Fast Charge Dual USB Socket - (SC-USB-F2)

For latest tech info visit: www.scanstrut.com/USB

Part List:

Tools Required:

READ IMPORTANT SAFETY

INFORMATION BEORE INSTALLING.

Charger

Lock Ring

Gasket

29mm (1 1/8”) Hole saw

FCC Warning

This device complies with part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

Any Changes or modications not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

This equipment has been tested and found to comply with the limits for a Class

B digital device, pursuant to part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference in a residential

installation. This equipment generates uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However, there is

no guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception, which

can be determined by turning the equipment off and on, the user is encouraged to

try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

FCC RF exposure statement:

The equipment complies with FCC radiation exposure limits set forth for an

uncontrolled environment. During the operation of device a distance of 15 cm

surrounding the device and 20 cm above the top surface of the device must be

respected.

Scanstrut Ltd, declares the product

‘Flip Pro’ SKU: SC-USB-F2 is in compliance with EMC CE-RED Directive

(2014/30/EU). The CE certicate EN55032, EN55035, EN61000 of conformity can

be found at

www.scanstrut.com/uk/compliance

Technical information.

Input voltage

12/24V System

10-32V DC

Input current Max 6 A

Output Type C

(12V System)

5V 3A, 9V 3A, 12V 3A MAX ⎓ ⎓ ⎓

Output Type C

(24V System)

5V 3A, 9V 3A, 12V 3A, 15V 3A, 20V 3A MAX⎓ ⎓ ⎓ ⎓ ⎓

Output Type A

5V 1.5A, 9V 1.5A, 12V 1.5A/3A MAX⎓ ⎓ ⎓

Standby draw 0.01W

Waterproof rating IPX4

Certication CE, FCC, C-Tick, ROHS, UKCA

Front Fit Bezel

Screw

No.8x25mm

Silicone

Drilling template.

WARNING CHECK SCALE 1:1

29mm

(1.14”)

48mm

(1.89”)

5mm

2”

Produkt Specifikationer

Mærke:	Scanstrut
Kategori:	Ikke kategoriseret
Model:	Flip Pro SC-USB-F2
