Scanstrut ROKK Charge Pro - SC-USB-03
19-01-2023 (Issue 2)
Installation Instructions
For further installation
and warranty information
please visit:
www.scanstrut.com
USA
usasales@scanstrut.com
UK & International
+44 (0)1392531280
sales@scanstrut.com
Part List
Shell Gasket Lock Ring No.6 x 16X1 X1 X1 X1
Tools Required
ø2.5mm (3/32")
Drill Bit
Pozi Screwdriver
ø29mm (1 1/8")
Hole Saw
Silicone
1
2
4
3
Ø29mm
3mm Min
25mm Max
Pilot Hole Size
Material No. 6 Screw
Soft Material e.g Plywood 2.5mm (3/32")
Hard Material e.g Fiberglass 3mm (1/8")
ø29mm (1 1/8")
- Feed SC-USB-03 through the gasket and hole.
- Tighten lock ring onto product until securely xed.
- Screw product into place.
Connect to 12/24V supply, ensuring a waterproof connection. Fuse
and select cable diameter according to input voltage and current
for your specic installation.
Mark hole centre for drilling
Drill mounting holes (see tools required).
Scanstrut ROKK Charge Pro - SC-USB-03
19-01-2023 (Issue 2)
Installation Instructions
For further installation
and warranty information
please visit:
www.scanstrut.com
USA
usasales@scanstrut.com
UK & International
+44 (0)1392531280
sales@scanstrut.com
READ IMPORTANT SAFETY INFORMATION BEFORE INSTALLING.
Technical information.
Input voltage
12/24V System
10-32V DC
Input current Max 6 A
Output Type C
(12V System)
5V 3A, 9V 3A, 12V 3A MAX ⎓ ⎓ ⎓
Output Type C
(24V System)
5V 3A, 9V 3A, 12V 3A, 15V 3A, 20V 3A MAX⎓ ⎓ ⎓ ⎓ ⎓
Output Type A MAX 5V 1.5A, 9V 1.5A, 12V 1.5A/3A MAX⎓ ⎓ ⎓
Standby draw 0.01W
Waterproof rating IPX6
Certication CE, FCC, C-Tick, ROHS, UKCA
WARNING:
This product is to be connected to a 12V
DC or 24V DC battery power source only.
The power supply must be switched off
before installation.
An appropriate fuse or circuit breaker
must be used between the battery /
power source and this product. Check
for correct polarity of all wiring before
switching the power on.
This product may contain high voltages.
Do not tamper with the product.
This product is NOT approved for use in
hazardous/ammable atmospheres.
Do NOT install in a hazardous/ammable
atmosphere e.g. engine room.
Before drilling any holes, ensure the area
behind the mounting location is clear
of wires, fuel and all other hazardous
objects.
Ensure any holes cut will not signicantly
weaken the structure of the mounting
surface.
If the product needs to be mounted
outside, it must be mounted in a location
safely above the waterline, where it is not
at risk of being submerged.
CAUTION:
This product does not contain any user
serviceable parts. DO NOT attempt to
repair or modify the product in any way.
When used in high ambient temperature
or in direct sunlight, the product may turn
off temporarily, this is a safety feature of
the electronics.
The IP protection rating is only valid if
the installation is carried out correctly
according to the instructions and on a
perfectly at, smooth and non-porous
surface.
When choosing a mounting location, avoid
areas exposed to heat radiation devices
and areas with poor ventilation
WIRING:
Professional electrician installation
recommended, see Technical Information
for power requirements.
To achieve max power output, the
specied voltage must be at the charger.
Battery performance and voltage drop
needs to be considered for installation.
ENVIRONMENTAL PROTECTION:
Waste electrical products should not be
disposed of with household waste. Please
recycle where facilities exist. Check with
your Local Authority or retailer for recycling
advice.
IMPORTANT:
Scanstrut Ltd & Inc. accepts no
responsibility for any injuries or other
damages arising from the use of their
products in any circumstances.
WARRANTY:
A 2 year, non-transferrable warranty covers
this Scanstrut product only and not any
devices that are charged by it. No warranty
is given for users’ devices and users
expose their devices to hazards, known or
unknown, at their own risk.
CE Warning
Scanstut Ltd, declares the product ‘ROKK
CHARGE+’ SKU: SC-USB-03 is in compliance
with EMC CE Directive (2014/30/EC).
The CE certicate of conformity can be found at
www.scanstrut.com/uk/compliance.
43.5 mm
(1.7")
Ø 2.5 mm
(3/32")
Ø 29 mm
(1 1/8")
50 mm
2"

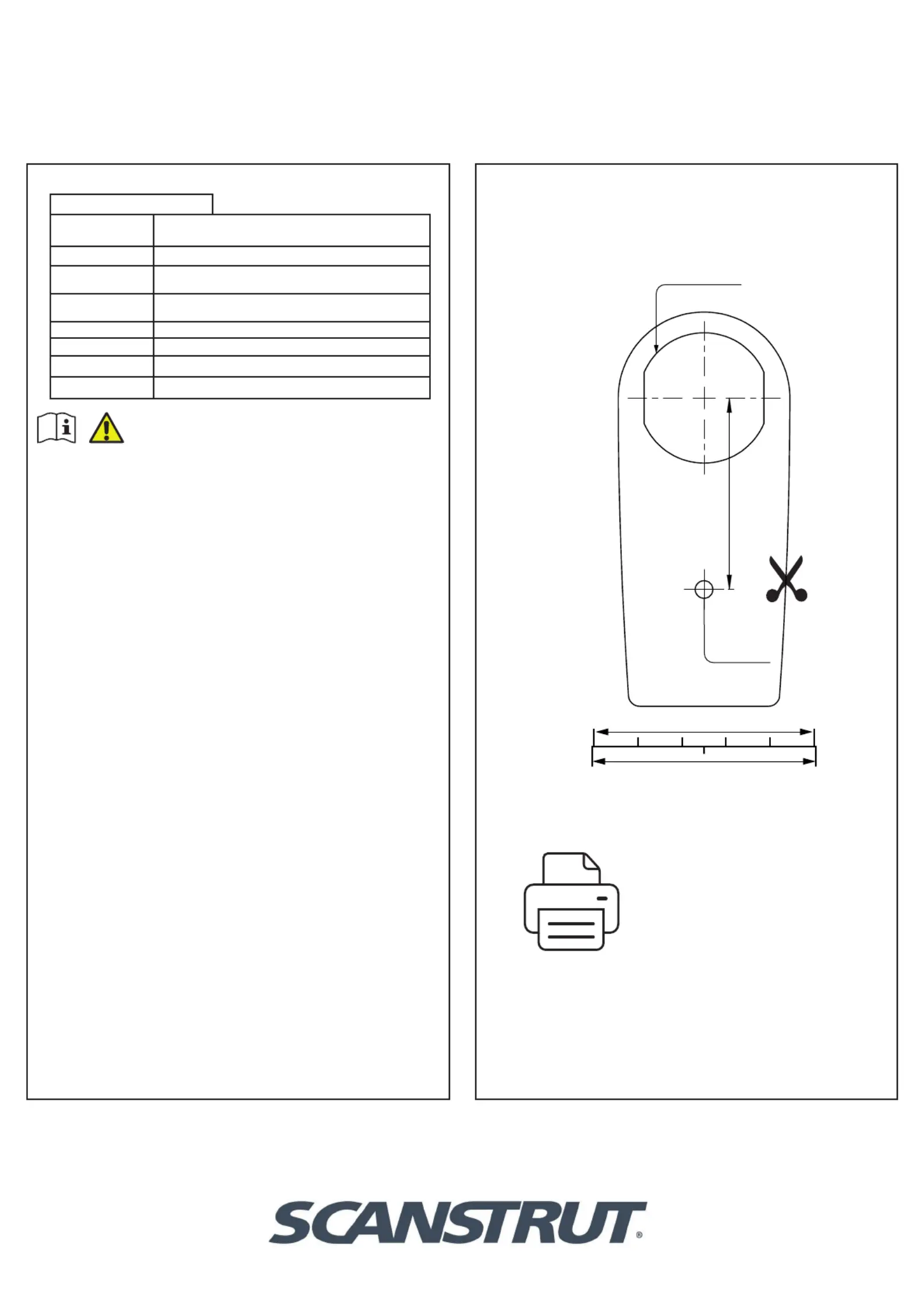

Cutting Template
1:1 Scale
Print document 1:1
Scale for correct cutting
template size.
