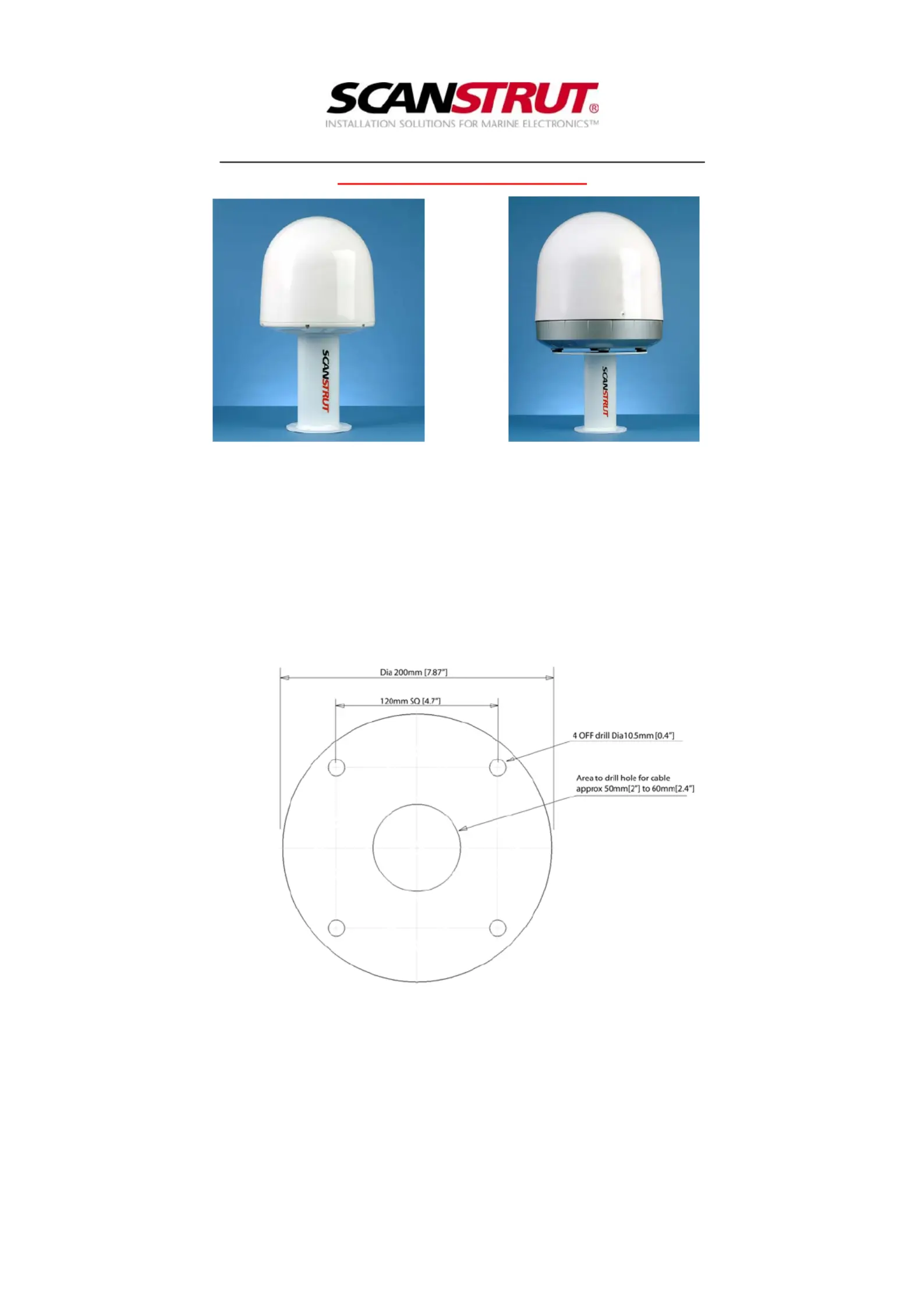

Satcom/TV PowerTower – SATPT-33, SATPT-40

Installation Instructions

SATPT kit contents

[ ] 1 x SATPT

[ ] 1 x SATPT Base Seal [19050]

[ ] 4 x Nylon Shouldered Washers [64004]

Also Required:

• 4 x M10 Stainless Steel bolts, large washers and nuts to attach SATPT to deck/arch.

Length to suit deck/arch thickness.

• 10.5mm Drill.

• Hole Cutter for cable loom; approx 50[2”] or 60[2.4”]mm dia.

Drilling Guide

1:1 drilling guide

follows below.

Fitting SATPT

1. Drill holes in arch to match SATPT base and a central cable exit – See drilling guide.

2. Thread the cable loom up through the arch, base seal and into the SATPT.

3. Pull enough cable through the SATPT and through the antenna’s base seal to reach the

antenna.

4. Once enough cable has been pulled through fasten the SATPT to the arch, ensuring foam

Base Seal is positioned under the SATPT base.

5. With antenna sitting on it’s base seal, fasten the antenna to the top plate with the bolts

supplied and attach cable.

120mm SQ [4.7”]

4 OFF drill Dia10.5mm [0.4”]

Area to drill hole for cable

approx 50mm[2”] to 60mm[2.4”]

®

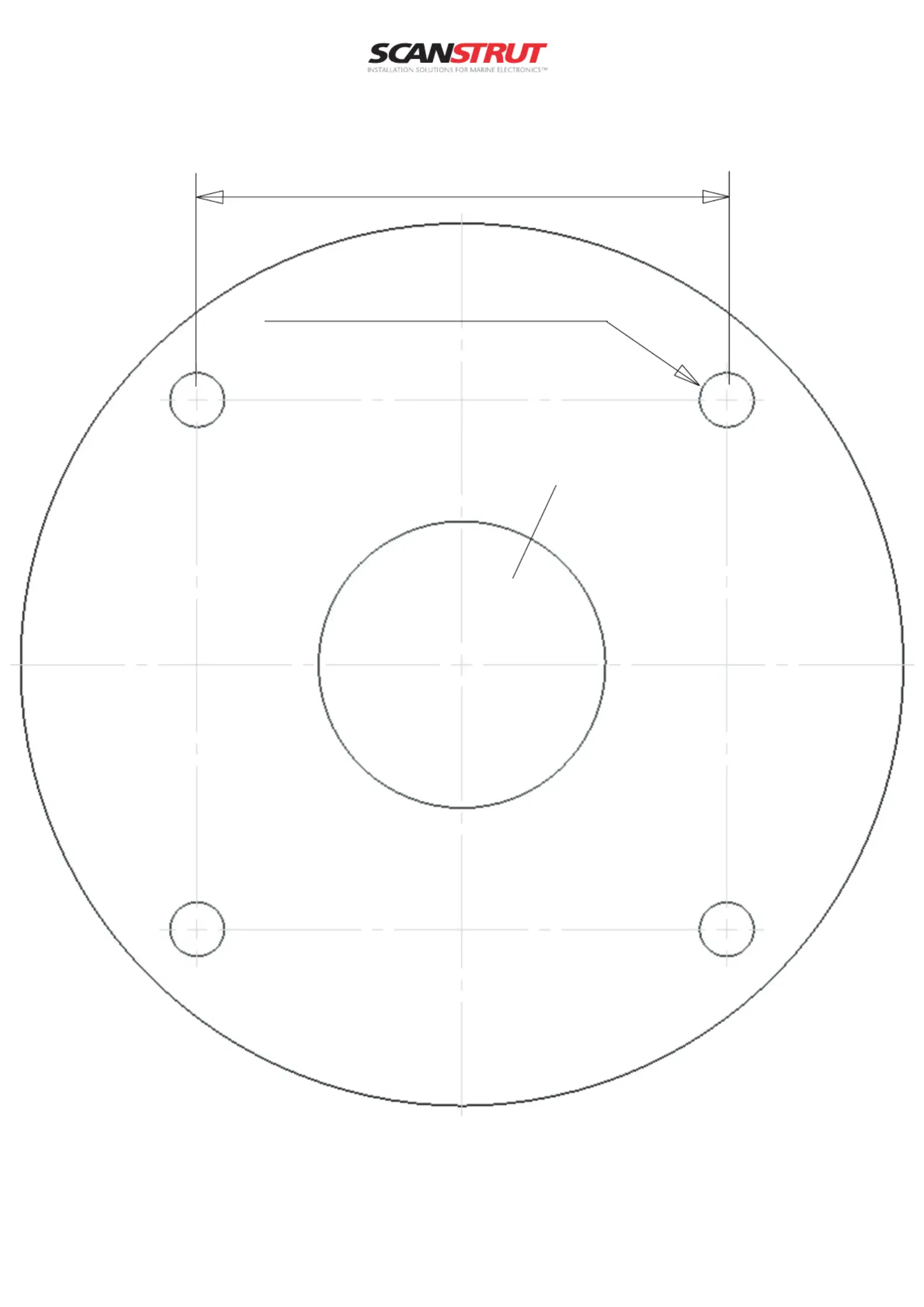

Drilling template for SATPT-33, SATPT-40 Base at 1:1

NOTE: Do not scale when printing, always print at 100%
