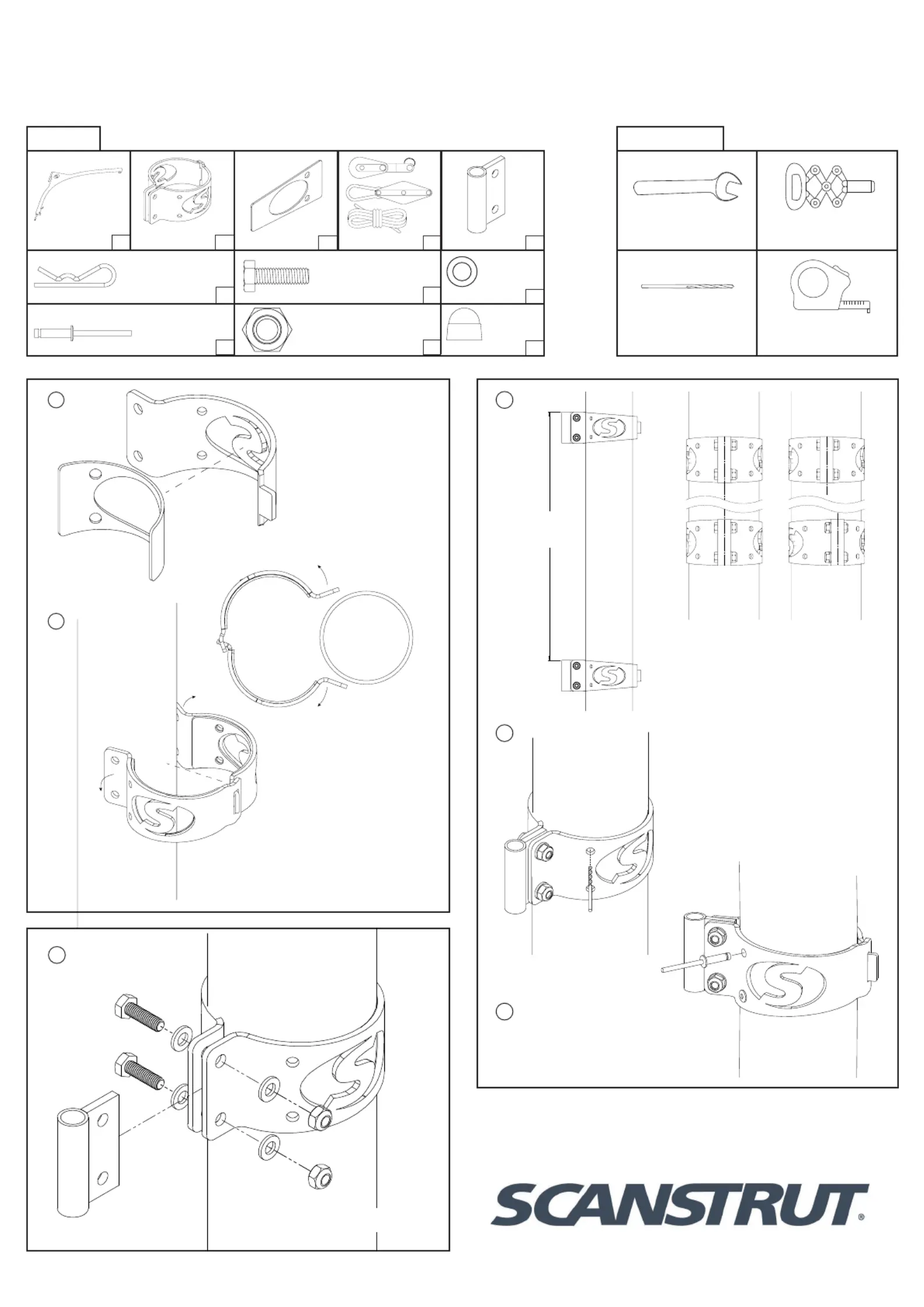

Parts List Tools Required
SC120
01-06-2022 (Issue 2)
Installation Instructions
For further installation
and warranty information
please visit:
www.scanstrut.com
+1 860 308 1416
usasales@scanstrut.com
UK & International
+44 (0)1392531280
sales@scanstrut.com
1
5
6
4
2
3
Apply 4x Gaskets onto
2x Clamp pairs.
Assemble 2x Clamp pairs
onto Pole.
Assemble Ferrule Plates onto
clamp pairs using xings.
400 mm
(15.75")
Mount Clamp Pairs 400mm (17.75")
apart. Check that clamps are aligned
correctly and tighten in place.
Mark and Drill 8 x 5mm (3/16") holes
into Pole.
×
Rivet Clamps permanently
into position.
10452
3" Clamp Pair x2
10120
Lifting Crane x1
10407
Gasket x4
6005
Lifting Tackle x1
10121
Ferrule Plate x2
60068
Nut Covers x8
60702
Nylon Washer x8
x1 x4
x8 x4
2 x 10mm Spanners
ø 5mm (3/16")
Drill Bit
Measuring Tool
Rivet Gun
60120
R-Clip
60621
M6 x 20mm Bolt
60665
4.8 x 16 Rivet
60060
M6 Nylock Nut
Share your installation with us.
@scanstrut
For further installation
and warranty information
please visit:
www.scanstrut.com
+1 860 308 1416
usasales@scanstrut.com
UK & International
+44 (0)1392531280
sales@scanstrut.com
SC120
01-06-2022 (Issue 2)
Installation Instructions
7 8

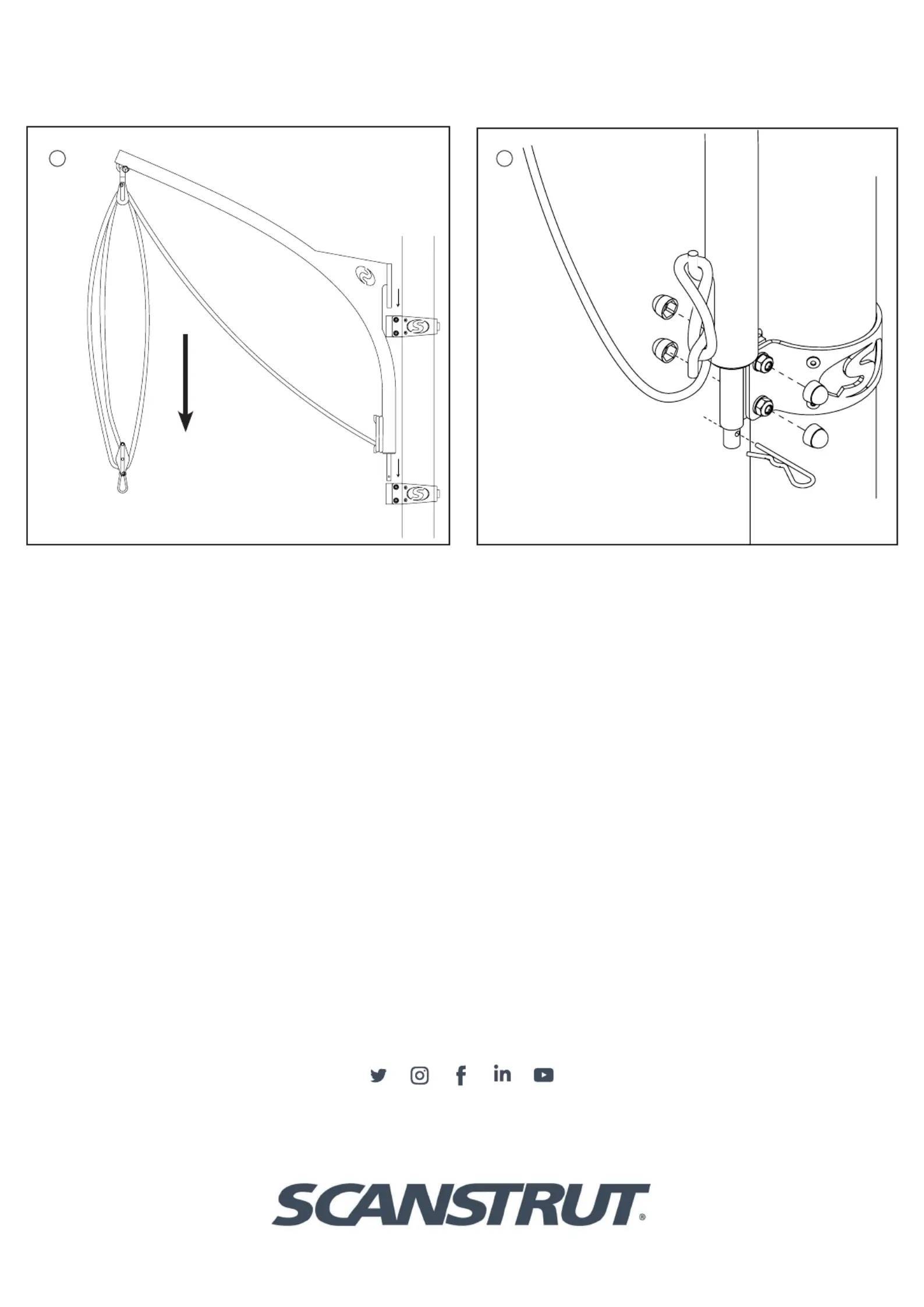

Assemble Lifting Crane into the
Ferrule Plates. The crane should
swing freely.
Apply nut covers.
Insert the R-Clip to secure the Lifting
Crane. Release pin for Crane stowage.
