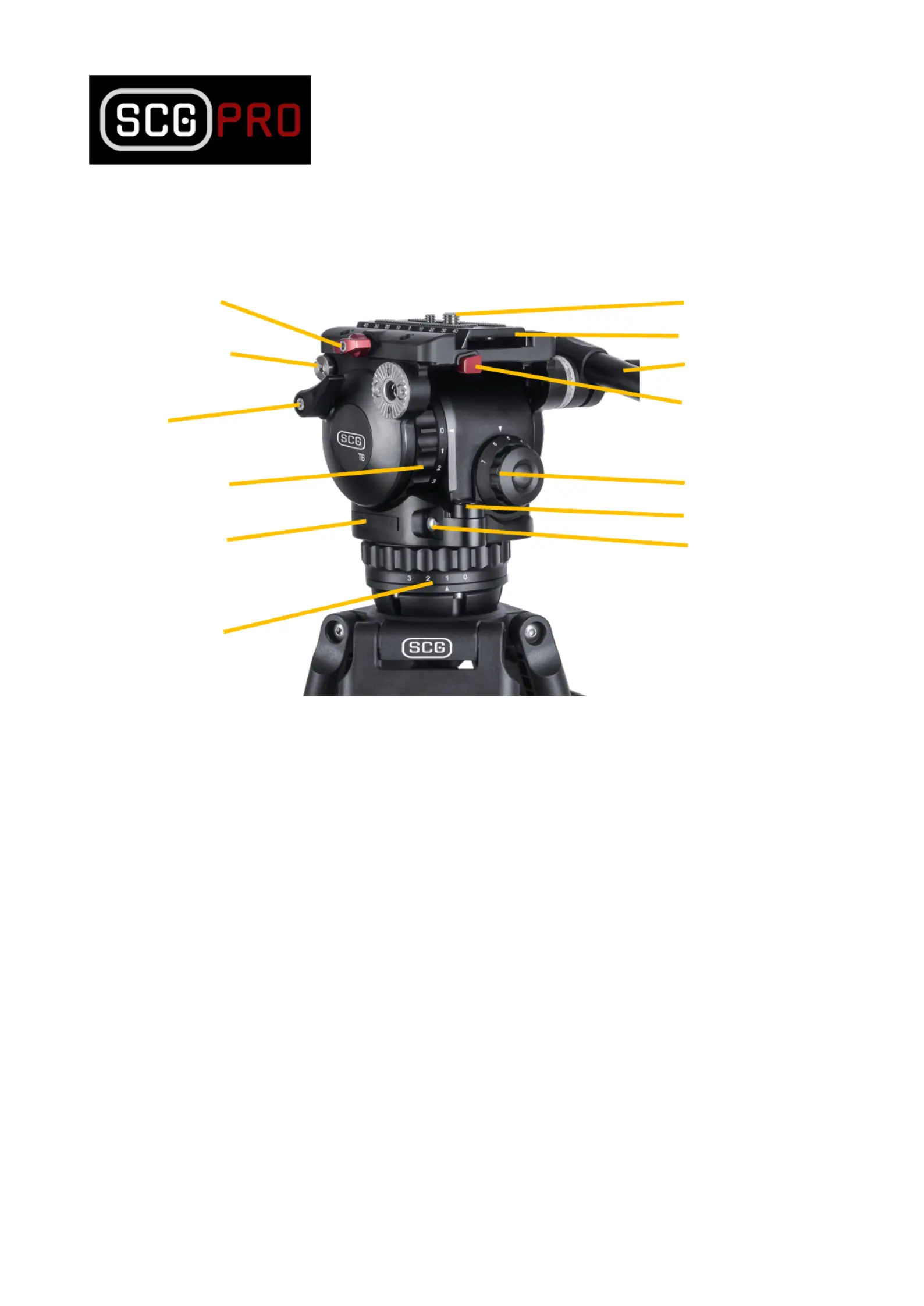

Camera Plate Lock

Spare Camera Screw

Tilt Lock

Tilt Drag Selector

Level Bubble Battery

Tray

Pan Drag Selector

Camera Screws

Camera Plate

Pan Bar Lock

Safety Release for Cam-

era Plate

Counterbalance Selector

Illuminated Bubble Level

LED Button for Bubble

1. Safety Instructions

Please use this manual to familiarise yourself with the operation of the T6 Fluid Head and observe these

instructions to prevent any damage to your equipment. Ensure that all equipment is operating correctly

and free from defects and damage, also please ensure that the tripod is steady, secure and that the bowl

is approximately horizontal when attaching the camera. The operator is responsible for the safe operation

of this piece of equipment.

• Do not exceed the safety payload capacity of the Fluid Head.

• Do not leave the camera unattended on the Fluid Head.

• Do not release the CAMERA PLATE LOCK whilst the camera is at an angle.

• Do not adjust the tripod whilst the camera is attached to the Fluid Head.

• Ensure PANBAR LOCK is securely tightened.

• Apply TILT LOCK when adding/removing equipment from the camera or when attaching/removing the

camera from the Fluid Head.

• Hold camera securely whilst changing Counterbalance, Pan Drag or Tilt Drag settings.

• Hold the camera securely whilst releasing the SAFETY RELEASE LEVER.

2. Mounting Your Camera

2.1 Remove the CAMERA PLATE by turning anti-clockwise the CAMERA PLATE LOCK and pushing the

SAFETY RE- LEASE on the PLATFORM.

2.2 Attach the CAMERA PLATE to the camera such that the Centre of Gravity (C of G) mark on the

camera is approximately in the middle of the camera plate.

2.3 Tighten PAN/TILT LOCKS, mount the CAMERA PLATE to the PLATFORM side first.non-locking

The side load lock mechanism will capture camera plate (distinct click sound will be made when CAMERA

PLATE is retained). CAM- ERA PLATE will be able to slide freely until CAMERA PLATE LOCK lever is

tightened.

2.4 Untighten TILT LOCK, slide the CAMERA PLATE such that the camera’s C of G is directly above the

centre axis of the Fluid Head, camera should be balanced (if not slide camera backward or forward).

Once balanced tighten the SLIDE LOCK LEVER (anti-clockwise) and tighten TILT LOCK. If this cannot be

achieved then reposition the CAMERA PLATE on the Camera – step 2.2.

NOTES:

• Refer to the camera’s owners manual for correct method of attachment to the CAMERA PLATE. Remove the

1/4’’ screw or 3/8’’ screw as required.

• The camera’s C of G can be estimated by placing the camera on to a round rod and then shifting it

backwards or forwards until a balance point – C of G - is achieved. It is recommended to identify this point

on the camera as it will be useful in step 2.2.

• Ensure CAMERA PLATE LOCK lever is tightened at all times when you are not finding C of G or mounting/

dismounting camera

3. Counterbalance Control

The counterbalance system was designed to neutralise the effect of the camera weight when it is tilted.

The T6 Fluid Head offers a 8 position counterbalance system which is operated with the Counterbalance

(CB) SELECTOR.

NOTE: Be careful when disengaging counterbalance as you could damage your equipment with an

unwanted tilt drop. The CB SELECTOR must be operated when the BASE PLATE is in a horizontal

position. After changing the counter- balance setting it may be necessary to tilt the camera back and forth

to ensure that the CB spring has engaged.

3.1 For safety it is generally better to start at a higher counterbalance position (e.g. position 6) and work

your way to the correct setting, this is to reduce any chance of unwanted tilt drops.

3.2 Hold the camera and release the TILT LOCK, then gently tilt the camera from the horizontal position

forward then backward and observe its response. If the camera ‘springs back’ to the horizontal position

then a lower counterbalance setting is required, use the CB SELECTOR to cycle through all even number

positions (eight positions including zero).

3.3 Correct counterbalance setting has been achieved when the camera does not spring back or drop

when pan handle is released.
