Side 1/2

1/2

BBV51918-01

03 - 2011

BBV5191801

Electrical equipment should be installed, operated, serviced, and maintained only by qualifed personnel. No responsibility

is assumed by Schneider Electric for any consequences arising out of the use of this product.

HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH

• Read and understand this manual and the manuals of the drive before installing this option.

• Installation must be performed by qualiﬁed personnel

• The user is responsible for compliance with all international and national electrical code requirements with respect

to grounding of all equipment.

• Many parts of this drive, including the printed circuit boards, operate at the line voltage. DO NOT TOUCH. Use only

electrically insulated tools.

• DO NOT touch unshielded components or terminal strip screw connections with voltage present.

• DO NOT short across braking resistor terminals or across the DC bus capacitors.

• Before servicing the drive:

- Disconnect all power, including external control power that may be present.

- Place a “DO NOT TURN ON” label on all power disconnects.

- Lock all power disconnects in the open position.

- WAIT 15 MINUTES to allow the DC bus capacitors to discharge.

- Measure the voltage of the DC bus between the PA/+ and PC/– terminals to ensure that the voltage is less than 42 Vdc.

- If the DC bus capacitors do not discharge completely, contact your local Schneider Electric representative. Do not repair

or operate the drive.

• Install and close all covers before applying power or starting and stopping the drive.

Failure to follow these instructions will result in death or serious injury.

DANGER

Altivar

VW3A7723, VW3A7724, VW3A7725

VW3A7723 100 32

VW3A7724

ATV12 F1, pppp

ATV12H018M2...ATV12HU15M2,

ATV12H018M3...ATV12HU15M3,

ATV12P037M2...ATV12P075M2,

ATV12P037M3...ATV12PU15M3,

ATV12HU22M2, ATV12HU22M3,

ATV12PU22M3

VW3A7725

100

ATV312HU30N4, HU40N4, HU40S6

40°C / 104°F

ATV312H018M2...H075M2, HU11M2, HU15M2

ATV312H018M3...H075M3, HU11M3, HU15M3

ATV312H037N4...H075N4

ATV312HU11N4...HU22N4,

ATV312H075S6

ATV312HU15S6, HU22S6

ATV312HU22M2, HU22M3, HU30M3

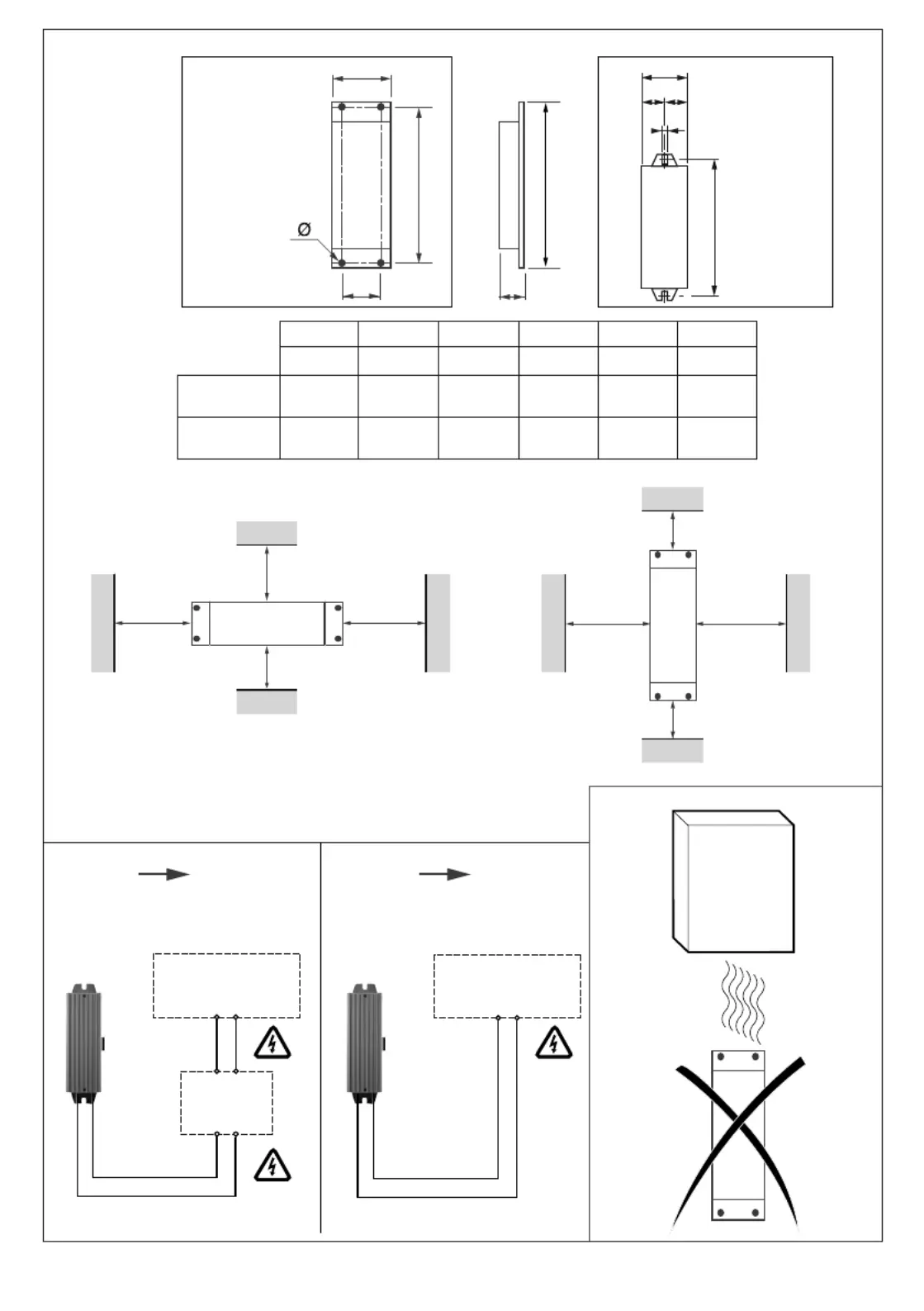

2/2

mm (in.) mm (in.) mm (in.) mm (in.) mm (in.) mm (in.)

VW3 A7 723

60 (2.36) 170 (6.69) 30 (1.18) 40 (1.57) 154 (6.06) 5 (0.20)

62 (2.44) 212 (8.35) 36 (1.42) _ 195 (7.68) 6 (0.24)

VW3 A7 724

VW3 A7 725

Ha b c G

u 50 mm

u 1.97 in

u 50 mm

u 1.97 in

u 100 mm

u 3.94 in

u 100 mm

u 3.94 in

ATV12

ATV312

u 100 mm

u 3.94 in

u 50 mm

u 1.97 in

u 100 mm

u 3.94 in

u 50 mm

u 1.97 in

ATV 312

ATV312

pppppp

PA/+

VW3A7005

ATV 12 pppppp

PA/+

PC/–

PA PB

–

VW3 A7 723

VW3 A7 724

VW3 A7 725

ATV12

VW3 A7 723

VW3 A7 724

VW3 A7 723 VW3 A7 725

VW3 A7 724

Produkt Specifikationer

Mærke:	Schneider
Kategori:	Ikke kategoriseret
Model:	VW3A7723
Bredde:	60 mm
Dybde:	30 mm
Højde:	170 mm
Strøm:	28 W
Certificering:	RoHS
Bæredygtighedscertifikater:	RoHS
Intern modstand:	100 ohm (Ω)
