Assembly Instructions

Page 1

Turo

Product Information

and Warnings

3440, 3441, 3442

Short Sconce,

Medium Sconce,

Long Sconce

IMPORTANT

Always disconnect the power before installing or replacing

Luminaires and before cleaning or other maintenance.

Consult a qualied, licensed electrician to ensure correct branch

circuit conductor.

Consulter un électricien qualié pour vous assurer que les

conducteurs de la dérivation sont adéquats.

Please read all included assembly instructions and warnings carefully

before installation. Contact Customer Service if you have any

questions or concerns. Before installation, please confirm that the

fixture is compatible with your supply voltage and dimming system,

if present.

LEDs are highly sensitive electronic devices, and must be treated

with care. Do not open any factory sealed compartments, and avoid

touching the LEDs with your hands or any object.

Although all our fixtures are equipped with protective devices,

LED electronic systems are vulnerable to power surges and supply

variations. Do not install LED fixtures on the same circuit as any

motors, appliances, or HVAC systems.

Do not remove or bypass any LED Driver or Transformer that is

provided with the fixture, and do not replace or substitute with

another power supply.

Fixtures must be wired in parallel on independent leads; do not

"daisy chain" multiple fixtures together or wire them in series.

All factory-made splices and connections must remain intact. LED

circuits are carefully designed and built, and improper connections

may damage the fixture.

The ends of coaxial pendant cords have been precisely stripped

and split at the factory and must not be field cut. Excess cord or

cable should be neatly coiled and reserved in the fixture canopy.

Any mounting hardware is provided for your convenience

and should be used with discretion. Always use the appropriate

hardware for the mounting surface.

Mounting without a canopy

using a remote driver

1. Shut o power to the branch circuit.

2. The power supply (D) must be installed in a remote and accessible location

near the xture (E) in accordance with local electrical code (Fig. 2). Make

appropriate connections:

a. Connect the power supply's live wire to the live supply wire.

b. Connect the power supply’s neutral wire to the neutral supply wire.

c. Connect the power supply’s positive (+) output wire to the necessary

length of red wire (not included) to reach the xture location.

d. Connect the power supply's negative (-) output wire to the necessary

length of black wire (not included) to reach the xture location.

3. Loosen set screws (A) and remove the xture mounting block (B).

4. Mount the xture mounting block (B) to the wall using drywall screws and

anchors (not included), or other hardware as appropriate. The center of the

mounting block is the center of your xture location, and where the low

voltage wires will come through.

5. Drill a small hole (F) at this xture location. and pull the xture's power leads

through the center hole of the mounting block.

6. Using the included connectors, connect the xture's positive (+) conductor

to the positive (red) low voltage wire and connect the xture's negative

(-) conductor to the negative (black) low voltage wire. Carefully store the

connectors in the mounting block.

7. Fit the xture (E) over the mounting block, then tighten the set screw (A) with

included Allen key to secure the xture in place.

8. Restore power to the branch circuit.

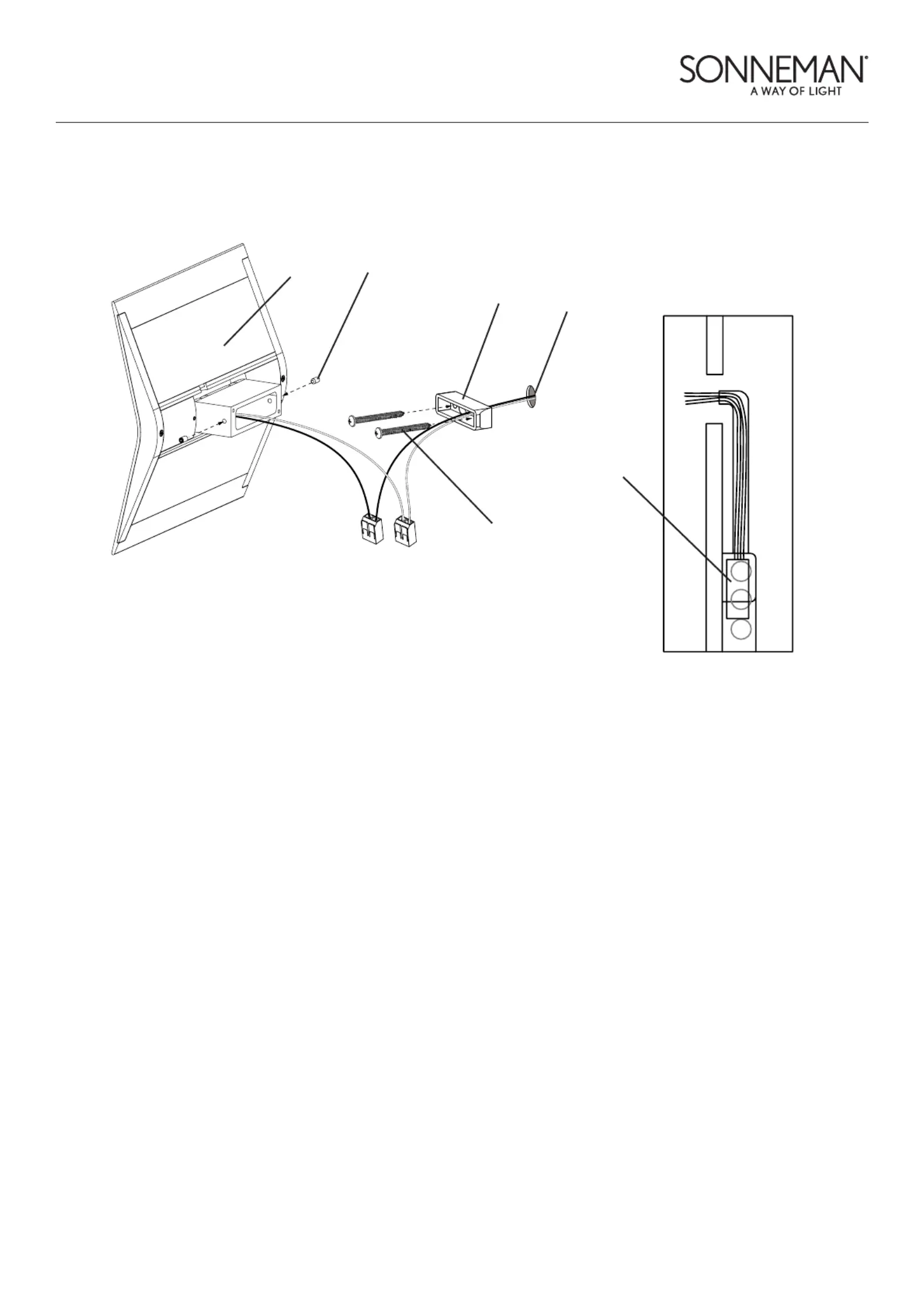

Fig. 2

Fig. 1

Assembly Instructions

Page 2

Care Instructions:

Use a clean, dry cloth when

dusting. To protect the nish,

avoid any harsh abrasives or

chemicals.

Note:

This xture is dimmable

with ELV (Trailing-Edge),

Incandescent (Leading-

Edge), and 0-10V type

dimmers only.
