Assembly Instructions

Lithe

Product Information

and Warnings

3463, 3464, 3466, 3468

3' Pendant

4' Pendant

6' Pendant

8' Pendant

IMPORTANT

Always disconnect the power before installing or replacing

Luminaires and before cleaning or other maintenance.

Consult a qualied, licensed electrician to ensure correct branch

circuit conductor.

Consulter un électricien qualié pour vous assurer que les

conducteurs de la dérivation sont adéquats.

Please read all included assembly instructions and warnings carefully

before installation. Contact Customer Service if you have any

questions or concerns. Before installation, please confirm that the

fixture is compatible with your supply voltage and dimming system,

if present.

LEDs are highly sensitive electronic devices, and must be treated

with care. Do not open any factory sealed compartments, and avoid

touching the LEDs with your hands or any object.

Although all our fixtures are equipped with protective devices,

LED electronic systems are vulnerable to power surges and supply

variations. Do not install LED fixtures on the same circuit as any

motors, appliances, or HVAC systems.

Do not remove or bypass any LED Driver or Transformer that is

provided with the fixture, and do not replace or substitute with

another power supply.

Fixtures must be wired in parallel on independent leads; do not

"daisy chain" multiple fixtures together or wire them in series.

All factory-made splices and connections must remain intact. LED

circuits are carefully designed and built, and improper connections

may damage the fixture.

The ends of coaxial pendant cords have been precisely stripped

and split at the factory and must not be field cut. Excess cord or

cable should be neatly coiled and reserved in the fixture canopy.

Any mounting hardware is provided for your convenience

and should be used with discretion. Always use the appropriate

hardware for the mounting surface.

Instructions D'Installation

Multiple U.S. and foreign patents pending.

Assembly Instructions

Adjust the steel cable to the desired height: To

shorten the cable, push the cable up and it will lock

automatically. To lengthen the cable, lift up on the

cable and push up on the plunger lock (H). While

keeping the plunger lock depressed, lower the

cable to the desired length. Release the plunger

lock to set.

6. Fit the canopy (G) over the mounting plate (B), tucking

the power supply, power cord, and any loose wires

inside. Use the two canopy screws (I) to fasten the

canopy to the mounting plate.

7. If necessary, make any nal adjustments to the

hanging length of the power cord and/or steel cable.

Once the position is nal, trim the steel cable where it

exits the cable hanger.

8. Restore power to the outlet box.

1. Shut o power to the outlet box (A).

2. Attach the mounting plate (B) to the outlet box (A)

with the outlet box screws (C).

3. Determine the location of the cable hanger (D) based

on the desired orientation of the xture and the

distance between the hanging points. Attach the

cable hanger base to the ceiling using appropriate

hardware. Screw the main body of the cable hanger

onto the base.

4. Make appropriate electrical connections to the power

supply (E) using wire nuts:

a. Connect the power supply’s live wire to the live

supply wire.

b. Connect the power supply’s neutral wire to the

neutral supply wire.

c. Connect the xture’s ground wire (green or

uncoated) to the ground supply wire. If no ground

wire is present in the outlet box, connect the

xture's ground wire to the mounting plate (B)

using the green screw (included).

5. Determine height at which the xture is to be hung.

a. Adjust the power cord to the desired length: Use

the screwdriver to loosen the slotted set screw (F).

Adjust length of power cord. Tighten the set screw

to set. Reserve extra cord in the canopy (G).

b. Insert the steel cable into the cable hanger (D).

Care Instructions:

Use a clean, dry cloth when dusting.

To protect the nish, avoid any harsh

abrasives or chemicals.

Note:

• This xture is dimmable with Electronic Low Voltage (Trailing-Edge)

type dimmers, Incandescent (Leading-Edge) type dimmers, and

0-10V type dimmers only.

(G)

(B)

(C)

(I)

(A)

(D)

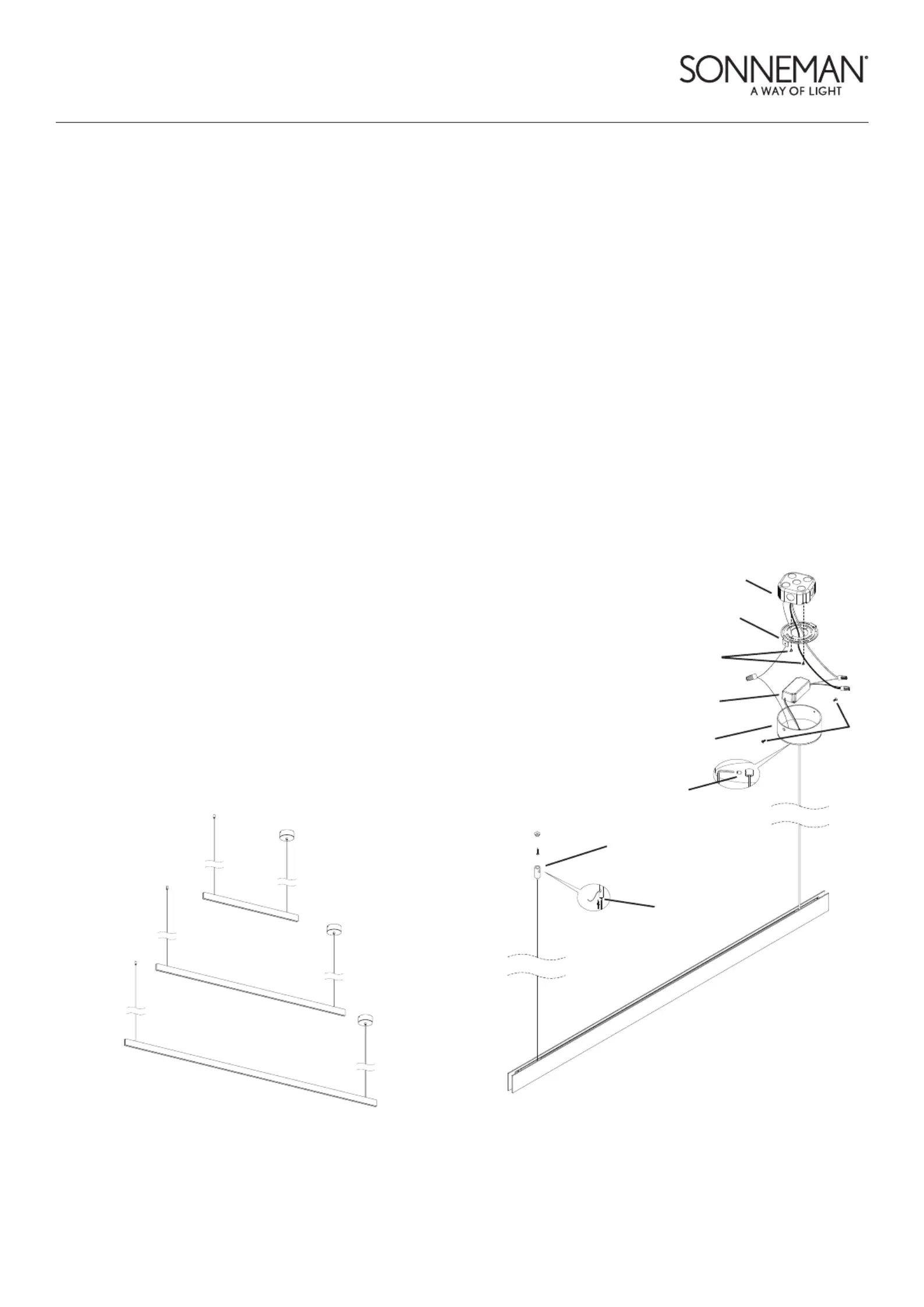

3466

(F)

(H)

(E)

3463

3468

3464
