Side 1/2

Assembly Instructions

Product Information

and Warnings

7520

Small Sconce

IMPORTANT

Always disconnect the power before installing or replacing

Luminaires and before cleaning or other maintenance.

Consult a qualied, licensed electrician to ensure correct branch

circuit conductor.

Consulter un électricien qualié pour vous assurer que les

conducteurs de la dérivation sont adéquats.

Please read all included assembly instructions and warnings carefully

before installation. Contact Customer Service if you have any

questions or concerns. Before installation, please confirm that the

fixture is compatible with your supply voltage and dimming system,

if present.

LEDs are highly sensitive electronic devices, and must be treated

with care. Do not open any factory sealed compartments, and avoid

touching the LEDs with your hands or any object.

Although all our fixtures are equipped with protective devices,

LED electronic systems are vulnerable to power surges and supply

variations. Do not install LED fixtures on the same circuit as any

motors, appliances, or HVAC systems.

Do not remove of bypass any LED Driver or Transformer that is

provided with the fixture, and do not replace or substitute with

another power supply.

Fixtures must be wired in parallel on independent leads; do not

"daisy chain" multiple fixtures together or wire them in series.

All factory-made splices and connections must remain intact. LED

circuits are carefully designed and built, and improper connections

may damage the fixture.

Any mounting hardware is provided for your convenience

and should be used with discretion. Always use the appropriate

hardware for the mounting surface.

Instructions D'Installation

Multiple U.S. and foreign patents pending.

Assembly Instructions

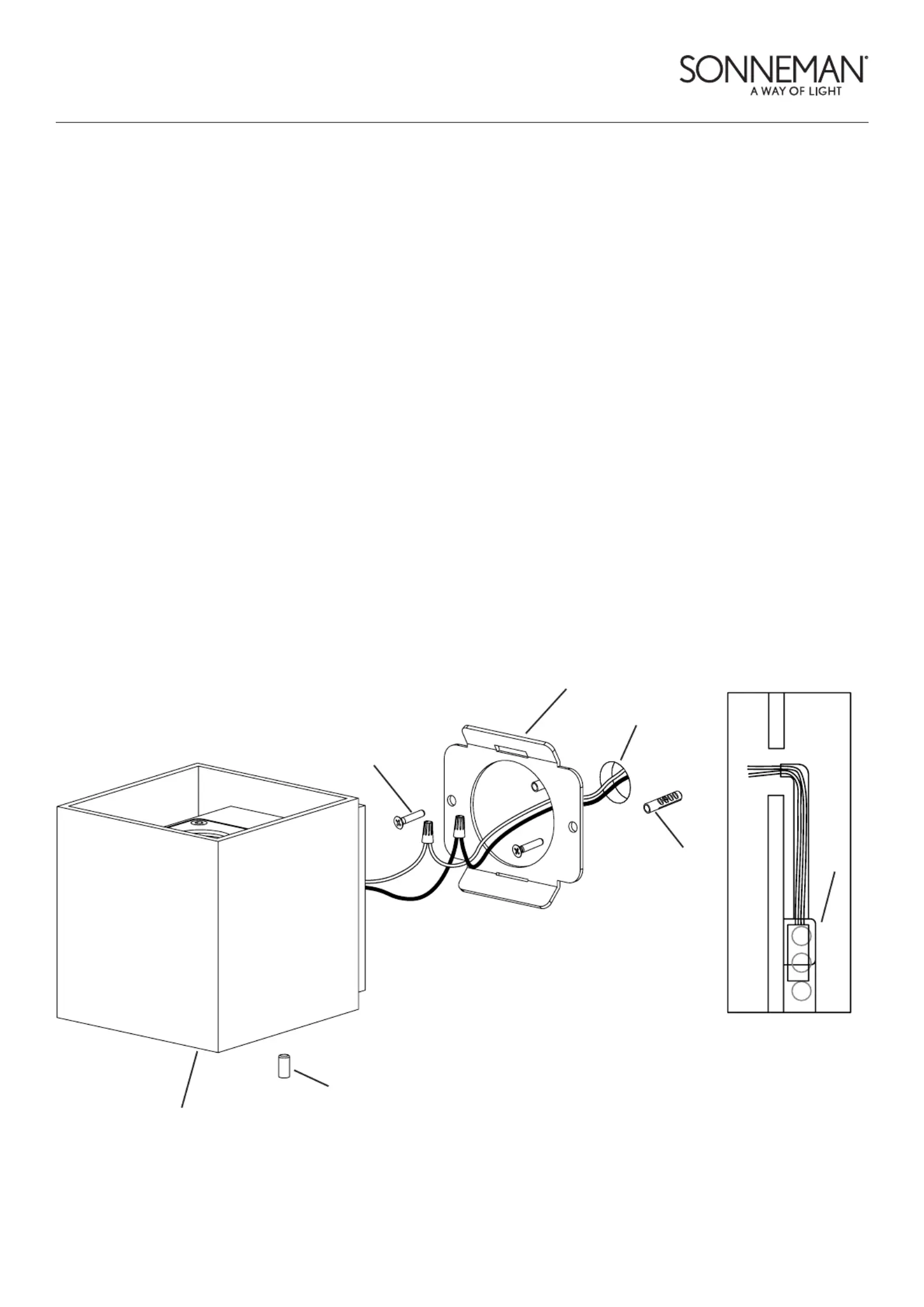

Fig. 1

Note: Fixture is for Remote Driver Installation only

1. Shut o power to the branch circuit.

2. The LED driver (A) must be installed in a remote and accessible location near the xture

in accordance with local electrical code.

a. Connect the LED driver’s live wire (black) to the live supply wire.

b. Connect the LED driver’s neutral wire (white) to the neutral supply wire.

c. Connect the LED driver's positive (+) output wire to the necessary length of red

wire (not included) to reach the xture (B) location.

d. Connect the LED driver's negative (-) output wire to the necessary length of black

wire (not included) to reach the xture location.

e. Drill a small 3/4" hole (C) in the wall behind the xture (B) and pull the low voltage

wires through the wall.

3. Attach the mounting plate (D) to the wall using mounting screws (F) and anchors (E).

For Wet Location Use: Fixture must be installed in the orientation shown and mounted

minimum 4' above the ground.

4. Connect xture red conductor to the LED driver positive (+) output wire and connect

the xture black conductor to the driver negative (-) output wire. Push connections back

through the hole in the wall.

5. Place xture over the mounting plate (D) and secure into place using set screws (G).

For Wet Location use: Place a small bead of silicone or waterproof caulk (not included)

around the perimeter of the xture (B) where it comes into contact with the wall.

6. Restore power to the xture.

Care Instructions:

Use a clean, dry cloth when dusting.

To protect the nish, avoid any harsh

abrasives or chemicals.

Note:

This xture is dimmable with Electronic Low Voltage

(Trailing-Edge), Incandescent (Leading-Edge), and 0-10V

type dimmers only.
