1.2 General advice
• Check if the contents of the package is umdamaged and complete.
• Remove the protection foil above the start button and the two LEDs.
• For cleaning the instrument please do not use an abrasive cleaner only a dry or
wet piece of soft cloth. Do not allow any liquid to the interior of the device.
• Please store the measuring instrument in a dry and clean place.
• Avoid any force like shocks or pressure to the instrument.
• No responsibility is taken for irregular or incomplete measuring values and their
results, the liability for subsequent damages is excluded!
• Do not use the device in an environment hotter than 85°C!
The lithium battery may explode!
• Do not expose the unsit to microwave radiantion. The lithium battery may explode!
1.4 Scope of delivery and usage
LOG32TH/LOG32T/LOG32THP series loggers are suitable for recording, alarm
tracking, and display of temperature, humidity*, dew point* (*only LOG32TH/THP) and
barometric pressure (only LOG32THP) measurements. Areas of application include
the monitoring of storage and transport conditions or other temperature, moisture
and / or pressure-sensitive processes. The logger has a built-in USB port can be
connected without cables to all Windows PCs. The USB port is protected by a
transparent plastic cap. The green LED ashes every 30 seconds during recording.
The red LED is used to display limit alarms or status messages (battery change ...
etc.). The logger also has an internal buzzer that supports the user interface.
1. Start button, 2. LED green, 3. LED red, 4. battery case, 5. USB-connector, 6. USB-
cover, 7. wall holder, 8. Slits ... this is where the sensor is located, 9. protective foil

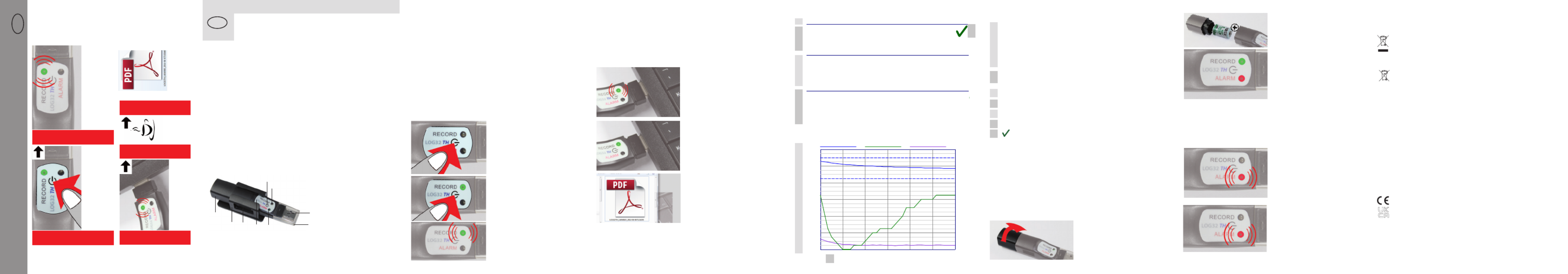

1.3 Overview see Fig.A
Press button for 2 seconds,
beeper sounds for 1 second
LED lights green for 2 sconds - logging
has started!
LED blinks green every 30 sec.
2. First Start & Begin Recording
1.6 Ready to use
The logger is already preset (see 5 default settings) and ready for start. It can be used
immediately without any software!
1.5 For your safety
This product is exclusively intended for the eld of application described above.
It should only be used as described within these instructions.
Unauthorized repairs, modications or changes to the product are prohibited.
2.1 Restart recording
see 2. The logger is started by default by button and stopped by USB port plug-in.
The measured values are plotted automatically to the PDF le.
NOTE: When you restart the existing PDF le is overwritten.
Important! Always secure the generated PDF les on your PC.
3. Stop recording / Create PDF
Connect logger to USB port.
Beeper sounds for 1 second. The
recording stops.
LED blinks green until result PDF is
created (can take up to 40 seconds).
Beeper sounds and LED stays green.
Logger is shown as removeable drive
LOG32TH/LOG32T/ LOG32THP.
View PDF and save.
PDF will be overwritten with next
log start!
5. Standard settings / Factory settings
Note the following default settings of the data logger before rst use. By using the
LogConnect* software, the setting parameter can easily be changed:
Interval: 5 min. LOG32TH/ LOG32THP, 15 min. LOG32T
Start possible by: Key press
Stop possible by: USB connect
Alarm: off
4. Description of PDF result le (see Fig. B)
X
A
Filename: e.g.
LOG32TH_14010001_2014_06_12T092900.DBF
LOG32TH: Device
14010001: Serial
2014_06_12: Start of recording (date)
T092900: time: (hhmmss)
Description: Log run info, edit with LogConnect* software
Conguration: preset parameters
Summary: Overview of measurement results
Graphics: Diagram of measured values
Signature: Sign PDF if required
:Measurement OK :Measurement failed
B
C
D
E
F
G
*
Download free LogConnect software:
www.dostmann-electronic.de/home.html ->Downloads ->
Software/<your logger>/Software/LogConnect_XXX.zip
(XXX choose latest version)
GB 1. Introduction
Thank you very much for purchasing one of our products. Before opera-
ting the data logger please read this manual carefully. You will get useful
information for understanding all functions.
Schnellstart mit Standardeinstellungen
Aufzeichnung starten.
Gedrückt halten bis
Signalton ertönt.
LED blinkt grün
(alle 30 Sek.)
Logger in USB port warten PDF anschauen
und sichern
1. 2.
3. 4. 5.
6. Battery replacement
Twist rear cap (about 10°),
the battery lid opens.
Remove empty battery and insert
new battery like shown.
Battery change ok:
both LEDs light for 1second, beep sounds.
7. Alarm signals
Logger in record mode
Beeper sounds once each 30 seconds for
1 second, red LED blinks each
3 seconds - measured values exceeds
selected measurement range
(not with standard settings).
Alarm limits can be changed using
LogConnect* software.
Technical changes, any errors and misprints reserved. Stand08_CHB2112
Logger in standby mode (not in record mode)
Red LED blinks once each 4 seconds.
Replace battery.
Red LED blinks twice or more
each 4 sconds. Hardware fault!
*
Download free LogConnect software:
www.dostmann-electronic.de/home.html ->Downloads ->Software/<your logger>/
Software/LogConnect_XXX.zip (XXX choose latest version)
NOTE: Check Logger status: Press start button for appr. 1 second. If the green
LED ashes twice the logger is recording! This procedure can be done as often as
you want.
1.1 Delivery contents
• Data logger LOG32 • Wall holder • Battery 3,6 Volt
• USB protection cap • 2x screws and dowels (already inserted)
ATTENTION! Please observe our battery recommendation strictly. Use only the battery
type LS 14250 3.6 volt of the manufacturer SAFT or DYNAMIS Lithium Batt. LI-110 1/2
AA/S, respectively only batteries authorized by the manufacturer.
5005-0170 / 5005-0172 / 5005-0173
LOG LOG32T /32TH /
LOG32THP
Bedienungsanleitung
Operating Instructions
Datenlogger für Temperatur, Feuchte und Druck* **
Data logger for
temperature, humidity
* ** and pressure
DOSTMANN electronic GmbH · Waldenbergweg 3b
D-97877 Wertheim · www.dostmann-electronic.de
*nur LOG32TH/LOG32THP / *only LOG32TH/LOG32THP
**nur LOG32THP / **only LOG32THP
9. Marking
only LOG32T
CE-conformity, EN 12830, EN 13485, Suitability for storage (S) and transportation
(T) for food storage and distribution (C), Accuracy classication 1 (-30..+70°C),
according to EN 13486 we recommend a recalibration once per year.
D
GB
This sign certies that the product meets the requirements of the
EEC directive and has been tested according to the specied test methods.
8. Waste disposal
This product and its packaging have been manufactured using high-grade materials and components which can be
recycled and reused. This reduces waste and protects the environment. Dispose of the packaging in an environ-
mentally friendly manner using the collection systems that have been set up.
Disposal of the electrical device: Remove non-permanently installed batteries and rechargeable batteries
from the device and dispose of them separately.
This product is labelled in accordance with the EU Waste Electrical and Electronic Equipment Directive
(WEEE). This product must not be disposed of in ordinary household waste. As a consumer, you are
required to take end-of-life devices to a designated collection point for the disposal of electrical and electronic
equipment, in order to ensure environmentally-compatible disposal. The return service is free of charge.
Observe the current regulations in place!
Disposal of the batteries: Batteries and rechargeable batteries must never be disposed of with household
waste. They contain pollutants such as heavy metals, which can be harmful to the environment and
human health if disposed of improperly, and valuable raw materials such as iron, zinc, manganese or
nickel that can be recovered from waste. As a consumer, you are legally obliged to hand in used batteries and
rechargeable batteries for environmentally friendly disposal at retailers or appropriate collection points in
accordance with national or local regulations. The return service is free of charge. You can obtain addresses of
suitable collection points from your city council or local authority. The names for the heavy metals contained are:
Cd = cadmium, Hg = mercury, Pb = lead. Reduce the generation of waste from batteries by using batteries with
a longer lifespan or suitable rechargeable batteries. Avoid littering the environment and do not leave batteries or
battery-containing electrical and electronic devices lying around carelessly. The separate collection and recycling
of batteries and rechargeable batteries make an important contribution to relieving the impact on the environment
and avoiding health risks.
WARNING! Damage to the environment and health through incorrect disposal of the batteries!
WARNING! Batteries containing lithium can explode
Batteries and rechargeable batteries containing lithium (Li=lithium) present a high risk of re and explosion due to
heat or mechanical damage with potentially serious consequences for people and the environment. Pay particular
attention to correct disposal.
