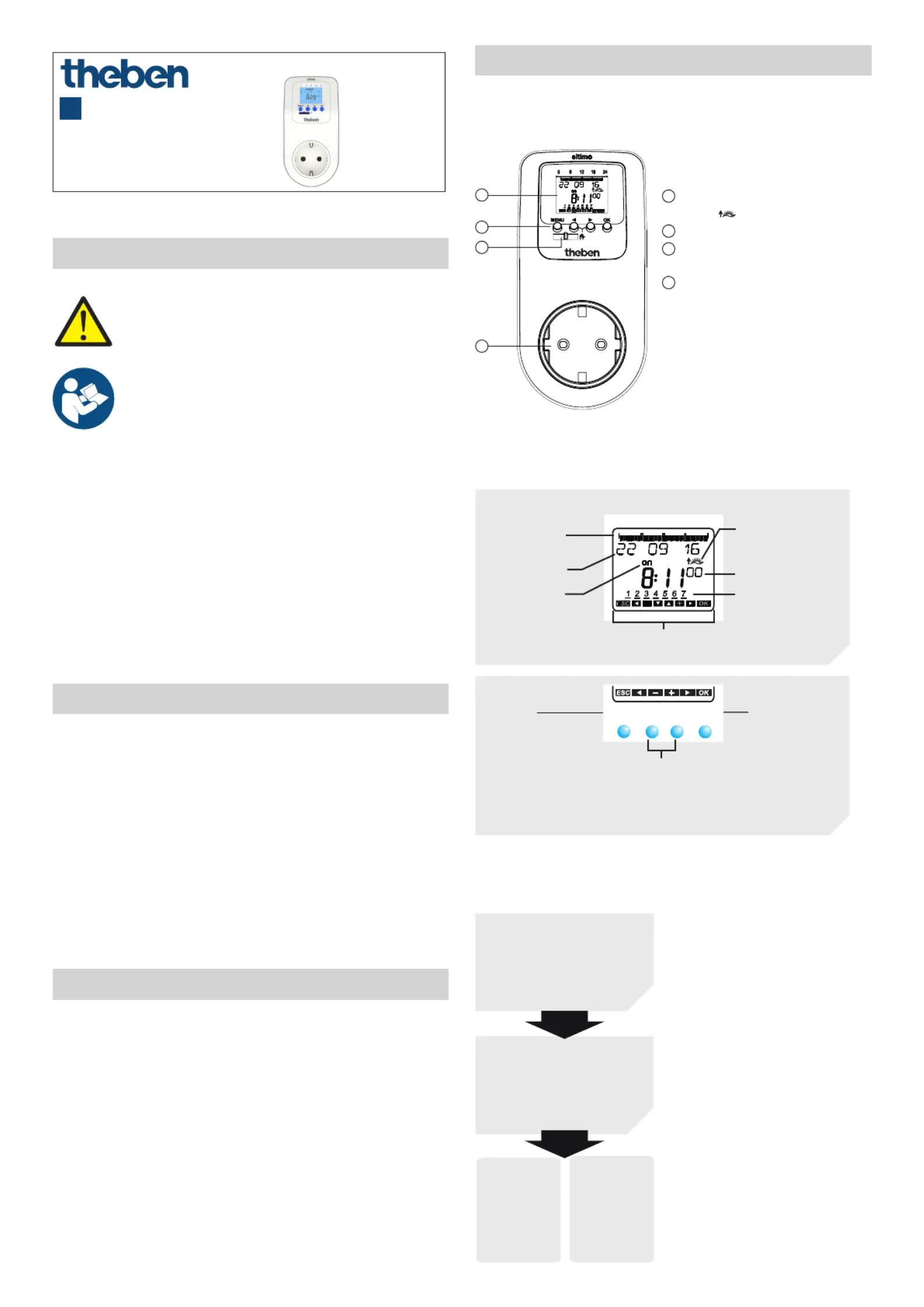

theben-eltimo 020 Astro top3
0200170
307610
08.02.2022
Digital plug-in
time switch
EN
To rule out the risk of electrical shock or re,
protect the time switch from moisture and heat!
Prior to start-up and using the product, read and
observe all the operating instructions.
!
Use a single mains socket (230 V~, 50 Hz, earthed) for the
power supply.
!
Do not plug time switches into each other.
•
The time switches conform to EN 60669-2-1 if correctly
installed and type 1 BSTU in accordance with IEC/
EN 60730-2-7.
•
Power reserve (6 years) is reduced when Bluetooth
OBELISK top3 is connected (in battery mode).
2. Proper use
•
This digital plug-in astro time switch with weekly pro-
gram is suitable for indoor use (oor lamp, aquarium,
Christmas lights, etc.)
•
Astronomical switch function (automatic calculation of
sunrise/sunset times for the whole year)
•
Interface for Bluetooth OBELISK top3 (+ app)
•
For earthed sockets (plug type F)
•
Only use in dry, enclosed rooms
!
Do not use on safety devices, e.g. escape route doors, re
safety equipment, etc.
3. Installation and connection
Plug the time switch into a 230 V earthed wall socket and
plug the selected device into the socket (F) on the time
switch.
4. Device description
Digital plug-in time switch
1
2
3
4
1
Display with date, time, week days,
astro ( ) etc.
4 buttons to operate the device
Interface for OBELISK top3 memory
card (9070130)
Socket F (and plug on the rear)
2
3
4
Display and buttons
0 6
12
18
24
MENU OK
OKMENU
Programmed
switching times
Date display
Channel status
On, Off
Time display
Sunrise/sunset
display
Days of the week
from 1 to 7
Display of the active buttons
with the relevant function
– Activate display
– Open menu
– Cancel menu
– ESC
(leave menu)
– Save selection
– Confirm selection
Options
are displayed
Operating instructions
YES
Confirmation
Press
OK
NO
Modify/
Change
Press
t u
1. Read text line
text/symbol
represents query
2. Make a decision
2
Overview of menu selection
ASTRO
MANUAL
PROGRAM
OPTIONS
TIME/DATE
END
MENU
u u u
ASTRO-
TIMES
TOTAL
SIMULATION
u
u
u
OFFSET
ASTRO-
MODE
LOCATION
END
NEW
CHECK
MODIFY
DELETE
TOTAL
SIMULATION
END
TIME
SET DATE
SU-WI
WEEK DAY
FORM DATE
FORM TIME
END
PERM ON
PERM OFF
OVERRI ON
TIMER
HOLIDAY
END
OPERATING
HOUR
LCD-ILLUMI-
NATION
LANGUAGE
FACTORY
SETTINGS
INFO
END
Initial start-up
GERMAN
GERMANY
RETAIN
PROGRAMS
STUTTGART
COUNTRY
FORM
DATE
MENU
u u u
ENGLISH
ITALIANO
u
u
u
NEDERLANDS
DELETE
PROGRAM
COORDINATES
ITALIA
NEDERLAND
SVERIGE
GREAT
BRITAIN
BERLIN
YEAR
BREMEN
MONTH
DRESDEN
DUESSELDORF
DAY
FORM TIME
HOUR
MINUTE
SUM-WI
EUROPE
28 10 21
ON
9:40
46
...
...
...
Set language, country, town/city, date, time as well as
summer/winter time (SO-WI).
Press any button and follow on-screen instructions (see
gure).
5. Settings and functions
ASTRO menu
In the ASTRO menu astro times, complete simulation, offset,
astromode as well as position (location) can be viewed or
changed.
•
Astro times
Display of the astro times (including the offsets) for the
current day
•
Total simulation
Display of the switching behaviour with a freely selecta-
ble Start date (the holiday program is not displayed)
•
Offset
The offset (adjustment value) can be used to shift cal-
culated astro times +/– 120 min. This enables the Astro
switch-on and switch-off times to be adapted to local
circumstances (e.g. mountains, high buildings etc.) or to
personal requirements.
