Side 1/5
1
theben-eltimo 020 top3
0200130
307610
08.02.2022
Digital plug-in
time switch
EN
To rule out the risk of electrical shock or re,
protect the time switch from moisture and heat!
Prior to start-up and using the product, read and
observe all the operating instructions.
!
Use a single mains socket (230 V~, 50 Hz, earthed) for the
power supply.
!
Do not plug time switches into each other.
•
The time switches conform to EN 60669-2-1 if correctly
installed and type 1 BSTU in accordance with IEC/
EN 60730-2-7.
•
Power reserve (6 years) is reduced when Bluetooth
OBELISK top3 is connected (in battery mode).
2. Proper use
•
This digital plug-in time switch with weekly program is
suitable for indoor use (oor lamp, aquarium, Christmas
lights, etc.)
•
Interface for Bluetooth OBELISK top3 (+ app)
•
For earthed sockets (plug type F)
•
Only use in dry, enclosed rooms
!
Do not use on safety devices, e.g. escape route doors, re
safety equipment, etc.
3. Installation and connection
Plug the time switch into a 230 V earthed wall socket and
plug the selected device into the socket (F) on the time
switch.

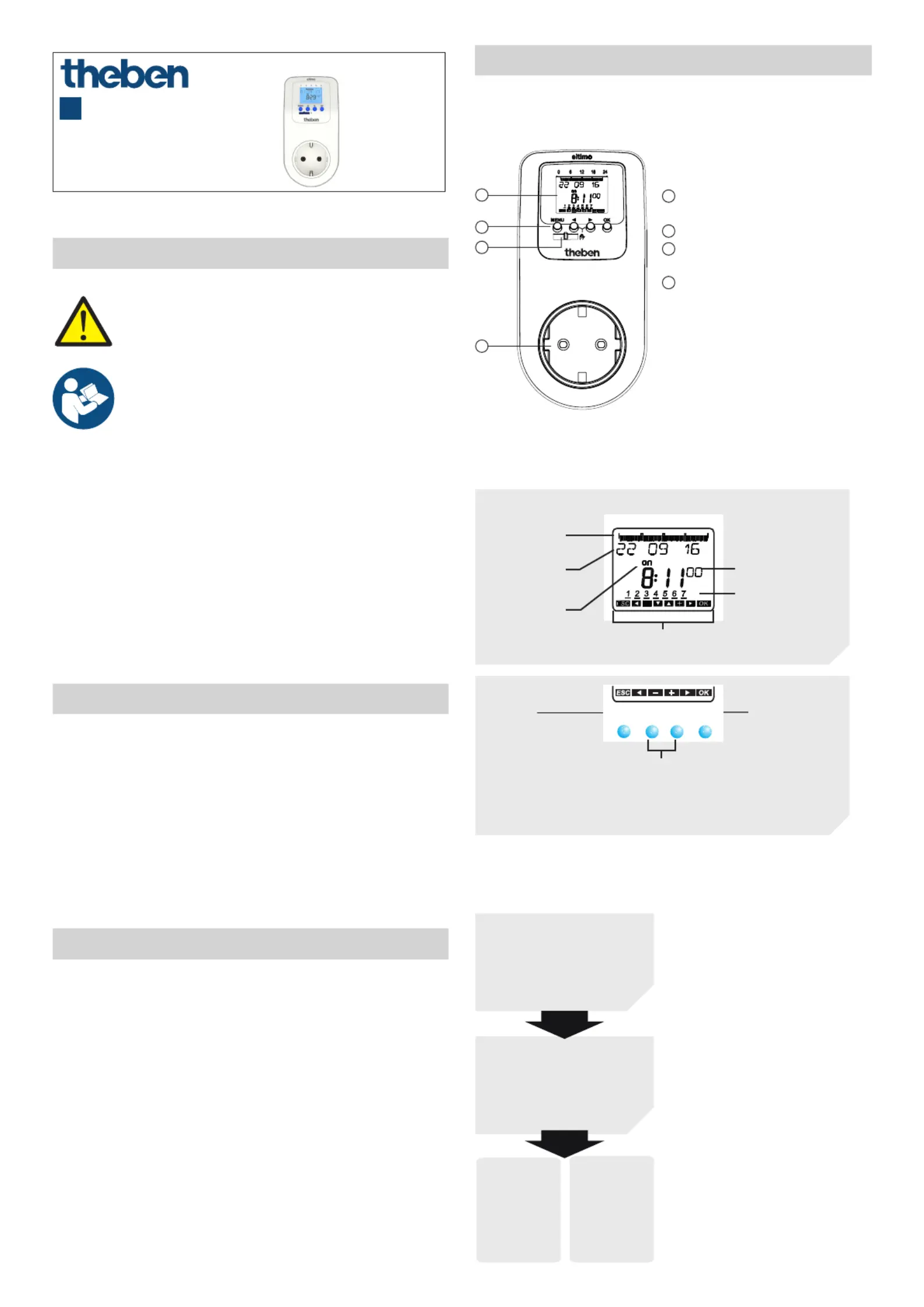

4. Device description
Digital plug-in time switch
1
2
3
4
1
Display with date, time, week days
etc.
4 buttons to operate the device
Interface for OBELISK top3 memory
card (9070130)
Socket F (and plug on the rear)
2
3
4
Display and buttons
0 6
12
18
24
MENU OK
OKMENU
Programmed
switching times
Date display
Channel status
On, Off
Time display
Days of the week
from 1 to 7
Display of the active buttons
with the relevant function
– Activate display
– Open menu
– Cancel menu
– ESC
(leave menu)
– Save selection
– Confirm selection
Options
are displayed
Operating instructions
YES
Confirmation
Press
OK
NO
Modify/
Change
Press
t u
1. Read text line
text/symbol
represents query
2. Make a decision
2
Overview of navigation menu
PROGRAM TIME/DATE MANUAL
OPTIONS
END
TIME
SET DATE
SU--WI
WEEK
DAY
FORM DATE
FORM TIME
END
OPERATING
HOUR
LCD ILLU-
MINATION
LANGUAGE
FACTORY
SETTINGS
INFO
END
MENU
PERM ON
PERM OFF
OVERR ON
HOLIDAY
u u
u u
NEW
CHECK
MODIFY
DELETE
END RANDOM
u
END
Initial operation
FORM DATE
DEUTSCH
ENGLISH
ITALIANO
YEAR
MONTH
DAY
FORM TIME
HOUR
MINUTE
SU-WI EUROPE
...
u
28 02 21
on
9:40
46
Set language, date, time as well as summer/winter time
(SU-WI).
Press any button and display follows on screen (see gure).
5. Settings and functions
Set switching time
same switching
time for
several days =
block
Switching
time for
one day
PROGRAM
MENU
NEW
CHECK
MODIFY
DELETE
END
MEM FREE
56
ON
HOUR
MINUTE
MONDAY
SAVE
COPY
ADD
TUESDAY
u
u
SAVE
u u
LA switching time always consists of a start time and an
end time.
LThere are 56 memory cells available.
Example: Switch on sports hall lighting from Mon–Fri, 7:30 to
12:00 hrs
Press MENU.
Select PROGRAM and press OK to conrm.
Select NEW and press OK to conrm.
Select ON (for turn-on time) or OFF (for turn-off time),
conrm with OK.
Set required turn-on time (Mo–Fr, 7:30), conrm with OK.
Select COPY, conrm with OK.
ADD TUESDAY is displayed, conrm by pressing OK and also
conrm the days We, Th, Fr by pressing OK.
Continue with until SAVE is displayed. u
Conrm by pressing OK.
Repeat all steps for the turn-off time, however instead of
selecting ON with select OFF and enter 12:00 for hour and u
minute.
Change switching times
MENU
PROGRAM
u
MONDAY
MODIFY
HOUR
MODIFY
MINUTE
MODIFY
SINGLE
DAY
MODIFY
BLOCK
NEW
CHECK
MODIFY
DELETE
u
u
LYou can either change or delete a block, i.e. a switching
time copied for several days (e.g. Mon-Fri) or a single
switching time.
