Universal Voice Coil and

70 Volt Door Speaker

V-5330120 / V-5330230

Installation Manual

2 947179

Your PagePac

Door Speaker

Note: The Door Phone

Controller and

PagePac 6 systems

require that a Voice

Coil Door Speaker be

used. The PagePac 6

Plus system requires a

70 Volt Door Speaker

be used. (Additional

speaker can be added

to controller and

paging systems

mentioned).

Your Door Speaker operates within a weather resistant enclosure ideal for indoor as well as

outdoor applications. When used in conjunction with the Door Phone Controller, PagePac 6,

or PagePac 6 Plus, persons within your office or building can speak directly with outside

visitors, through the telephone system. sBoth Voice Coil (V-5330120) and ffkfkjskgg kfgjkjgk

70 Volt (V-5330230) models are available.

Installation of double-gang electrical boxes, running of conduit, cutting through walls, etc.,

should be conducted by persons with appropriate technical skills; we highly recommended

installation be provided by a licensed electrician. Install per National Electrical Code and any

applicable local codes. This manual provides information for installing the Door Speaker to a

solid (surface mount) or nonsolid (flush mount) surface.

Note: For some wall

surfaces, such as

drywall, plastic wall

anchors may need to be

driven into the wall

surface to secure the

mounting screws.

The Door Speaker can be mounted to virtually any type of surface or wall. Those surfaces that

are too hard or difficult to cut through require the unit to be SURFACE MOUNTED (device

installed so it is completely external to the wall surface). Wall surfaces such as wood or

drywall often are hollow and allow wiring to be run within the wall. Mounting the Door

Speaker unit to non-solid surfaces is often preferred because the unit can be FLUSH

MOUNTED so only the faceplate is exposed. Refer to the following pages for both surface-

mount and flush-mount double-gang outlet box installations.

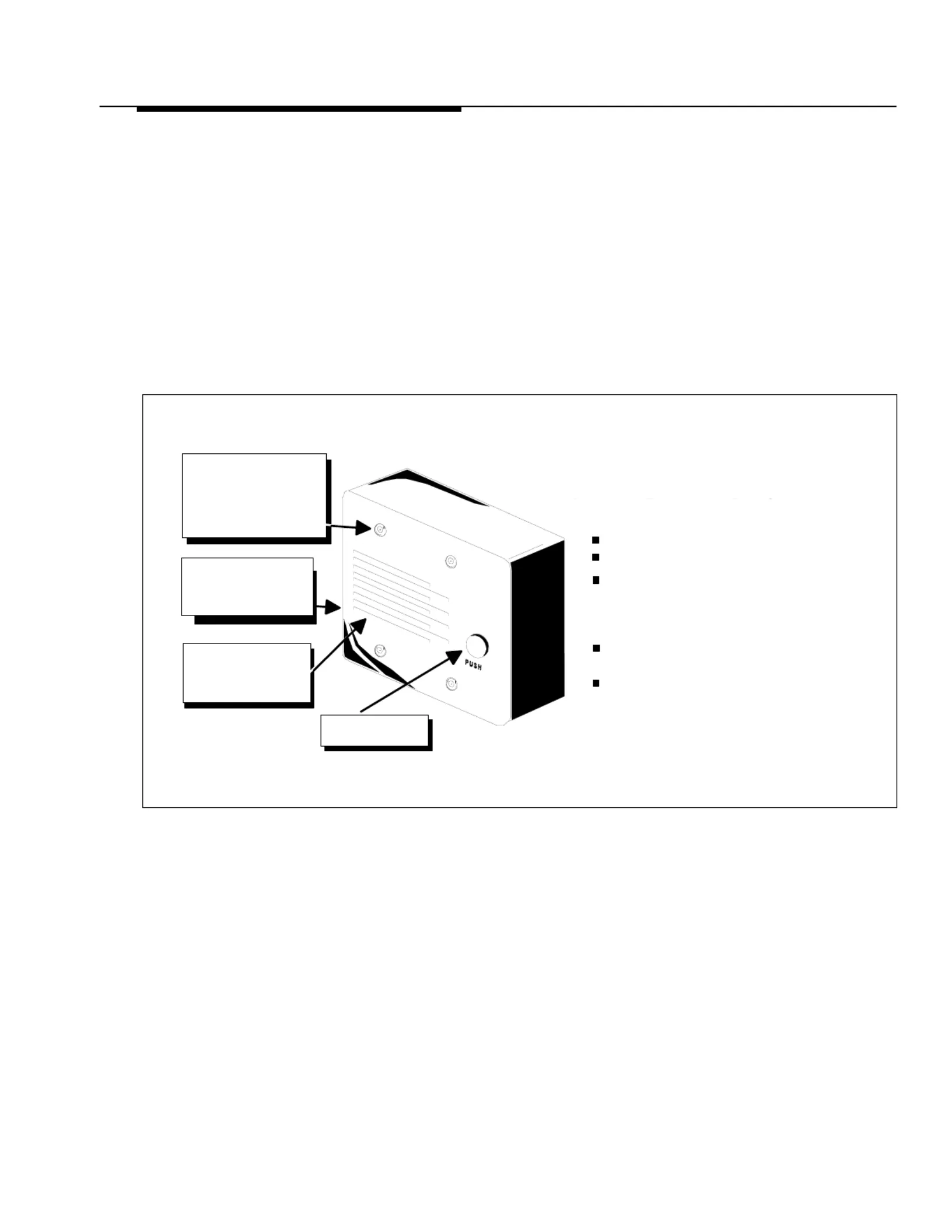

DURABLE STAINLESS STEEL

FACEPLATE WITH FOUR

TAMPER RESISTANT

SCREWS (A SPECIAL ALLEN

WRENCH IS INCLUDED FOR

INSTALLATION).

STRONG WEATHER

RESISTANT ENCLOSURE

TO MEET BUILDING AND

SAFETY CODES.

PUSH-BUTTON TO

INITIATE SIGNALING

INSIDE ENCLOSURE IS A

45 OHM (FOR VOICE-COIL

UNITS) OR 70 VOLT

SPEAKER

shipping box contains:

Door speaker unit

Faceplate (steel)

Weather resistant double-gang outdoor

electrical outlet box gasket, and surface

mounting hardware (screws and

brackets)

Tamper resistant (faceplate) mounting

screws (four) with driver tool

This instruction booklet

Your PagePac Door Speaker

Produkt Specifikationer

Mærke:	Valcom
Kategori:	Samtaleanlæg
Model:	V-5330120
Videoopkald:	Ingen
Skærm:	Ingen
Dimensioner (BxDxH):	120.7 x 6.35 x 120.7 mm
Højttalertelefon:	Ja
Kamera inkluderet:	Ingen
