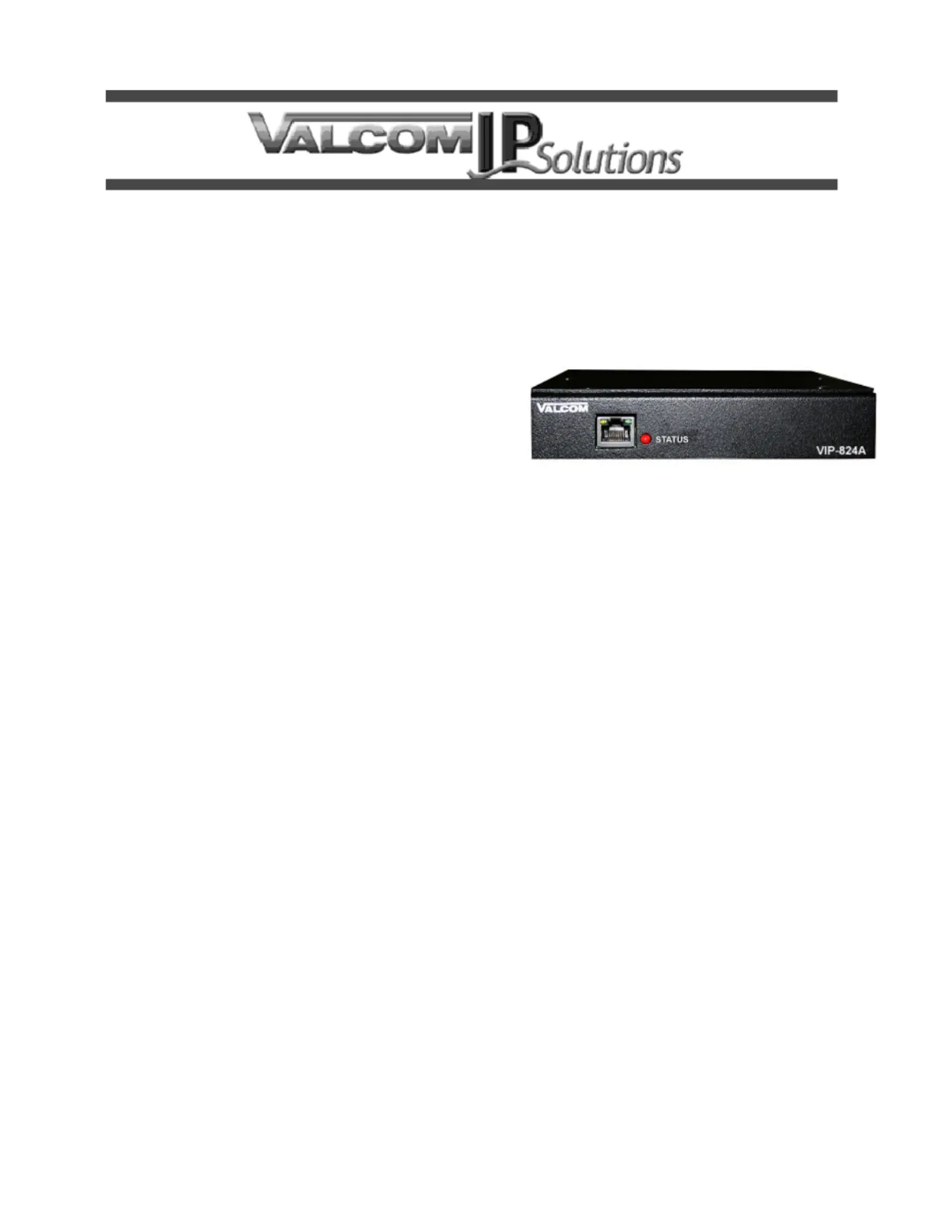

Side 1/4
1 947494
ISSUE 2
VIP- A 824
QUAD ENHANCED NETWORKED TRUNK PORT
INTRODUCTION
The VIP Networked Trunk -824 Quad Enhanced A
Port allows most loop start station ports to be
SIP - A connectivity allows the VIP 824 to act as a
gateway device between a SIP telephone system
and the other Valcom paging systems, such as the
MultiPath.
SPECIFICATIONS
Access Methods
• PBX, FXS Port
• SIP
Features
• - RJ 45 for network connection
• - 4 RJ 11 FXO connections
• - 4 RJ 11 failover telephone connections
• Decode Caller ID signals
• Front panel activity LED
• Network activity LEDs
• 2.5mm jack for DC power
• Power over Ethernet (PoE) 802.3af compatible
Dimensions/Weight
• 5.2 1.38 H x 6.13" W x 5" D
(3 0.5 cm H x 15.6 .3 cm W x 13 3cm D)
• 2 Weight: 1. 5 lbs. (0.57 kg)
Nominal Specifications
Input Impedance: 600 Ohms
Input Level: -10dBm
Output Impedance: 600 Ohms
Output Level: - 10dBm nominal
Nominal Power Requirements
Via back panel barrel connector:
Voltage: 24VDC
Current: 325mA
Via 802.3af PoE Ethernet Switch:
802.3af: Class 3
Environment
Temperature: 0 to +40° C
Humidity: 0 to 85% non - precipitating
INSTALLATION
NOTE: The telephone system referred to in this
manual is the customer premise equipment
such as an electronic key system, a PBX or a
dedicated single line telephone sets. The
VIP- A 824 is not intended for direct or indirect
connection to the public telephone network.
When used with a customer premise telephone
system such as a key system or PBX system,
these units are interfaced to the system via a
fully protected system central office port,
which is a fully protected interface device.
Also, the host system must be configured to
order to prevent indirect connection to the
public network.
2 947494
CAUTION: To reduce the risk of electric shock,
Do not remove cover.
No user serviceable parts inside.
Refer servicing to qualified service personnel.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
This symbol indicates that dangerous
voltage constituting a risk of electric
shock is present within this unit.
This symbol indicates that there are
important operating and maintenance
instructions in the literature accompanying
this unit.
Precautionary Designations
FCC Information
This equipment has been tested and found to
comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference when the equipment is operated in
a commercial environment. This equipment
generates, uses and can radiate radio
frequency energy and if not installed and used
in accordance with the instruction manual, may
cause harmful interference to radio
communications. Operation of this equipment
in a residential area may cause harmful
interference in which case the user will be
required to correct the interference at his own
expense.
Mounting
The VIP is designed for wall, table or rack -824A
mounting.
Table: Provided with the VIP are four rubber -824A
pads. Peel pads from their carrier backing and
place at the four corners of the bottom of the unit.
Wall: Using the template on last page of this
document, mark the location of the bracket screw
holes eep, on the wall. Drill 5/64" pilot holes, 3/4" d
at each screw location and use the wood screws
provided to attach the brackets to the wall. For
surfaces other than wood, use hardware
appropriate for the surface (not included). With the
brackets securely attached to the wall, attach the
VIP- A 824 to the brackets using the included
hardware. Figure 2 illustrates the bracket
assembly.

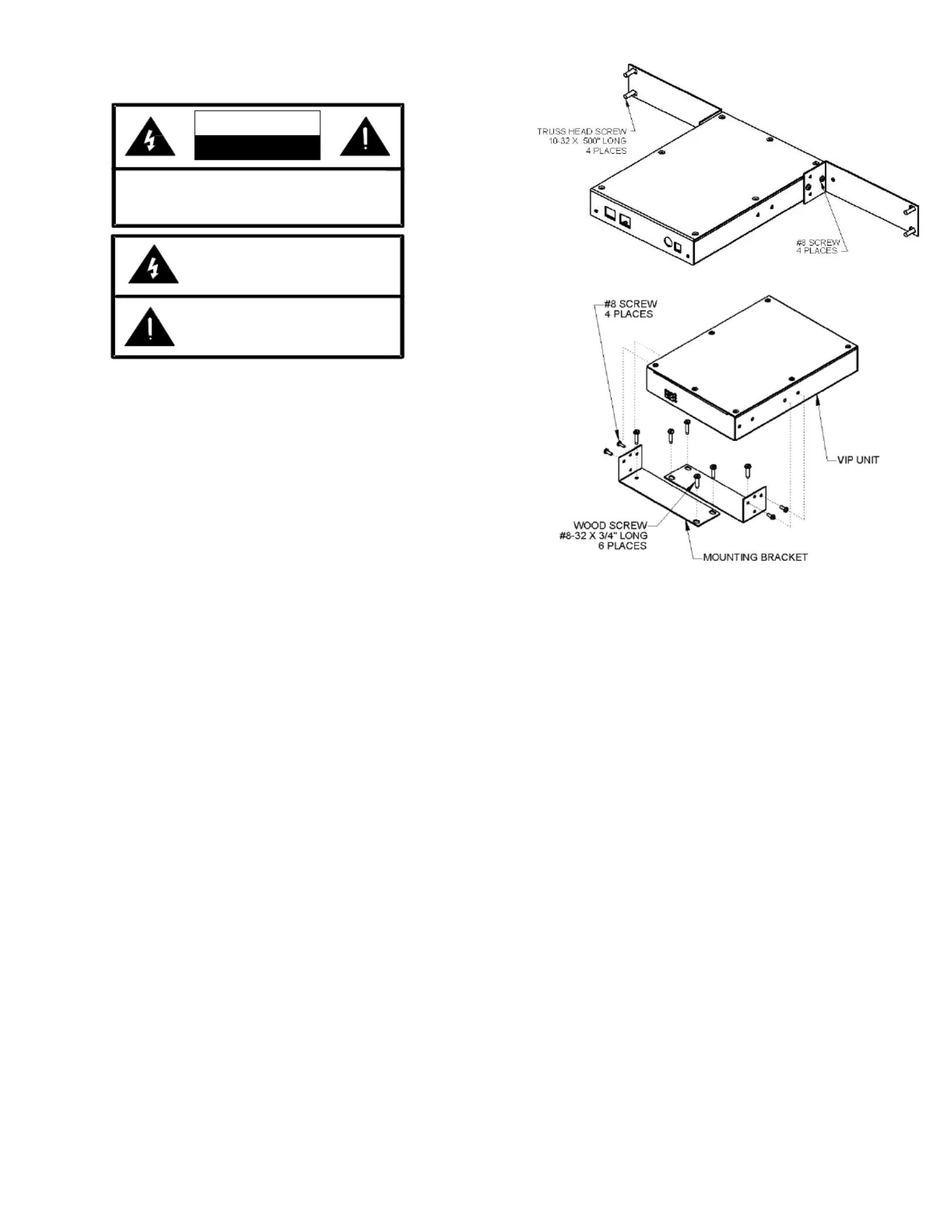

Rack: Following the assembly drawing, attach the
two mounting brackets to the VIP unit. Using -824A
rack screws, mount the VIP in an available -824A
1U rack slot. See Figure 1.
Figure 1
Power Connections
The preferred method of powering a VIP-824A is
via a Power over Ethernet (PoE) switch meeting
the 802.3af specification.
If the rear panel barrel connector is used for power,
the preferred power supply is a Valcom VIP-324D.
Make all required signal connections before
applying power to the unit. If powering via 802.3af,
make sure all signal connections via the back
panel are made then connect the VIP-824A to the
Ethernet switch.
If power is supplied via the barrel connector, make
sure all signal connections are secure. Attach the
unit to the network via the front panel RJ-45
Ethernet connector. Apply power by plugging the
power supply into the VIP via the barrel -824A
connector on the rear of the VIP-824A.
Network Connection
The VIP 45 network connector -824A has one -RJ
on the front panel.
Use a standard patch cable to connect the
VIP- A 824 to an Ethernet switch. If the Ethernet
switch is 802.3af compliant, the VIP-824A will draw
power from it.
