Side 1/3

1 947767

ISSUE 3

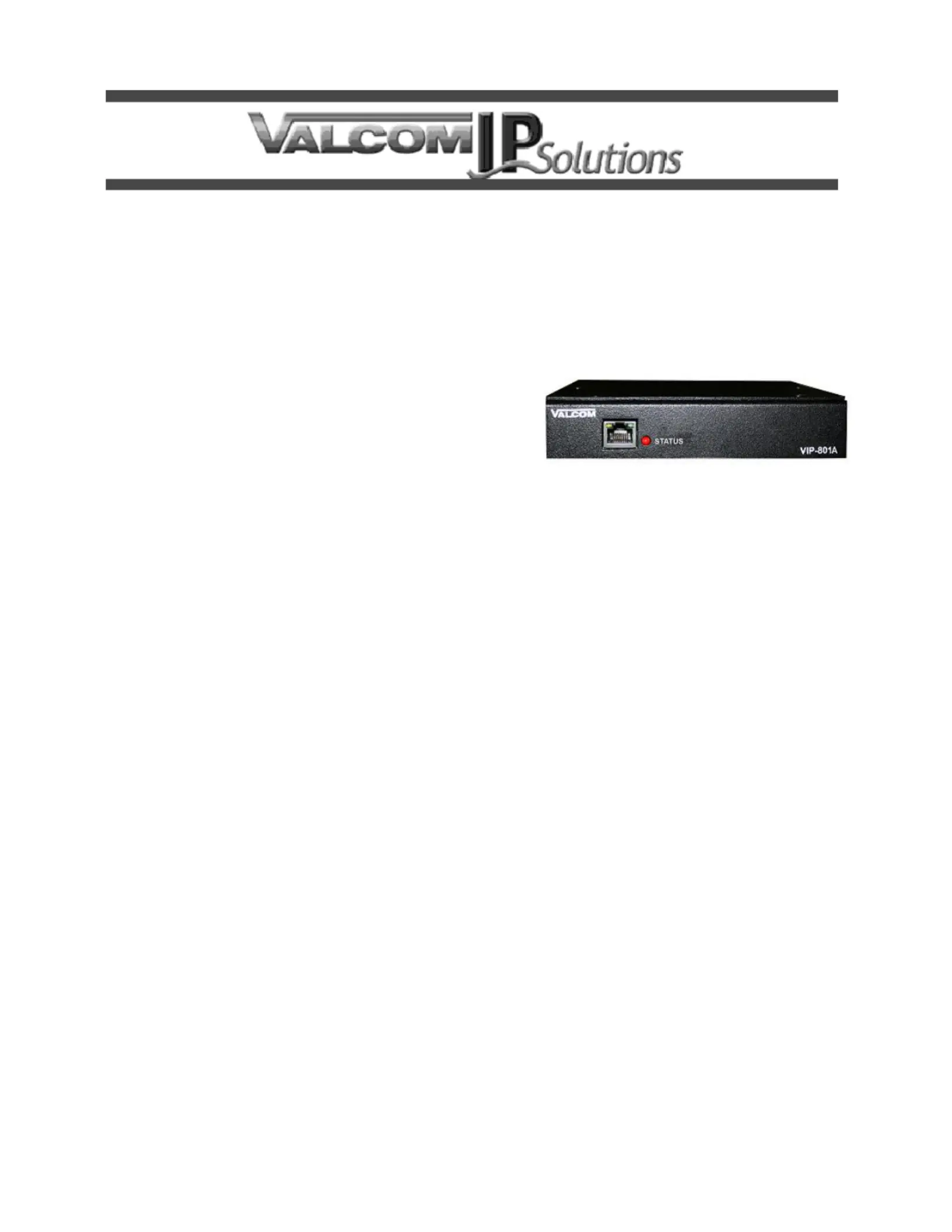

VIP- A, VIP-801A- 801 V4

NETWORK AUDIO PORT

INTRODUCTION

The VIP-801A and VIP-801A- Network Audio V4

Ports enable voice access to a single zone of one-

way paging over an IP network, allowing page

zones to be extended anywhere network

connectivity is available. The VIP-801A can be

programmed as a SIP (Session Initiation Protocol)

device for connectivity to virtually any Voice over IP

(VoIP) telephone system. Both models are identical

in t, form and function.

SPECIFICATIONS

Features

• 1 Audio Input

• 2 Audio Outputs

• 2 Form C Relays

• 1 Contact Closure Input

• 1 SIP identity for registering to a VoIP telephone

system

• - jack for network connection RJ 45

• Front panel activity LED

• Provides audio for up to 40 Valcom one-way

amplied speaker assemblies

• AUX audio input via RCA jack

• Contact closure or VOX operation of audio input

• Removable screw terminal connectors provided

for audio and relay interfaces

• AUX input audio mutes during page

• Output control contact closure provided during

paging output

• Compatible with - or 70-Volt ampliers 25

• Barrel jack for optional DC power

• Power over Ethernet (PoE) 802.3af compatible

Dimensions/Weight

• H x 6.13" W x 5.25" D 1.38”

(3.50cm H x 15.6cm W x 13.33cm D)

• Weight: 1.25 lbs. (0.57 kg)

Nominal Specications

Input Impedance: 600 Ohms

Input Level: -10dBm nominal

Voice Switch Sensitivity: -21dBm

AUX Input Impedance: 8 to 600 Ohms

AUX Input Level: -10dBm nominal

Output Impedance: 50 Ohms

Output Level: - 10dBm nominal

Relay Current: 1 Amp @ 24VDC

Nominal Power Requirements

Via rear panel barrel connector:

Voltage: 24VDC

Current: 3 mA 25

Via 802.3af PoE Ethernet Switch:

802.3af: Class 3

Environment

Temperature: 0 to +40° C

Humidity: 0 to 85% non-precipitating

2 947767

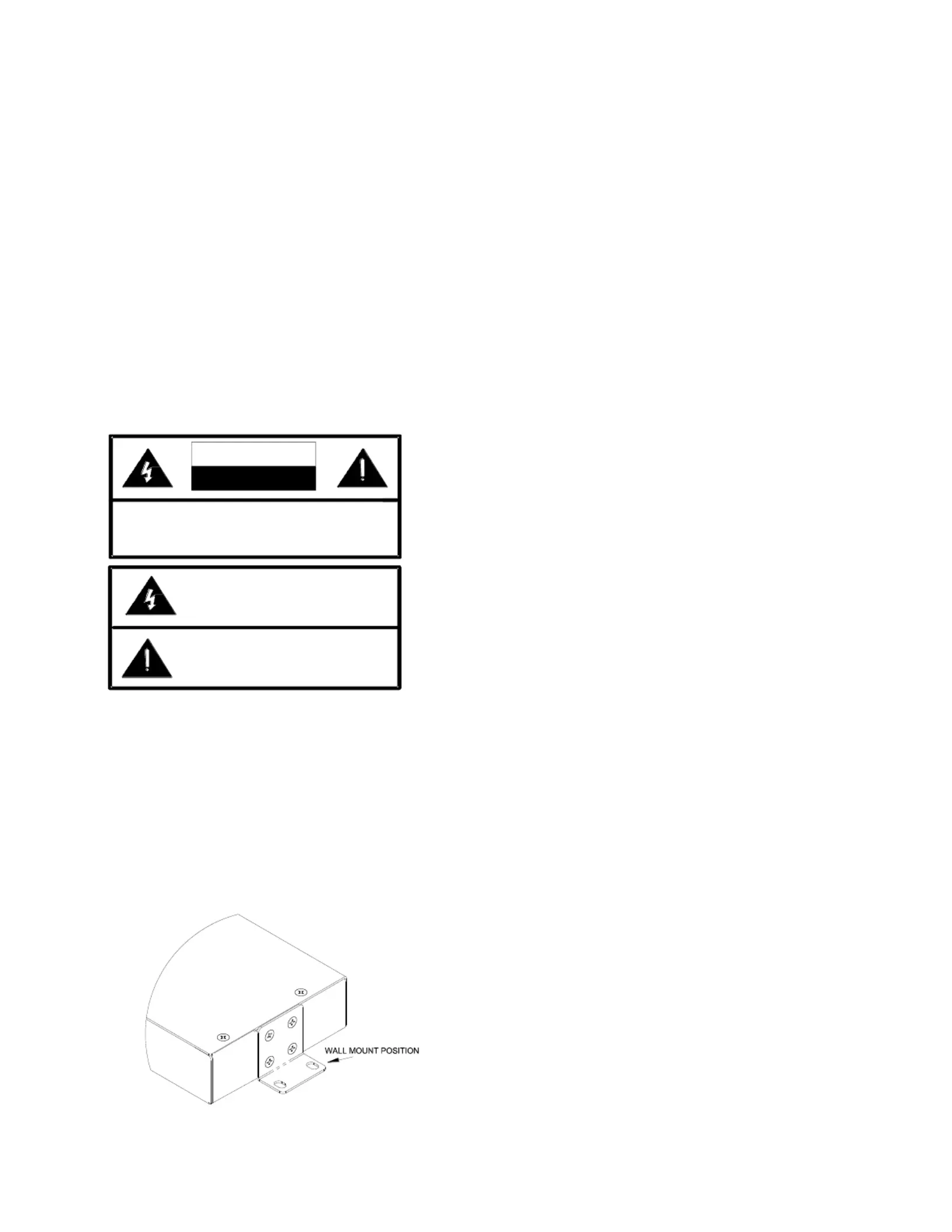

CAUTION: To reduce the risk of electric shock,

Do not remove cover.

No user serviceable parts inside.

Refer servicing to qualied service personnel.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

This symbol indicates that dangerous

voltage constituting a risk of electric

shock is present within this unit.

This symbol indicates that there are

important operating and maintenance

instructions in the literature accompanying

this unit.

INSTALLATION

FCC Information

This equipment has been tested and found to

comply with the limits for a Class A digital

device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable

protection against harmful interference when

the equipment is operated in a commercial

environment. This equipment generates, uses

and can radiate radio frequency energy and if

not installed and used in accordance with the

instruction manual, may cause harmful

interference to radio communications.

Operation of this equipment in a residential area

may cause harmful interference in which case

the user will be required to correct the

interference at his own expense.

Precautionary Designations

Mounting

The VIP-801A is designed for wall or table

mounting.

Table: Provided with the VIP- A are four rubber 801

pads. Peel the pads from their carrier backing

and place at the four corners of the bottom of the

unit.

Wall: Using the brackets and screws provided,

secure the VIP- A to the wall. 801

Power Connections

The preferred method of powering a VIP- A is 801

via a Power over Ethernet (PoE)

switch meeting the 802.3af specication.

If the rear panel barrel connector is used for power,

the preferred power supply is a Valcom VIP-324D.

Make all required signal connections before

applying power to the unit. If powering via 802.3af,

make sure all signal connections via the back panel

are made then connect the VIP-801A to the

Ethernet switch.

If power is supplied via the barrel connector, make

sure all signal connections are secure. Attach the

unit to the network via the front panel RJ-45

Ethernet connector. Apply power by plugging the

power supply into the VIP-801A via the barrel

connector on the rear of the VIP-801A.

Network Connection

The VIP-801A has one RJ-45 network connector on

the front panel. Use a standard Ethernet patch

cable to connect the VIP-801A to an Ethernet

switch.

Signal Connections

The VIP-801A has signal connectors on the rear

panel:

• RCA jack for AUX audio input

• Audio outputs (Page & Aux) 2

• 2 F m relays or C

• 1 Audio input

• Contact Closure input 1

AUX Input: Local audio may be input via the

rear panel RCA jack. Nominal input impedance

is 600 Ohms. Connect any compatible audio

source using an RCA patch cable. Audio

supplied through the rear panel RCA jack is

transformer coupled to both Audio Out terminals

when paging idle. This is typically used for is

background music.

Audio Out: Two audio output connections are

provided. The terminals labeled “P ” provide a AGE

signal output compatible with Valcom self-amplied

speakers. Up to 40 Valcom speakers can be

connected to the Page output. The terminals

labeled “AUX” provide a signal output compatible

with most ampliers and should be used where a

transformer-coupled output is desired.
