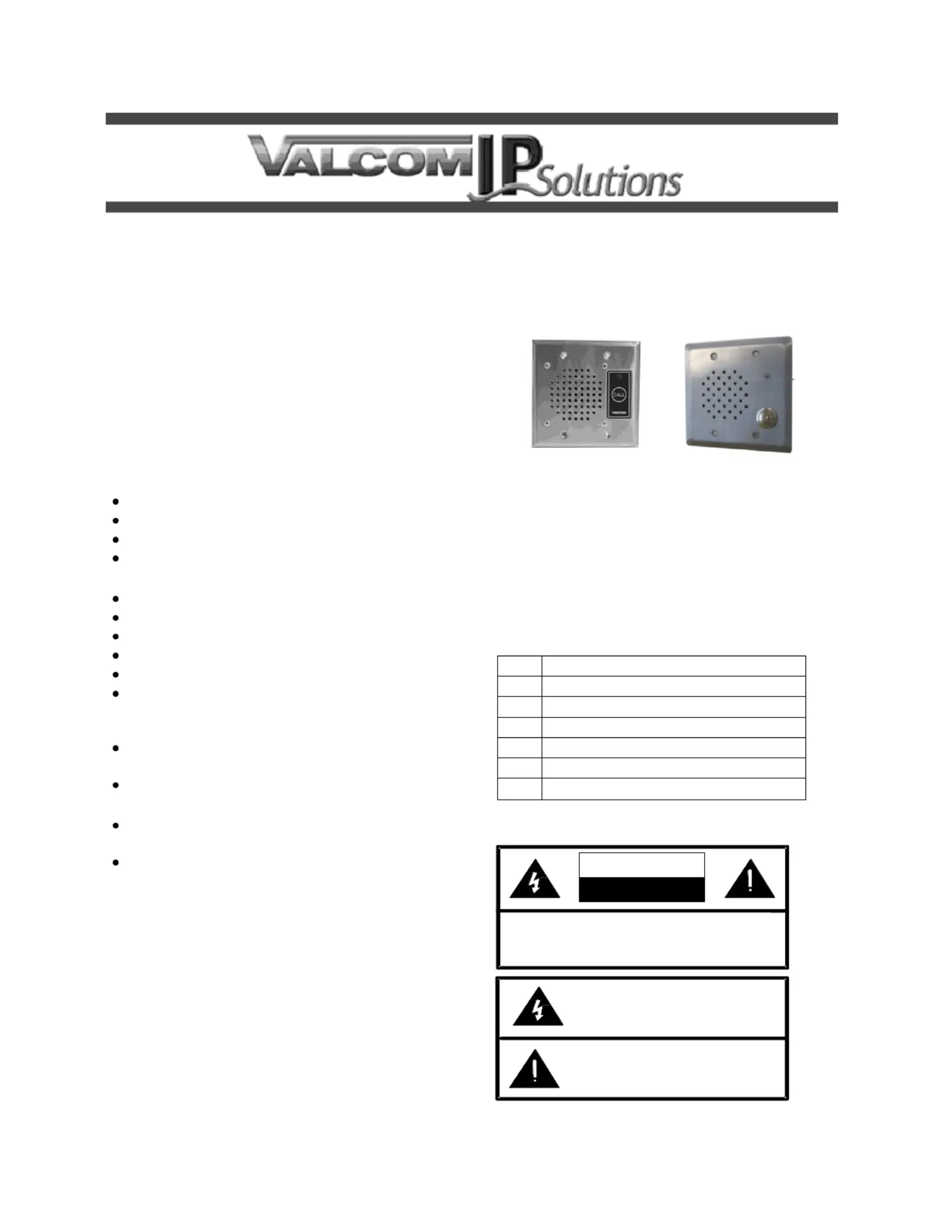

Side 1/3

1 947632

CAUTION: To reduce the risk of electric shock,

Do not remove cover.

No user serviceable parts inside.

Refer servicing to qualied service personnel.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

This symbol indicates that dangerous

voltage constituting a risk of electric

shock is present within this unit.

This symbol indicates that there are

important operating and maintenance

instructions in the literature accompanying

this unit.

ISSUE 5

VIP-172L IP DoorPhone/Intercom

INTRODUCTION

The VIP-172L IP Talkback Doorphone/Intercom

allows communication to Valcom FXS units

(VIP-811 -812, -814) and SIP Based telephone ,

systems via a managed IP-based LAN/WAN.

SPECIFICATIONS

Access Methods

PBX, FXO Port w/VIP-811

POTS telephone set w/VIP- 811

Valcom M Cast Page Group

SIP enabled telephone system –

Features

-45 for network connection RJ

1 Form C contact

LED Status Indicator

Network activity LEDs

802.3af compliant

Door Opening Contact Provided

Dimensions/Weight V- -172L VR

H x 4.5" W x 1.75" D 4.5”

(11.43cm H x 11.43cm W x cm D) 4.45

Weight: 1.68 lbs. (0.76 kg)

Dimensions/Weight V- -BR/ST 172L

4.5” H x 4.5" W x 1.3" D

(11.43cm H x 11.43cm W x 3.3cm D)

Weight: .55 lbs. (0.25 kg)

Nominal Specications

Input Impedance: 600 Ohms

Input Level: -10dBm

Output Impedance: 600 Ohms

Output Level: -10dBm nominal

Relay Current: 1 AMP @ 24VDC

Nominal Power Requirements

Via 802.3af PoE Ethernet Switch: Class 3

(12.95W)

VIP- -BRASS/SS 172L VIP-172L- VRSS

Environment

VIP-172L Network Interface

Temperature: 0 to +40° C

Humidity: 0 to 85% non-precipitating

VIP-172L Doorplate:

Suitable for indoor or outdoor installation

Packing List

Qty

Item

VIP-172L Network Interface

VIP-172L Door plate

VSP Document

Tamper Hardware (VR unit only) SS

SS Screws (Brass/SS)

Setup CD

Precautionary Designations

2 947632

FCC Information

This equipment has been tested and found to

comply with the limits for a Class A digital

device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide

reasonable protection against harmful

interference when the equipment is operated

in a commercial environment. This

equipment generates, uses and can radiate

radio frequency energy and if not installed

and used in accordance with the instruction

manual, may cause harmful interference to

radio communications. Operation of this

equipment in a residential area may cause

harmful interference in which case the user

will be required to correct the interference at

his own expense.

INSTALLATION

Operation:

The VIP-172L provides door intercom access via

network connection to customer telephone

system or stand alone telephone set. Interface to

customer telephone system can be via SIP

registration or FXO port (with VIP-811). Pressing

the call button on the door plate initiates a call to

one of the above telephone system interfaces,

and the call assurance LED on the door plate

begins to ash. When the call is answered, a

hands-free communications path is established to

the door plate, and the call assurance LED on the

door plate changes to solid. At any time during

the call if the # key is pressed, the form C relay

on the door plate operates for 3 seconds for

activation of customer supplied door entry

equipment.

Mounting

For enhanced protection against static

electrical discharge, it is recommended the

faceplate shipped with the VIP-172L be

installed into a grounded electrical box.

The VIP-172L Doorplate is designed for double

gang FD electrical box mounting and must be

within 300 meters of the VIP-172L Network

Interface. See NEMA OS 3-2002 sec.1.2.3.5 for

FD box specications.

The VIP-172L Network Interface is designed for

wall or table mounting and must be within 100

meters of the network switch.

Table: Provided with the VIP-172L are four

rubber stick on feet. Peel these feet o their

carrier backing and place at the four corners of

the bottom of the unit.

Wall: Using the template and wood screws

provided, secure the VIP-172L Network interface

to the wall.

Power Connections

The only method of powering a VIP-172L

Network Interface is via a power over Ethernet

switch or power injector meeting the 802.3af

specication .

Make all required signal connections before

connecting to Ethernet switch or power injector

meeting the 802.3af specication.

Network Connection

The VIP-172L Network Interface has one CAT-5

RJ-4 NETWORK connector and one CAT-5 5

RJ- DOOR PLATE connector on the front 45

panel.

Use the supplied CAT-5 patch cable to connect

the NETWORK connector of the VIP-172L

Network Interface to an Ethernet switch.

Signal Connections

Connect CAT-5 RJ-45 using EIA/TIA 568B

Standard to the DOOR PLATE connector of the

VIP-172L Network Interface then to the RJ-45

connector of the VIP-172L Door Plate.

Door Relay Connections

Access to the form C relay is provided via a three

pin screw terminal block on the VIP-172L Door

plate. The common contact is the middle

terminal with the normally open contact closest to

the RJ-45 Connector. Normally closed contact is

furthest from the RJ-45 connector. Relay contacts

are rated for 1A @ 24VDC.

Aux I nput

Aux input on the VIP-172L Network Interface

accepts line level audio such as background

music and broadcasts it through the door plate

speaker. When the call button is pressed, the aux

input is muted and remains muted until the call is

terminated.

Status Indicator Lights

The V -172L Door plate is equipped with a IP

status indicator LED. LED ashes when the call

button is pressed and steady when the call is

connected.

The VIP-172L Network Interface has 3 status

indication lights on the side panel:

Produkt Specifikationer

Mærke:	Valcom
Kategori:	Samtaleanlæg
Model:	VIP-172L
Produktfarve:	Rustfrit stål
Videoopkald:	Ingen
Husmateriale:	Rustfrit stål
Dimensioner (BxDxH):	114.3 x 33 x 114.3 mm
Certificering:	IETF SIP (RFC3261)\r\nIETF IGMP version 3 (RFC3376)\r\nIETF RTP (RFC1889)\r\nIETF RFC2833
Højttalertelefon:	Ja
Tastaturbelysning:	Ingen
Antal knapper:	1
Kompatible produkter:	PoE: 802.3af, class 3
Kamera inkluderet:	Ingen
DECT kan tilsluttes:	Ingen
Moduler, antal (maks.):	1 modul(er)
IP-tilslutning:	Ja
Overførsel til eksterne numre:	Ingen
