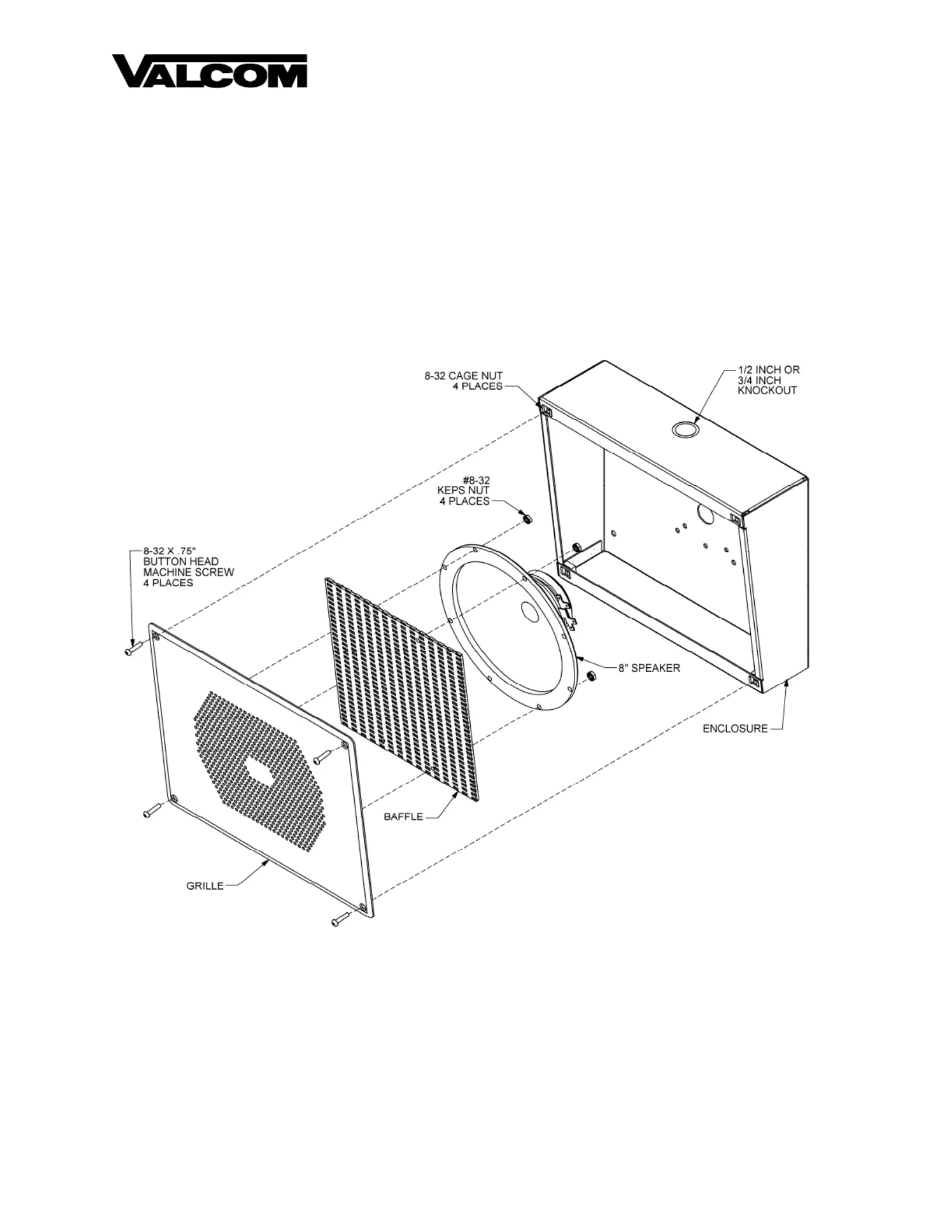

V-9807 Vandal-Resistant 8” Wall Speaker Enclosure

V-9852 Vandal-Resistant 8” Wall Speaker One-Way

V-9871 Vandal-Resistant 8” Wall Speaker Talkback

Installation Guide

DIMENSIONS/WEIGHT

 10.00"H x 12.25"W x 4.00"D

(25.4cm H x 31.12cm W x 10.16cm D)

 7.0 lbs. (3.2 kg) without Speaker (V-9807)

 8.35 lbs. (3.8 kg) with Speaker (V-9852 and

V-9871)

2 947666

INSTALLATION

Remove the wall speaker enclosure from the

packing container. Using a Phillips screwdriver,

remove the two screws securing the grille to the

enclosure. Remove the grille and remove any

hardware packed inside the enclosure.

Pre-drilled 13/64

” mounting holes in the back of

the enclosure are designed to fit a single gang,

double gang or octagon outlet box. If not

attaching to an outlet box, use the enclosure as

a template. Hold the enclosure in the desired

position on the wall and mark the location of

mounting holes. Depending on wall construction

type, prepare the mounting hole locations on the

wall to securely attach the enclosure.

Wiring may be inserted through the large hole in

the back of the enclosure, or through the

knockout hole in the top of the enclosure. Insert

audio wires and power wires (if needed) through

desired hole. Use mounting hardware (not

included) appropriate for the wall type to

securely mount the enclosure to the wall.

Model V-9807 does not include a speaker.

Mounting studs and nuts are provided on the

back of the grille/baffle assembly to securely

attach any Valcom 8” speaker. Remove the four

nuts from the studs, align speaker mounting

holes on the studs, then install and securely

tighten the nuts.

For model V-9852, connect the audio wires to

the TIP and RING terminals on the speaker.

Connect the power wires to the -24V and GND

power terminals. Adjust the speaker volume

using volume control R4 (on the circuit board).

For model V-9871, connect the audio wires to

the tip and ring terminals on the speaker.

For model V-9807, make audio and power

connections as necessary for the type of

speaker used.

Align the grille/speaker assembly with the

enclosure. Install the four supplied tamper-

resistant screws through the grille into the

enclosure. Use the supplied security hex bit to

tighten the screws securely.

TECHNICAL ASSISTANCE

Assistance is available from the factory when

problems are encountered. Call (540) 563-2000

and press 1 for Technical Support or visit our

website at http://www.valcom.com.

Valcom equipment is not field repairable.

Valcom, Inc. maintains service facilities in

Roanoke, VA. Should repairs be necessary,

attach a tag to the unit clearly stating company

name, address, phone number, contact person

and the nature of the problem. Send the unit to:

Valcom, Inc.

Repair and Return Dept.

5614 Hollins Road

Roanoke, VA 24019-5056

VALCOM LIMITED WARRANTY

Valcom, Inc. warrants its products only to the original purchaser, for its own use, to be free from defects in materials and workmanship under

conditions of normal use and service for a period of one year from the date of shipment. This Limited Warranty obligation shall be limited to the

replacement, repair or refund of any such defective device within the warranty period, provided that:

1. inspection by Valcom, Inc. indicates the validity of the claim;

2. the defect is not the result of damage, misuse or negligence after the original shipment;

3. the product has not been altered in any way or repaired by others and that factory sealed units are unopened (a service charge plus parts

and labor will be applied to units defaced or physically damaged);

4. freight charges for the return of products to Valcom are prepaid;

5. all units 'out of warranty' are subject to a service charge. The service charge will cover minor repairs (major repairs will be subject to

additional charges for parts and labor).

This Limited Warranty is in lieu of and excludes all other warranties, expressed or implied and in no event shall Valcom, Inc. be liable

for any anticipated profits, consequential damages, loss of time or other losses incurred by the buyer in connection with the purchase,

operation, maintenance, installation, removal or use of the product. The maximum liability of Valcom under this warranty is limited to

the purchase price of the specific Product covered by the warranty.

Disclaimer. Except for the Limited Warranty provided herein, the product is provided “as-is” without any warranty of any kind whatsoever

including, without limitation, any WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT.

This warranty specifically excludes damage incurred in shipment. In the event a product is received in damaged condition, the carrier should be

notified immediately. Claims for such damage should be filed with the carrier involved in accordance with the F.O.B. point.

Headquarters:

Valcom, Inc.

5614 Hollins Road Roanoke, VA 24019-5056

Phone: (540) 563-2000 FAX: (540) 362-9800


