Side 1/12

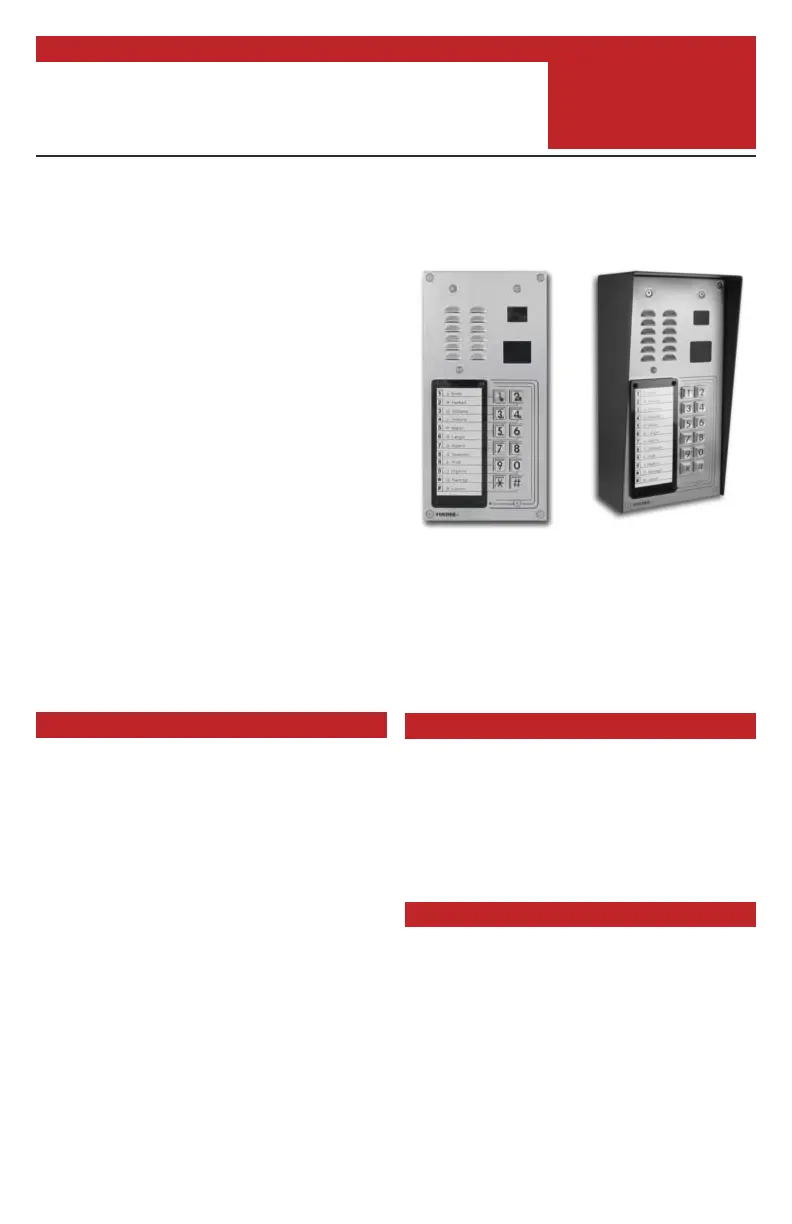

PRODUCT MANUAL
Designed, Manufactured and Supported in the USA
S E C U R I T Y & C O M M U N I C AT I O N S O L U T I O N S
Features
The K-1275 Entry Phone is a two-way, handsfree
telephone with 12 buttons for calling individual
residences in an apartment building with an
integrated 125 KHz Proximity Card Reader. It also
has a built-in color CCTV video camera. The
rugged stainless steel faceplate has a printed
directory housed in a waterproof, scratch-resistant
lens. Each button is beside the tenants name in the
directory so there are no confusing codes to deal
with. Calling a particular tenant is as easy as
pressing a single button. The has a built inK-1275
speed dialer that can handle up to 12 primary
phone numbers, each with 22 digits. If there is no
answer at the first number, a second number can
be called automatically. Once the tenant answers
their phone, a single touch tone command can
activate the door strike relay. For “no phone line”
applications, the is compatible with theK-1275
C-3000 no CO (phone line) controller.
The K-1275-EWP shares all of the features of the
K-1275 in addition to Enhanced Weather
Protection (EWP) for outdoor installations where
the unit is exposed to precipitation or
• Built-in high resolution analog NTSC color video camera with wide
viewing angle, tilt/swivel adjustments and wide operating
temperature: -40°F to 140°F
• Built-in 125KHz 26-bit Wiegand proximity card reader with LED, beep
card read confirmation, and EWP board protection
• Compatible with the following Viking Proximity Cards and Fobs: PRX-
C PRX-C-ISO PRX-FOB LRT-4 (DOD# 198 & 226), , and
• Vandal Resistant Features: 14 gauge louvered 316 stainless steel
faceplate with permanent laser etched graphics, heavy duty metal
keypad and T-10 Torx security mounting screws.
• Marine grade 316 stainless steelWeather Resistant Features:
faceplate and screws. Internally sealed keypad. Mylar speaker. Self-
draining mic mount. Faceplate, keypad, mic and speaker gaskets.
• Designed to meet IP66 Ingress Protection Rating (see )DOD 859
• Operates on 12 to 24 volts AC/DC
• 12 speed dial buttons (22 digits each)
• 12 alternate number positions (22 digits each)
• One button operation (no call button)
• Hang up on CPC, busy, silence, time-out or dial tone
• Touch tone restriction from microphone
• Integral relays for camera control and door strike
• Works with for increased securityC-1000B
• Works with for “No CO” (phone line) operationC-3000
• 50 keyless entry codes
• Postal lock input
• Optional surface mount box, sold separately ( )VE-5x10 DOD 424
• Small apartment buildings
• Professional buildings
• Gated communities
Power: 12 to 24 Volts AC or DC, 12VDC adapter provided
Proximity Card Reader Power: 5 to 14V DC @ 60mA maximum
Note: To assure operation during a power outage, a UPS
should be used.
Dimensions: 127mm x 254mm x 63.5mm (5" x 10" x 2.5")
Shipping weight: 2.2 kg (4.8 lbs.)
Standard K-1275 Environment: -34° C to 65° C (-30° F
to 150° F) with 5% to 95% non-condensing humidity
K-1275-EWP Environment: -34° C to 65° C (-30° F to
150° F) with up to 100% condensing humidity
Relay Contact Rating:
Door Strike: 5A @ 30VDC/250VAC maximum
Camera: 0.5A @ 125 VAC, 1.0A @ 30VDC
Connections: (19) gel-filled butt connectors (3M
Scotchlok UR2)
Applications
Specifications
www.vikingelectronics.com
Information: (715) 386-8861
VIKING
condensation. EWP products feature foam rubber
gaskets and boots, sealed connections, gel-filled
butt connectors, as well as urethane or thermal
plastic potted circuit boards with internally sealed,
field-adjustable trim pots and DIP switches for easy
on-site programming.
(shown in optional
VE-5x10-SS, not included)
12 Button Apartment Entry Phone with Built-In
Door Strike Relay, Card Reader & Camera
“Brushed 316 Stainless Steel”
(similar to brushed nickel)
K-1275 Series
Entry Phones with Keypads,
Proximity Card Readers
and Color Camera
July 5, 2017
Power: 5 to 14V DC @ 60mA maximum
Maximum Cable Length: 500 ft 24 Awg stranded shielded
(Belden 9537)
Frequency: 125KHz
Format: 26 bit Wiegand
Read Range: 1.25” to 2.0”
Technologies Supported: Viking , PRX-C PRX-C-ISO,
PRX-FOB LRT-4, , certain legacy HID® proximity protocols*
and certain AWID 125Khz proximity protocols**
Transducer: Beeps during card read
LED: Red, turns off during card read
Humidity: Up to 100% (fully potted EWP)
Operating Temperature: -34° C to 65° C (-30° F to 150° F)
* HID and the HID logo are registered trademarks of HID
Global Corporation, an ASSA ABLOY company. All other
trademarks are the property of their respective owners.
** AWID is a trademark of Applied Wireless Identification Group.
Power: 6-22V DC 150mA (12V DC UL Listed adapter included)
Image Sensor: 1/4” color CMOS
Video Output: 1 VP-P composite, NTSC, 75 ohms
Resolution: 420 lines (640 x 480 @ 30fps / 307,200 pixels)
Sensitivity: 0.025 LUX (50 IRE) F 1.2 3200K
Lens: 2.1mm, conical pinhole
FOV Field of View)( : 80° Horizontal, 60° Vertical, 100° Diagonal
Tilt/Swivel Adjustment: Vertical +/- 20°, horizontal +/- 30° (see
Diagram A)
IR Compatibility: This camera is equipped with an OLP
(Optical Low Pass) filter to maintain correct video color
in outside applications. The standard camera is NOT
compatible with IR illuminators. If IR illumination is
required, you will need to replace the exisiting camera
with a Viking model . For more information,VCAM-1IR
see .DOD# 190
Maximum Wire Run Length:1000 ft with *RG59/RG6 for video and
CAT5 for power (1 pair) and entry phone audio (1 pair). 150 ft with
CAT5E for video, power and entry phone audio (longer video runs
are possible by using video balun transceivers, see Installation
section , page D 4
* Note: RG59 or RG6 with solid center conductor and
95% bare copper braid shield.

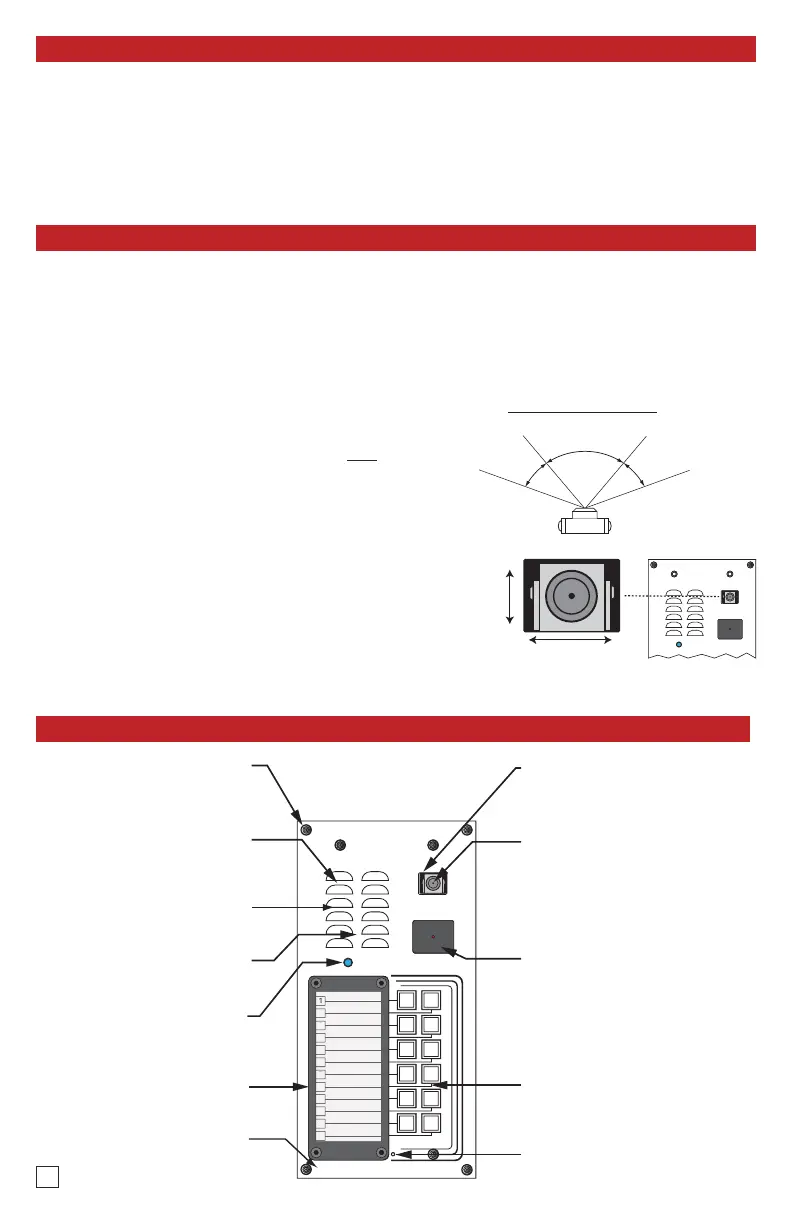

Proximity Card Reader Specifications
Camera Specifications and Adjustments
Fea tures Overview
Keypad: Push to initiate call, push
again to disconnect. Zinc Die cast
with Satin Chrome Finish, internally
sealed per IP67.
Speaker Screen: Speaker screen
with 0.018" wide slots to prevent
punctures from paperclips, etc.
Faceplate Material: 14 gauge 316
stainless steel with #4 brushed
finish.
Speaker: Mylar speaker with
rubber gasket to maintain
water-tight seal and eliminate
water deterioration.
Blue Call LED: Lights steady to
help locate the button in low light,
flashes during dialing, then lights
steady when answered.
Microphone: Omni-directional
microphone with protective
water-resistant cloth.
Front View of the
K-1275 Entry Phone
Condensation Drain Hole
Mounting Screws: (8) 6-32 X 3/4”
Marine grade 316 stainless steel,
flat head, T-10 Torx security
screws and drive bit (included).
Laser Etched Graphics: For long
lasting easy to read graphics.
VIKING ©
#
*
0
9
8
7
6
5
4
3
2
1 2
3 4
56
7 8
9 0
#
*
Color Video Camera: Wide
operating temperature range of -40°F
to 140°F, NTSC composite video
output with 420 lines of resolution,
80° wide viewing angle lens, tilt and
swivel adjustments for aiming
towards visitors.
Protective Camera Window:
Impact resistant polycarbonate lens
with scratch resistant coating and
water-tight gasket.
Proximity Card Reader: 26-bit
Wiegand, 125KHz, red LED turns off
and transducer will beep during card
read. Fully potted EWP. Read range
1.25" to 2.0". Impact resistant
polycarbonate lens with water-tight
gasket.
Vertical (Tilt)
Adjustment
+/- 20 degrees
maximum
Horizontal (Rotation)
Adjustment
+/- 30 degrees maximum
2
80° Lens FOV
Rotate
Left 30°
Rotate
Right 30°
Camera Lens
Diagram A
Camera Horizontal Field of View:
Camera Adjustments:
The camera can be tilted and rotated to your desired
position. A portable service (test) monitor can be used
to determine the correct viewing angle during
installation.
Important: To prevent the edge of the faceplate from
being viewed in the video image, do not rotate the
camera beyond 30 degrees or tilt beyond 20 degrees.
