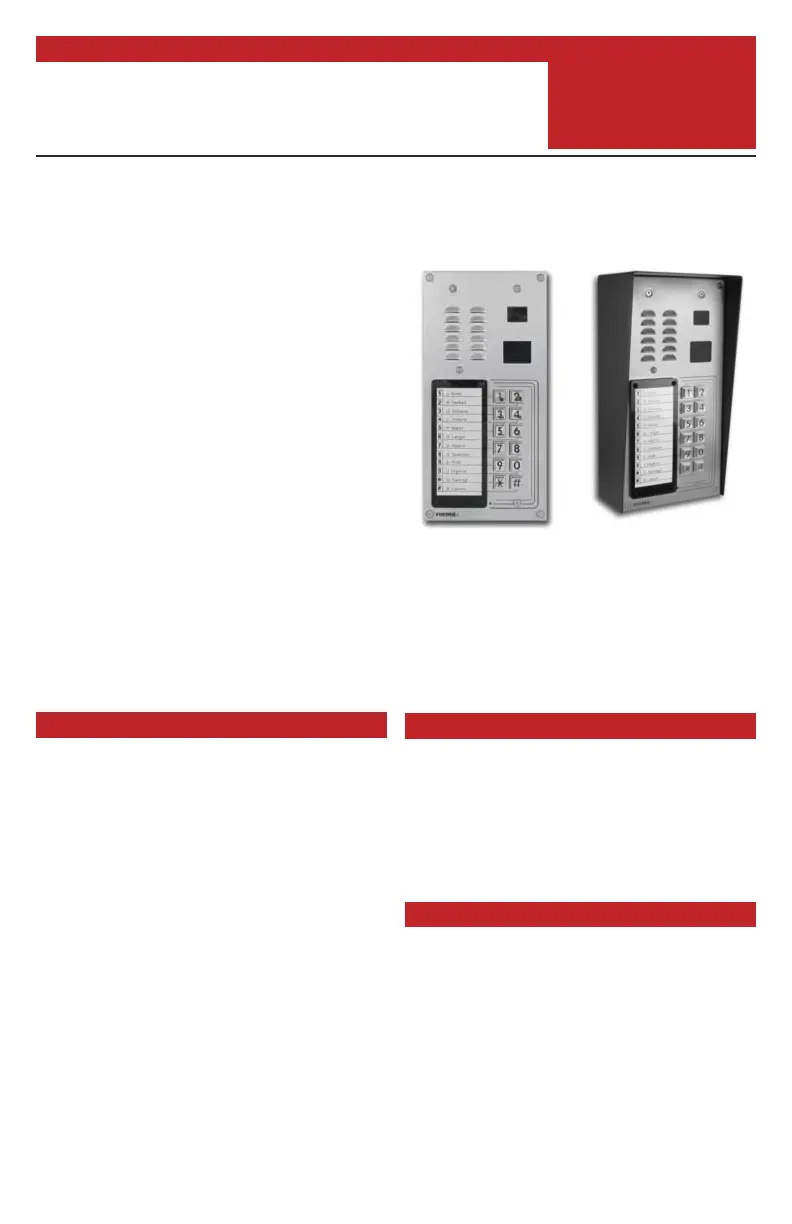

Side 1/12

PRODUCT MANUAL

Designed, Manufactured and Supported in the USA

S E C U R I T Y & C O M M U N I C AT I O N S O L U T I O N S

Features

The K-1275 Entry Phone is a two-way, handsfree

telephone with 12 buttons for calling individual

residences in an apartment building with an

integrated 125 KHz Proximity Card Reader. It also

has a built-in color CCTV video camera. The

rugged stainless steel faceplate has a printed

directory housed in a waterproof, scratch-resistant

lens. Each button is beside the tenants name in the

directory so there are no confusing codes to deal

with. Calling a particular tenant is as easy as

pressing a single button. The has a built inK-1275

speed dialer that can handle up to 12 primary

phone numbers, each with 22 digits. If there is no

answer at the first number, a second number can

be called automatically. Once the tenant answers

their phone, a single touch tone command can

activate the door strike relay. For “no phone line”

applications, the is compatible with theK-1275

C-3000 no CO (phone line) controller.

The K-1275-EWP shares all of the features of the

K-1275 in addition to Enhanced Weather

Protection (EWP) for outdoor installations where

the unit is exposed to precipitation or

• Built-in high resolution analog NTSC color video camera with wide

viewing angle, tilt/swivel adjustments and wide operating

temperature: -40°F to 140°F

• Built-in 125KHz 26-bit Wiegand proximity card reader with LED, beep

card read confirmation, and EWP board protection

• Compatible with the following Viking Proximity Cards and Fobs: PRX-

C PRX-C-ISO PRX-FOB LRT-4 (DOD# 198 & 226), , and

• Vandal Resistant Features: 14 gauge louvered 316 stainless steel

faceplate with permanent laser etched graphics, heavy duty metal

keypad and T-10 Torx security mounting screws.

• Marine grade 316 stainless steelWeather Resistant Features:

faceplate and screws. Internally sealed keypad. Mylar speaker. Self-

draining mic mount. Faceplate, keypad, mic and speaker gaskets.

• Designed to meet IP66 Ingress Protection Rating (see )DOD 859

• Operates on 12 to 24 volts AC/DC

• 12 speed dial buttons (22 digits each)

• 12 alternate number positions (22 digits each)

• One button operation (no call button)

• Hang up on CPC, busy, silence, time-out or dial tone

• Touch tone restriction from microphone

• Integral relays for camera control and door strike

• Works with for increased securityC-1000B

• Works with for “No CO” (phone line) operationC-3000

• 50 keyless entry codes

• Postal lock input

• Optional surface mount box, sold separately ( )VE-5x10 DOD 424

• Small apartment buildings

• Professional buildings

• Gated communities

Power: 12 to 24 Volts AC or DC, 12VDC adapter provided

Proximity Card Reader Power: 5 to 14V DC @ 60mA maximum

Note: To assure operation during a power outage, a UPS

should be used.

Dimensions: 127mm x 254mm x 63.5mm (5" x 10" x 2.5")

Shipping weight: 2.2 kg (4.8 lbs.)

Standard K-1275 Environment: -34° C to 65° C (-30° F

to 150° F) with 5% to 95% non-condensing humidity

K-1275-EWP Environment: -34° C to 65° C (-30° F to

150° F) with up to 100% condensing humidity

Relay Contact Rating:

Door Strike: 5A @ 30VDC/250VAC maximum

Camera: 0.5A @ 125 VAC, 1.0A @ 30VDC

Connections: (19) gel-filled butt connectors (3M

Scotchlok UR2)

Applications

Specifications

www.vikingelectronics.com

Information: (715) 386-8861

VIKING

condensation. EWP products feature foam rubber

gaskets and boots, sealed connections, gel-filled

butt connectors, as well as urethane or thermal

plastic potted circuit boards with internally sealed,

field-adjustable trim pots and DIP switches for easy

on-site programming.

(shown in optional

VE-5x10-SS, not included)

12 Button Apartment Entry Phone with Built-In

Door Strike Relay, Card Reader & Camera

“Brushed 316 Stainless Steel”

(similar to brushed nickel)

K-1275 Series

Entry Phones with Keypads,

Proximity Card Readers

and Color Camera

July 5, 2017

Power: 5 to 14V DC @ 60mA maximum

Maximum Cable Length: 500 ft 24 Awg stranded shielded

(Belden 9537)

Frequency: 125KHz

Format: 26 bit Wiegand

Read Range: 1.25” to 2.0”

Technologies Supported: Viking , PRX-C PRX-C-ISO,

PRX-FOB LRT-4, , certain legacy HID® proximity protocols*

and certain AWID 125Khz proximity protocols**

Transducer: Beeps during card read

LED: Red, turns off during card read

Humidity: Up to 100% (fully potted EWP)

Operating Temperature: -34° C to 65° C (-30° F to 150° F)

* HID and the HID logo are registered trademarks of HID

Global Corporation, an ASSA ABLOY company. All other

trademarks are the property of their respective owners.

** AWID is a trademark of Applied Wireless Identification Group.

Power: 6-22V DC 150mA (12V DC UL Listed adapter included)

Image Sensor: 1/4” color CMOS

Video Output: 1 VP-P composite, NTSC, 75 ohms

Resolution: 420 lines (640 x 480 @ 30fps / 307,200 pixels)

Sensitivity: 0.025 LUX (50 IRE) F 1.2 3200K

Lens: 2.1mm, conical pinhole

FOV Field of View)( : 80° Horizontal, 60° Vertical, 100° Diagonal

Tilt/Swivel Adjustment: Vertical +/- 20°, horizontal +/- 30° (see

Diagram A)

IR Compatibility: This camera is equipped with an OLP

(Optical Low Pass) filter to maintain correct video color

in outside applications. The standard camera is NOT

compatible with IR illuminators. If IR illumination is

required, you will need to replace the exisiting camera

with a Viking model . For more information,VCAM-1IR

see .DOD# 190

Maximum Wire Run Length:1000 ft with *RG59/RG6 for video and

CAT5 for power (1 pair) and entry phone audio (1 pair). 150 ft with

CAT5E for video, power and entry phone audio (longer video runs

are possible by using video balun transceivers, see Installation

section , page D 4

* Note: RG59 or RG6 with solid center conductor and

95% bare copper braid shield.

Proximity Card Reader Specifications

Camera Specifications and Adjustments

Fea tures Overview

Keypad: Push to initiate call, push

again to disconnect. Zinc Die cast

with Satin Chrome Finish, internally

sealed per IP67.

Speaker Screen: Speaker screen

with 0.018" wide slots to prevent

punctures from paperclips, etc.

Faceplate Material: 14 gauge 316

stainless steel with #4 brushed

finish.

Speaker: Mylar speaker with

rubber gasket to maintain

water-tight seal and eliminate

water deterioration.

Blue Call LED: Lights steady to

help locate the button in low light,

flashes during dialing, then lights

steady when answered.

Microphone: Omni-directional

microphone with protective

water-resistant cloth.

Front View of the

K-1275 Entry Phone

Condensation Drain Hole

Mounting Screws: (8) 6-32 X 3/4”

Marine grade 316 stainless steel,

flat head, T-10 Torx security

screws and drive bit (included).

Laser Etched Graphics: For long

lasting easy to read graphics.

VIKING ©

1 2

3 4

7 8

9 0

Color Video Camera: Wide

operating temperature range of -40°F

to 140°F, NTSC composite video

output with 420 lines of resolution,

80° wide viewing angle lens, tilt and

swivel adjustments for aiming

towards visitors.

Protective Camera Window:

Impact resistant polycarbonate lens

with scratch resistant coating and

water-tight gasket.

Proximity Card Reader: 26-bit

Wiegand, 125KHz, red LED turns off

and transducer will beep during card

read. Fully potted EWP. Read range

1.25" to 2.0". Impact resistant

polycarbonate lens with water-tight

gasket.

Vertical (Tilt)

Adjustment

+/- 20 degrees

maximum

Horizontal (Rotation)

Adjustment

+/- 30 degrees maximum

80° Lens FOV

Rotate

Left 30°

Rotate

Right 30°

Camera Lens

Diagram A

Camera Horizontal Field of View:

Camera Adjustments:

The camera can be tilted and rotated to your desired

position. A portable service (test) monitor can be used

to determine the correct viewing angle during

installation.

Important: To prevent the edge of the faceplate from

being viewed in the video image, do not rotate the

camera beyond 30 degrees or tilt beyond 20 degrees.
