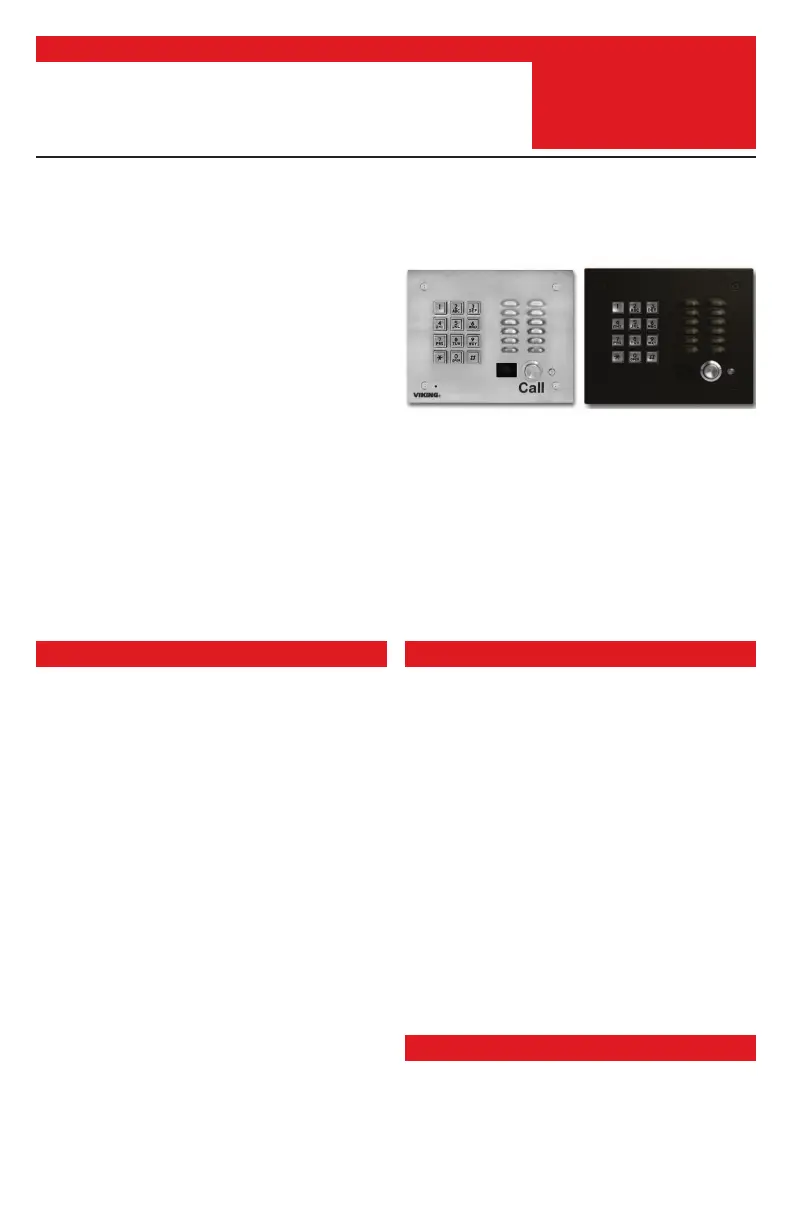

Side 1/12

Vandal Resistant Handsfree Entry Phones

with Built-In Keypad and Color Video Camera

Features

The K-1705-3 Series entry phones provide a tough and

attractive handsfree phone for apartment, and residential door

entry or applications requiring a vandal resistant speaker

phone. The K-1705-3 Series entry phones are available in

two attractive finishes: “brushed stainless steel” and “oil

rubbed bronze”.

When the “Call” button is pressed, the K-1705-3 returns dial

tone. The keypad may then be used to dial any number. If

no Touch Tone is entered within 8 seconds, CPC is detected,

a busy signal is detected, or the programmable maximum call

time has elapsed, the K-1705-3 will automatically disconnect.

Alternatively, the K-1705-3 may be disconnected by pressing

the “Call” button again. The K-1705-3 comes complete with

a standard, flush mount, rough-in box. In addition, an optional

VE-6x7 weather resistant, surface mount box is available (see

DOD# 424).

The K-1705-3-EWP shares all of the features of the K-1705-3

in addition to Enhanced Weather Protection (EWP) for outdoor

• Apartment entry phone when used with the K-1900-3 Apartment Entry Dialer

or C-4000 Apartment/Office Entry Controller or C-3000 Apartment Entry

Controller

• Use with a Viking C-500 (DOD 177) to control 1 or 2 (expandable to 8)

K-1705-3’s and door/gate control on a single phone line

• Use with a Viking C-2000B to control 1 to 4 K-1705’s and door/gate control

on a single phone line (DOD 156)

• Courtesy and customer assistance phone

• Automated teller (ATM) phone

• Security or emergency phone

• Hot-Line phone when used with the K-1900-5 Hot-Line Dialer (DOD 317)

Note: When installing a line powered phone on a low voltage and/or low

loop current phone system extension, a TBB-1B Talk Battery Booster may be

required (DOD 632).

• Kiosk phone with (100 number speed dialing) when used with the K-1900-9

Multi-Number Dialer (DOD 321)

Dimensions: Overall: 5.5” x 6.5” x 2.6” (140mm x 165mm x 66mm),

Rough-in box: 4.5” x 5.5” x 2.5” (114mm x 140mm x 64mm)

Shipping Weight: 3.5 lbs (1.6 kg)

Operating Temperature: -30°F to 150°F (-34°C to 65°C)

Connections: (2) gel-filled butt connectors (3M Scotchlok UR2)

(See page 2 for complete specifications)

Applications

Specifications

www.VikingElectronics.com

Information: 715-386-8861

• Built-in high resolution color video camera with wide viewing

angle, tilt/swivel adjustments and wide operating temperature of

-30°F to 150°F

• Audio and video transmission on one CAT5E cable (page 5)

• Vandal Resistant Features: 14 gauge louvered 316 stainless

steel faceplate with permanent laser etched graphics, stainless

steel “Call” button, heavy duty metal keypad and T-10 Torx

security mounting screws, scratch resistant powder coating

(model K-1705-3-BN)

• Weather Resistant Features: Marine grade 316 stainless steel

faceplate, screws and and push button switch. Switch internally

sealed per IP67. Mylar speaker. Self-draining mic mount.

Faceplate, mic and speaker gaskets. Weather resisant powder

paint (K-1705-3-BN)

• K-1705-3-EWP is designed to meet IP66 Ingress Protection

Rating (see DOD 859 for more information)

• Available in 2 standard faceplate finishes: 316 brushed stainless

steel or oil rubbed bronze

• Blue “in use” LED

• Telephone line powered

• Volume adjustments for microphone and speaker

• Advanced call progress detection: disconnects on busy signal,

return to dial tone, CPC, reorder tone, maximum call time out and

40 second silence time out

• Selectable auto-answer feature for monitoring

• Selectable push button disconnect

• Zinc plated steel rough-in box with (2) 3/4” conduit knockouts

• Optional VE-6x7 Surface Mount Box available

• Selectable VOX switching speed

K-1705-3

“Brushed 316 Stainless Steel”

(similar to brushed nickel)

installations where the unit is exposed to precipitation or

condensation. EWP products feature foam rubber gaskets

and boots, sealed connections, gel-filled butt connectors, as

well as urethane or thermal plastic potted circuit boards with

internally sealed, field-adjustable trim pots and DIP switches

for easy on-site programming. For more information, see DOD

859.

K-1705-3-BN

“Oil Rubbed Bronze”

(satin dark brown powder paint

with fine copper metallic)

DESIGNED, MANUFACTURED AND SUPPORTED IN THE USA

K-1705-3 Series

Video Entry Phones

with Keypads

September 29, 2023

PRODUCT

MANUAL

SECURITY & COMMUNICATION

VIKING

Produkt Specifikationer

Mærke:	Viking
Kategori:	Adgangskontrolsystem
Model:	K-1705-3-EWP
Kode for international beskyttelse (IP):	IP66, IP67
Type:	Intelligent adgangskontrollæser
Bredde:	165 mm
Dybde:	66 mm
Højde:	140 mm
Produktfarve:	Børstet stål
Indbygget skærm:	Ingen
Pakkevægt:	1600 g
Antal højttalere:	1
Driftstemperatur (T-T):	-34 - 65 °C
Husmateriale:	Rustfrit stål
Forbindelsesteknologi:	Ledningsført
Certificering:	EWP\nIP66\nFCC Part 68\nFCC Part 15
Placering:	Væg
Nem at installere:	Ja
Kamera inkluderet:	Ja
Tastatur antal taster:	12
Integreret tastatur:	Ja
Godkendelsestype:	Access chip/card, Password
Kodelæsning, adgang:	Ja
Chip/kortlæser, adgang:	Ja
