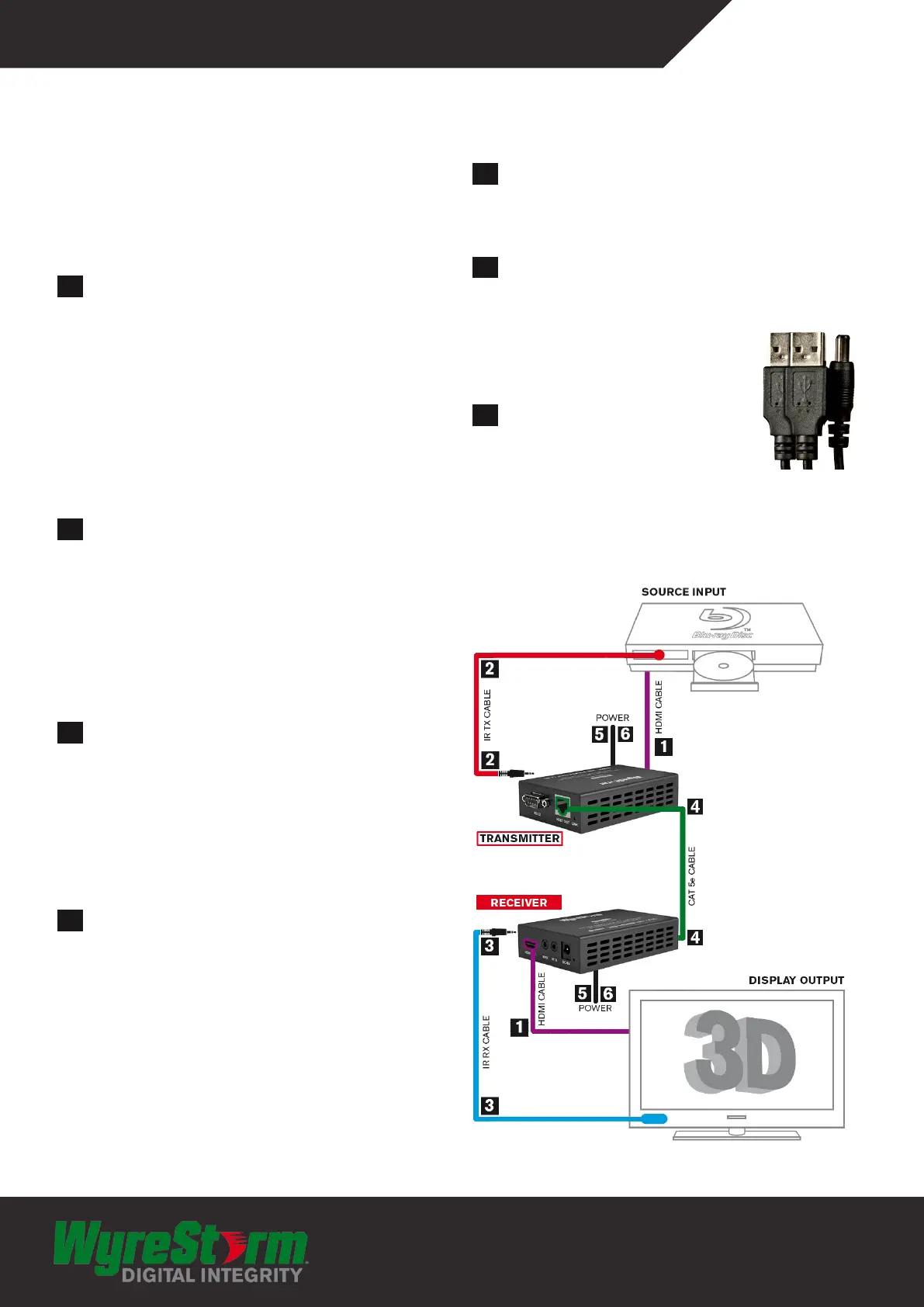

Attention: We strongly recommend using the supplied

mounting brackets to secure both the transmitter and receiver

baluns. Sudden movement of these devices can lead to

unnecessary service call outs and loss of picture/sound due to

stress on connections.

HDMI: Connect the HDMI source (i.e. HD-DVD,

PS3, Cable/Sat box, Blu-ray etc.) to the HDMI IN of the

TRANSMITTER and connect the HDMI DISPLAY (i.e. LCD/

plasma TV, digital projector etc.) to the HDMI OUT of the

RECEIVER.

Use good quality HDMI cables, ensuring connectors are

inserted firmly in ports and avoid excessive bending of cable.

Attention: Do Not Hotswap! - Please insert and

extract cables carefully with the power SWITCHED OFF.

Connecting and disconnecting while the unit is powered can

result in damage to circuitry.

One-way IR: Position the small, round IR TX emitter directly

over the infrared receiving area of the SOURCE and secure

with the adhesive backing. You may need to adjust the location

of the emitter later to achieve best results - repositioning to

different areas on the source facia can sometimes improve IR

performance. Insert the IR TX 3.5mm jack into the IR TX port on

the TRANSMITTER.

Tip: You can locate the small, round infrared sensor by shining

a flashlight onto the display panel of your source.

Insert the IR RX 3.5mm jack into the IR RX port on the

RECEIVER. Discretely attach the larger, rectangular IR eye to

the DISPLAY with the adhesive backing, ensuring a clear line of

sight to the remote control being used. Again, repositioning IR

RX may be required to achieve best results.

For two-way control of SOURCE and DISPLAY from both

locations, an IR TX eye should also be placed over the IR sensor

of the DISPLAY and an IR RX eye placed on the SOURCE.

Cat5e/6 Transmission: Connect the TRANSMITTER and

RECEIVER with a single, good quality, well terminated and

tested Cat5e/6 cable with RJ45 connectors wired to 568B

standard at both ends up to a distance of 70m (230ft). (See

diagram)

The quality of each RJ45 termination is essential - poor

termination leads to intermittent performance and longer install

times.

Attention: Check connectors are pushed securely into each

port and supported by the connector strain relief clip to prevent

them from becoming loose.

Power: Add the 5V power supplies provided to both

TRANSMITTER and RECEIVER. We do not recommend passing

power remotely over long cable distances as this can affect

product performance.

You can also power TRANSMITER and RECEIVER units

using WyreStorm USB to 5V adaptors connected to DISPLAYS

or SOURCES with spare USB ports. This not only solves space

and power availability problems at locations,

it also offers improved energy efficiency as

extenders are only powered when devices

are turned on.

Finally, power on TRANMITTER,

RECEIVER and all connected devices and

your extender set is ready for use.

Attention: Check LED POWER and STATUS are lit to confirm

the units are powered and a signal link is established between

the units. If not, check connections, devices and power

supplies or follow the troubleshooting overleaf.

*PLEASE NOTE -

All cable distances are

on the basis of a direct

runs of cable (no patch

panels or wall outlets).

Please use good quality,

solid conductor, Cat5e

cable. Standard pre-made

patch leads will reduce

eectiveness of this product.

Please ensure Cat5e cables

are installed to local electrical

regulations. Close lying

electrical cables can eect

product performance.

WYRESTORM QUICKSTART INFORMATION SHEET

US OFFICE:

TEL: +1 901 384 3575

FAX: +1 901 384 3574

EMEA OFFICE:

TEL: + 44 (0) 1793 230 343

FAX: + 44 (0) 1793 230 583

WyreStorm ex-1utp-ir-70

Single 70m (230ft) HDBaseT 2 way IR & RS232 Extender Set

Produkt Specifikationer

Mærke:	WyreStorm
Kategori:	AV forlænger
Model:	EX-1UTP-IR-70
Type:	AV sender & modtager
Vægt:	350 g
Produktfarve:	Grå
Understøttede videotilstande:	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Relativ luftfugtighed ved drift (H-H):	5 - 90 %
HDCP:	Ja
Driftstemperatur (T-T):	-5 - 35 °C
Maksimal opløsning:	1920 x 1200 pixel
Dimensioner (BxDxH):	67 x 105 x 27 mm
Hurtig start guide:	Ja
Kabler inkluderet:	DC
Understøttede grafikopløsninger:	640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA)
Lyd-output kanaler:	7.1 kanaler
DC-in-stik:	Ja
LED-indikatorer:	Ja
Lydsystem:	Multikanal
Driftsspænding:	5 V
Maksimal overførselsafstand:	70 m
HDMI-version:	1.4
Monteringsbeslag inkluderet:	Ja
HSMI-indgang:	1
RJ-45 indgangs-porte:	1
Antal HDMI-udgange:	1
Fjernbetjening (IR) indgang:	2
Fjernbetjening (IR) udgang:	2
Understøttede kabeltyper:	Cat5, Cat5e, Cat6, Cat7
Båndbredde:	6.75 Gbit/sek.
RJ-45 udgangs-porte:	1
Strømforbrug (modtager) (maks):	5 W
Strømforbrug (sender) (maks):	2.5 W
IR blaster inkluderet:	Ja
IR-modtager inkluderet:	Ja
