4K HDR HDMI-Over-HDBaseT Receiver
with HDCP 2.2 and PoH
RXV-35-4K v1 Quickstart Guide
Copyright © 2019 WyreStorm Technologies | wyrestorm.com
RXV-35-4K v1 Quickstart Guide | 190501
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
support@wyrestorm.com
1 of 4
WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features prior to starting the
installation process.

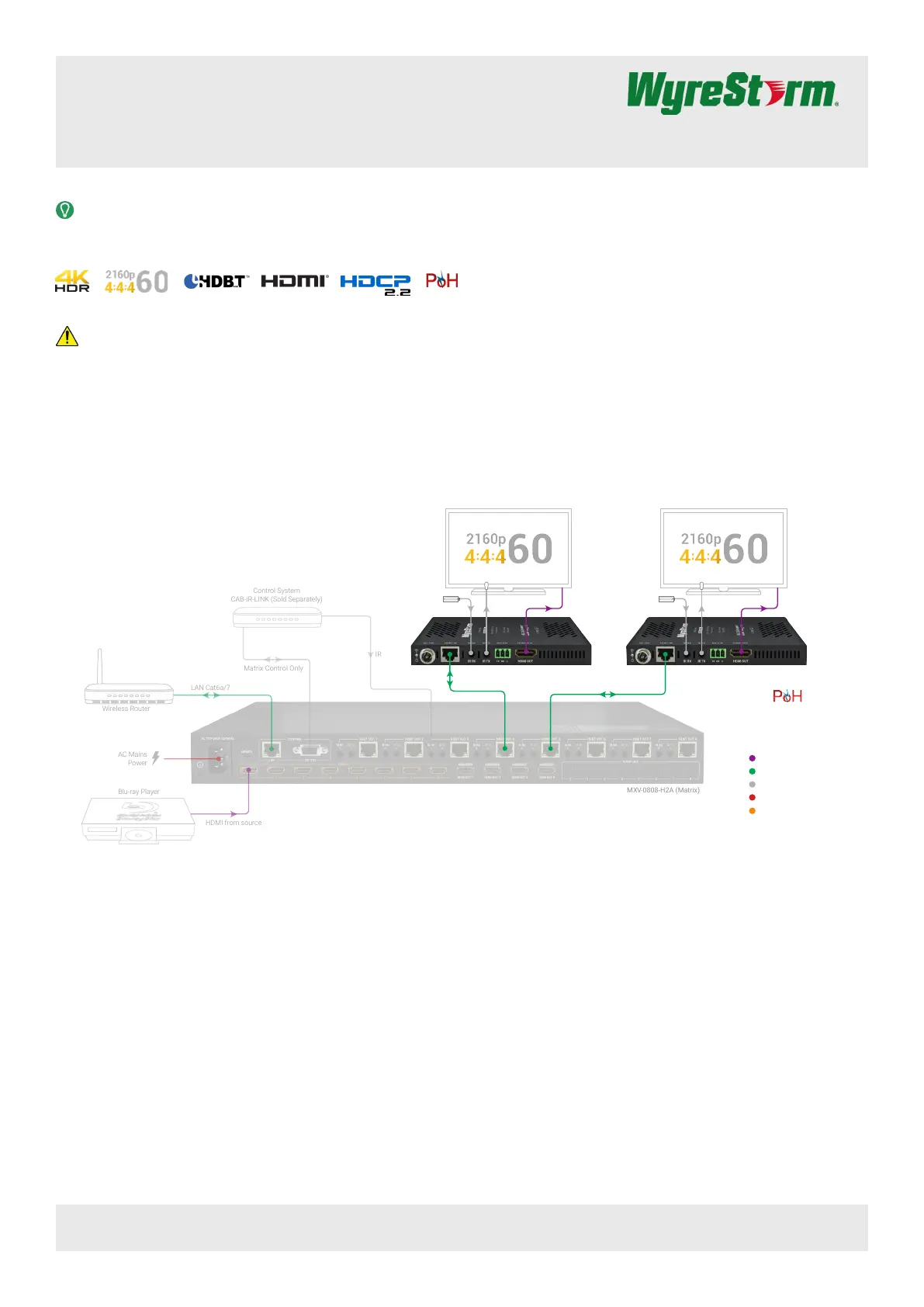

Basic Wiring Diagram
IMPORTANT! Installation Requirements
• Visit the product page to download the latest rmware, document version,
additional documentation, and conguration tools.
• Read through the section for important wiring Wiring and Connections
guidelines before creating or choosing premade cables.
• While this product supports CEC, WyreStorm cannot guarantee
compatibility with all forms of CEC communication.
In the Box
1x RXV-35-4K Receiver
1x IR Emitter
1x IR Receiver
2x Mounting Brackets
1x 3-pin Terminal Block
1x Quickstart Guide (this document)
HDMI to display
IR TXIR RX
RXV-35-4K (Receiver)
HDMI to display
IR TXIR RX
HDMI from source
LAN Cat6a/7
A
C Mains
P
ower
Cat6a/7
Cat6a/7
Blu-r
a
a
y
er
RXV-35-4K (Receiver)
Matrix Control Only
IR
Control System
CAB-IR-LINK (Sold Separately)
Wireless Router
M -0808-H2A (Matrix)XV
Receivers
powered by
KEY
HDMI
HDBaseT / Ethernet
Control
Power
Digital Audio
Copyright © 2019 WyreStorm Technologies | wyrestorm.com
RXV-35-4K v1 Quickstart Guide | 190501
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
support@wyrestorm.com
2 of 4
Front Panel Rear Panel
Power LED Solid: The receiver is powered On
Off: The receiver is powered Off
Status LED Flashing: The receiver is operating normally.
Off: The receiver is Not operating normally.
HDCP LED
Solid: HDCP content is present.
Flashing: HDCP content is not present.
Off: No signal.
LINK LED
Solid: Link to receiver has been established.
Flashing: Link to receiver has not been
established.
Power Input
5.5mm Screw Down Barrel Jack
Connect to the included 18V DC 1A power
supply to the transmitter or receiver. A power
supply is not required on the other end as it
will be powered using PoH.
HDBT In
HDBT Out
8-pin RJ-45 female
Connect the matrix HDBT Out to
receivers HDBT In.
IR TX
IR RX
IR TX - 3.5mm (1/8in) Mono Jack: Connect
to the supplied IR emitter to control a local
device from the remote display location via
HDBaseT.
IR RX - 3.5mm (1/8in) Stereo Jack: Connect
to the supplied IR receiver to send IR to the
remote display location via HDBaseT.
See for more IR TX/RX Guidelines
information.
RS-232 1x RS-232: 3-pin Terminal Block
HDMI In
HDMI Out
19-pin type A HDMI female
Supports HDMI and DVI/D with adapter
A CB D A CB D E
