LED Indoor Luminaires

Wall Mount

120VAC / 60Hz

Page 1 of 1 806140 R1 8

Part #: DAXV2705L30D1xx

DAXV3605L30D1 xx

Limited Factory Warranty

This product is manufactured by AFX Inc. X Inc. hereby warrants that this fixture is free from defects in materials and workmanship when installed AF

and used under normal operating conditions for a period of 5 years from date of purchase. This warranty covers all component parts and extends only to

replacement of defective xture or components; it does not cover failure due to improper installation, misuse, mishandling or damage incurred in transit.

For questions, please class AFX 1-800-873-2326.

Safety Precautions

 Read all safety precautions and installation instructions carefully before installing or servicing this xture. Failure to comply with these instructions could result in potentially fatal

electric shock and/or property damage.

 It is recommended that a qualied electrician perform all wiring. This xture must be wired in accordance with all national and local electrical codes.

 Do not handle any energized xture or attempt to energize any xture with wet hands or while standing on a wet or damp surface or in water.

 This xture is designed for use in a 120VAC, 50/60Hz circuit. This xture is compatible with a TRIAC (forward-phase or leading-edge) / ELV (reverse-phase or trailing-edge) dimming

circuit.

 Make sure that the power source conforms to the requirements of the xture. (See labels on the xture housing).

 To reduce the risk of electrical shock, and to assure proper operation, this xture must be adequately grounded. To accomplish proper grounding, there must be a separate ground

wire (green) contact between this xture and the ground connection of your main power supply panel.

 This xture is intended to be used for general indoor lighting in dry or damp locations.

 Disclaimer

Changes or modifications not expressly approved en by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has be

tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules and Canadian IC -005 (B) / NMB-005 (B). These limits are designed to ES

provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged

to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiver antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult with the dealer or an experienced radio/TV technician for help.

Any modications to this xture may void the warranty and interfere with the safe operation of the luminaire.

Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may

cause undesired operation of the device.

 Please contact AFX Engineering Dep for FCC report at AFX, Inc., 2345 N. Ernie Krueger Circle, Waukegan, IL. USA or Telephone: 1- - -847 249 5970.

Assembly Instructions

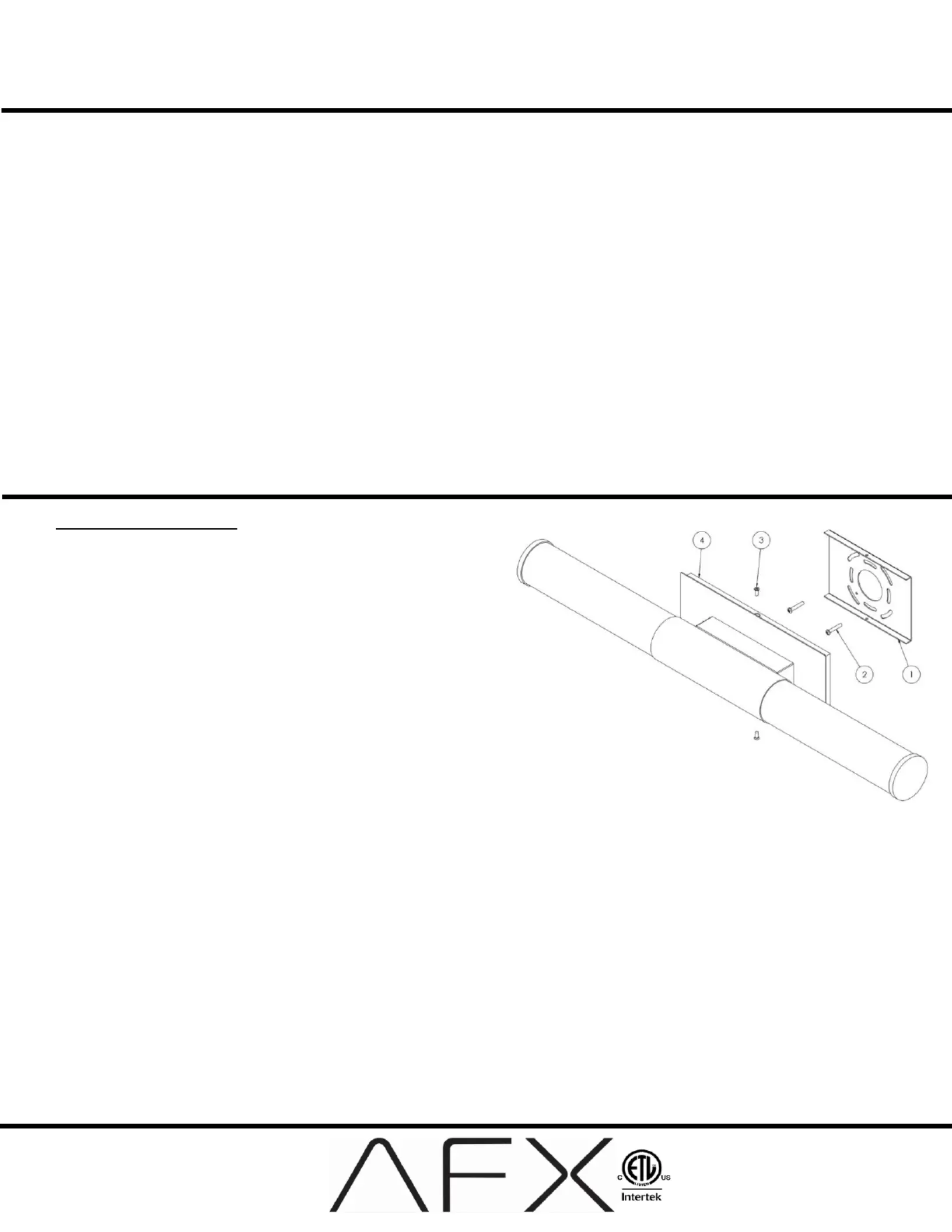

Step 1 Preparing for installation–

A. at fuse or circuit breaker box before installing or Disconnect electrical power

servicing any part of this xture.

B. Carefully remove the xture from the carton, remove components from hardware

kit.

C. Install mounting bracket (1) to junction box (not included) using two screws (2) to

secure it.

Wiring All wiring must take place inside junction box (not included) –

Caution: Make sure power is o at fuse or circuit breaker box. Check power

wires for damage or scrapes. If power supply wires are within three inches of the

LED driver, use wire suitable for at least 90°C (194°F). Most dwellings Note:

built before 1985 have supply wire rated to 60°C. Consult a qualied electrician

to ensure correct branch circuit conductor before installing.

Step 2 Wiring xture –

A. Make all wire connections to appropriate wire. Secure with wire nuts (provided).

B. Connect the green wire from the xture to the supply power source ground wire.

C. Connect the white wire from the xture to the white For none dimming fixture.

(N) wire from supply power source. Connect the black xture wire to the black (L) wire from supply

power source.

D. For TRIAC dimming. Connect the white wire from the xture to the white (N) wire from dimming source

per dimmer wiring instructions. Connect the black wire from the xture to the black (L) wire from dimmer

supply power source per dimmer wiring instructions.

E. Pull on each wire lead to make sure connections are secure. Make certain no bare Do not mix wires.

wires are exposed outside of wire connectors. Tuck all connections neatly into the junction box.

Step 3 Mounting –

A. Install the xture (4) by placing it over the mounting bracket (1) and use two screws (3) on the side to

secure it.

Step 4 Restore power at fuse or circuit breaker box –
