Flat Screen Wall Mount | Full Motion

Installation Instructions

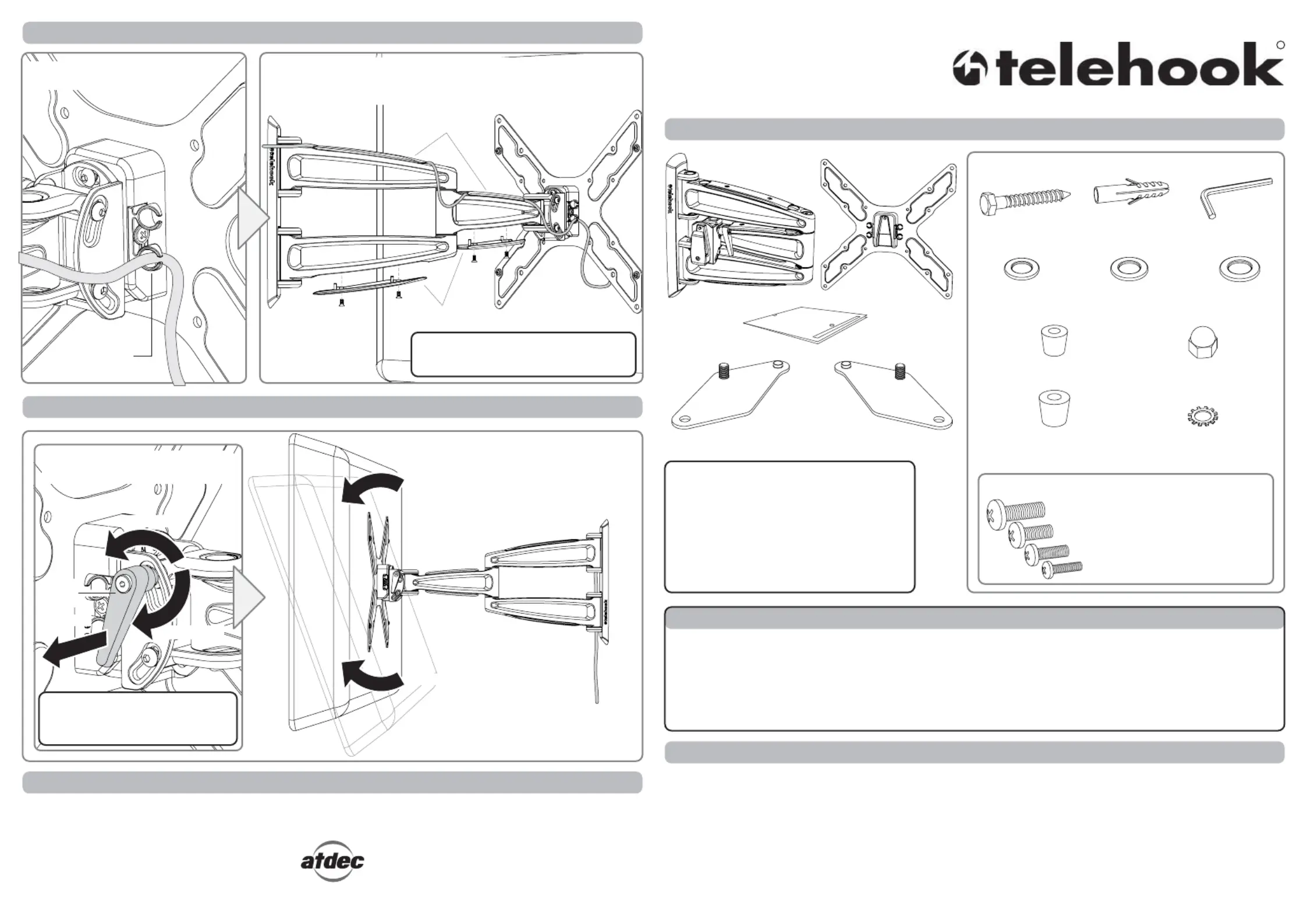

Component Checklist

Hardware

IMPORTANT INFORMATION

! IMPORTANT - Install Telehook Wall Mount as per Installation Instructions.

! Telehook Wall Mount supports Displays weighing up to 35kg (77lbs), with VESA hole configurations:

ÊÊÊÊUÊ

100x100mm (4”x4”) 300x200mm (12”x8”)UÊ

UÊ UÊ200x100mm (8”x4”) 300x300mm (12“x12”)

UÊ UÊ200x200mm (8”x8”) 400x400mm (16”x16”) - using the extensions plates supplied.

! The Manufacturer accepts no responsibility for incorrect installation.

Step 1. Check Components

Check you have received all parts against the Component Checklist and Hardware above.

TH-2050-VFM

Articulated Arm

VESA plate

Concrete

Anchor (x3)

4mm

Allen Key

M4 Washer (x4) Coach Washer

M8 (x3)

M5 Washer (x4)

M8x16mm / M8x45mm (x4 each)

M4x16mm / M4x25mm (x4 each)

M5x16mm / M5x25mm (x4 each)

M6x16mm / M6x30mm (x4 each)

Coach

Bolt M8 (x3)

Mounting Screws

M4/5 Spacer Bush (x4)

M6/8 Spacer Bush (x4)

Drilling

Guide

TOOLS REQUIRED:

ÊUÊ*ÜiÀÊÀ

ÊUÊ*«ÃÊi>`Ê-VÀiÜ`ÀÛiÀ

ÊUÊ-«ÀÌÊiÛi

ÊUÊxÊ

”) Drill Bit

ÊUÊ£äÊ

”) Masonry Drill Bit

ÊUÊ£ÎÊ

”) Socket Wrench or Shifter

ÊUÊ£{Ê

”) Socket Wrench or Shifter

Step 7. Cable Management

Connect cables to your Display and

route through Cable Clips.

Step 8. Tilt Adjustment

As TFT Manufacturers are constantly releasing new monitor models, Atdec does not accept responsibility if the VESA mounting does not comply with the international standards.

Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. 11.11.09 ©*ÕLÃi`\

Installation Complete

,iÛiÊ>LiÊÛiÀÃÊÕÃ}Ê>Ê*«ÃÊi>`Ê-VÀiÜ`ÀÛiÀ]Ê>`ÊÀÕÌi

the cables along the length of the arms. Reattach the Cable Covers

to hold the Cables in place.

Cable Clips

TIP: Leave enough slack in the cables

to allow full movement at the joints.

Your Telehook Wall Mount Articulated Arm installation is complete and ready for use.

Cable Covers

,ii>ÃiÊÌiÊ>«ÊiÛiÀÊ>`ÊÌÌÊÌi

Display up or down as desired.

Clamp

iÛiÀ

/}ÌiÊÌiÊ>«ÊiÛiÀÊÌÊV

the Display in desired position.

TILT DOWN

TILT UP

LOOSEN

TIGHTEN

PULL

M8 Dome Nut (x4)

Star Washer (x4)

ÝÌiÃÊ*>ÌiÊÊÝÓ® ÝÌiÃÊ*>ÌiÊÊÝÓ®

TIP: If the Clamp Lever is obstructed

pull it outwards to disengage the

rachet mechanism.

Step 3. Attaching the Articulated Arm to the Wall

Timber Stud Wall

- Using the Drilling Guide, drill three 5mm (

”)

diameter holes, 50mm (2”) deep.

- Secure the Mouting Plate to the wall using the Coach

Bolts and Coach Washers supplied.

Masonry Wall

- Using the Drilling Guide, drill three 10mm (

”)

diameter holes, 50mm (2”) deep.

- Secure the Mouting Plate to the wall using the Coach

Bolts, Coach Washers and Anchors supplied.

Coach Bolt

M8 (x3)

Coach Bolt

M8 (x3)

Masonry

Wall

Timber

Stud

Concrete

Anchor (x3)

IMPORTANT:

Use the 4mm Allen Key to loosen

the Security Screw until flush with

the Quick-release Hook

(do not remove).

Step 6. Attaching your Display to the Articulated Arm

Tighten the Security

Screw fully to lock.

Slide the VESA plate onto the

Quick-release Hook.

VESA plate

LOOSEN

TIGHTEN

Rotate the Display into a Horizontal

position as required.

Back of Display

Coach Washer

M8 (x3)

Coach Washer

M8 (x3)

( required)

+/- 5°

Security

Screw

(FLUSH)

Quick-release

Hook

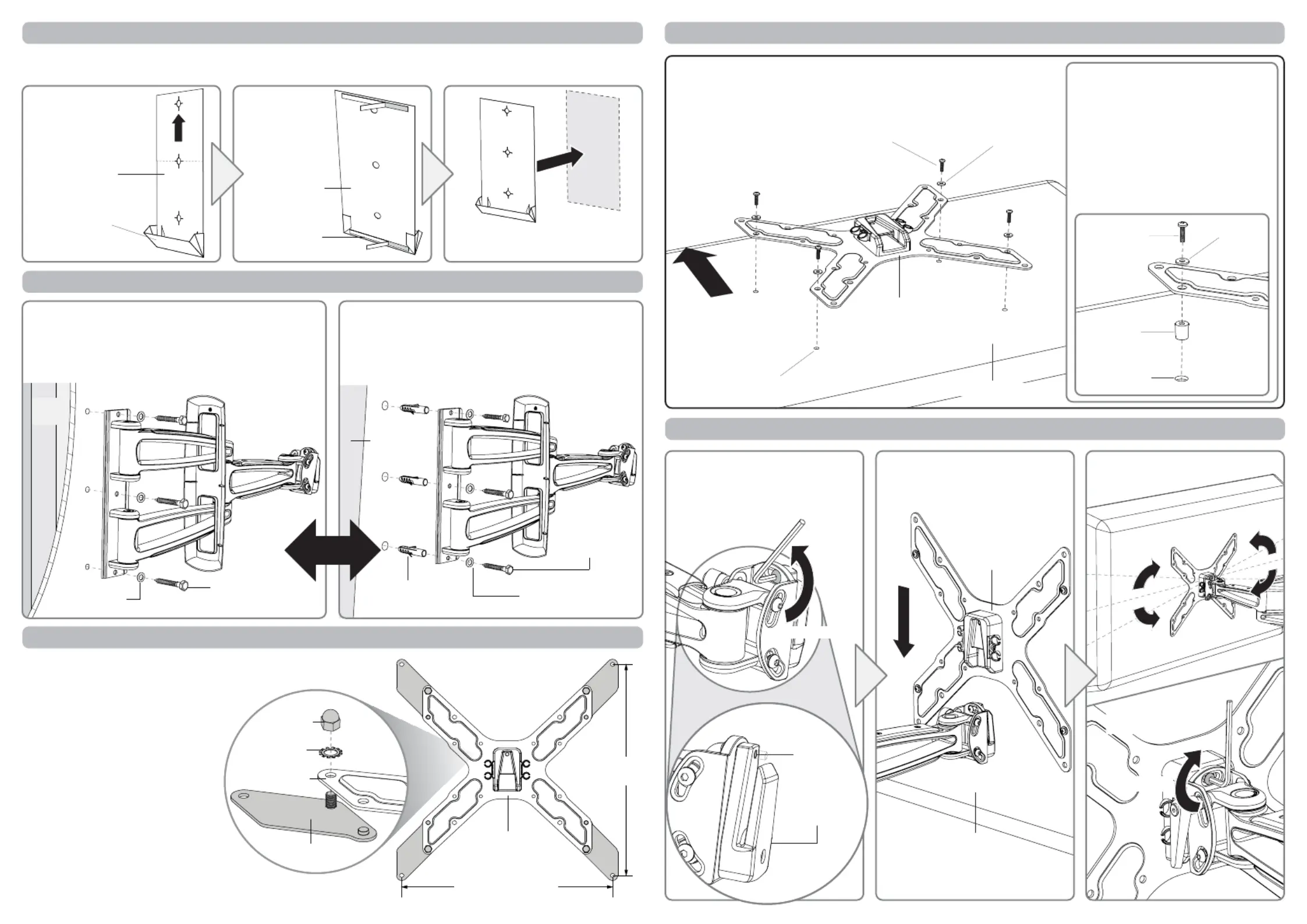

Step 2. Locate Drilling Position

WALL

Double-sided

tape (x2)

Drilling Guide

BACK

Un-fold the Drilling

Guide and open the

Dust Collector.

Peel away the

backing from the

double-sided

adhesive tape.

Position the Drilling Guide vertically

onto the wall using a spirit level.

Choose the location of your Telehook Wall Mount, ensuring that the wall is structurally sound (for a timber stud wall,

locate the stud using a stud detection device). Use the Drilling Guide to mark out the hole centres.

Dust Collector

Drilling Guide

FRONT

Top

Step 4. Fasten Extension Plates to the VESA Plate (optional)

VESA Plate

Only use the Extension Plates if the Display you wish to

mount has a 400x400mm VESA hole mounting configuration.

If not, skip to Step 5.

400mm (16”x16”)

400mm

(16”x16”)

TIGHTEN

FIRMLY

Dome Nut

Extension Plate

VESA Plate

UÊÊV>ÌiÊi>VÊÝÌiÃÊ*>ÌiÊÌ

the VESA Plate (see right).

UÊÊ*ÃÌÊÌiÊ-Ì>ÀÊ7>ÃiÀÃÊÛiÀ

each bolt.

UÊÊ-iVÕÀiÊÌiÊÝÌiÃÊ*>ÌiÃÊÊ

position by tightening the Dome

Nuts firmly using a 14mm (

”)

Socket Wrench or Shifter.

Star Washer

Step 5. Attaching the VESA Plate to your Display

Top of

Display

Back of Display

Choose appropriate Mouting Screws and Washers

from the Hardware supplied to suit your Display.

Mounting Screws (x4)

Washers (x4)

VESA plate

Recessed Mounting Holes or

Display with a Curved Rear Panel

Mounting

Screw

Spacer

Bush

Mounting

Hole

Washer

If the Mounting Holes are recessed

into the back of the Display, or the

Display has a curved rear panel, use

the appropriate Spacer Bushes

supplied to pack the Mounting Holes.

NOTE: Ensure the VESA plate is

securely fixed to the display.

Mounting

Hole

Produkt Specifikationer

Mærke:	Atdec
Kategori:	Flad panel støtte
Model:	TH-2050-VFM
Produktfarve:	Sort
Monteringstype:	Væg
Akse:	180°/360°/190°
Drejevinkel område:	5 °
Hældningsvinkelområde:	-5 - 20 °
Vægt (efter britisk standard):	77 Pund
Monteringsgrænseflade:	VESA 100mm x 100mm / 200mm x 100mm / 200mm x 200mm / 300mm x 200mm / 300mm x 300mm / 400mm x 400mm
Vægt (maks.):	35 kg
