Installation Instructions

FLAT SCREEN WALL MOUNT | FIXEDTH-3070-UF

Display Bracket (x2)

Wall Plate

Important Notes

TOOLS REQUIRED:

 Power Drill

 12mm (1/2”), 10mm (3/8”) or 7mm (1/4”) Drill Bit

 Phillips Head Screw Driver

 Spirit Level

 17mm (11

/16”) Socket Wrench or Shifter

Supports a maximum load of 91kgs (200lbs).

Suits displays with mounting hole patterns from 180mm to 810mm wide (7”-313/4”) by 125mm to 500mm

high (5”-191/2”).

The manufacturer does not accept responsibility for incorrect installation.

Security Bracket

Mounting Screws

M8x15mm / M8x35mm / M8x45mm (x4 each)

M6x15mm / M6x35mm / M6x45mm (x4 each)

M5x15mm / M5x35mm / M5x45mm (x4 each)

M4x15mm / M4x35mm / M4x45mm (x4 each)

Cross Recessed Screws

Coach

Screw (x4)

Masonry Wall

Plug (x4)

Washer (x4)

Multi

Washer (x4)

Dry Wall

Anchor (x6)

™

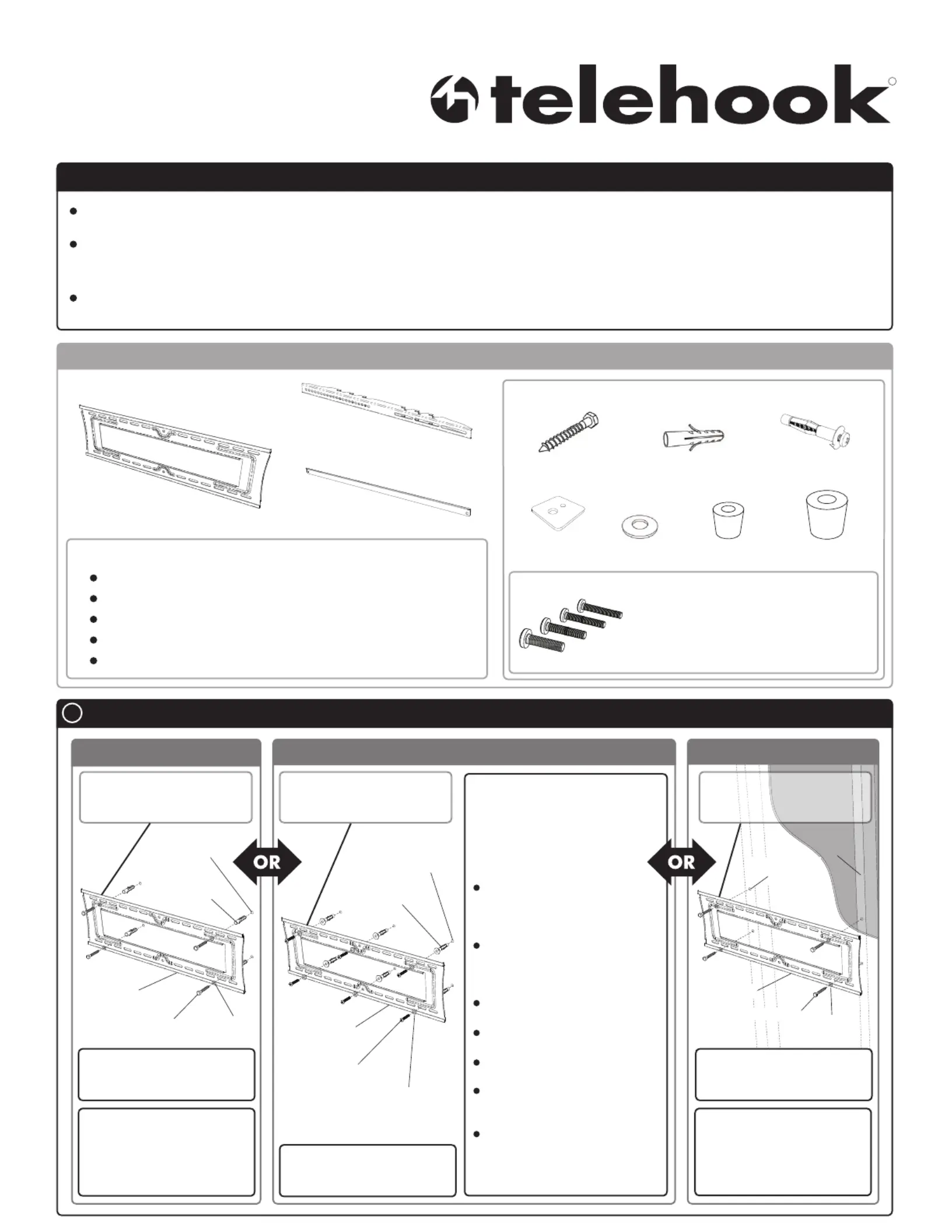

Mounting the Wall Plate

Masonry Wall

Washer

Masonry

Wall Plug

Wall Plate

12mm (1/2”)

Hole

Coach Screw

Dry Wall Timber Stud Wall

TIP: Use a spirit level to

ensure the wall plate is

horizontal

TIP: Use a spirit level to

ensure the wall plate is

horizontal

TIP: Use a spirit level to

ensure the wall plate is

horizontal

Wall Plate

Coach Screw Washer

Timber

Stud10mm (3/8”)

Hole

Wall Plate

Dry Wall

Anchor

Dry Wall

Anchor Screw

Dry Wall

Anchor Washer Use a stud finder to precisely

locate the timber stud and

ensure that the mounting holes

are located in the centre of

the stud.

It is recommended when

mounting directly into masonry

wall, that the mounting holes

are positioned as far apart as

possible.

7mm (1/4”)

Hole

Note: Ensure the Wall Plate

is mounted with the folded

tabs pointing upwards.

Note: Ensure the Wall Plate

is mounted with the folded

tabs pointing upwards.

Note: Ensure the Wall Plate

is mounted with the folded

tabs pointing upwards.

The dry wall anchors provided in

the bit bag have been tested for

this wall mount application and will

each hold in excess of 30kg per

anchor.

Before using the expanding

anchors, please ensure that you:

· Check the plaster board wall (dry

wall) is in good condition with no

cracks, peeling paper or signs of

water damage etc.

· Take care installing the anchors,

that they are not over tightened

or driven into the wall during

installation.

· Minimum thickness of drywall

should be no less than 12mm (1/2”)

· Recommend to use all 6 anchors

even with light monitor applications.

· Only use the anchors supplied

in the kit.

· Make sure the 10mm (3/8”) pre-

drilled hole is as recommended and

no smaller or larger.

· The anchors during expansion

should not interfere with studs or

noggins (cross strengtheners).

13mm Spacer

Bush (x4)

20mm Spacer

Bush (x4)

Recessed Mounting Holes

Multi

Washer

M6 & M8

Screw Hole

M4 & M5

Screw Hole

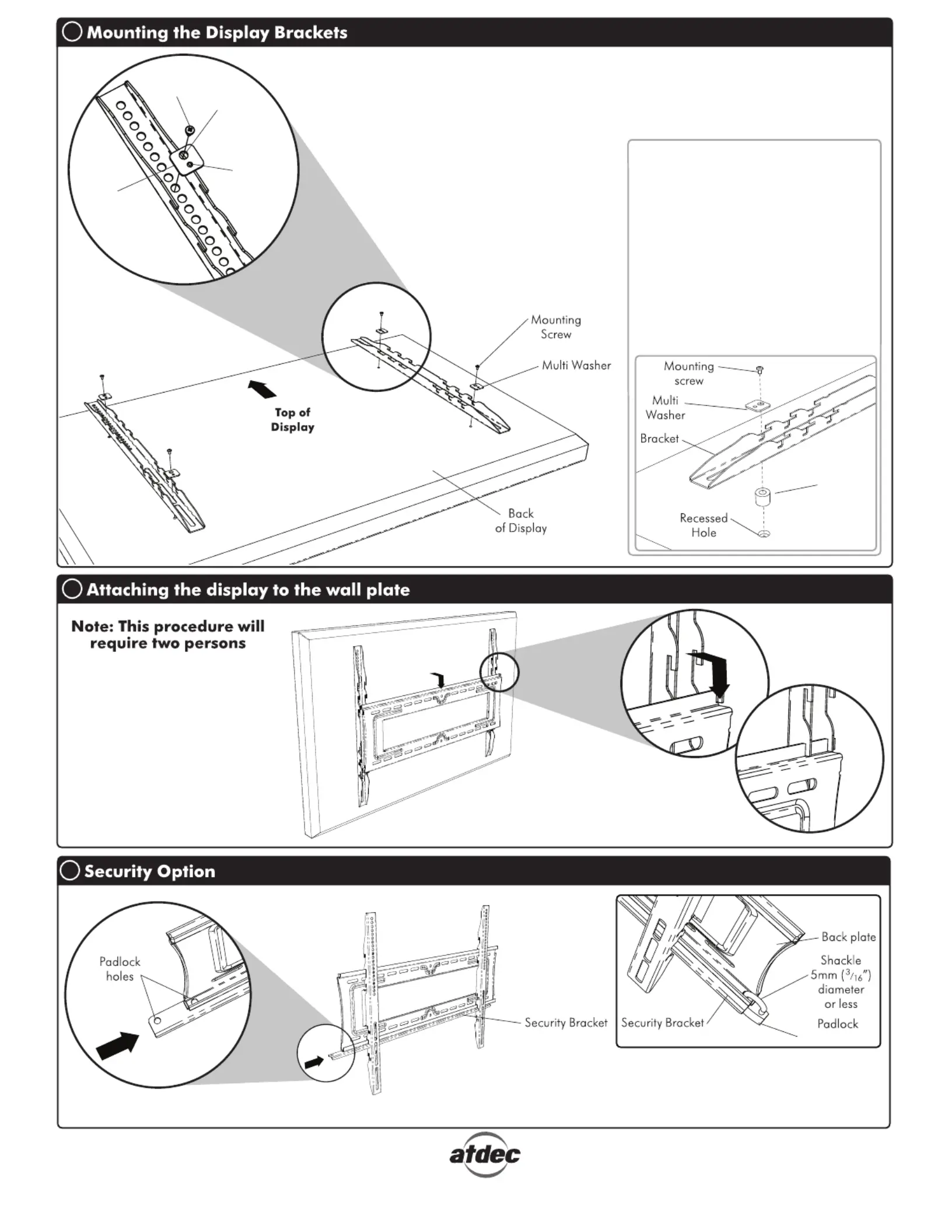

Mounting

screw When attaching the Brackets ensure

that both are vertically aligned.

Ensure that the tightest fitting hole

in the multi washer is used when

attaching the mounting screw.

For additional security, it is suggested that a Padlock is

attached through the Security Bracket and the Wall Plate

on either side as shown. The Padlock (not supplied) should

have a shackle diameter no larger than 5mm (3/16”).

No portion of this document or any artwork contained herein should be reproduced in any way without the express written consent of Atdec Pty Ltd.

Due to continuing product development, the manufacture reserves the right to alter specifications without notice. Published: 19.02.09 ©

E.2.

E.1.

(not supplied)

With the Brackets attached

to the display, lift the display

and hook the brackets onto

the Wall Plate as shown.

There are three height

positions to choose from in

50mm (2”) increments.

Spacer

Bush

If the mounting holes are recessed

into the back of the display, use

the appropriate Spacer Bushes

provided to pack the recessed hole.

Please note the 13mm Spacer

Bushes can only be used with M4,

M5, and M6 Mounting screws.

Ensure the brackets are securely

fixed to the display.
