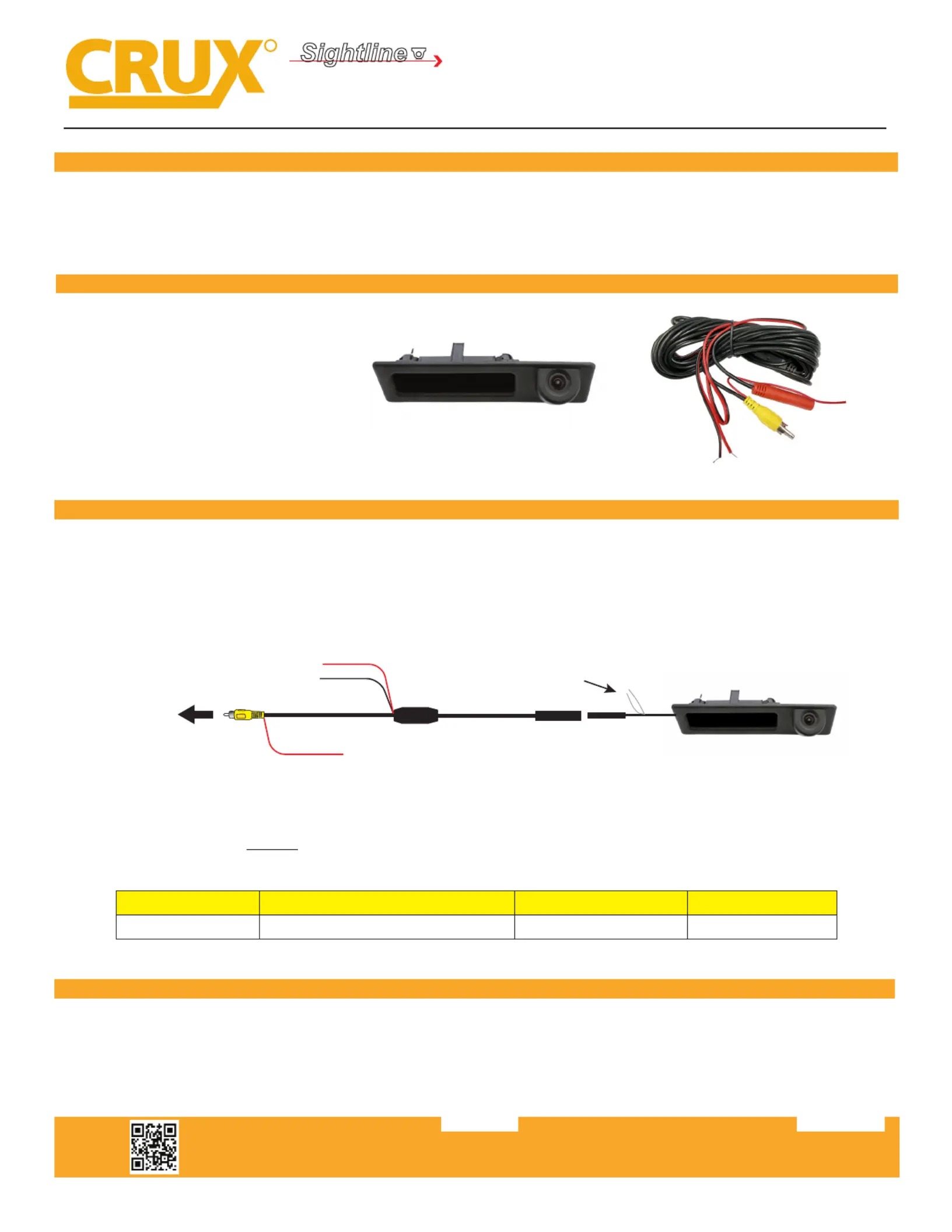

CBM-01T

Trunk Handle Camera for

Select BMW Vehicles 2012-2018

- Replaces factory trunk handle.

- Selectable Parking Guide Line ON or OFF.

- Maintains the OEM look.

PRODUCT FEATURES:

PARTS INCLUDED:

*NOTE: To power the camera, use RED Wire A or B. If tapping power from the radio or RVC Interface, make sure to

insulate RED Wire A to avoid it from shorng. If you will be tapping power from the reverse light +12V, insulate RED

Wire B to avoid it from shorng. With either connecon the Black GROUND wire needs to be connected to a solid chassis

ground. For vehicles with manual transmission, we recommend tapping +12V power from the reverse light.

WHITE Wire: Connect to show parking guide line. Disconnect to remove. Insulate with tape to avoid from shorng.

Note: Cycle the camera power aer connecng or disconnecng the control wire.

INTERFACING SOLUTIONS

Sightline

CAMERAS

1. Trunk handle camera

2. 20” extension cable

INSTALLATION INSTRUCTIONS:

1. Carefully remove the factory trunk handle using a plasc panel removal tool.

2. Run the camera cable to the inside of the cabin towards the radio.

3. Make the power and video connecons to the RVC interface or the aermarket radio.

4. Test the camera for funconality.

5. Snap in the new trunk handle.

20 Ft. Coax Cable

RED wire (B)*

Ground (Black wire)

RED wire (A)*

To Aftermarket Radio

Backup Camera Input

Reverse Camera Interface

Backup Camera Input

WHITE Wire

Parking Guideline

Crux Interfacing Solutions • 6860 Canby Ave., Suite 104, Reseda, CA 91335

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.020419

VEHICLE APPLICATIONS:

2012-2018 4 Series

2012-2014 7 Series

2016-2017 X1

2014-2017 X3

2014-2018 X5

2015-2017 X6
