Crux Interfacing Solutions • 6860 Canby Ave., Suite 116, Reseda, CA 91335

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.052318

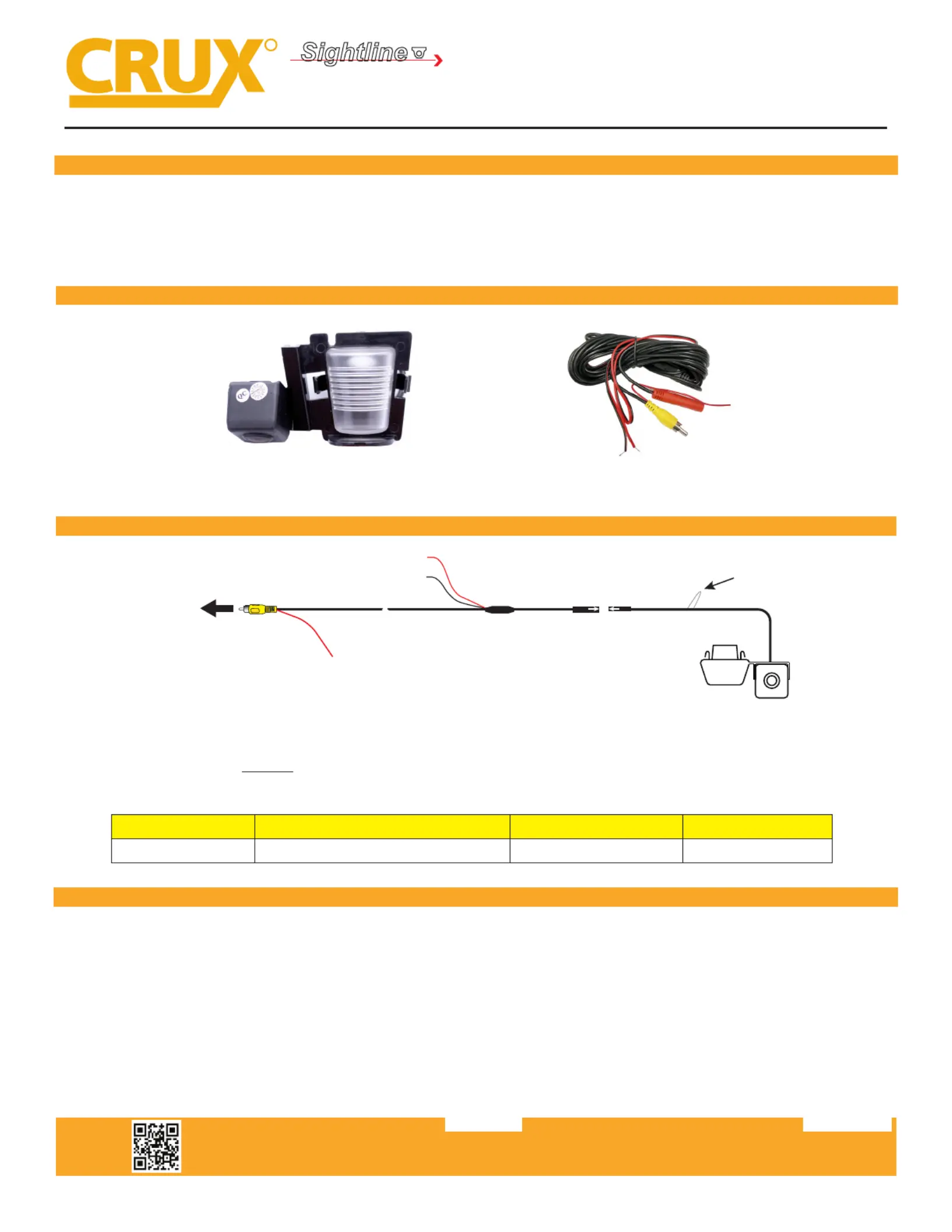

CCH-01W

JEEP WRANGLER License Plate Mount Camera

2007 - 2017

- Installs on your Wrangler’s license plate bracket, keeping the rugged appeal of your Jeep.

- 120° wide viewing angle.

- 0.4 Lux minimum for night driving.

- Selectable Parking Guide Line ON or OFF.

PRODUCT FEATURES:

PARTS INCLUDED:

INSTALLATION DIAGRAM:

CCH-01W CAMERA EXTENSION CABLE

*NOTE: To power the camera, use RED Wire A or B. If tapping power from the radio or RVC Interface, make sure to

insulate RED Wire A to avoid it from shorng. If you will be tapping power from the reverse light +12V, insulate RED

Wire B to avoid it from shorng. With either connecon the Black GROUND wire needs to be connected to a solid chassis

ground. For vehicles with manual transmission, we recommend tapping +12V power from the reverse light.

WHITE Wire: Connect to show parking guide line. Disconnect to remove. Insulate with tape to avoid from shorng.

INTERFACING SOLUTIONS

Sightline

CAMERAS

WHITE Wire

Parking Guideline

Regulator

Extension Coax Cable

GROUND

RED Wire (A)*

RED Wire (B)*

Make sure the arrows

line up and push in

the connectors well.

To Aftermarket Radio

Backup Camera Input

Reverse Camera Interface

Backup Camera Input

LICENSE PLATE

CAMERA

1. Remove the stock license plate light at the back of the vehicle.

2. Install the camera assembly to where the stock license plate light was.

3. Connect the built-in license plate light of the camera to the stock license plate power connecon.

4. Connect the power of the camera to your reverse light wires:

Red wire to +12V

Black wire to Ground

5. Connect the video cable of the camera to the extension cord provided.

6. Run the video extension cable to the back of the radio.

7. Connect the video cable to your in-dash aermarket mulmedia or navigaon receiver’s camera input.

8. Put the gear in reverse to see the image from the camera.

INSTALLATION PROCEDURE:
