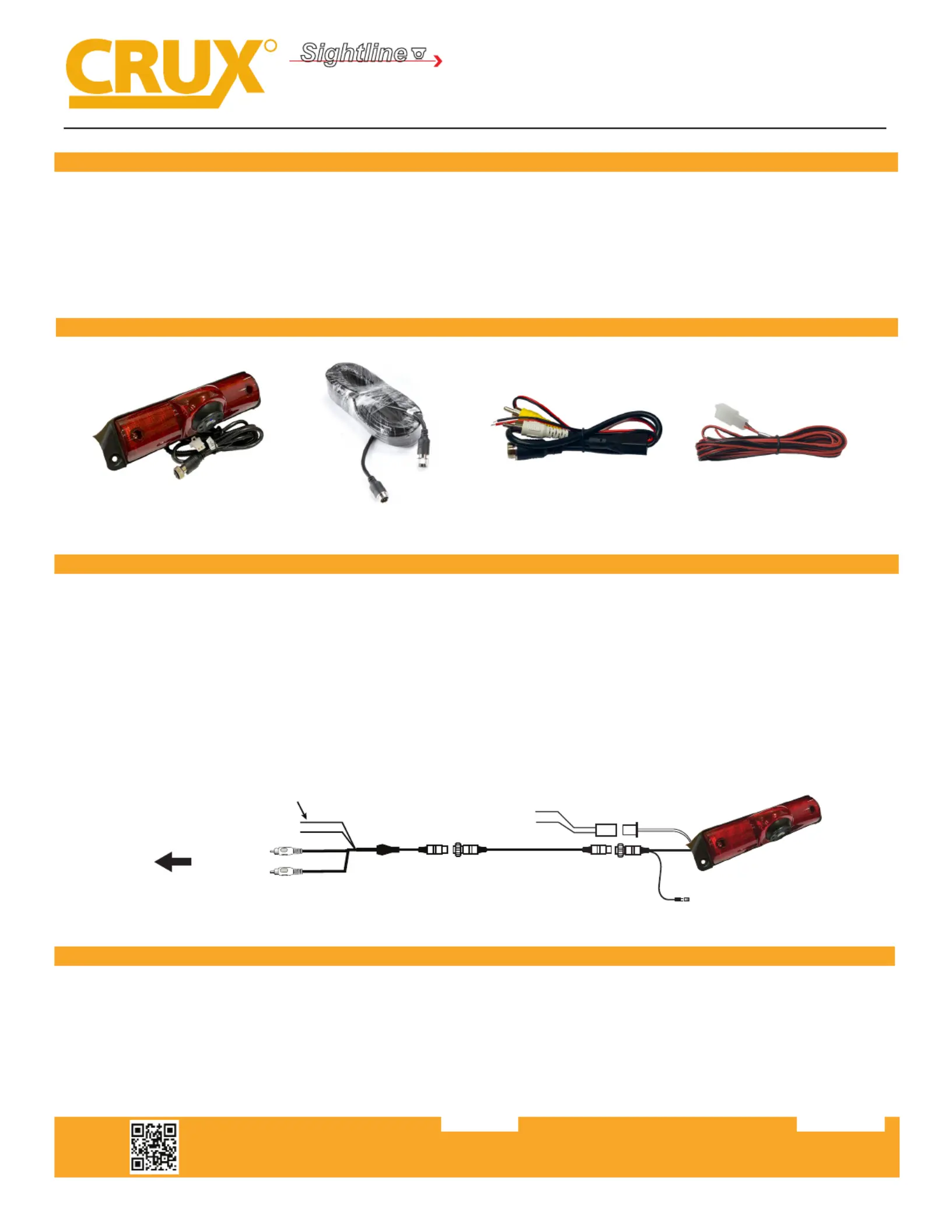

CCV-01X Camera 10M Extension Cable 4-Pin to RCA Adapter Brake Light Power Cable

CCV-01X

Third Brake Light Camera for

CHEVROLET EXPRESS & GMC Savana Van 2003-2018

- Replaces the factory third brake light to maintains the OEM look.

- LED brake lights included.

- 6 Infra Red LEDs for night me use.

- With built-in microphone.

- Uses 4-pin aviaon type water resistant connectors.

PRODUCT FEATURES:

PARTS INCLUDED:

INTERFACING SOLUTIONS

Sightline

CAMERAS

INSTALLATION INSTRUCTIONS:

1. Remove the factory third brake light.

2. Plug the 4-pin aviaon connector of the extension cable to the camera cable.

3. Connect the red and black wire from the CCV-01X camera to the factory brake light wiring.

4. Run the extension cable provided towards the radio.

5. Make the power and video connecons at the radio. Power the camera using the camera power output provided by

the RVC interface or connect to the factory backup light wire.

6. Test the camera prior to installing the CCV-01X third brake light.

7. Adjust the camera angle as necessary.

Crux Interfacing Solutions • Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.032621

VEHICLE APPLICATIONS:

2003 - 2018 Express Van

To aftermarket radio/monitor

backup camera input

Reverse Camera Interface

backup camera input

RED Wire to brake light +12V

BLACK Wire Ground

33’ Extension Cable

RED Wire Camera Power +12V

(connect to RVC Interface camera

power output or factory backup light wire)

Ground

Green wire (parking lines)

Connect = display parking lines

Disconnect = no parking lines

(power cycle the camera after selecting the option)

Video

Mic

CHEVROLET

2003 - 2018 Savana

GMC

Produkt Specifikationer

Mærke:	CRUX
Kategori:	Bakkamera
Model:	CCV-01X
