Crux Interfacing Solutions • Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.092021

CDR-02

Tailgate Handle Camera for

RAM Trucks 2009 - 2017

1 of 2

- Tailgate handle replacement with built-in backup camera.

- Maintains the OEM look.

- With selectable parking guide lines ON / OFF.

PRODUCT FEATURES:

PARTS INCLUDED:

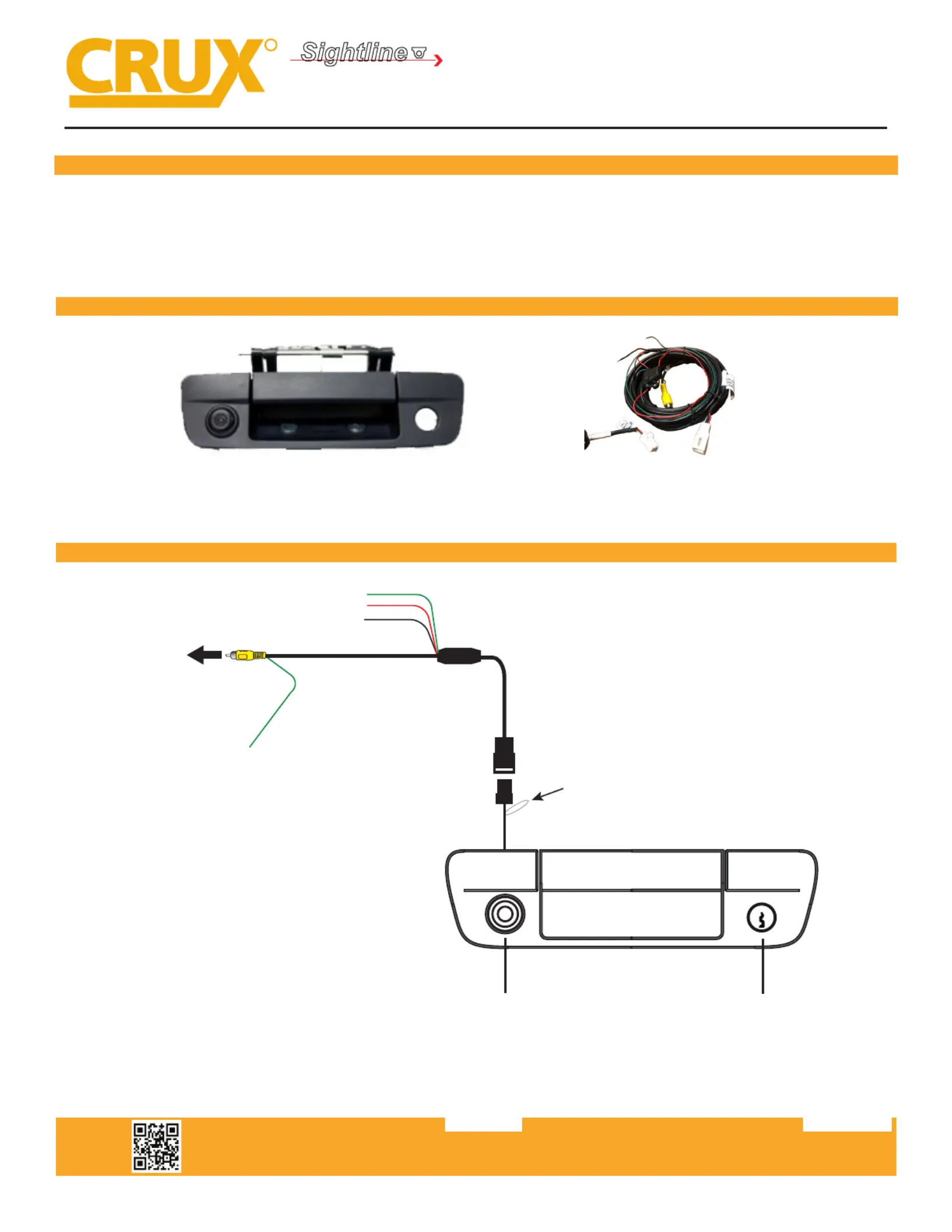

INSTALLATION DIAGRAM:

CDR-02 Tailgate Handle Camera 26’ Extension Cable

INTERFACING SOLUTIONS

Sightline

CAMERAS

Green wire (B)*

RAM TAILGATE

HANDLE

CAMERA

KEY CYLINDER

26 Ft. Coax Cable

Green wire (B)*

Ground (Black wire)

RED wire (A)*

To Aftermarket Radio

Backup Camera Input

Reverse Camera Interface

Backup Camera Input

WHITE Wire

Parking Guideline

(ON / OFF see next page)

Green wire (B)*

*NOTE: The camera needs a +12V trigger. Power the camera from the reverse light wire using RED Wire A. GREEN Wire

B is a pass-through wire, you can use this wire to connect a reverse trigger from the camera locaon to the RCA. Tap the

Black wire to an exisng ground lead, or ground Black wire securely to vehicle body metal.

Crux Interfacing Solutions • Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.092021

CDR-02

Universal Push-in Style Lip Mount Camera

1 of 2

INTERFACING SOLUTIONS

Sightline

CAMERAS

Loop Wire Color Joined CutFuncon

White Parking Lines ON (default) OFF

NOTE: Reset the camera by disconnecng the power wire aer cung or joining the loop wires for the opon to take eect.

INSTALLATION INSTRUCTIONS:

Follow these steps to properly install the new tailgate handle:

1) REMOVE THE TAILGATE COVER: Start by lowering the tailgate of the truck. Remove the tailgate cover by using a T-30 torx

bit, remove (8) torx bolts that secure the tailgate cover.

2) REMOVE THE TAILGATE HANDLE: Aer removing the tailgate cover, you will have access to the backside of the factor

tailgate handle. Disconnect the actuator rods, then disconnect the tailgate locking harness. Using an 8mm socket, remove

the 2 nuts holding the tailgate handle assembly.

3) SET UP THE NEW TAILGATE HANDLE: Using an 8mm wrench, remove the factory locking mechanism from the old tailgate

handle. Install the locking mechanism to the new tailgate handle.

4) RUN THE PROVIDED EXTENSION CABLE: Run the provided extension cable toward the radio locaon. Make sure to set the

parking brake rst for safety as you will need to run the cable under the truck. The cable is covered by a loom to protect it

from the elements.

5) REINSTALL THE NEW TAILGATE HANDLE WITH CAMERA: Re-assemble the new tailgate handle in reverse order. Route the

wire towards the boom of the tailgate and through the access port under the truck.

6) VIDEO AND POWER CONNECTIONS: Connect the video RCA to the aermarket radio or RVC interface. Connect the camera

power supplied by the aermarket radio or RVC interface to the thin RED wire B on the CDR-02 extension cable. RED wire

A on the extension cable will not be used and needs to be insulated. Tap the BLACK wire to an exisng ground lead, or

ground Black wire securely to vehicle body metal. See diagram on page 1 for details.

Another opon to power the camera is to tap RED wire A to the +12V reverse light wire. The thin RED wire A will not be

used in this opon and needs to be insulated. See page 1 for details.

TIP: There should be an opening (covered with a rubber cap) between the cabin and the bed of the truck where you can

insert the extension cable.

VEHICLE APPLICATIONS:

2009 - 2017 RAM Trucks
