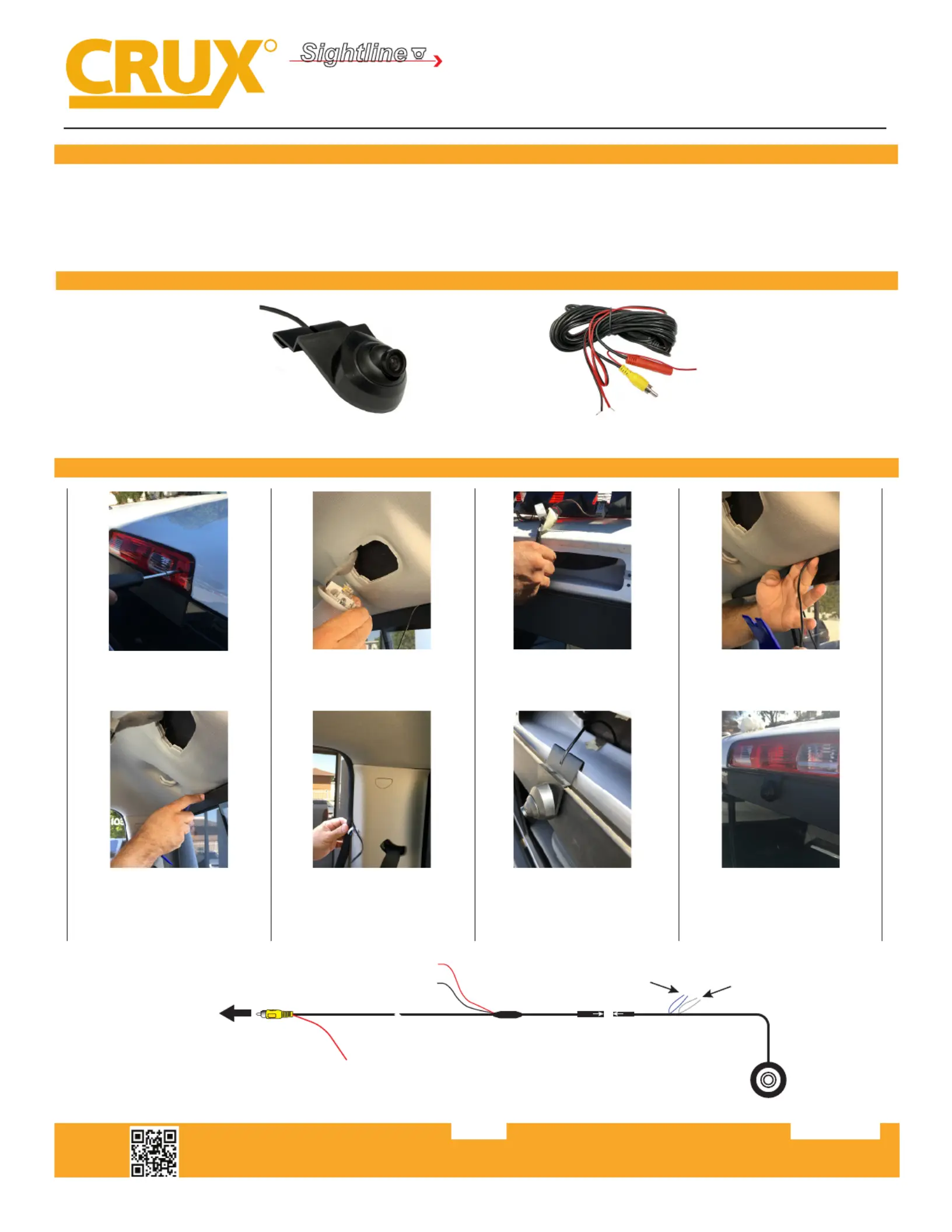

CDR-03C

Third Brake Light Mount Cargo Camera for

RAM Trucks 2014 - 2017

- Mounts under the OEM third brake light for an OEM look.

- Adjustable swivel head camera for opmal view of your truck bed.

- HD CMOS camera for clear vision day and night.

- Terminates to a video RCA for universal applicaon.

PRODUCT FEATURES:

PARTS INCLUDED:

INTERFACING SOLUTIONS

Sightline

CAMERAS

INSTALLATION INSTRUCTIONS:

Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.060719

1. Remove third brake light lens

assembly.

2. Remove the dome light assembly. 3. Fish the CDR-03C camera cable

under the headliner and towards

inside the cabin.

4. Pull the camera cable and connect

to the 4-pin barrel connector of the

extension cable.

5. Run the cable along the headliner.

Use a plasc pry tool to tuck it in

neatly.

6. Connue running the cable along

the C pillar, under the door sill,

towards the radio.

7. Hook on the CDR-03C camera on

the third brake light cavity.

8. Reinstall the third brake light

assembly and make the video and

power connecons at the RVC

interface or aermarket radio.

Third brake light mount cargo camera 20” extension cable

WHITE Wire

Parking Guideline

Regulator

Extension Coax Cable

GROUND

RED Wire (A)*

Camera

RED Wire (B)*

Make sure the arrows

line up and push in

the connectors well.

To Aftermarket Radio

Backup Camera Input

Reverse Camera Interface

Backup Camera Input

BLUE Wire

Flip Image Horizontally

*Red wire A is an extension of Red wire B. Use one that suits the installaon and insulate the one that is not

being used.
