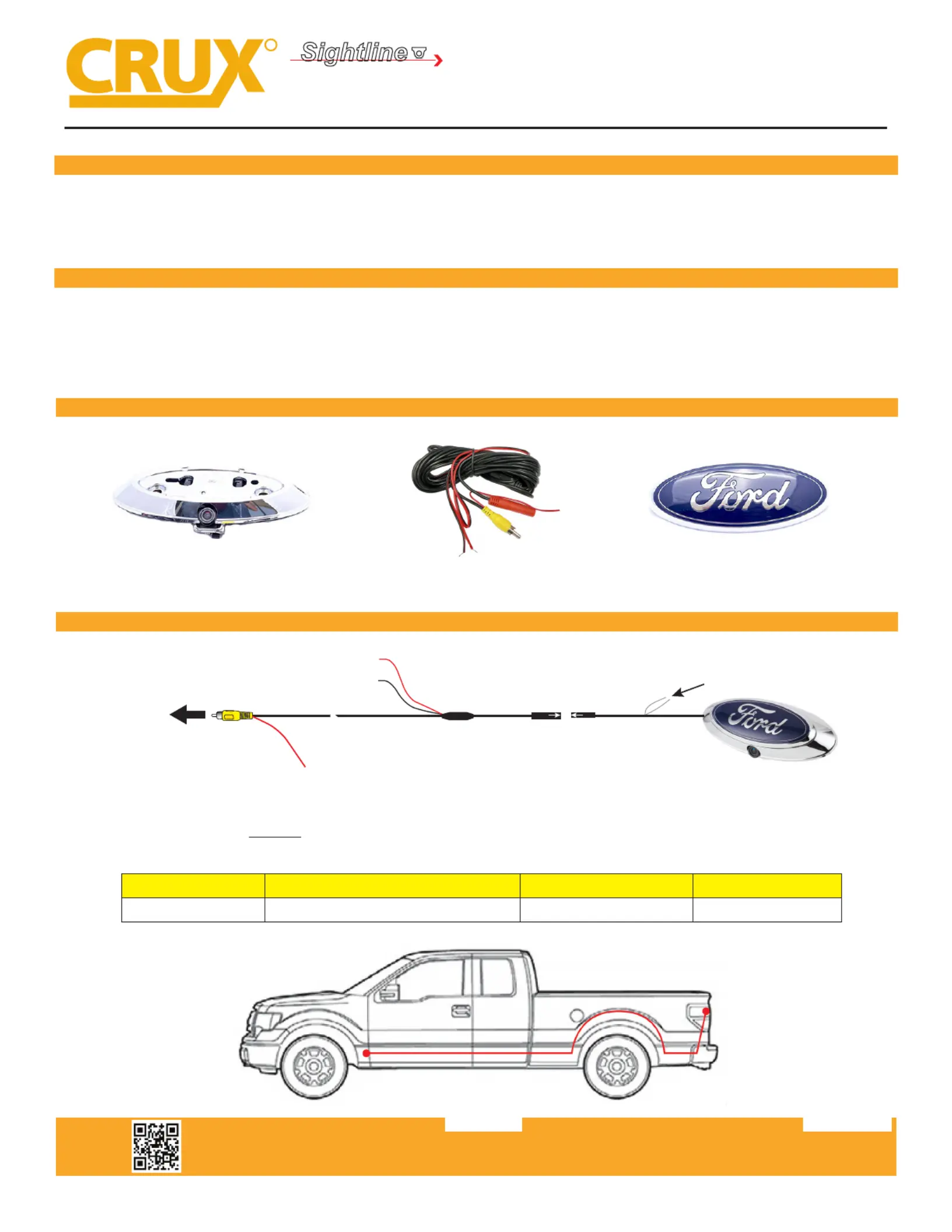

Side 1/2

- Specially designed for the Ford truck for an OEM look.

- 160 degree wide view angle for excellent visibility.

- Super CMOS technology provides a sharper picture day and night.

PRODUCT FEATURES:

PARTS INCLUDED:

CFD-03E CAMERA BASE EXTENSION CABLE OEM FORD EMBLEM

Crux Interfacing Solutions • Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.121820

CFD-03E

FORD Emblem Camera

for Select Ford Trucks

INTERFACING SOLUTIONS

Sightline

CAMERAS

WIRING DIAGRAM:

1 / 2

VEHICLE APPLICATIONS:

FORD

2004 - 2014 F-150

2008 - 2016 F-250 / F-350 / F-450

2009 - 2012 Flex

WHITE Wire

Parking Guideline

Regulator

Extension Coax Cable

GROUND

RED Wire (A)*

RED Wire (B)*

Make sure the arrows

line up and push in

the connectors well.

To Aftermarket Radio

Backup Camera Input

Reverse Camera Interface

Backup Camera Input

*NOTE: The camera needs a +12V trigger. Power the camera at the headunit using RED Wire B or from the reverse light

wire using RED Wire A. DO NOT connect both wires to +12V at the same me. Insulate the red wire that is not being

used. Tap the Black wire to an exisng ground lead, or ground Black wire securely to vehicle body metal.

Loop Wire Color Joined CutFuncon

White Parking Lines ON (default) OFF

Crux Interfacing Solutions • Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.121820

CFD-03E

FORD Emblem Camera

for Select Ford Trucks

INTERFACING SOLUTIONS

Sightline

CAMERAS

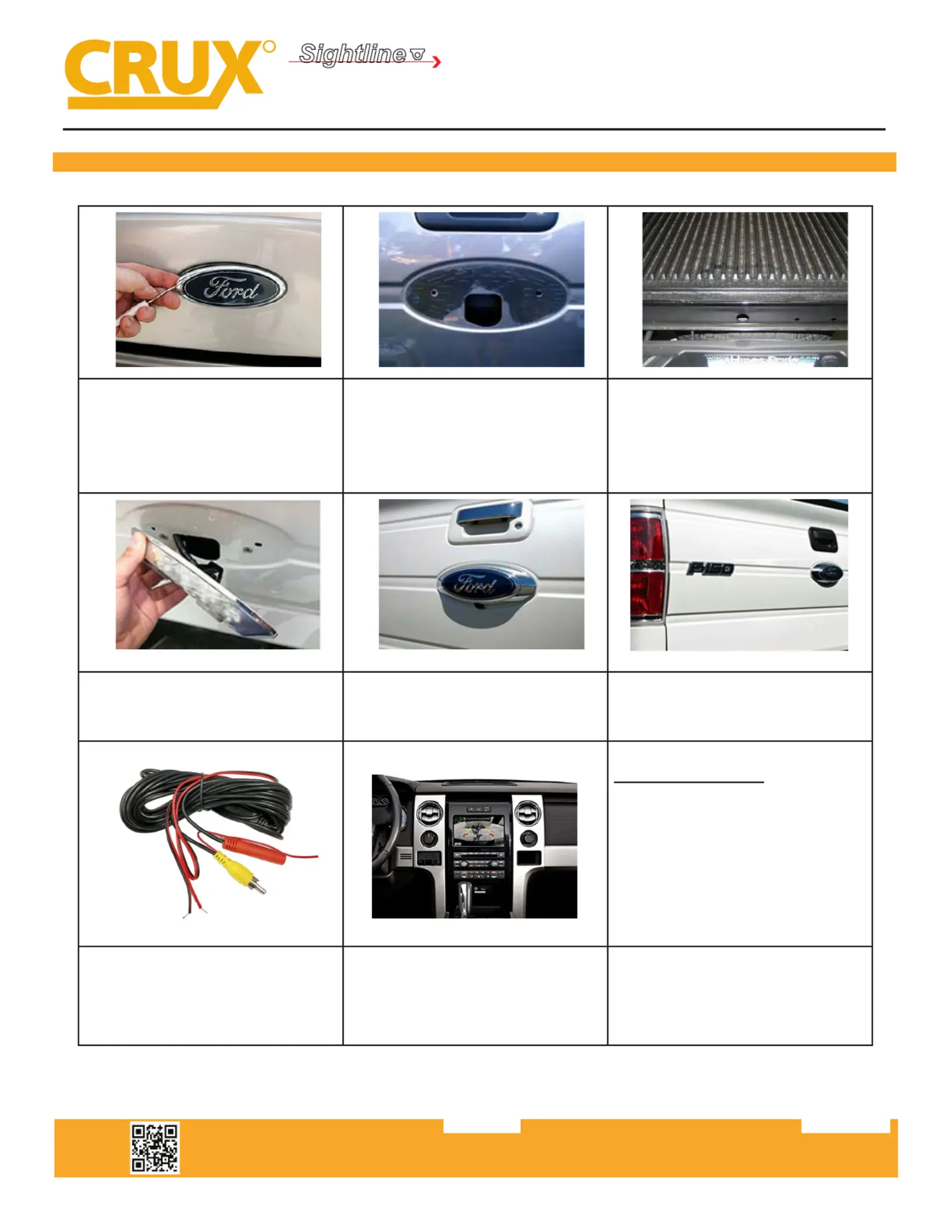

INSTALLATION PROCEDURE:

1. Remove the Ford Emblem. 2. The OEM holes behind the emblem

will look like this. If your tailgate does

not have these holes, you need to cut

a hole using a drill and the hole saw.

Use a le to smooth out the edges.

3. Some trucks have a hole on the bed

behind the tailgate like on the picture

above. If your truck does not have this

hole, use the hole saw to drill one. Use

a le to smooth the edges.

4. Route the wiring through the tailgate

hole down the opening at the base of

the tailgate.

5. Press in the emblem to cover the

base.

6. Route the harness through the hole

on the truck bed and run it towards the

front of the truck.

Camera Specicaons:

Resoluon: 420 TV Lines

Pixels: 656 x 492

Viewing Angle: 170-degrees

Minimum Illuminaon: 0.2 Lux

Shuer Speed: 1/60s-20us

Voltage: 12V Negave Ground

7. Tap +12V from the reverse light wire

using the supplied 3 . power plug or

use the power extension wire built into

the video cable to tap to the reverse

signal wire from an aermarket radio.

8. To integrate the CFD-03E back-up

camera with the MyFord Touch 8”

screen radio of select 2011-up Ford

vehicles, use part# RVCFD-79 Rear-View

Integraon Kit (not included).

2 / 2
