CGM-01M

Tailgate Handle Camera with Moving Parking Guide Lines for

CHEVROLET SILVERADO and GMC SIERRA 2014 - 2017

- Replaces the factory tailgate handle and adds a backup camera.

- 170 degree wide view angle for excellent visibility.

- With moving parking guide lines to assist with parking.

- Super CMOS technology provides a sharper picture day and night.

- Maintains the OEM look.

NOTE: Parking Guide Lines will only move when the camera senses that the vehicle is turning while backing up

providing a trajectory for the turn.

PRODUCT FEATURES:

PARTS INCLUDED:

INTERFACING SOLUTIONS

Sightline

CAMERAS

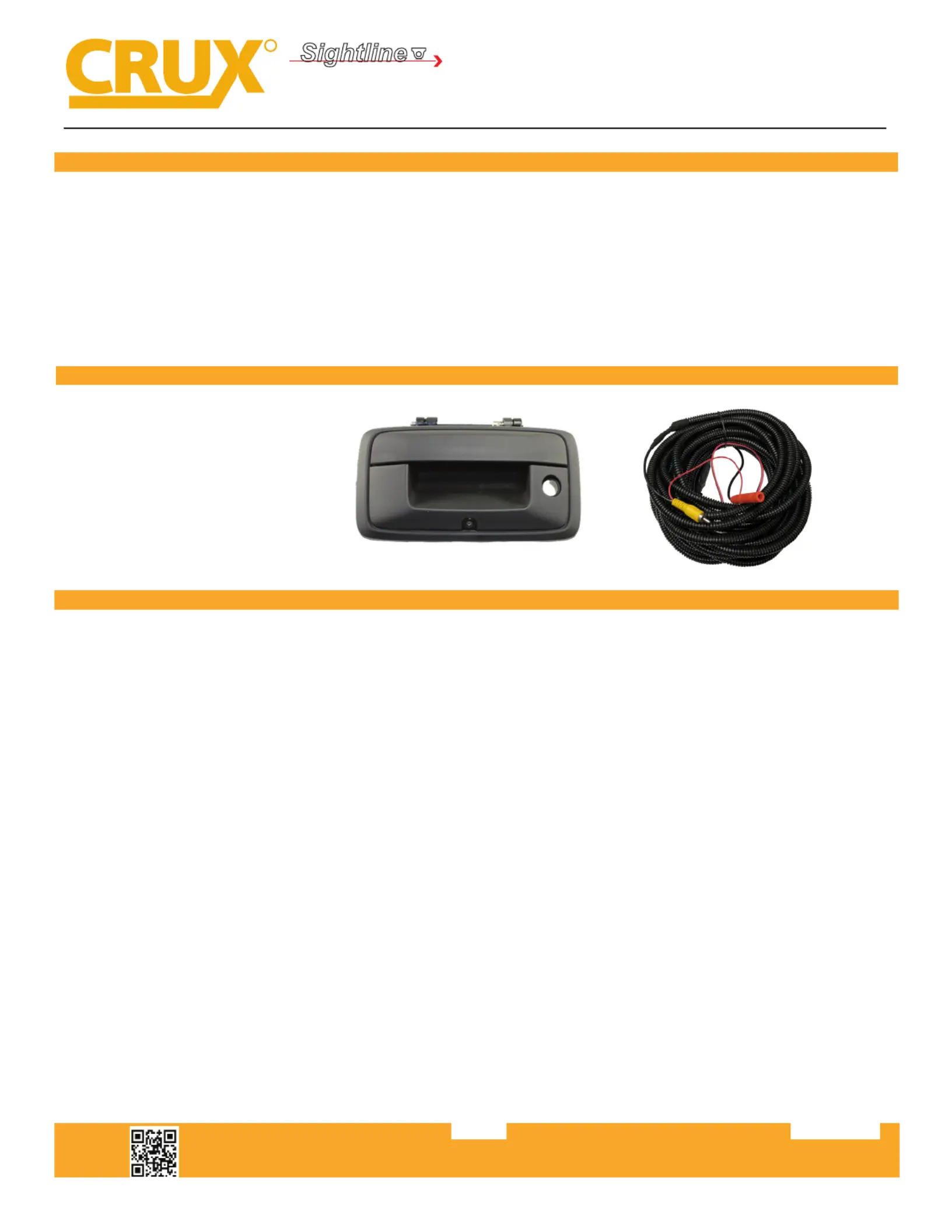

1. Tailgate handle camera

2. 26’ extension cable

INSTALLATION INSTRUCTIONS:

1. Start by lowering the tailgate of the truck. Remove the screws that secure the tailgate cover.

2. Aer removing the tailgate cover you will have access to the backside of the factory tailgate handle. Using a

10mm socket, remove the (2) nuts holding the tailgate handle in place. Undo the tailgate latch rods. Li up on

the latch to release the (2) tailgate handle studs and remove the tailgate handle.

3. On the lock cylinder, remove the metal clip that holds the locking mechanism in place. Re-Install the lock cylinder

onto the new tailgate handle.

4. Re-assemble the new tailgate handle into the tailgate in reverse order. Do not put back the tailgate cover

unl aer tesng the camera. Decide whether the parking guide lines will be used or not. See next page for

instrucons on how to turn ON/OFF the parking guide lines.

5. Route the Video and Power cables from the tailgate to the boom of the truck. Route the the camera power

wires to the tail light assembly. Tap the RED wire to the +12V reverse light wire and the BLACK wire to ground.

Connue to route the video cable towards the radio and plug in the video RCA to the back of the aermarket

radio of back up camera interface reverse camera input.

6. Test the camera for funconality then put back the tailgate cover.

Tip: There should be an opening (covered by a rubber boot) between the cabin and the bed of the truck where you

can insert the cables into the cabin area. You can run the video cable under the door sill cover.

Crux Interfacing Solutions • 6860 Canby Ave., Suite 104, Reseda, CA 91335

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.020419

CGM-01M

INTERFACING SOLUTIONS

Sightline

CAMERAS

Crux Interfacing Solutions • 6860 Canby Ave., Suite 104, Reseda, CA 91335

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.020419

VEHICLE APPLICATIONS:

2014 - 2017 Silverado

CHEVROLET

2 of 2

20 Ft. Coax Cable

RED wire (B)*

Ground (Black wire)

RED wire (A)*

To Aftermarket Radio

Backup Camera Input

Reverse Camera Interface

Backup Camera Input

WHITE Wire

Parking Guideline

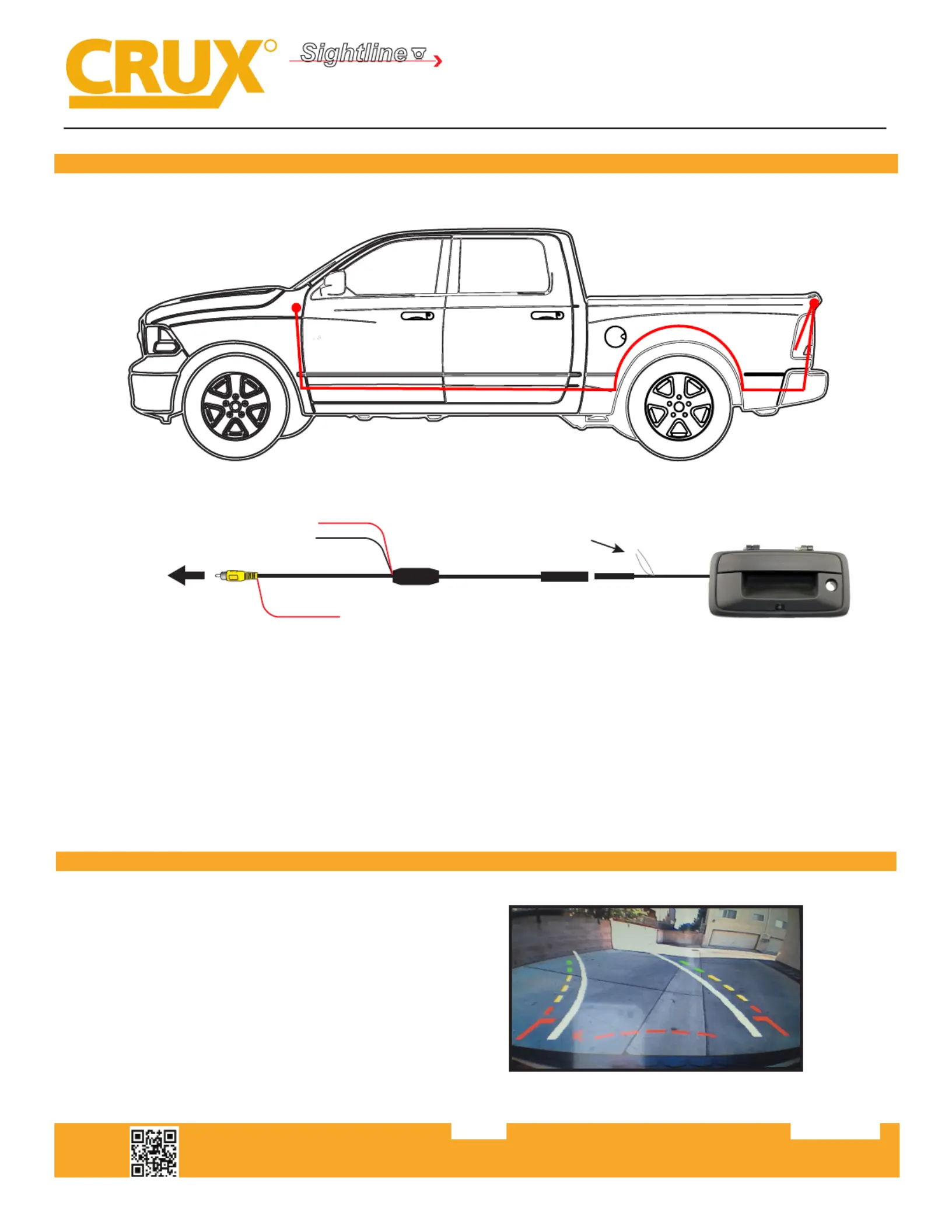

WIRING DIAGRAM:

2014 - 2017 Sierra

GMC

*NOTE: To power the camera, use RED Wire A or B. If tapping power from the radio or RVC Interface, make sure to

insulate RED Wire A to avoid it from shorng. If you will be tapping power from the reverse light +12V, insulate RED

Wire B to avoid it from shorng. With either connecon the Black GROUND wire needs to be connected to a solid chassis

ground. For vehicles with manual transmission, we recommend tapping +12V power from the reverse light.

WHITE Wire: Connect to show parking guide line. Disconnect to remove. Insulate with tape to avoid from shorng.

Note: Cycle the camera power aer connecng or disconnecng the control wire.

Tailgate Handle Camera with Moving Parking Guide Lines for

CHEVROLET SILVERADO and GMC SIERRA 2014 - 2017
