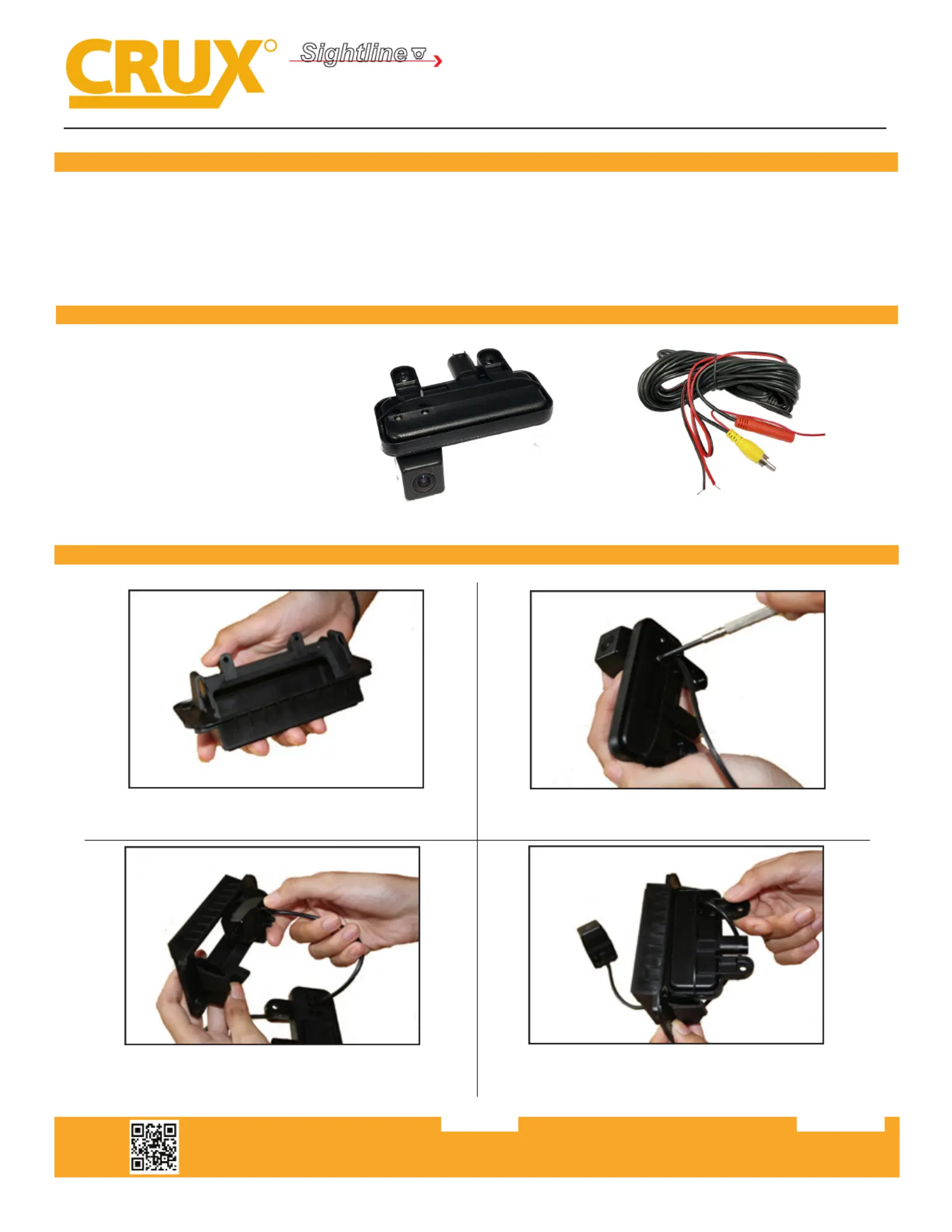

CMB-15T

Trunk Handle Camera for

MERCEDES BENZ CLA Class 2013 - 2017

- Adds a backup camera to the factory trunk handle.

- Selectable parking guide lines ON or OFF.

- With built-in trunk release switch.

- Maintains the OEM look.

PRODUCT FEATURES:

PARTS INCLUDED:

INTERFACING SOLUTIONS

Sightline

CAMERAS

1. Trunk handle camera

2. 20’ extension cable

INSTALLATION INSTRUCTIONS:

1. Remove OE trunk handle and remove the OE trunk

release switch.

2. Remove the 4 screws holding the CMB-15T camera.

3. Slide the camera from the back side of the OE trunk

handle.

4. Posion the CMB-15T base to OE trunk handle and align

the screw holes.

Crux Interfacing Solutions • 6860 Canby Ave., Suite 104, Reseda, CA 91335

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.020519

CGM-01M

INTERFACING SOLUTIONS

Sightline

CAMERAS

Crux Interfacing Solutions • 6860 Canby Ave., Suite 104, Reseda, CA 91335

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.020519

VEHICLE APPLICATIONS:

2013 - 2017 CLA Class

MERCEDES BENZ

2 of 2

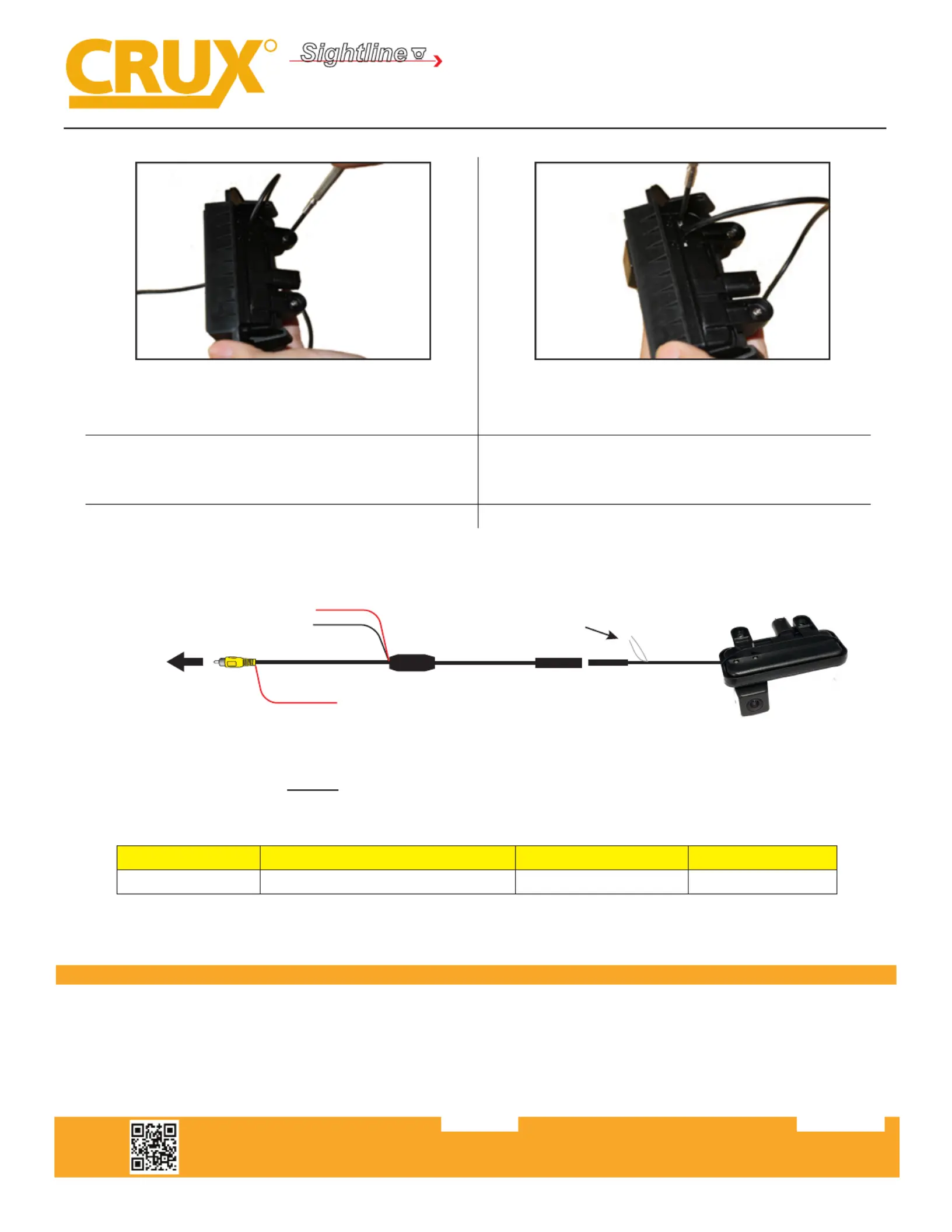

20 Ft. Coax Cable

RED wire (B)*

Ground (Black wire)

RED wire (A)*

To Aftermarket Radio

Backup Camera Input

Reverse Camera Interface

Backup Camera Input

WHITE Wire

Parking Guideline

*NOTE: To power the camera, use RED Wire A or B. If tapping power from the radio or RVC Interface, make sure to

insulate RED Wire A to avoid it from shorng. If you will be tapping power from the reverse light +12V, insulate RED

Wire B to avoid it from shorng. With either connecon the Black GROUND wire needs to be connected to a solid chassis

ground. For vehicles with manual transmission, we recommend tapping +12V power from the reverse light.

WHITE Wire: Connect to show parking guide line. Disconnect to remove. Insulate with tape to avoid from shorng.

Note: Cycle the camera power aer connecng or disconnecng the control wire.

Tailgate Handle Camera with Moving Parking Guide Lines for

CHEVROLET SILVERADO and GMC SIERRA 2014 - 2017

5. Secure the CMB-15T to the OE trunk handle using the OE

screws.

6. Put the camera back to the CMB-15T base and secure

using the 4 screws.

7. Run the camera cable to the inside of the cabin towards

the radio.

8. Make the power and video connecons to the RVC inter-

face or the aermarket radio.

9. Test the camera for funconality. 10. Snap in the new trunk handle.
