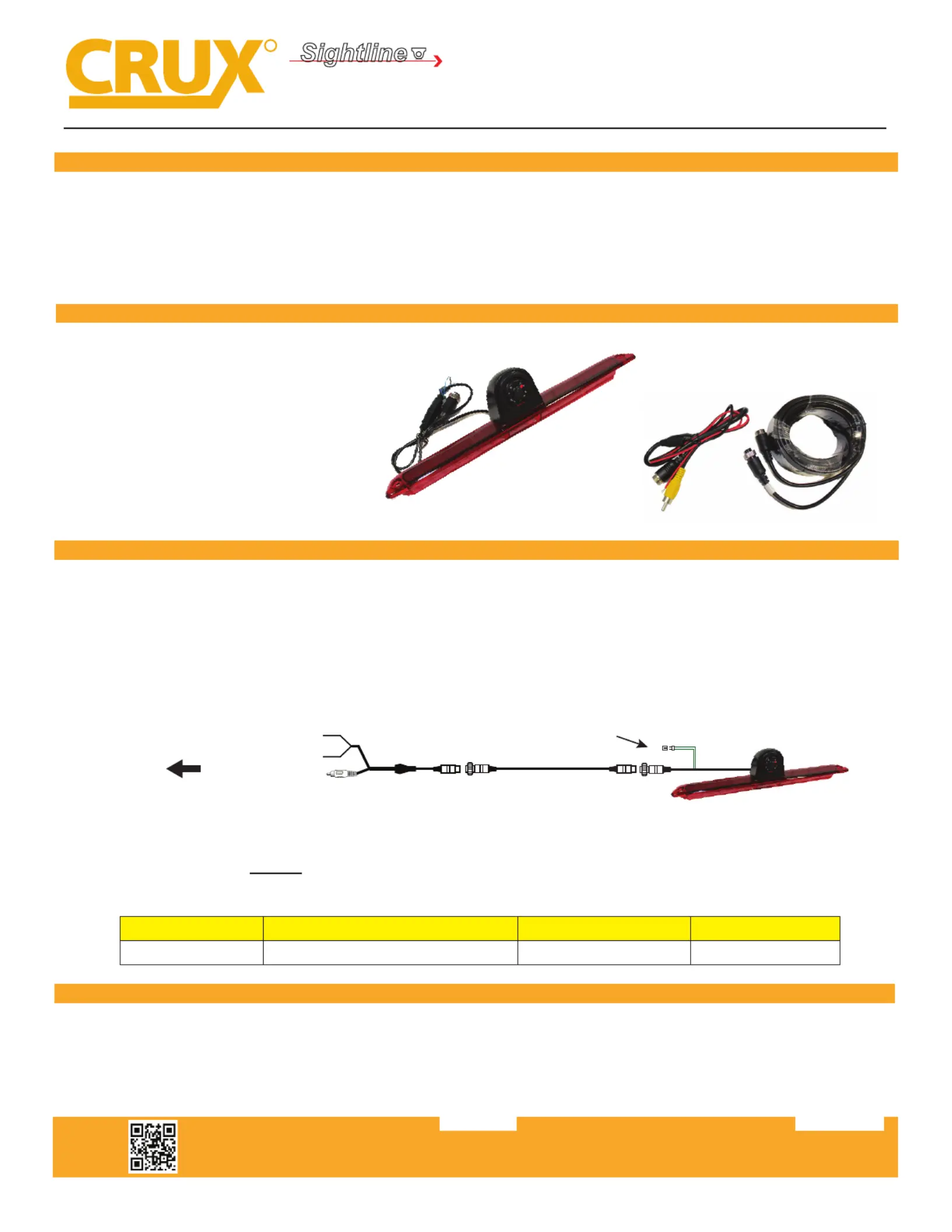

CMB-18S

Third Brake Light Camera for

MERCEDES BENZ SPRINTER Van 2007 - 2017

- Replaces the factory third brake light lens to maintain the OEM look.

- With 6 Infra Red LEDs for night me use.

- Uses 4-pin aviaon type water resistant connectors.

- With selectable parking guide lines ON or OFF.

PRODUCT FEATURES:

PARTS INCLUDED:

*NOTE: To power the camera, use RED Wire A or B. If tapping power from the radio or RVC Interface, Power Plug A will

not longer be used. If you will be tapping power from the reverse light +12V, power plug B will no longer be used. With

either connecon the Black GROUND wire needs to be connected to a solid chassis ground. For vehicles with manual

transmission, we recommend tapping +12V power from the reverse light.

INTERFACING SOLUTIONS

Sightline

CAMERAS

1. Third Brake Light camera

2. 33’ extension cable

3. 4-pin aviaon connector to RCA adapter

INSTALLATION INSTRUCTIONS:

1. Remove the factory third brake light lens.

2. Run the extension cable provided towards the radio.

3. Plug the 4-pin aviaon connector of the extension cable to the camera cable.

4. Make the power and video connecons at the radio.

5. Decide if the parking guide lines will be used or not. See below for instrucons on how to turn it ON or OFF.

5. Test the camera prior to reinstalling in the third brake light locaon.

VEHICLE APPLICATIONS:

MERCEDES BENZ

2007 - 2017 Sprinter Van

To Aftermarket Radio

Backup Camera Input

Reverse Camera Interface

Backup Camera Input

33’ Extension Cable

RED Wire Camera

Power +12V

Ground

Video Output

BLUE Wire

Parking Guideline

BLUE Wire: Disconnect to show parking guide line. Connect to remove. Insulate with tape to avoid from shorng.

Note: Cycle the camera power aer connecng or disconnecng the control wire.

Crux Interfacing Solutions • 6860 Canby Ave., Suite 104, Reseda, CA 91335

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.020619
