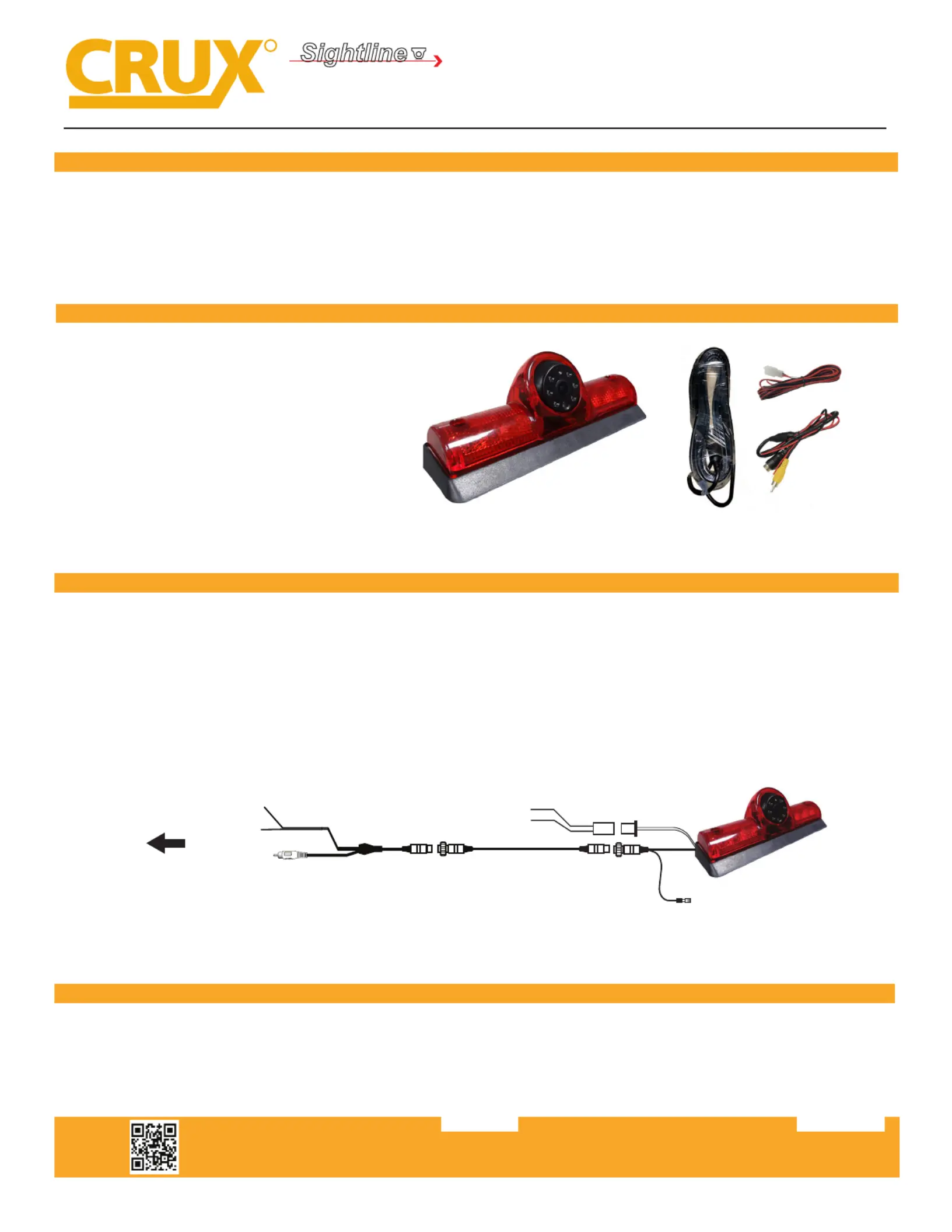

CNS-03V

Third Brake Light Camera for

NISSAN NV Van 2012 - 2018

- Replaces the factory third brake light to maintains the OEM look.

- LED brake lights included.

- 6 Infra Red LEDs for night me use.

- With Built-in Microphone.

- Uses 4-pin aviaon type water resistant connectors.

PRODUCT FEATURES:

PARTS INCLUDED:

*NOTE: To power the camera, use RED Wire A or B. If tapping power from the radio or RVC Interface, Power Plug A will

not longer be used. If you will be tapping power from the reverse light +12V, power plug B will no longer be used. With

either connecon the Black GROUND wire needs to be connected to a solid chassis ground. For vehicles with manual

transmission, we recommend tapping +12V power from the reverse light.

INTERFACING SOLUTIONS

Sightline

CAMERAS

1. Third Brake Light camera

2. 33’ extension cable

3. Power connecon cable X2

4. 4-pin aviaon connector to RCA adapter

5. Mounng screws

6. Male to Male RCA adapter

INSTALLATION INSTRUCTIONS:

1. Remove the factory third brake light.

2. Run the extension cable provided towards the radio.

3. Plug the 4-pin aviaon connector of the extension cable to the camera cable.

4. Make the power and video connecons at the radio or at the brake light.

5. Test the camera prior to reinstalling in the third brake light locaon.

Crux Interfacing Solutions • 6860 Canby Ave., Suite 104, Reseda, CA 91335

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.060118

VEHICLE APPLICATIONS:

2012 - 2018 NV 1500, 2500 & 3500

To Aftermarket Radio

Backup Camera Input

Reverse Camera Interface

Backup Camera Input

RED Wire A Camera Power 12V

BLACK Wire Ground

33’ Extension Cable

RED Wire B Camera Power 12V

Ground

MIC Output

Video Input

Power Plug B

Power Plug A
