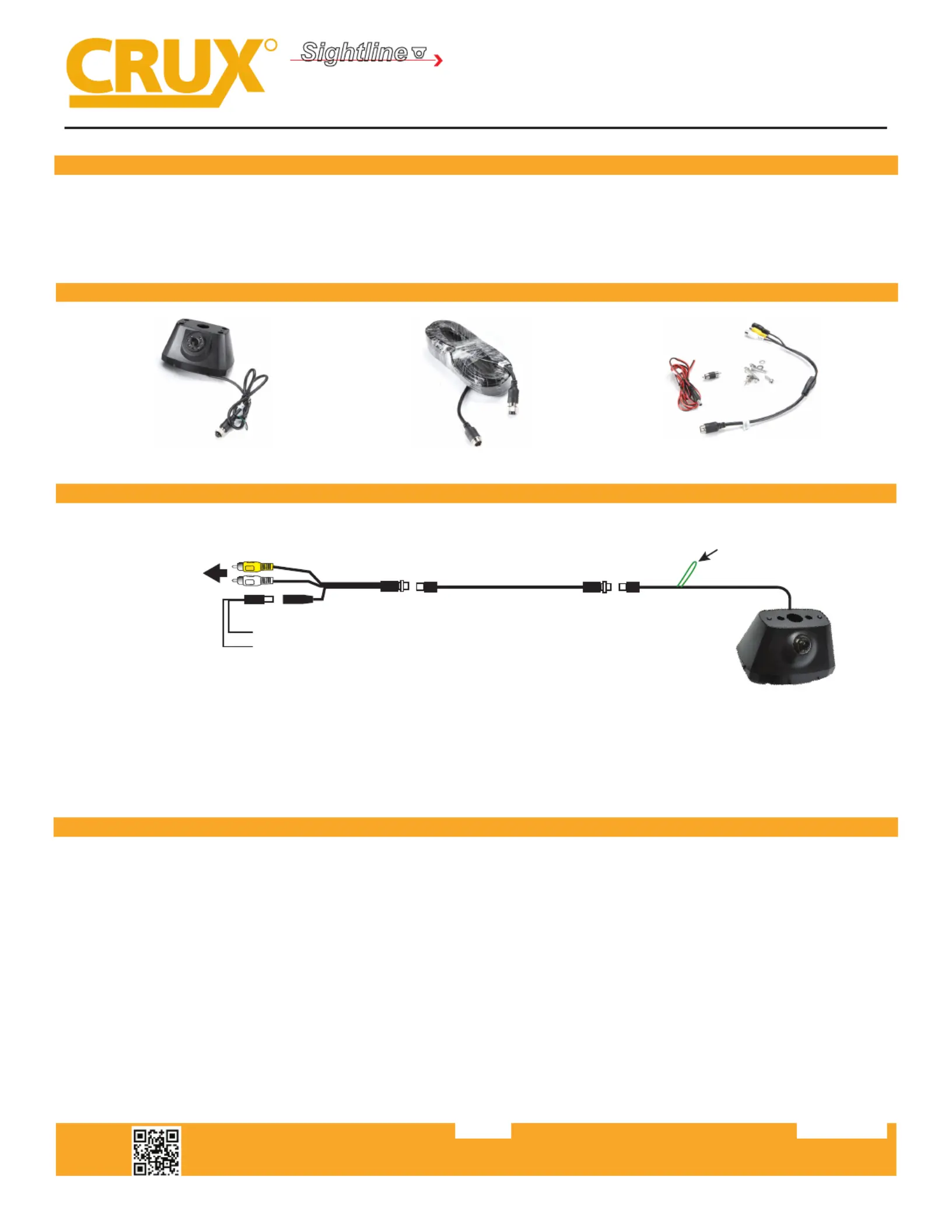

RAM PROMASTER Rear Marker Light Camera
- Selectable Parking Guide Line with ON/OFF opon.
- With manually adjustable viewing angle.
- Includes all necessary installaon hardware.
- Maintains the OEM look of the Van.
CRM-01P CAMERA EXTENSION CABLE INSTALLATION ACCESSORIES
*NOTE: To power the camera, tap power from the radio or RVC Interface or from the reverse light +12V. Connect the
Black wire to a solid chassis ground. For vehicles with manual transmission, we recommend tapping +12V power from
PARKING LINES: Cut the Green loop wire turn OFF parking guide lines.
1. Remove the center rear marker from the vehicle and unplug the lamp connector.
2. Insert the 4-pin barrel connector on the camera cable through the OE wire hole.
3. Mount the camera base to the vehicle using the nuts and bolts provided in the kit.
4. Route the rear marker light connector through the camera base and shroud.
5. Mount the camera shroud to the base using the screws provided.
6. Plug the rear marker light connector and install the rear marker on the camera shroud using the screws provided.
7. Plug the camera’s 4-pin aviaon style connector to the extension cable.
8. The camera has an oponal parking guide lines feature. To turn OFF the parking guide lines, cut the GREEN loop wire.
9. Route the camera extension cable from the rear of the vehicle to the monitor locaon. Use zip es or tape to secure it.
10. Plug the Yellow male RCA to the monitor’s camera input and the White RCA to mic input (if applicable).
11. Connect the camera’s power and ground (red and black wire) to the reverse light power wire or to a switched +12V power if you prefer to
use the camera even when the vehicle is not in reverse gear. A toggle switch is recommended to turn o the camera when not needed.
12. Test the camera before pung back the radio or any trim plates removed.
13. Adjust the camera angle if necessary.
RED wire +12V (to Backup Light)
