CTY-01T

Tailgate Handle Camera for

TOYOTA TACOMA and TUNDRA 2007 - 2019

- Replaces the factory tailgate handle and adds a backup camera.

- 170 degree wide view angle for excellent visibility.

- Super CMOS technology provides a sharper picture day and night.

- Maintains the OEM look.

PRODUCT FEATURES:

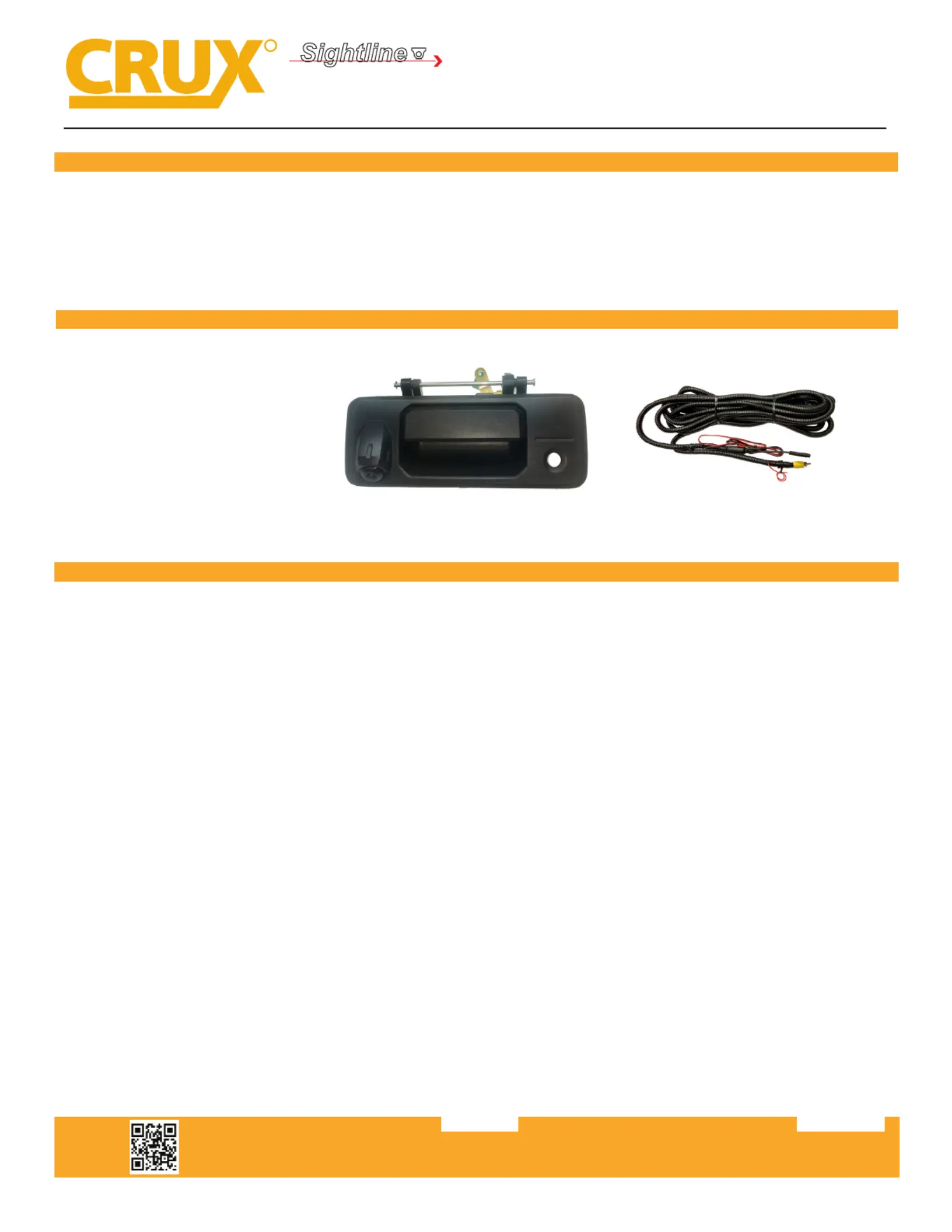

PARTS INCLUDED:

INTERFACING SOLUTIONS

Sightline

CAMERAS

1. Tailgate handle camera

2. Extension cable

INSTALLATION INSTRUCTIONS:

1. Start by lowering the tailgate of the truck. Remove the screws that secure the tailgate cover.

2. Aer removing the tailgate cover you will have access to the backside of the factory tailgate handle. Using a

10mm socket, remove the (2) nuts holding the tailgate handle in place. Undo the tailgate latch rods. Li up on

the latch to release the (2) tailgate handle studs and remove the tailgate handle.

3. On the lock cylinder, remove the metal clip that holds the locking mechanism in place. Re-Install the lock cylinder

onto the new tailgate handle.

4. Re-assemble the new tailgate handle into the tailgate in reverse order. Do not put back the tailgate cover unl

aer tesng the camera.

5. Route the Video and Power cables from the tailgate to the boom of the truck. Route the the camera power

wires to the tail light assembly. Tap the RED wire to the +12V reverse light wire and the BLACK wire to ground.

Connue to route the video cable towards the radio and plug in the video RCA to the back of the aermarket

radio of back up camera interface reverse camera input.

6. Test the camera for funconality then put back the tailgate cover.

Tip: There should be an opening (covered by a rubber boot) between the cabin and the bed of the truck where you

can insert the cables into the cabin area. You can run the video cable under the door sill cover.

Crux Interfacing Solutions • Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.120720211 of 2

CTY-01T

Tailgate Handle Camera for

TOYOTA TACOMA and TUNDRA 2007 - 2019

INTERFACING SOLUTIONS

Sightline

CAMERAS

Crux Interfacing Solutions • Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

VEHICLE APPLICATIONS:

2016 - 2019 Tacoma

2007 - 2019 Tundra

TOYOTA

2 of 2

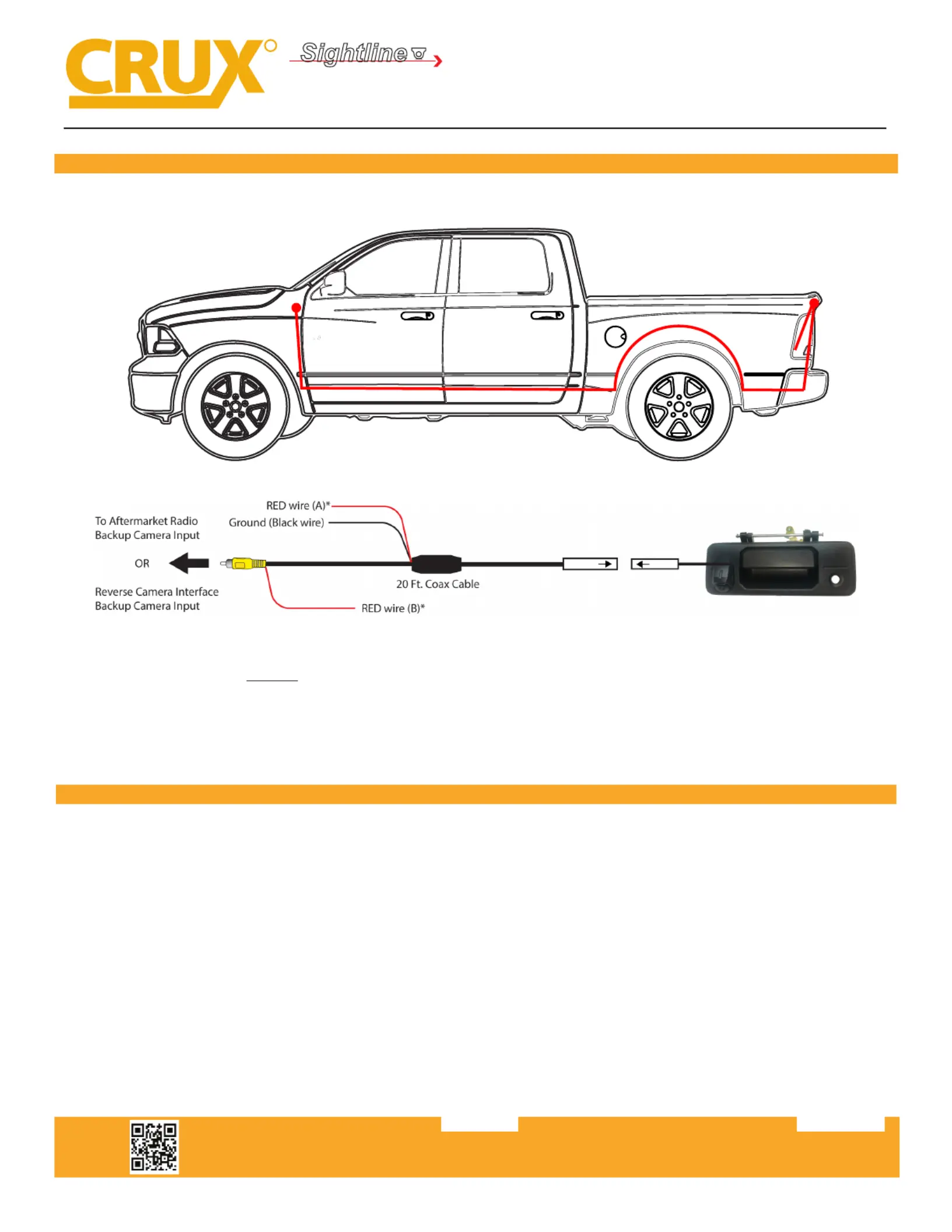

WIRING DIAGRAM:

*NOTE: The camera needs a +12V trigger. Power the camera at the headunit using RED Wire B or from the reverse light

wire using RED Wire A. DO NOT connect both wires to +12V at the same me. Insulate the red wire that is not being

used. Tap the Black wire to an exisng ground lead, or ground Black wire securely to vehicle body metal.

rev.12072021
