CTY-02T

Tailgate Handle Camera for

TOYOTA TACOMA 2006 - 2015

- Replaces the factory tailgate handle and adds a backup camera.

- 170 degree wide view angle for excellent visibility.

- Super CMOS technology provides a sharper picture day and night.

- Maintains the OEM look.

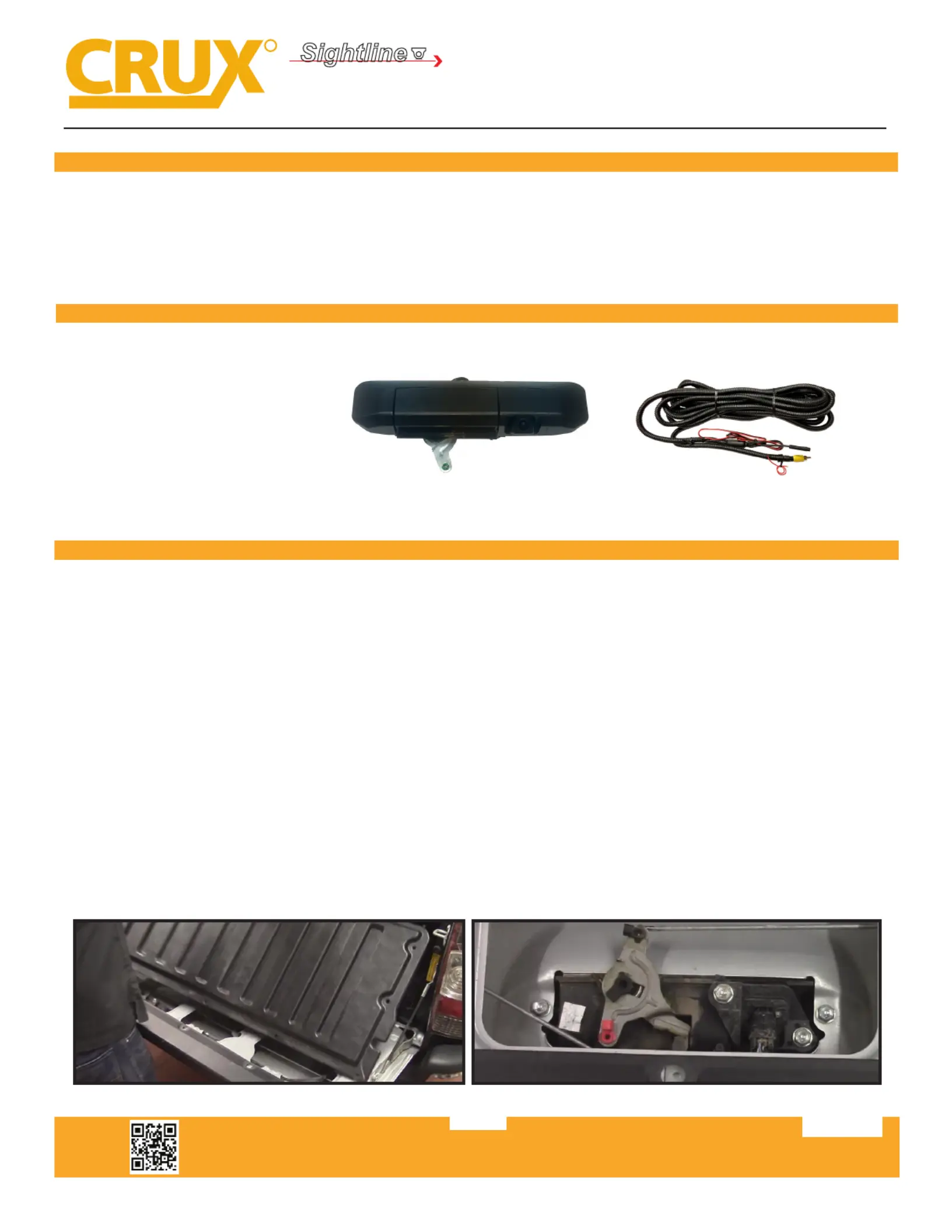

PRODUCT FEATURES:

PARTS INCLUDED:

INTERFACING SOLUTIONS

Sightline

CAMERAS

1. Tailgate handle camera

2. 26’ extension cable

INSTALLATION INSTRUCTIONS:

1. Start by lowering the tailgate of the truck. Remove the screws that secure the tailgate cover.

2. Aer removing the tailgate cover you will have access to the backside of the factory tailgate handle. Using a

10mm socket, remove the (2) nuts holding the tailgate handle in place. Undo the tailgate latch rods. Li up on

the latch to release the (2) tailgate handle studs and remove the tailgate handle.

3. Re-assemble the new tailgate handle into the tailgate in reverse order. Do not put back the tailgate cover unl

aer tesng the camera.

4. Route the Video and Power cables from the tailgate to the boom of the truck. Route the the camera power

wires to the tail light assembly. Tap the RED wire to the +12V reverse light wire and the BLACK wire to ground.

Connue to route the video cable towards the radio and plug in the video RCA to the back of the aermarket

radio of back up camera interface reverse camera input.

5. Test the camera for funconality then put back the tailgate cover.

Crux Interfacing Solutions • 6860 Canby Ave., Suite 104, Reseda, CA 91335

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.020419

1 of 2

CTY-02T

Tailgate Handle Camera for

TOYOTA TACOMA 2006 - 2015

INTERFACING SOLUTIONS

Sightline

CAMERAS

Crux Interfacing Solutions • 6860 Canby Ave., Suite 104, Reseda, CA 91335

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.020419

2 of 2

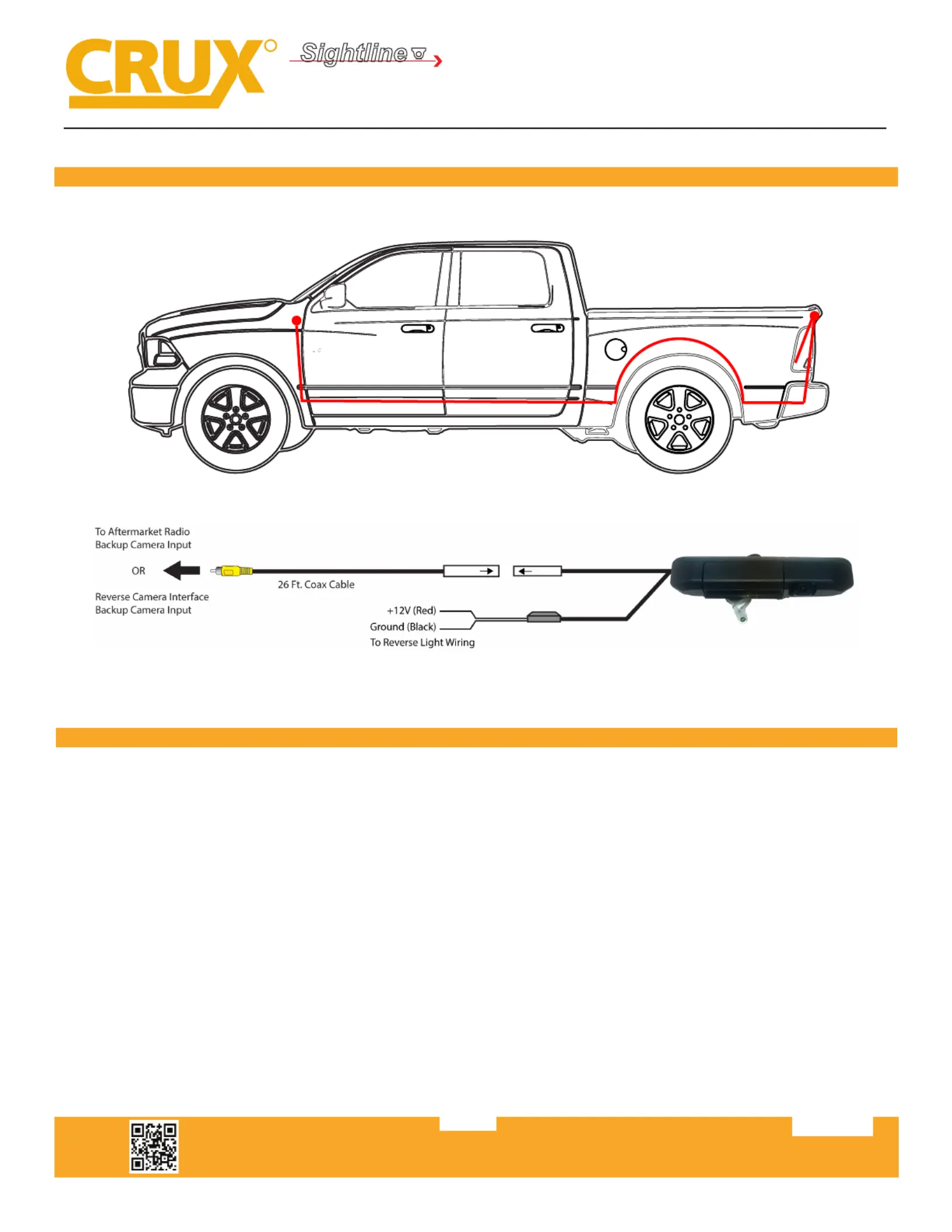

VEHICLE APPLICATIONS:

2006 - 2015 Tacoma

TOYOTA

26 Ft. Coax Cable

To Aftermarket Radio

Backup Camera Input

Reverse Camera Interface

Backup Camera Input +12V (Red)

Ground (Black)

To Reverse Light Wiring

WIRING DIAGRAM:
