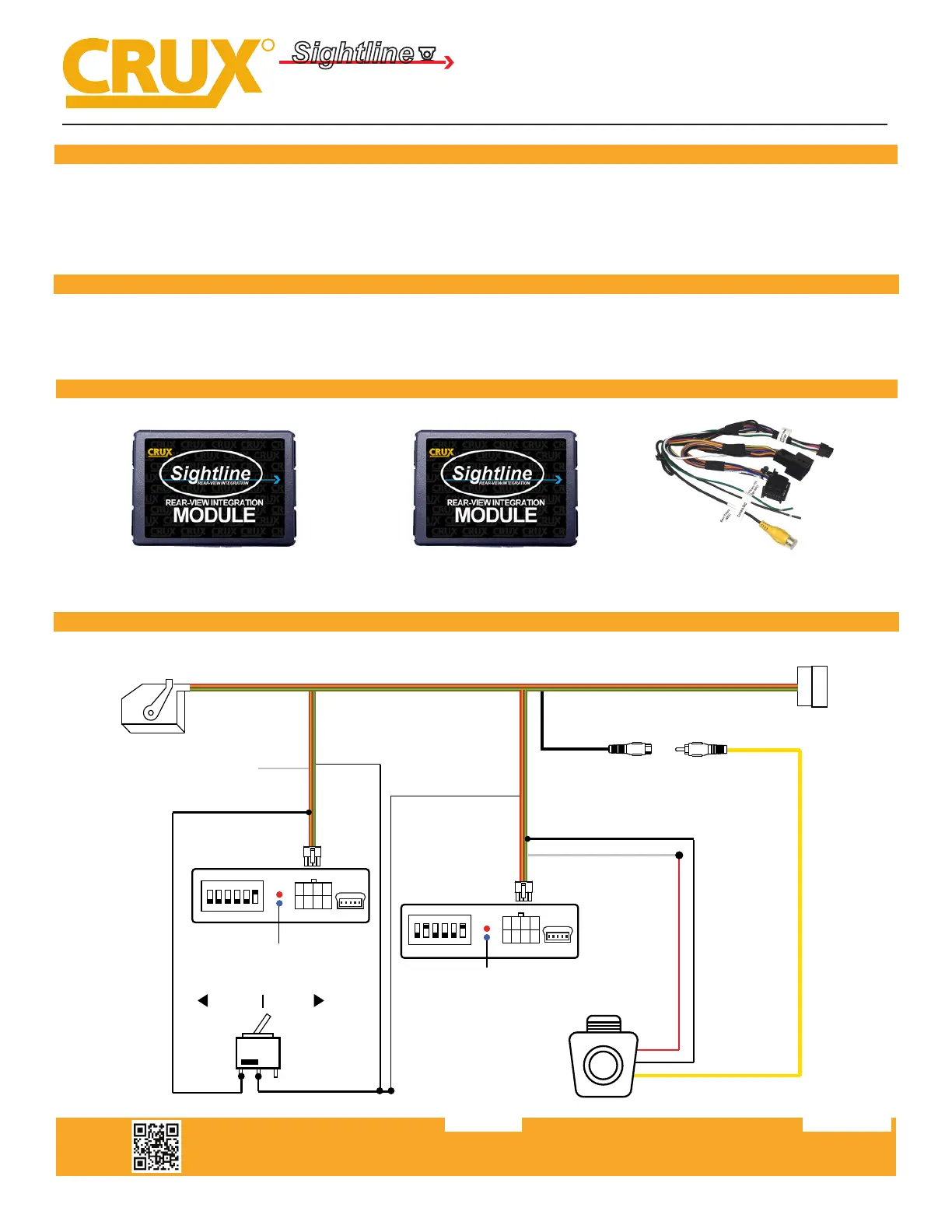

Side 1/8

C-125 Module C-500 Module RVCFD-79 Harness

RVCFD-79

Rear View Integration Interface for

Select Ford and Lincoln Vehicles with 8” MyFord Touch System

INTERFACING SOLUTIONS

Sightline

Multi View Integration

Crux Interfacing Solutions • Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.0825201 of 8

- Automacally switches to Rear-view when car is in Reverse mode.

- Acvates the 8” MyFord Touch Screen for enabling Video features.

- Plug and Play installaon

PRODUCT FEATURES:

PARTS INCLUDED:

IMPORTANT INSTALLATION NOTES:

Unplug the RVCFD-79 two modules before performing a vehicle system reash. Repeat the coding

process aer ashing the vehicle system.

IMPORTANT INSTALLATION NOTES:

54-PIN

(female plug)

TO FACTORY

DISPLAY

------------------

54-PIN

(male plug)

8-PIN

(male plug)

WHITE / NOT USED

4 5 6

1 2 3

4 5 6

1 2 3

C-500

INTERFACE

C-125

INTERFACE

WHITE / REVERSE

12V OUTPUT

CAMERA

NOT INCLUDED

TAP GROUND

ON BLACK WIRE OF

8-PIN CONNECTOR

YELLOW/ VIDEO SIGNAL

STATUS LEDs

8-PIN

(male plug)

CAMERA INPUT

BLACK WIRE / TAP HERE

TOGGLE SWITCH

(Optional)

ENABLEDISABLE

GREEN / VIM

RED WIRE / TAP HERE

Crux Interfacing Solutions • Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

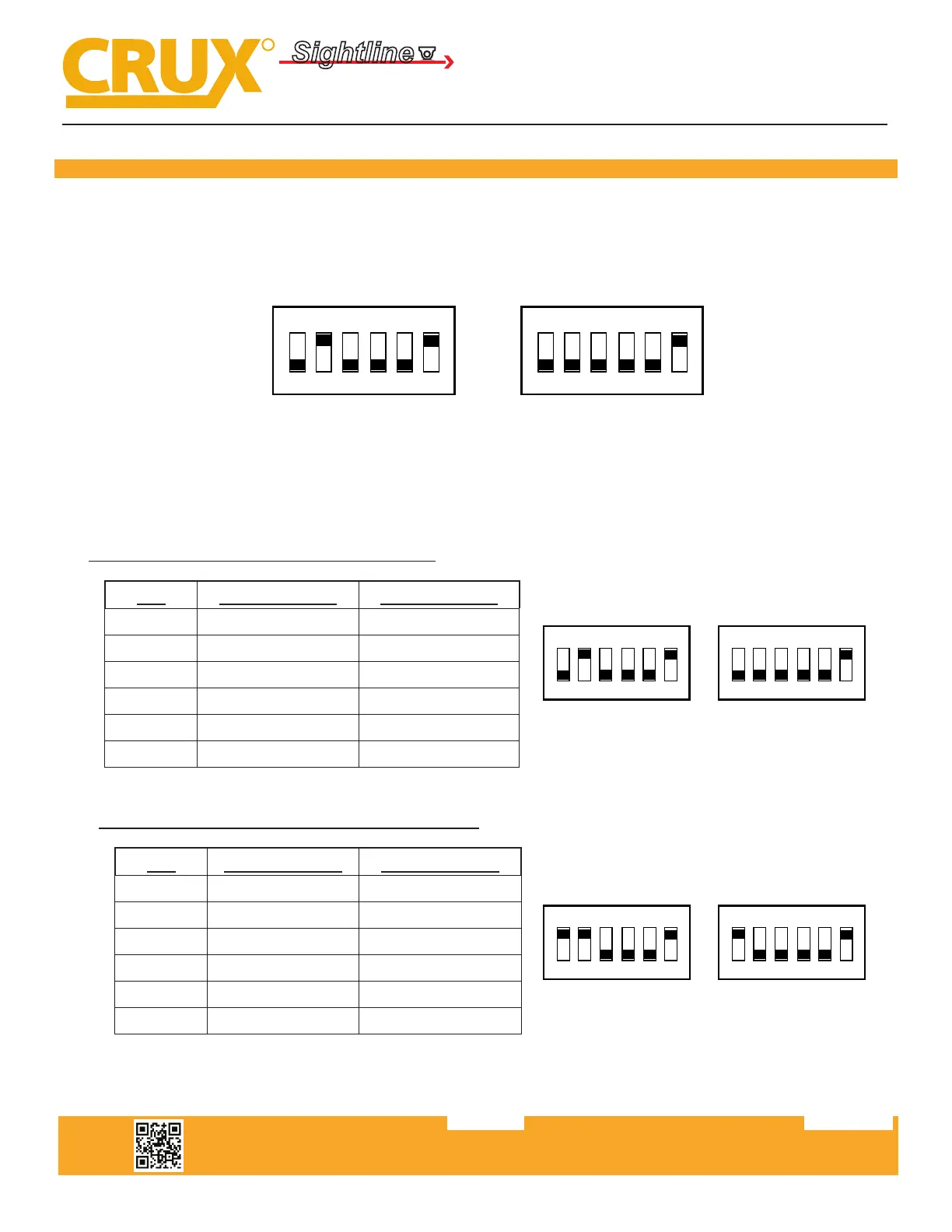

rev.0825202 of 8

INTERFACING SOLUTIONS

Sightline

Multi View Integration

RVCFD-79

Rear View Integration Interface for

Select Ford and Lincoln Vehicles with 8” MyFord Touch System

DIP SWITCH SETTINGS:

DIP C-125 Module C-500 Module

1 OFF OFF

2 ON OFF

3 OFF OFF

4 OFF OFF

5 OFF OFF

6 ON ON

Make sure to set DIP# 6 to the ON posion in both modules.

To turn on RVC feature, set DIP# 2 to the ON posion on the C-125 module ONLY.

4 5 6

1 2 3 4 5 6

1 2 3

C-125 Module C-500 Module

To turn on VIM feature, set the module DIP switches as follows:

For vehicles WITH factory navigaon system:

DIP C-125 Module C-500 Module

1 ON ON

2 ON OFF

3 OFF OFF

4 OFF OFF

5 OFF OFF

6 ON ON

For vehicles WITHOUT factory navigaon system:

4 5 6

1 2 3

4 5 6

1 2 3

C-125 Module C-500 Module

4 5 6

1 2 3

4 5 6

1 2 3

C-125 Module C-500 Module
