- Automatically switches to Rear-view when car is in Reverse mode.

- Plug and Play Installation.

- Ford 4 Inch FULL COLOR Screen

1. Vehicles with Manual Transmission or Diesel Engines are not compatible.

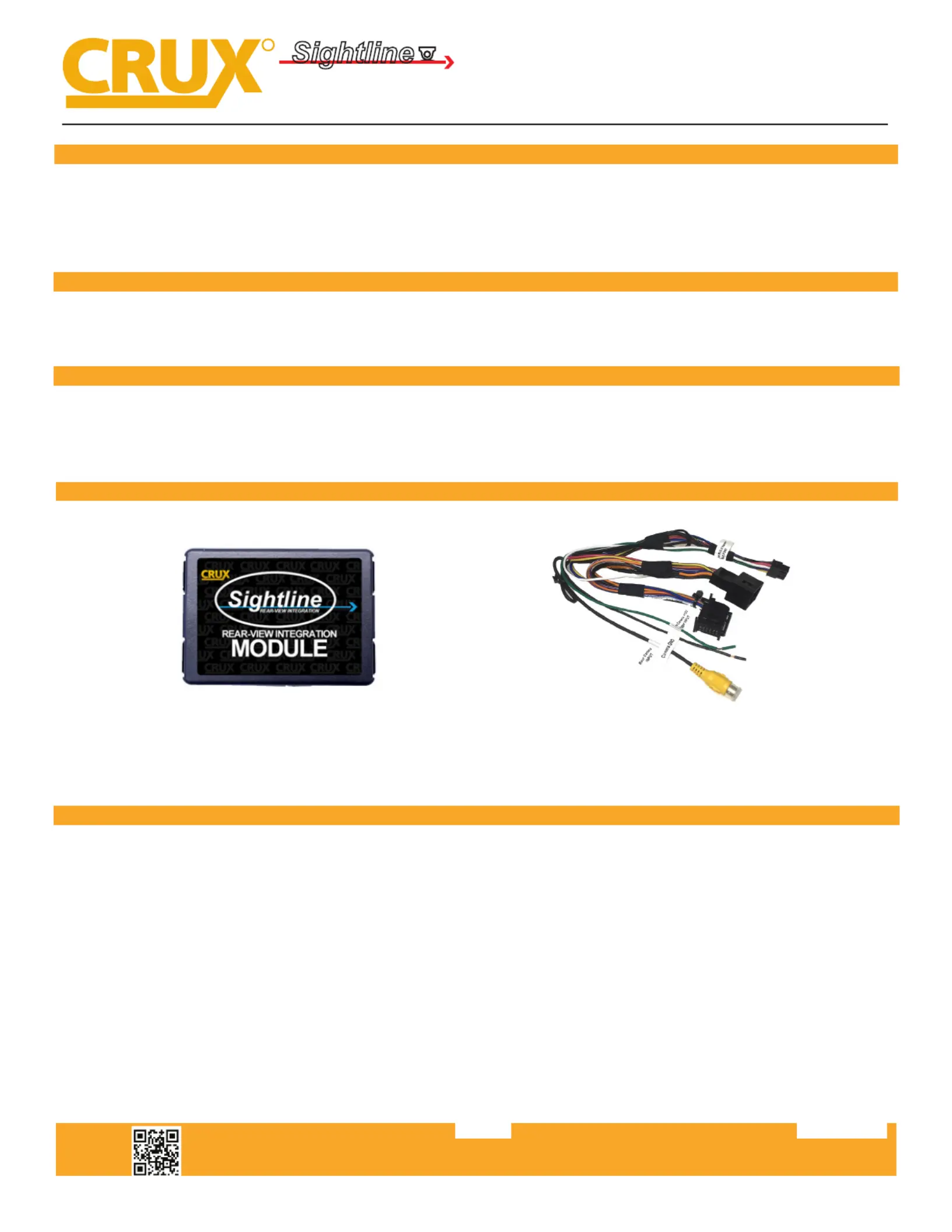

RVCFD-79A MODULE

RVCFD-79A HARNESS

Blue ON = Valid CAN / Normal operation mode

Blue OFF = Sleep mode

Blue Blinking = CAN BUS validation

Red Blinking Fast = Programming in progress

Red ON = RVC programming successful

Red OFF = RVC coding has been completely removed

Red Blinking Slow = CAN Communication error / Access denied

Red blinking Medium = Invalid license

rev.082718

1 / 3

Please note that the display removal procedure may vary and subject to change.

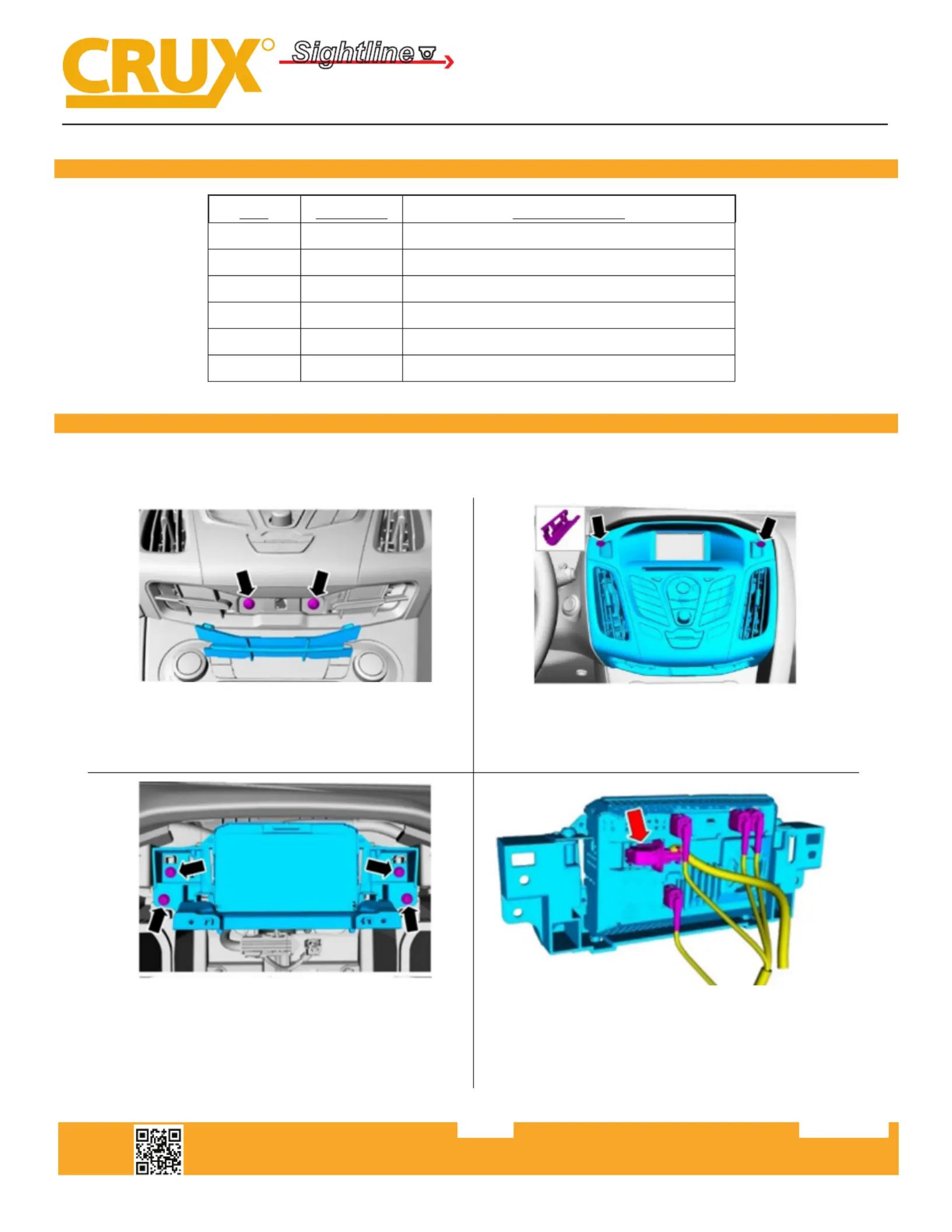

1. Remove the trim below the radio bezel to

expose the 2 screws.

2. Carefully pop oﬀ the radio bezel making note

that it is held by 2 clips as shown on the

illustration above.

3. Remove the 4 screws holding the display screen.

4. Disconnect the factory 12 pin connector from behind the display screen and plug into the female

12 pin connector of the RVCFD-79A T-harness.

5. Plug the 12 pin male connector of the RVCFD- T-Harness into factory Display. 79A

6. Connect White Wire labeled Reverse Output,12V 500 “mA” to the camera +12V Power wire.

7. Connect Black Wire labeled Camera Ground the camera Ground wire. “ “ to ’s

NOTE: DO NOT connect the camera ground wire to chassis.

8. Connect the Yellow female RCA labeled “VDO signal Input” to camera (Not included)

rev.0 82718

2 / 3
