Side 1/3

RVCVW-73

Rear View Integration Interface for Select

Volkswagen Vehicles with MFD3 RNS315 & RNS510 Navigation System

INTERFACING SOLUTIONS

Sightline

Multi View Integration

Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.121819

1 of 3

- Automacally switches to Rear-view when car is in Reverse mode.

- Aermarket Rear-view Camera included.

- OBD coder for single acvaon included.

- Plug & Play Installaon.

PRODUCT FEATURES:

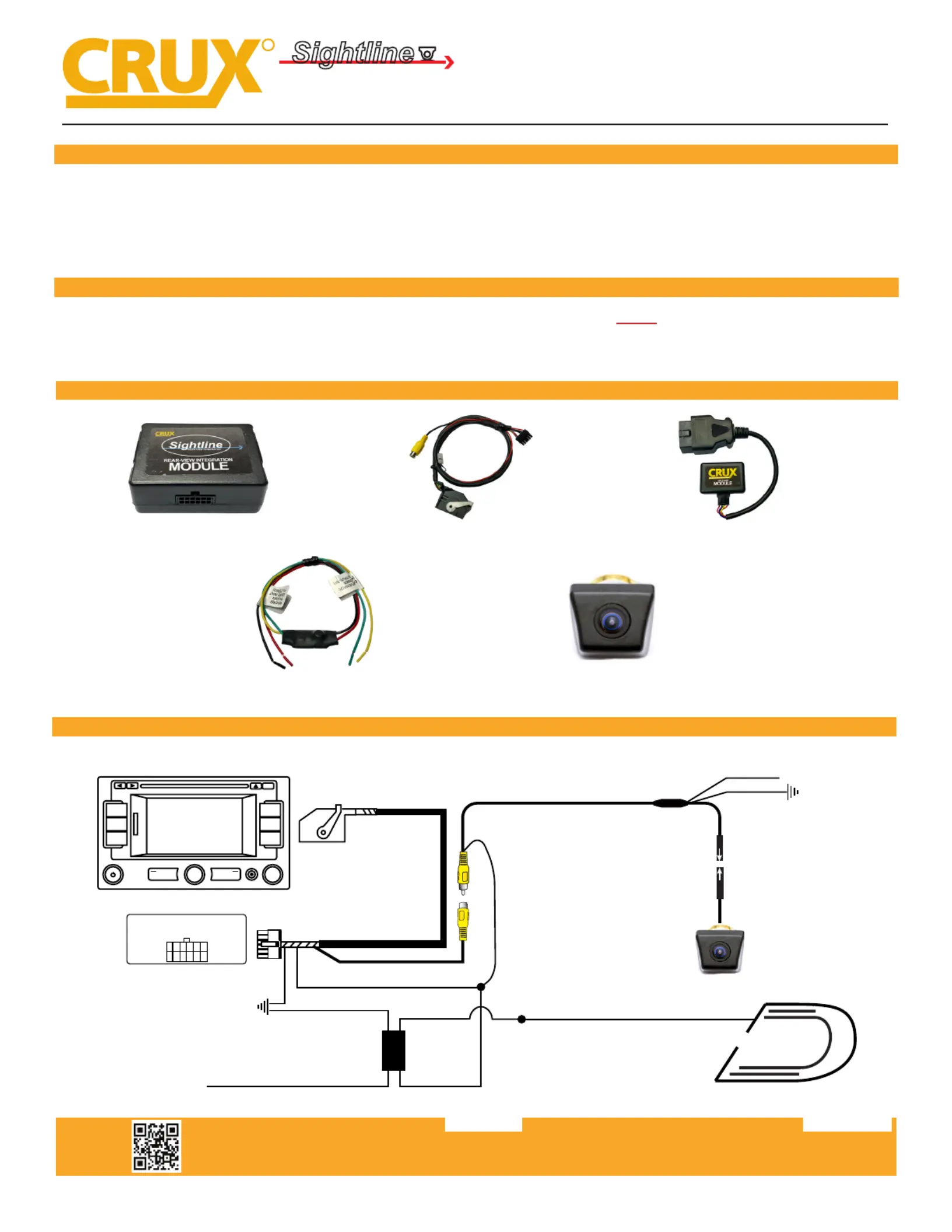

PARTS INCLUDED:

RVCVW-73 Module RVCVW-73 Harness OBD II Coder

Power Down Circuit CUL-03 Camera

GROUND

RED Wire Tape O

(Not Used)

FACTORY

RADIO

12-PIN

(male plug)

26-PIN

(female plug)

NAV

MUTE

SETUP

BAND

MEDIA

PHONE

VIDEO

CONNECTION

POWER DOWN

CIRCUIT

RED / R E TR R PUTEV RSE IGGE IN

YELLOW / 12V CONSTANT

BLA CK / G DROUN

INTERFACE

RED / 12V POWER

BLACK / GROUND

FR OM REVE E IGHTRS L

THIN RED

WIRE

LIP MOUNT

CAMERA

INSTALLATION DIAGRAM:

SPECIAL NOTE:

In the event this unit is to be returned for any reason, the customer must “decode” the radio before

doing so to receive a replacement or refund. See instructions on page 2 on how to decode the radio.

Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.121819

2 of 3

INTERFACING SOLUTIONS

Sightline

Multi View Integration

RVCVW-73

Rear View Integration Interface for Select

Volkswagen Vehicles with MFD3/RNS315/RNS510 Navigation System

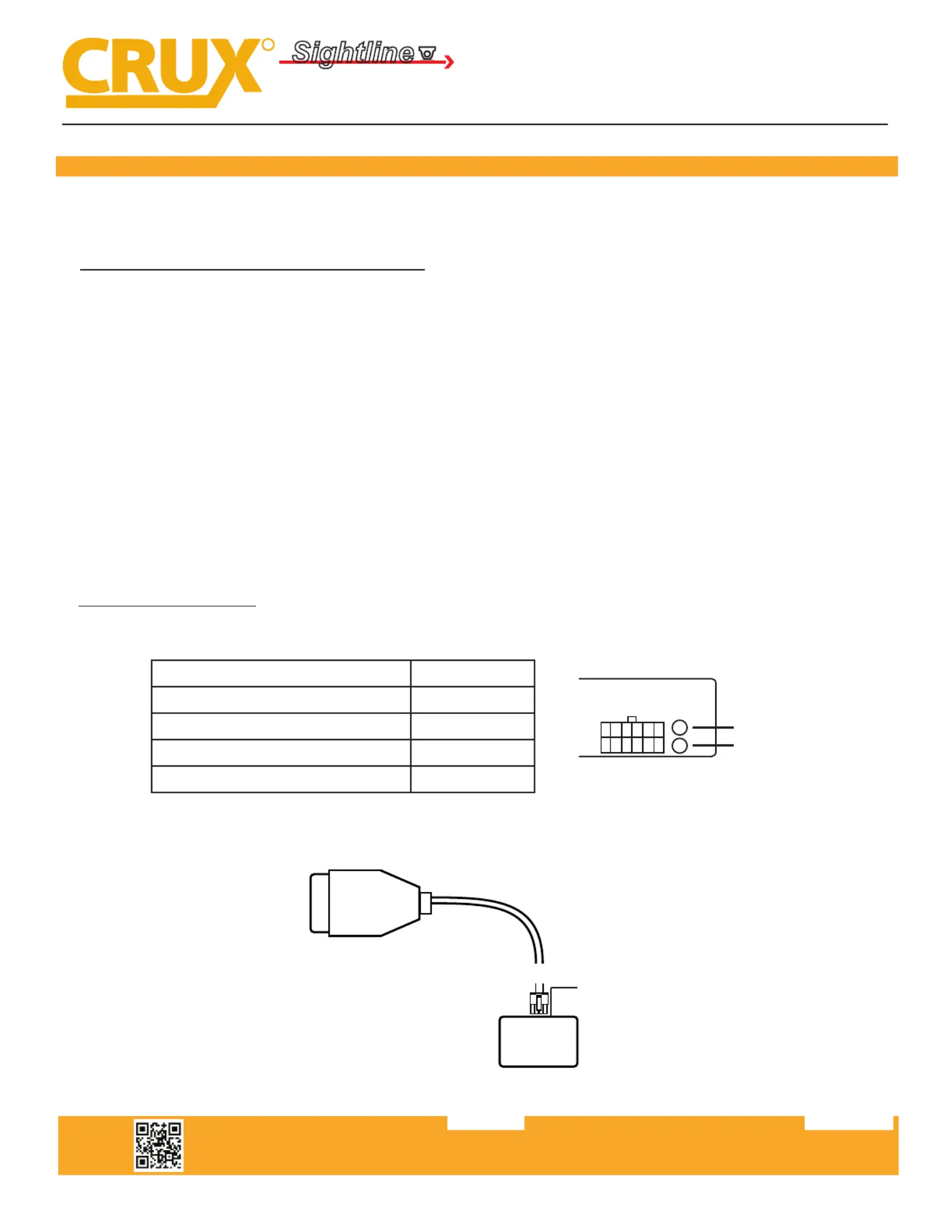

INSTALLATION INSTRUCTIONS:

CODING THE RADIO FOR A BACKUP CAMERA

1. Locate the vehicle’s OBD II port usually located under the steering column.

2. Enter the vehicle and CLOSE ALL DOORS.

3. Turn the key to the ON posion.

4. Plug in the OBD coder from the RVCVW-73 kit to the ODB II port.

5. Wait for the OBD coder to nish coding the radio and give a solid GREEN LED. (See chart below)

6. The radio may ash a few me during this process. It can take around 5 seconds to complete the

coding process. If an error occurs, retry the coding procedure.

7. Aer the coding is complete, disconnet the OBD coder and store in a safe place. This OBD coder is

VIN specic and will only work on this vehicle.

In order for the vehicle to recognize the camera and engage it when in reverse gear, the vehicle must be

coded. Use the ODB II coder included in the RVCVW-73 kit.

Reading the LED color paern:

Flashing LED Coding Vehicle

Solid Green LED Acvated

Solid Red LED Deacvated

Solid Red & Green LED Error

INTERFACE

GREEN LED

RED LED

8-PIN

(male plug) LED

(indicator)

OBD CODER

DECODING THE RADIO

To decode the radio, repeat the steps above.
