Canopy Wire Connectors Hex Nut
1ea @5-1/2"X1-1/2" 3ea P4 Orange
Chain
Junction Box
Screw
Spring Washer
1ea 6ft x3.8mm 2ea 8/32" x 1" 1ea @15 x 2mm
Chain Connector Nipple
2ea @4.2X50mm 1ea @3/8 x 40mm x 5mm 1ea @3/8 x 50mm
w/ ground screw
1ea 3/4"X4"
Part Needed Quantity
Part Needed Quantity
Reason why ( missing, scratched, broken glass, bent, bad finish)
Comments
Fig. 1
For Customer Service, contact the place of purchase to arrange for replacement parts.
PARTS & ASSEMBLY SHEET
1821-M1L BI
Read and review installation instruction sheet before
assembling the fixture.
F
IXTURE
A
SSEMBLY
I
NSTRUCTIONS
This fixture assembled PO:__________ Date: ________
Fixture Name: Madera 1821-M1L BI
Canopy Loop
with Collar

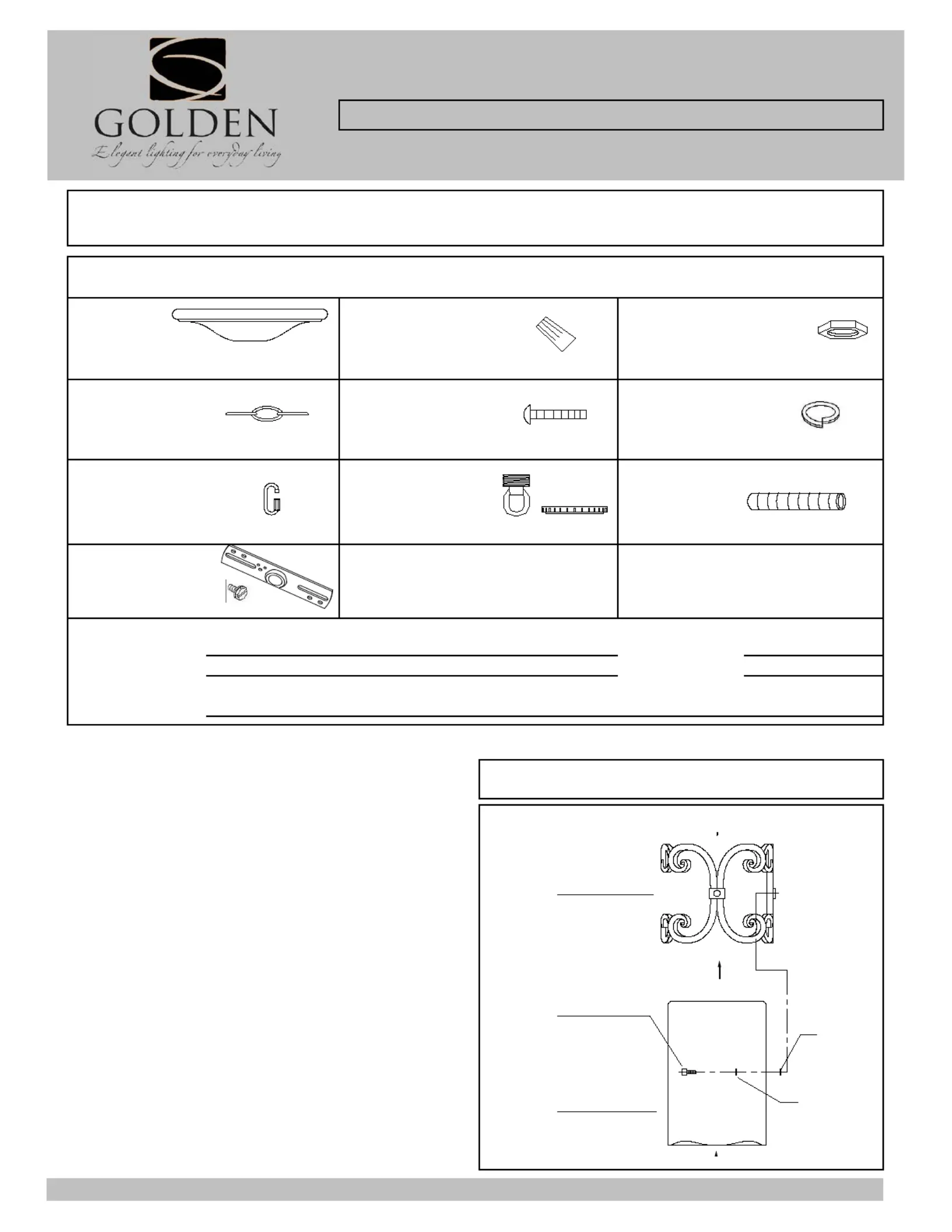

ASSEMBLING THE FIXTURE (Fig. 1)
* the glass shade should come with the metal cage already
attached.
1. Place each small screw (N) and washer (P) through
holes on inside of glass shade (O), add another washer (P)
on the outside of glass shade.
2. Lower metal cage (M) over glass shade, lining the holes
up with the screws and turn the small screw until tight to
secure the cage to the glass shade.
Notice:
Please review the parts listing and check for all parts before assembling the fixture. If any parts are missing or
damaged, please note on this sheet and contact the place of purchase to arrange for replacement parts.
PARTS LIST
Company Name:_______________________Co. Account #:_____________
to be filled out by retailer
2ea @3/8 x 3mm
M
N
O
P
P
For Customer Service, contact the place of purchase to arrange for replacement parts.
d
Fig. 2
PARTS & ASSEMBLY SHEET
Fixture Name: Madera 1821-M1L BI
C
D

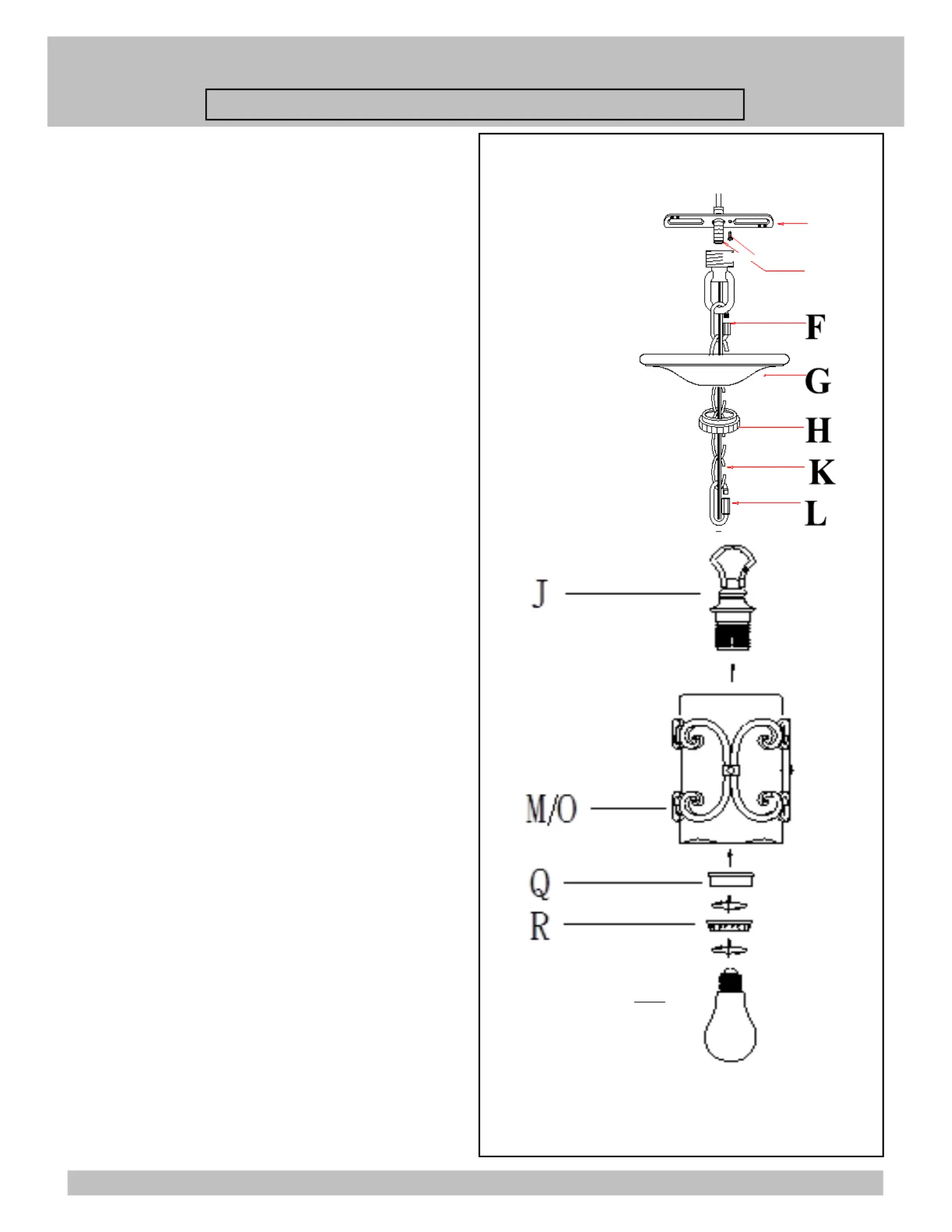

ASSEMBLING THE FIXTURE (Fig. 2)
4. Place the Socket/Top loop assembly (J) on
Glass shade (M/O).
5. Holding these pieces together, slide the Spacer
(Q) on socket and secure it by threading the Socket
ring (R) onto the threaded socket until tight.
6. By measuring determine correct number of links
needed for proper hanging height. Use a pair of
pliers to open one link of the Chain (K) then remove
the excess Chain (K) and discard it.
7. Use one chain connector (L) to attach one end of
the chain to the Top loop (J) and close the chain
connector.
8. Feed the fixture wires through the Chain (every
three links) and pull the wires until taut.
9. Slip Canopy loop collar (H) over the chain, then
do the same with the canopy (G).
10. When ready to complete the installation Use
the other chain connector and attach the other
end of the chain to the canopy loop (F) and close
the chain connector.
11. Make sure the weight of the chandelier will be
supported by the chain-not the electrical wire.
* You may now install the fixture.
Note: Complete these remaining steps after the
fixture is hung.
12. Install the light bulb (not provided) in
accordance with the fixture's specifications.
(DO NOT EXCEED MAXIMUM WATTAGE RATING)
Bulb
(Not Provided)
