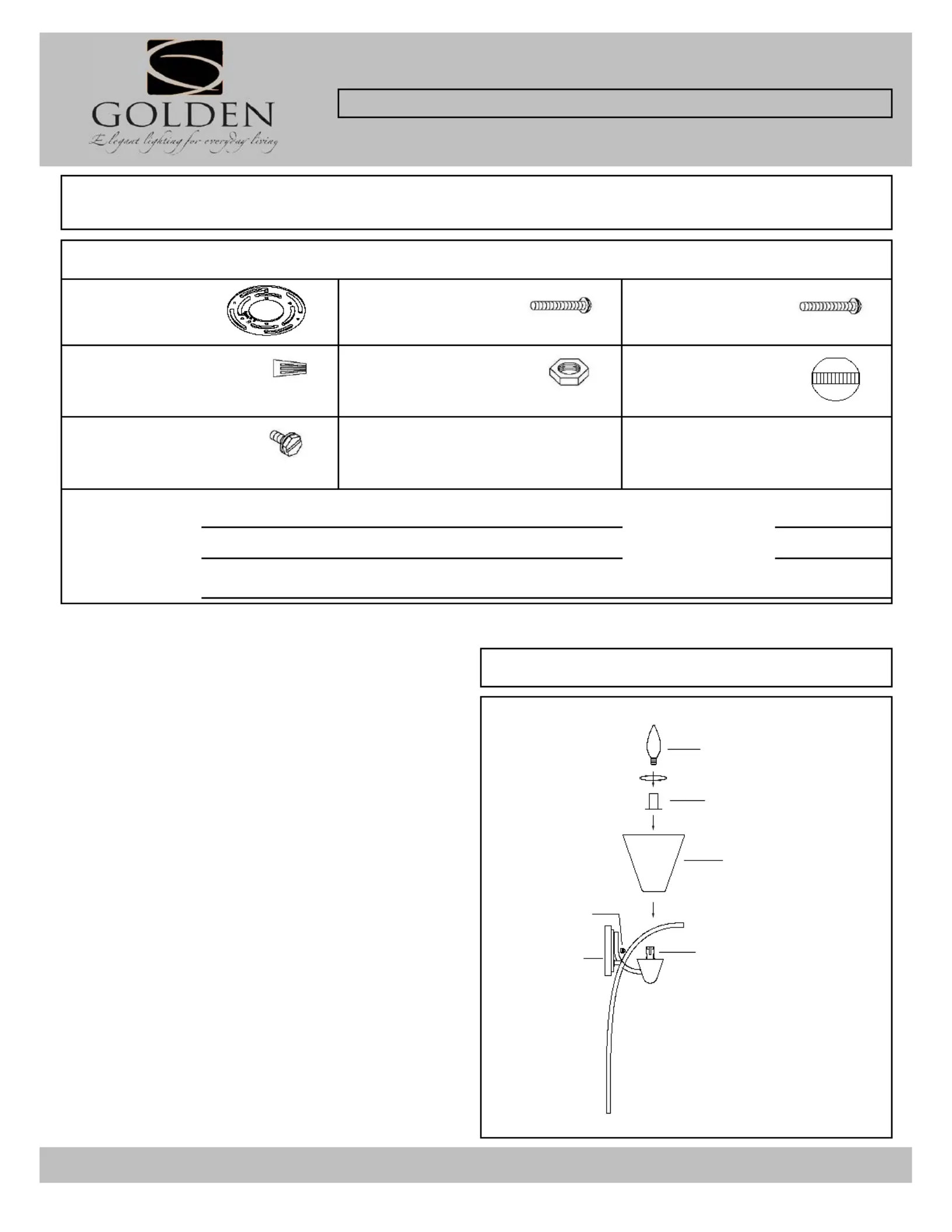

Side 1/2

Mounting strap Mounting screwMounting Screw

1ea 4" 2ea 8/32"X28mm 2ea 8/32X1"

Wire connnector Deco nutHex Nut (round nut)

3ea P4 Orange 2ea 8/32"X3.5mm 2ea @12mm

Green Ground

screw

1ea 8/32"X10mm

Part Needed Quantity

Reason why ( missing, scratched, broken glass, bent, bad finish)

Comments

1648-1W BUS

Read and review installation instruction sheet before

assembling the fixture.

F IIXTURE ASSEMBLY NSTRUCTIONS

For Customer Service, contact the place of purchase to arrange for replacement parts.

NOTE: I

NSTALL THE GLASS ASSEMBLY AFTER

THE FIXTURE IS HUNG.

1. Slide the glass shade (K) and candle sleeves (L) over

the socket of fixture body (M).

2. Carefully press the clips inside of the shade (K) onto

the bulb.

(DO NOT EXCEED THE MAXIMUM WATTAGE RATING!)

Fig. 4

Notice: Please review the parts listing and check for all parts before assembling the fixture. If any parts are missing or

damaged, please note on this sheet and contact the place of purchase to arrange for replacement parts.

PARTS LIST

Company Name:_______________________Co. Account #:_____________

below to be filled out by retailer

PARTS & ASSEMBLY SHEET

This xture assembled PO:__________ Date: ________

Fixture Name: Olympia 1648-1W BUS

Bulb

(Not Provided)

For Wall Mount Light Fixture

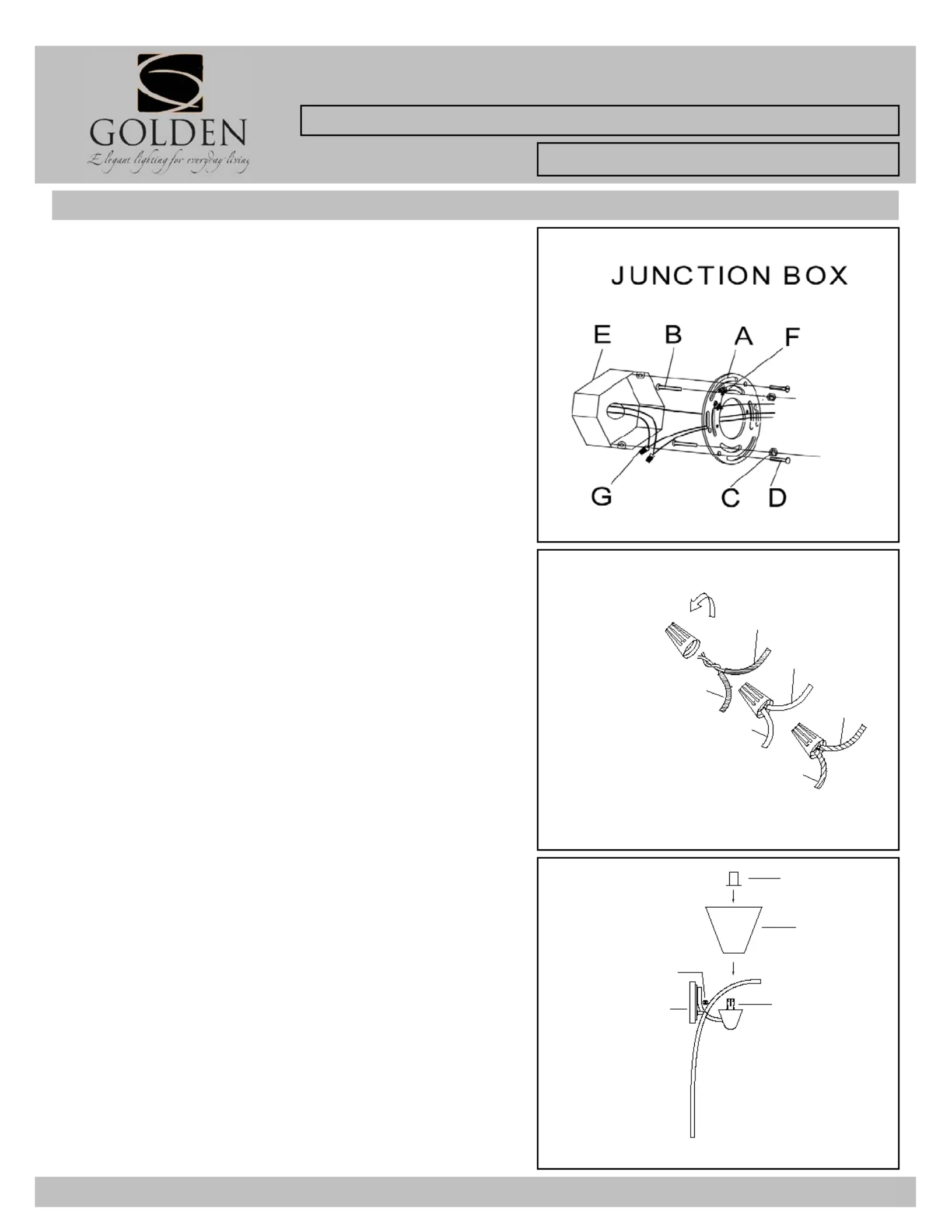

INSTALLATION INSTRUCTIONS

WARNING ! SHUT OFF POWER AT FUSE OR CIRCUIT BREAKER.

Fixture Name: Olympia 1648-1W BUS

For Customer Service, contact the place of purchase to arrange for replacement parts.

Fig. 3

Fig. 1

Fig. 2

HANGING THE FIXTURE (Fig. 1)

1. Carefully remove the new fixture from the carton and the

yellow bag that holes all your parts. Check that all parts are

included as shown in the illustration and parts list.

2. Shut off power at the circuit breaker and remove the old

fixture from wall, including the old mounting strap.

3. The Mounting Strap(A) contains several pairs of threaded

holes, find the pair of holes that match the holes spacing in your

fixture Back Plate (K) and thread the two Mounting Screws(B)

half way into the Mounting Strap(A).

4. Place the Mounting Strap (A) over the Junction Box (E) so

the Mounting Screws (B) are vertical or horizontal, as required

by fixture type.

5. Attach the Mounting Strap (A) to the Junction Box (E) by

using the two mounting screws(D). Tighten the screws securly.

CONNECTING THE WIRES (Fig. 2)

5. Attach the power supply wires to the fixture lead wires by

connecting BLACK to BLACK (or SMOOTH) and WHITE to

WHITE (or RIBBED).

6. Attach the GROUND wire(GREEN or COPPER) from the

Junction Box and the fixture Ground wire to the green Ground

Screw on the Mounting Bracket (A) or connect both wires

together using the correct size of wire connectors.

NOTE: Twist the wires together in the same direction you twist

the wire connector onto the wires.

7. Tuck these wire connections neatly into the Junction Box.

FINISHING THE INSTALLATION (Fig. 3)

9. Place the fixture Back Plate (J), over the Mounting

screws(B), so they protrude through the holes in the Back Plate

(J).

10. Thread the Deco Nuts (H) onto the Mounting Screws (B)

and continue turning until the Back Plate (J) is snug against the

wall.

11. Install glass as per the fixture assembly instructions

YOUR INSTALLATION IS NOW COMPLETE. RETURN

POWER TO THE JUNCTION BOX AND TEST THE FIXTURE.

BARE COPPER

(Ground)

GREEN

(Ground)

FIXTURE WIRES

SMOOTH (BLACK)

RIBBED (WHITE)

BLACK

WHITE

HOUSE WIRES
