Canopy 1ea Hex nut 2ea Wire

connectors 2ea

Mounting

bracket 1ea Mounting screws 2ea Socket rings 1ea

Deco Nut 2ea Fixture mounting

screws 2ea Socket washer 1ea

12" Rod 2ea 6" Rod 1ea

Part Needed Quantity

Reason why ( missing, scratched, broken glass, bent, bad nish)

Comments

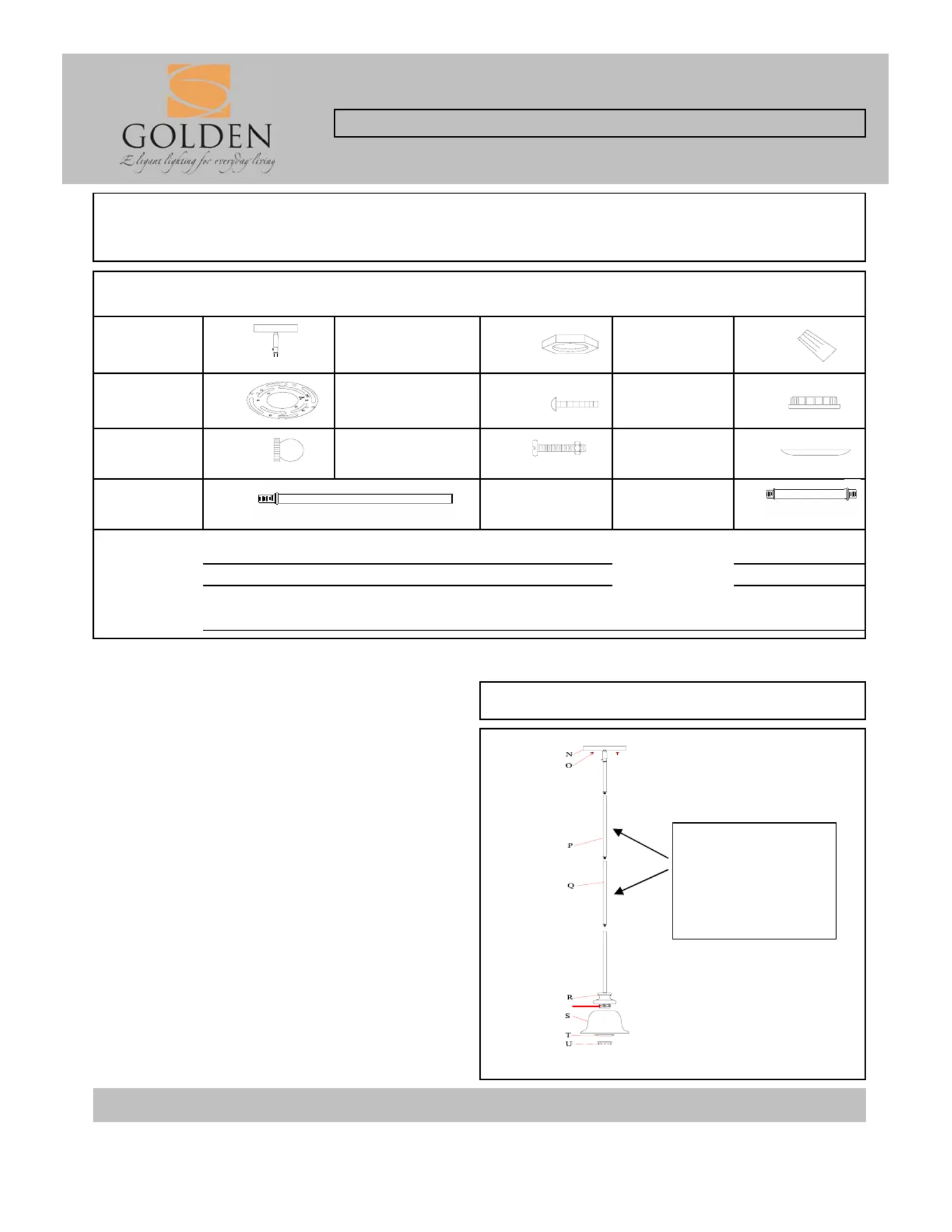

PARTS & ASSEMBLY SHEET

This xture assembled PO:__________ Date: ________

Fixture Name: Heartwood 8063-M1L BUS

Notice: Please review the parts listing and check for all parts before assembling the xture. If any parts

are missing or damaged, please note onthis sheet and contact the place of purchase to arrange for

replacement parts.

PARTS LIST Company Name:_______________________Co. Account #:_____________

to be lled out by retailer

8063-M1L BUS

Read and review installation instruction sheet, but

do not install before assembling the xture.

F A IIXTURE SSEMBLY NSTRUCTIONS

For Customer Service, contact the place of purchase to arrange for replacement parts.

NOTE: INSTALL THE GLASS ASSEMBLY

AFTER THE FIXTURE IS HUNG.

1. By measuring determine correct number of rods

needed for proper hanging height. There are 2 optional

12" rods included.

2. To shorten the xture trim the wires to the desired

length plus at least 8~10 inches.

2b. Slide the 6" rod plus the excess 12" rods o the wire.

2c. Thread the 6" rod back onto the wire then thread the

wire through the swivel conection into the canopy.

3. To lengthen the xture pull all the wire out of the

canopy.

3b. Slide the 6" rod o the wire.

3c. Thread the additional rods with the 6" rod last back

onto the wire then thread the wire through the swivel

conection into the canopy.

Fig 1

These two Rods may

be removed

additional Rods may

be added.

ROD-12 BUS

Fig 2

For Customer Service, contact the place of purchase to arrange for replacement parts.

PARTS & ASSEMBLY SHEET

Fixture Name: Heartwood 8063-M1L BUS

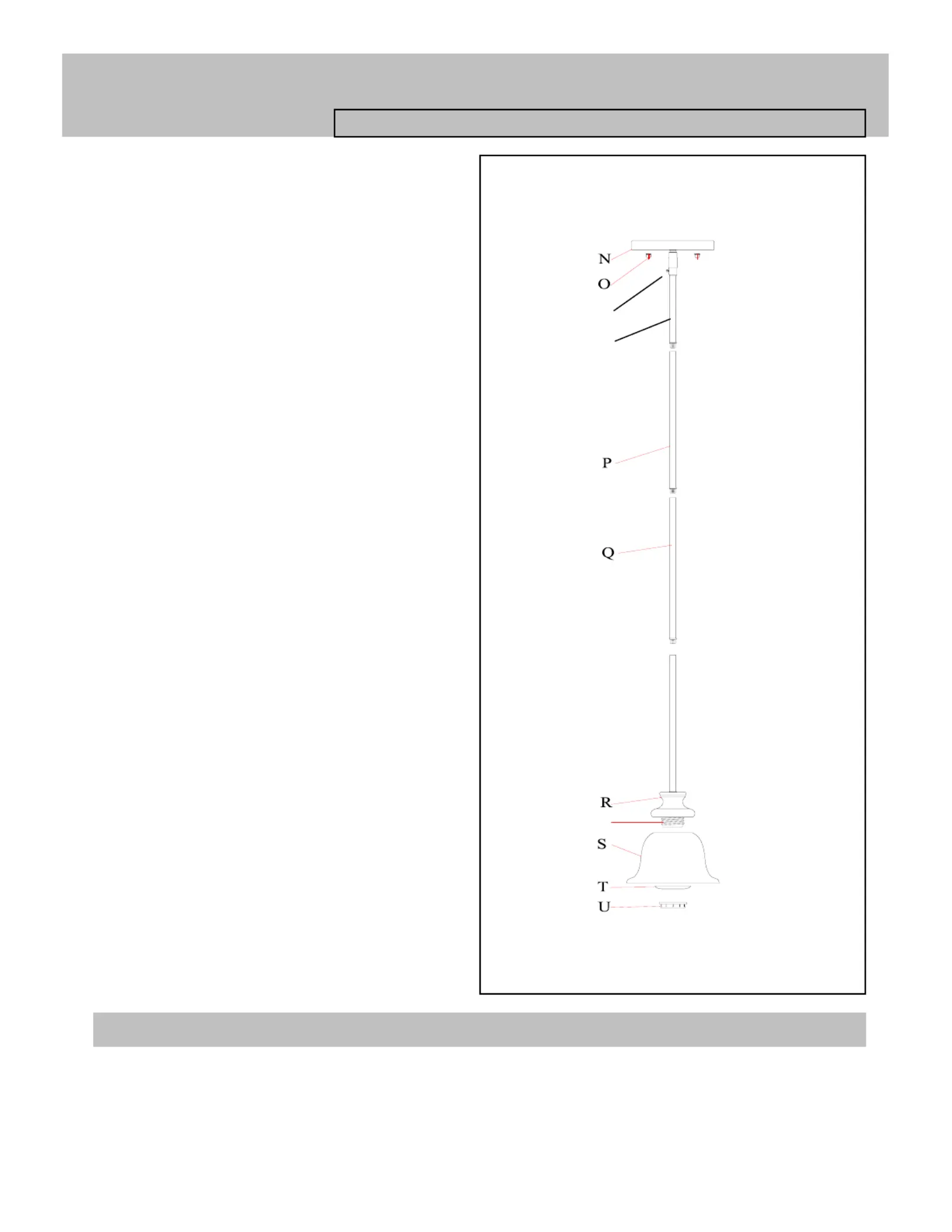

4. Pull the xture’s wire through the Rods until taut.

5. Thread Rod Q into Frame R until tight. （）（）

6. Thread Rod P into Rod Q) until tight. repeat for （）（

any additional rods.

7. Thread 6" Rod W into Rod P until tight. （）（）

8. Loosen the Set screw ( X ) just until the rod will t in

the swivel coupler. Thread the 6" Rod W into the （）

canopy ( N ) and tighten the Set screw( X )

* You may now install the xture.

9. Place the glass shade (S) over the threaded socket

(V) and place the Socket Washer (T) onto the threaded

socket (V) and secure both by threading the Socket ring

(U) until tight.

10. Install the light bulb in accordance with the xture’s

specications.

(DO NOT EXCEED MAXIMUM WATTAGE RATING!) V
