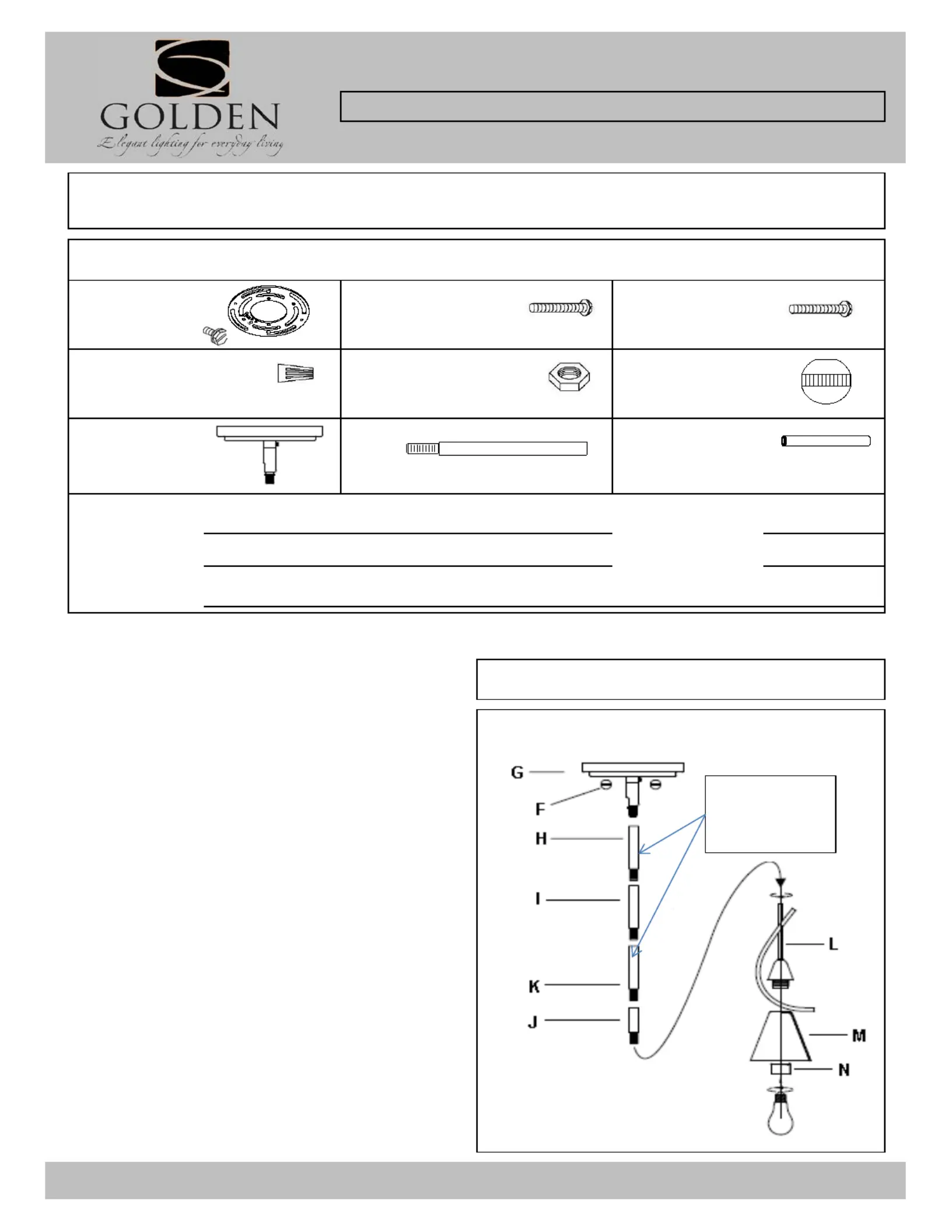

Mounting strap Mounting Screw Mounting screw

1ea 4" 2ea 8/32"X28mm 2ea 8/32X1"

Wire connnector Hex Nut Deco nut (round

nut)

3ea P4 Orange 2ea 8/32"X3.5mm 2ea @12mm

Canopy Rod Rod

1ea 130 Dia*H70mm 3ea 12.7mmDia* H12“ 1ea 12.7mmDia* H6”

Part Needed Quantity

Reason why ( missing, scratched, broken glass, bent, bad finish)

Comments

For Customer Service, contact the place of purchase to arrange for replacement parts.

FIXTURE ASSEMBLY INSTRUCTIONS

Read and review installation instruction sheet before

assembling the fixture. 1648-M1L BUS

1. By measuring determine correct number of rods needed

for proper hanging height.

* This fixture includes 4 rods (6", 12", 12", 12")

2. To shorten the fixture; slide the excess rods off the

wires. To lengthen add additional rods.

3. Pull the fixture’s wires through the rods (H,I,J,K) until

taut and thread the rods together. Then thread to the

fixture body (L) and the swivel joint on Canopy (G).

4. Slide the glass shade (M) over Socket of fixture body

(L)and secure it by threading the Socket ring (N) on until

tight.

5. Install the light bulb in accordance with the fixture's

specification.

(DO NOT EXCEED THE MAXIMUM WATTAGE RATING)

Fig. 1

NOTE: INSTALL THE GLASS ASSEMBLY

AFTER THE FIXTURE IS HUNG.

PARTS & ASSEMBLY SHEET

Fixture Name: Olympia 1648-M1L BUS

This fixture assembled PO:__________ Date: ________

Notice:

Please review the parts listing and check for all parts before assembling the fixture. If any parts are missing or

damaged, please note on this sheet and contact the place of purchase to arrange for replacement parts.

PARTS LIST

Company Name:_______________________Co. Account #:_____________

below to be filled out by retailer

These three

rods may be

removed.

Bulb (Not provided)

For Customer Service, contact the place of purchase to arrange for replacement parts.

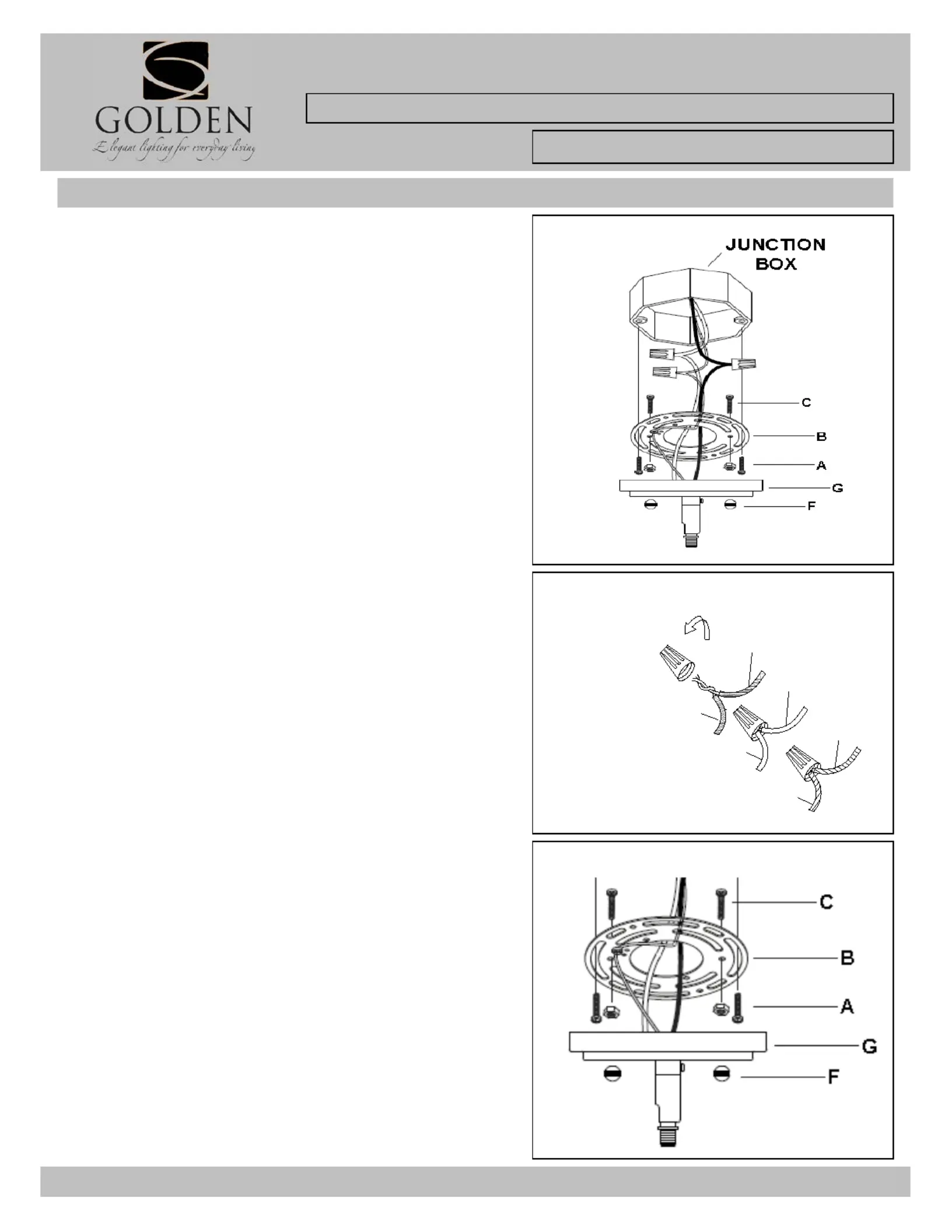

INSTALLATION INSTRUCTIONS

Fixture Name: Olympia 1648-5/9/M3/M1L BUS

For Pendant Light Fixture

WARNING ! SHUT OFF POWER AT FUSE OR CIRCUIT BREAKER.

Fig. 1

Fig. 2

Fig. 3

HANGING THE FIXTURE (Fig. 1)

1. Carefully remove the new fixture from the carton and the

yellow bag that holes all your parts. Check that all parts are

included as shown in the illustration and parts list.

2. Shut off power at the circuit breaker and remove the old

fixture from wall, including the old mounting strap.

3. The Mounting Strap (A) contains several pairs of threaded

holes, find the pair of holes that match the holes spacing in

your fixture Canopy (G) and thread the two Mounting Screws

(B) into the Mounting Strap (A). Secure with Hex nuts (C).

These will have their threaded ends protrude through the two

holes in the fixture canopy.

4. Place the Mounting Strap (A) over the Junction Box (E) so

the Mounting Screws (B) are vertical or horizontal, as required

by fixture type.

5. Attach the Mounting Strap (A) to the Junction Box (E) by

using the two Mounting screws (D). Tighten the screws securly.

CONNECTING THE WIRES (Fig. 2)

5. Attach the power supply wires to the fixture lead wires by

connecting BLACK to BLACK (or SMOOTH) and WHITE to

WHITE (or RIBBED).

6. Attach the GROUND wire(GREEN or COPPER) from the

Junction Box and the fixture Ground wire to the green Ground

Screw on the Mounting Bracket (A) or connect both wires

together using the correct size of wire connectors.

NOTE: Twist the wires together in the same direction you twist

the wire connector onto the wires.

7. Tuck these wire connections neatly into the Junction Box.

FINISHING THE INSTALLATION (Fig. 3)

9. Place the fixture Canopy (G), over the Mounting screws (B),

so they protrude through the holes in the Canopy (G).

10. Thread the Deco Nuts (F) onto the Mounting Screws (B)

and continue turning until the Canopy (G) is snug against the

ceiling.

11. Install glass shades as per the fixture assembly

instructions.

YOUR INSTALLATION IS NOW COMPLETE.

RETURN POWER TO THE JUNCTION BOX AND TEST THE

FIXTURE.

BARE COPPER

(Ground)

GREEN

(Ground)

FIXTURE WIRES

SMOOTH (BLACK)

RIBBED (WHITE)

BLACK

WHITE

HOUSE WIRES
