Side 1/6

TRE50., TRE52.

Motion Detectors 220°

User instructions

220° DETECTORS

TRE500 White

TRE501 Anthracite

TRE520 White

TRE521 Anthracite

ACCESSORY FOR

ANGLE FIXING

EE855 White

EE856 Anthracite

52125 White

52126 Anthracite

ech30%

angle

IP55

+ 90°/- 30°

+/-80°

IP55

+ 90°/- 30°

+/-80°

Description

Detection zone

Installation

Wall ﬁxing plate

Adjustment potentiometers

Directional detection head

Adjustments

Shutters

Angle ﬁxing support

Vertical adjustment

Optimal installation height is 2.5m.

The detection zone shall remain free of obstacle.

m 8 m 16

2,5 m

ech40%

2,5 m

8 m

0,5 m

16 m

m 2,5

m 0,5

m 16

m 4

LED A LED B

Delay

(lighting time)

Brightness

level

Sensitivity

(change

of range)

6LE003097B

V2.6.0

RFTP

230V~

Bus

30 V

6LE003097B

Warning :

This device is to be installed only by a

professional electrician ﬁtter according to

local applicable installation standards.

Test and validation of detection

zone

Set potentiometer

to Test mode.

The Test mode is available for 3 minutes time

and does not take brightness level into

account.

Each detected movement turns LED A on for 2

seconds.

The associated receiver is controlled.

After 3 minutes without detection, the product

is set back to auto mode.

Limitation of detection zone :

You can limit the detection zone using the

shutters supplied or by inclining the head.

Mounting

Projection or ceiling mount :

- Fix the wall plate using the supplied screws.

- Clip the detector onto the wall plate

- Tighten the screws to close.

For angle mounting, the wall ﬁxing plate is

ﬁtted between the accessory and

the detector.

Precautions for installation

For optimum detection conditions, please fol-

low these recommendations :

- Keep the detector protected from solar radia-

tion and bad weather, as it is sensitive to

these conditions.

- Maintain 1m distance between the light

source and the detector and keep the detec-

tor out of the light source.

Product Description and working

principles

This detector allows remote control of one

or more receivers for a given time when a

movement is detected in its detection zone.

This product can be used in two types of

conﬁguration: one detector controls one/seve-

ral receiver(s); several transmitters control the

receiver(s).

Operation

The receiver(s) is(are) under control as soon as

the brightness level as set by potentiometer

is considered too low and a movement is

detected.

Upon detection, the time delay is restarted.

If LED A ﬂashes quickly during conﬁguration,

the position of potentiometer

is not compa-

tible with the selected function.

If LED B ﬂashes quickly or nothing occurs

when starting conﬁguration, check that the

batteries are correctly installed and replace

them if necessary. Product factory reset is

recommended before any new conﬁguration.

Factory return

Keep push-button J depressed until LED

cfg (ﬂashes (>10s), and then release it.

LED cfg is turned o when factory return is

completed.

This operation causes full delete of product

conﬁguration in any conﬁguration mode.

After factory return, wait 15s before starting.

Action Adjustments Potentiometer

Use Auto (factory)

settings to set

automatic lighting

turn-on for

a given time.

Only available when

a detector’s time

delay is set.

Auto Settings

Put the Lux potentiometer on

“auto test”.

The settings are predeﬁned :

Lux =

(operating at night only)

time = 3 min,

sensitivity = max

Turn automatic

lighting on for

a given time.

Only available when

a detector’s time

delay is set.

Installer settings

Test and conﬁrm

detection zone.

Test mode

Move the potentiometer

to “auto test”.

Adjust sensitivity. Allows setting the range

to avoid disturbance.

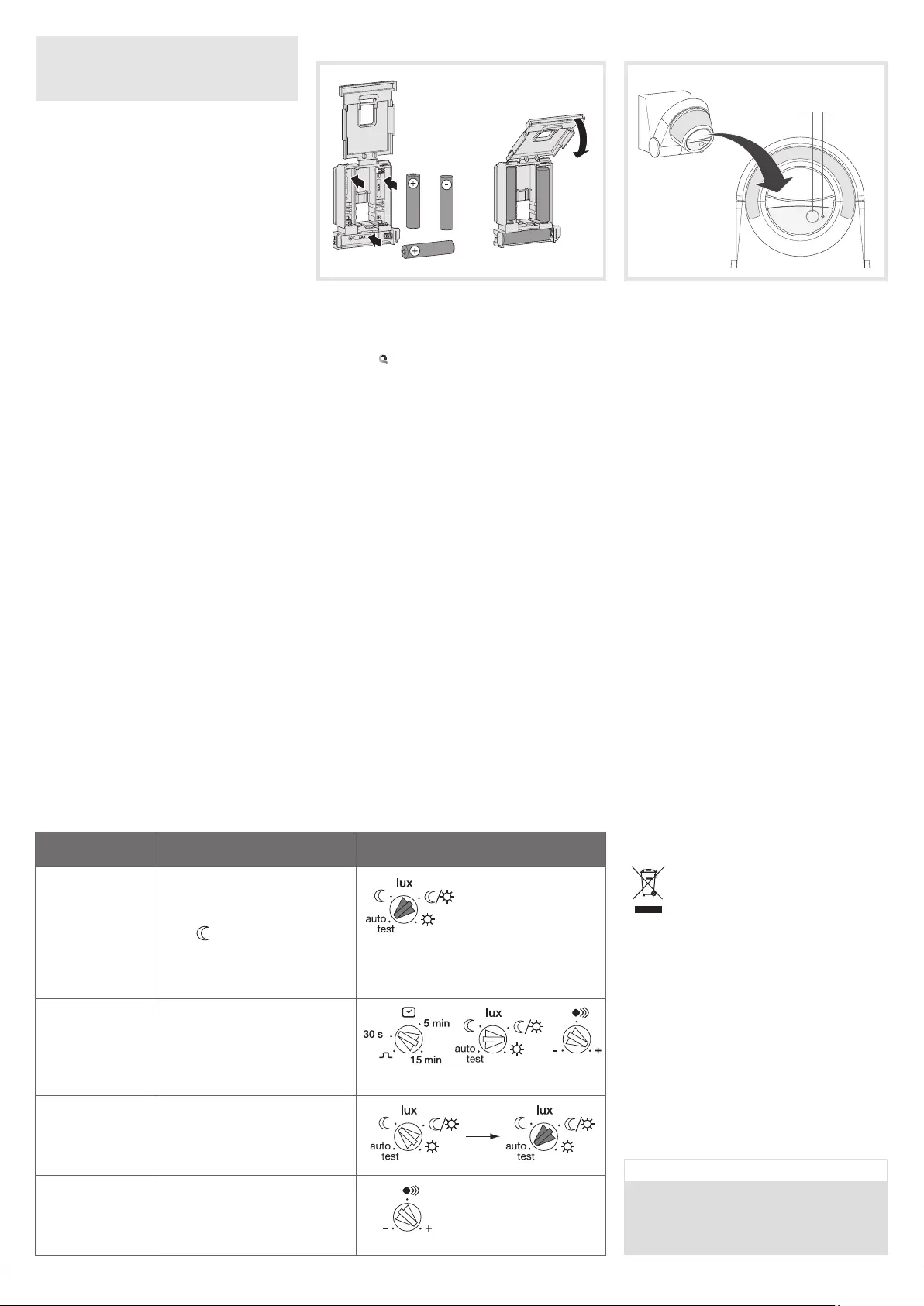

Installing batteries J Button

cfg

cfgcfg

cfg

version à pile

version solaire

LED C

Button

Conﬁguration (button J )

These detectors can be conﬁgured in 3 dierent

ways :

•

quicklink

: tool-free conﬁguration (using product

pushbuttons and LEDs), see User's Instructions

6T7952 supplied with the product.

• TX100/B V2.5.0 or above :

description of product functions available from

the Manufacturer.

• ETS3 or via TR131 : database and description of

application software available from the

Manufacturer.

Conﬁguration by TX100 or ETS

Set the product in conﬁguration mode by pressing

J button once during the teaching session of

TX100 or for addressing with TR131 in ETS.

Product factory return is required to change

the conﬁguration mode.

Correct Disposal of This product

(Waste Electrical & Electronic

Equipment).

(Applicable in the European Union and other European

countries with separate collection systems).

This marking shown on the product or its literature

indicates that it hould not be disposed with other

household wasted at the end of its working life. To

prevent possible harm to the environment or human

health from uncontrolled waste disposal, please

separate this from other types of wastes and recycle

it responsibly to promote the sustainable reuse of

material resources.

Household users should contact either the retailer

where they purchased this product, or their local

government oce, for details of where and how they

can take this item for environmentally safe recycling.

Business users should contact their supplier and

check the terms and conditions of the purchase

contract. This product should not be mixed with other

commercial wastes of disposal.

Usable throughout Europe å and in Switzerland

Hager Controls hereby declares that the TRE50., TRE52.

device complies with the essential requirements and other

relevant provisions of Directive 2014/53/EU.

The CE declaration is available on the:

www.hagergroup.com

6LE003097B
