Side 1/4

6LE005164B

WXT30x

Gallery push-button, Tebis KNX bus,

xrockers, xinputs

WXT31x

Gallery push-button, Tebis KNX bus,

xrockers, xinputs with LED

WXT32x

Gallery push-button, Tebis KNX bus,

xrockers, xinputs with LED + 12 IR inputs

Safety instructions

Electrical equipment may only be installed and

assembled by a qualiﬁed electrician. Always

follow the relevant accident prevention

regulations of the country.

Failure to comply with these installation

instructions may result in damage to the

device, ﬁre or other hazards.

When installing and laying cables, always

comply with the applicable regulations and

standards for SELV electrical circuits.

These instructions are an integral component

of the product and must be retained by the end

user.

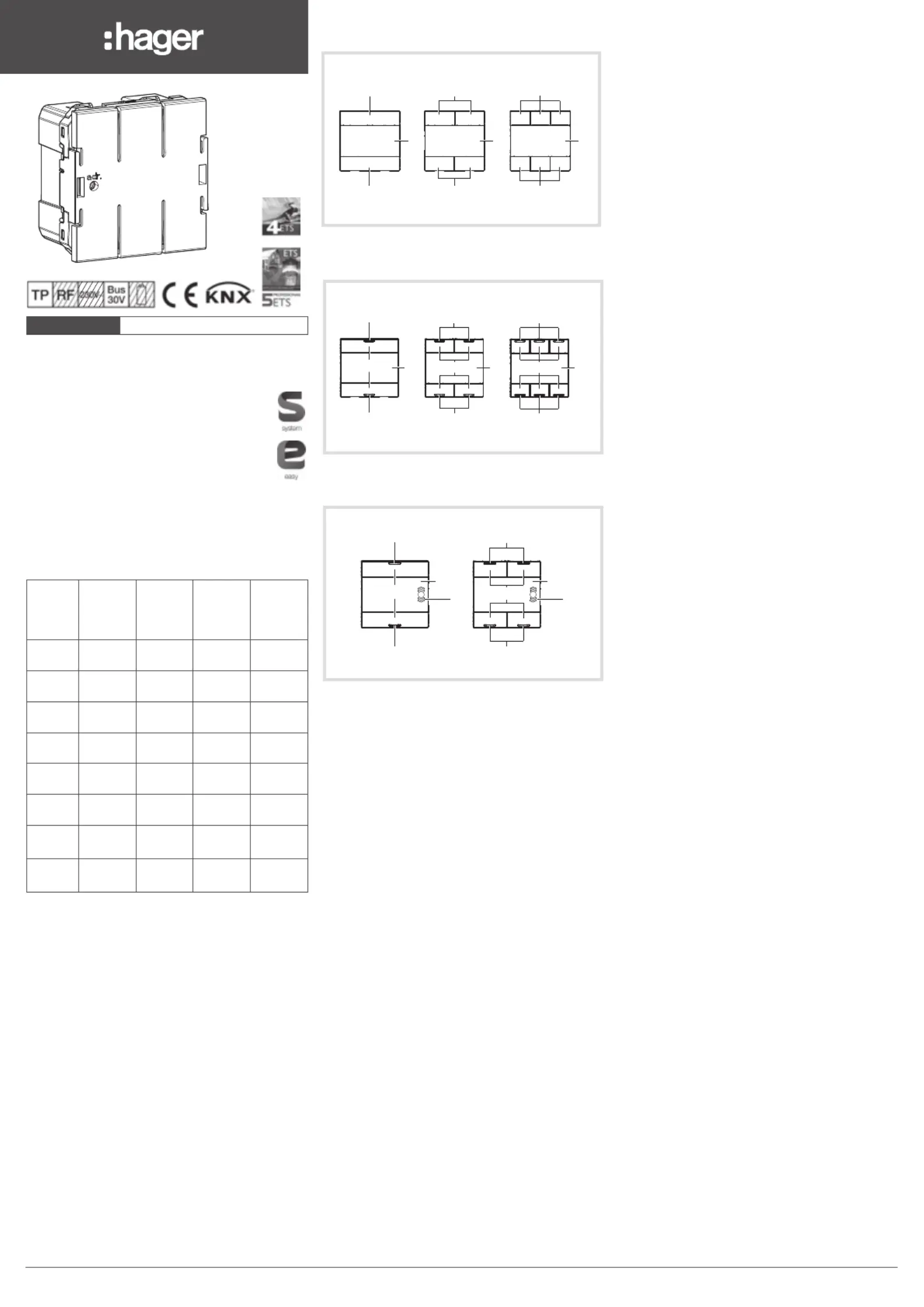

Design and layout of the device

Figure 1: Front view of push-buttons 2, 4 and 6

rockers

Figure 2: Front view of push-buttons 2, 4 and 6

rockers with LED

Figure 3:

Front view of push-buttons 2 and 4

rockers with LED and IR

(1) Label holder cover

(2) Push-buttons (number dependent on model)

(3) Status LED

(4) Sensor IR

Function

System information

This device is a product of KNX system and

complies with KNX guidelines. Detailed, specialised

knowledge obtained through speciﬁc KNX

training courses is required for full understanding

of the system. The planning, installation and

commissioning are to be carried out with KNX-

certiﬁed software or the Easylink conﬁguration tool

(e.g. TXA100, version 1.5.0 or above).

Systemlink: Start-up

The functions of the device are software- and

conﬁguration-dependent. You can ﬁnd the latest

version of the application software as well as all

relevant technical descriptions on our website

(www.hager.com).

Easylink: Start-up

The functions of the device are software- and

conﬁguration-dependent. It can also be conﬁgured

using devices speciﬁcally developed for easy set-

up and start-up.

This conﬁguration method is only possible with

devices which are compatible with the Easylink

system. Preconﬁgured standard functions are

assigned to the in/outputs by means of the tool.

Correct use

-Typical applications: e.g. light ON/OFF, dim-

ming, blind UP/DOWN, saving and opening

light scenes, etc.

-Installation into ﬂush mounting

(min. depth 40 mm)

-Installation into truncking

Product characteristics

-Start-up and programming in Systemlink and

Easylink mode

-Push-button functions: switching/dimming, varia-

tion, blind control, value transmitter, scene call-

up, speciﬁcation of the heating operating mode,

forced control, stepping switch and comparator

function

-Integrated bus coupler

-Label holder

Speciﬁc characteristics of push-buttons with

LED and backlight

-One status LED per rocker

-The colour of the status LEDs is conﬁgurable

-Label holder with backlight

Speciﬁc characteristics of push-buttons with IR

receiver

-One status LED per rocker

-The colour of the status LEDs is conﬁgurable

-12-channel IR remote receiver

-Label holder with backlight

Operation

Each rocker can be conﬁgured individually.

There are two, dierent, operating modes:

- Single-surface command:

Switching lighting on/o or dimming brighter/

darker is done alternately by repeated pressing of

the button.

- Two-surface command:

Two superimposed push-buttons form a function

pair. Pressing the top surface switches/dims

lighting on/makes it brighter; pressing the bottom

surface switches it o/makes it darker.

Use

Loads, such as lighting, blinds, etc., are operated

using the push-buttons, which are dependent on

the device programming.

The actuation pulse lasts for the duration of

the actuation. Depending on the function,

short and long actuations can trigger dierent

actions, e.g. switching/dimming.

IR functions

IR devices are ﬁtted with a 12 channel IR receiver.

They can be controlled and operated via a Tebis

IR remote control or any IR remote compliant with

the RC6 standard. The buttons of the IR remote

control oer the same range of functions as with

the conventional local push-button functions.

Number

push-

buttons

Status

LED +

backlight

IR remote

receiver

Cover

WXT302 2 WXE302x

WXT304 4 WXE304x

WXT306 6 WXE306x

WXT312 2 X WXE312x

WXT314 4 X WXE314x

WXT316 6 X WXE316x

WXT322 2 X X

WXE312x

(FPL IR)

WXT324 4 X X

WXE314x

(FPL IR)

6LE005164B

(2)

(1)

(2)

(1)

(2)

(1)

(3)

(1)(2)

(3)

(1)(2)

(3)

(1)

(2)

(3)

(1)

(2)

(3)

(1)

(2)

(4) (4)
