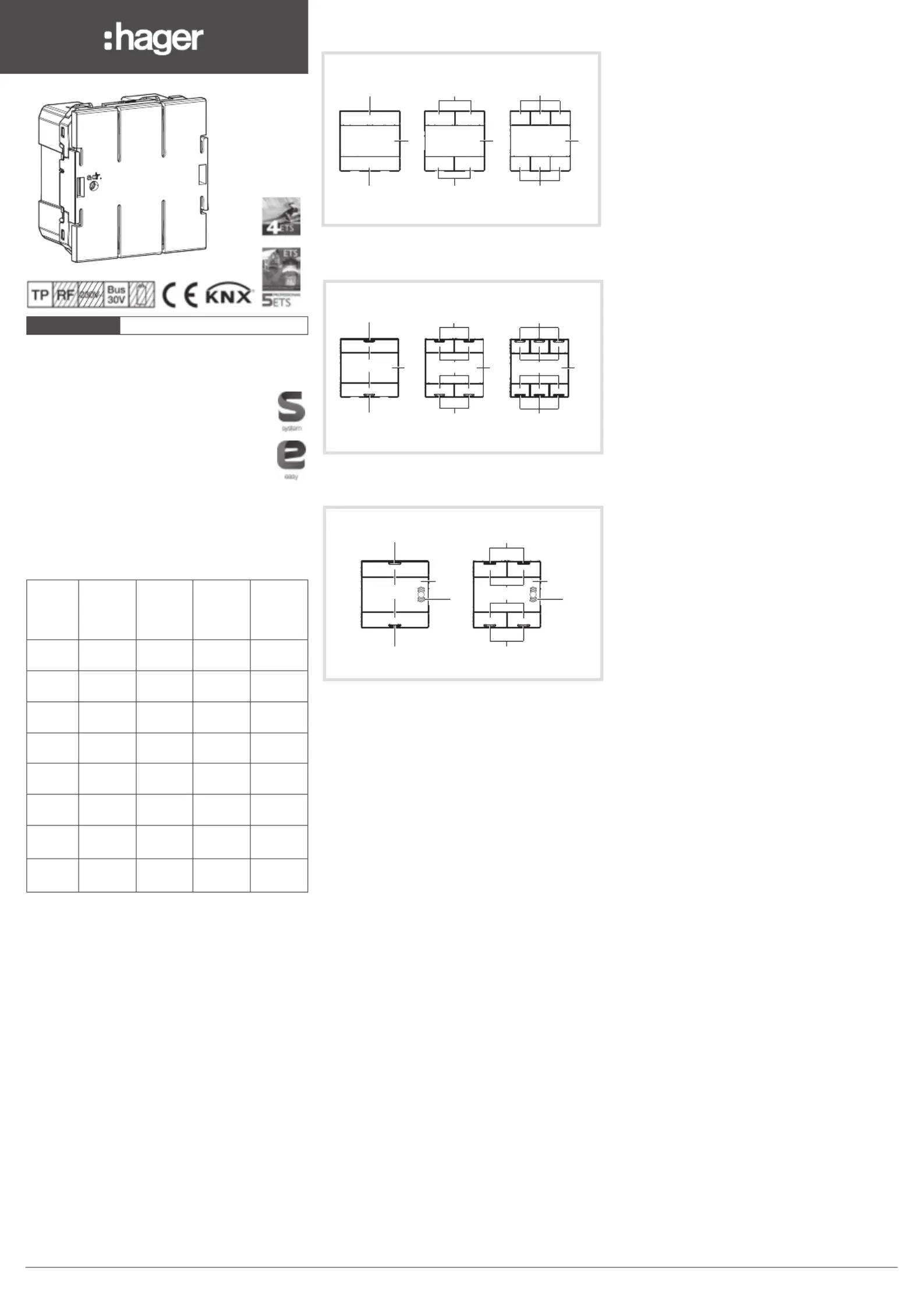

Side 1/4

6LE005164B

WXT30x

Gallery push-button, Tebis KNX bus,

xrockers, xinputs

WXT31x

Gallery push-button, Tebis KNX bus,

xrockers, xinputs with LED

WXT32x

Gallery push-button, Tebis KNX bus,

xrockers, xinputs with LED + 12 IR inputs

Safety instructions

Electrical equipment may only be installed and

assembled by a qualiﬁed electrician. Always

follow the relevant accident prevention

regulations of the country.

Failure to comply with these installation

instructions may result in damage to the

device, ﬁre or other hazards.

When installing and laying cables, always

comply with the applicable regulations and

standards for SELV electrical circuits.

These instructions are an integral component

of the product and must be retained by the end

user.

Design and layout of the device

Figure 1: Front view of push-buttons 2, 4 and 6

rockers

Figure 2: Front view of push-buttons 2, 4 and 6

rockers with LED

Figure 3:

Front view of push-buttons 2 and 4

rockers with LED and IR

(1) Label holder cover

(2) Push-buttons (number dependent on model)

(3) Status LED

(4) Sensor IR

Function

System information

This device is a product of KNX system and

complies with KNX guidelines. Detailed, specialised

knowledge obtained through speciﬁc KNX

training courses is required for full understanding

of the system. The planning, installation and

commissioning are to be carried out with KNX-

certiﬁed software or the Easylink conﬁguration tool

(e.g. TXA100, version 1.5.0 or above).

Systemlink: Start-up

The functions of the device are software- and

conﬁguration-dependent. You can ﬁnd the latest

version of the application software as well as all

relevant technical descriptions on our website

(www.hager.com).

Easylink: Start-up

The functions of the device are software- and

conﬁguration-dependent. It can also be conﬁgured

using devices speciﬁcally developed for easy set-

up and start-up.

This conﬁguration method is only possible with

devices which are compatible with the Easylink

system. Preconﬁgured standard functions are

assigned to the in/outputs by means of the tool.

Correct use

-Typical applications: e.g. light ON/OFF, dim-

ming, blind UP/DOWN, saving and opening

light scenes, etc.

-Installation into ﬂush mounting

(min. depth 40 mm)

-Installation into truncking

Product characteristics

-Start-up and programming in Systemlink and

Easylink mode

-Push-button functions: switching/dimming, varia-

tion, blind control, value transmitter, scene call-

up, speciﬁcation of the heating operating mode,

forced control, stepping switch and comparator

function

-Integrated bus coupler

-Label holder

Speciﬁc characteristics of push-buttons with

LED and backlight

-One status LED per rocker

-The colour of the status LEDs is conﬁgurable

-Label holder with backlight

Speciﬁc characteristics of push-buttons with IR

receiver

-One status LED per rocker

-The colour of the status LEDs is conﬁgurable

-12-channel IR remote receiver

-Label holder with backlight

Operation

Each rocker can be conﬁgured individually.

There are two, dierent, operating modes:

- Single-surface command:

Switching lighting on/o or dimming brighter/

darker is done alternately by repeated pressing of

the button.

- Two-surface command:

Two superimposed push-buttons form a function

pair. Pressing the top surface switches/dims

lighting on/makes it brighter; pressing the bottom

surface switches it o/makes it darker.

Use

Loads, such as lighting, blinds, etc., are operated

using the push-buttons, which are dependent on

the device programming.

The actuation pulse lasts for the duration of

the actuation. Depending on the function,

short and long actuations can trigger dierent

actions, e.g. switching/dimming.

IR functions

IR devices are ﬁtted with a 12 channel IR receiver.

They can be controlled and operated via a Tebis

IR remote control or any IR remote compliant with

the RC6 standard. The buttons of the IR remote

control oer the same range of functions as with

the conventional local push-button functions.

Number

push-

buttons

Status

LED +

backlight

IR remote

receiver

Cover

WXT302 2 WXE302x

WXT304 4 WXE304x

WXT306 6 WXE306x

WXT312 2 X WXE312x

WXT314 4 X WXE314x

WXT316 6 X WXE316x

WXT322 2 X X

WXE312x

(FPL IR)

WXT324 4 X X

WXE314x

(FPL IR)

6LE005164B

(2)

(1)

(2)

(1)

(2)

(1)

(3)

(1)(2)

(3)

(1)(2)

(3)

(1)

(2)

(3)

(1)

(2)

(3)

(1)

(2)

(4) (4)

Information for electricians

Installation and electrical connection

Foreword

By default all devices are equipped with a pro-

tection cover that lets you use the product before

inserting the trim.

Mounting

Proceed as follows

zScrew the supporting frame (7) on to the

ﬂush-mounting box which must have a min.

depth of 40 mm

Note the HAUT/TOP marking.

zConnect bus cable to the product with the

terminal block (provided in the box).

zMount push-button (4.2) on the supporting

frame (7). Note the HAUT/TOP marking.

Mounting in trunking:

zCircuit bus connection cable to push-button

(4.2) with the terminal block, directly in trunck-

ing until it locks into place. Note the HAUT/TOP

marking.

Start-up

Systemlink

zSet the desired settings in ETS.

zSwitch on bus voltage.

zPress programming button (5).

zThe programming LED (5) lights up.

If the programming LED does not light up, there

is no bus voltage.

zLoad the physical address and application

software from ETS.

The physical address is only ever assigned for

one device. Only one device can ever be

in programming mode.

zThe programming LED (5) goes out.

Flashing status LEDs (3) indicate the application

software which has been loaded is not

compatible.

Easylink

zThe device must be mounted on the bus cou-

pling unit for Easylink mode start-up.

zPlease refer to the detailed description of the

"Easylink" service module for more information

on the conﬁguration of the installation.

Mounting the trim

zSwitch o bus voltage.

zRemove protection cover.

zClip on trim (4.1).

zMount design plate (6).

Dismantling

zSwitch o bus voltage.

zRemove design plate (6).

zRemove push-button (4.2) from support (7),

using the notches 4.2.1 (top and bottom). Hold

on to the design plate.

zDisconnect bus line from push-button.

Comments

Changing label holder inlay

For push-buttons (4.2) with IR, the trim (4.1) is

supplied with an adapted label holder inlay (1.3).

Proceed as follows

zUnclip the label holder cover (1.1) as well as

the label holder inlay (1.2).

zReplace label holder inlay (1.2) with (1.3).

zClip on label holder cover (1.1).

Conﬁguration mode with trim

zRemove label holder cover (1.1) to access the

programming button (5).

Appendix

Technical data

KNX Medium TP 1

Start-up mode Smode, Hager Easylink controller

Rated voltage KNX 30V SELVs

Current consumption KNX type 20 mA

Connection mode KNX bus connecting terminals

Dimensions (W x H x D) 45 x 45 x 28 mm

Degree of protection IP20

Protection class III

Operating temperature -5 ... +45°C

Storage/transport temperature -20 ... +70°C

Troubleshooting

Bus operation is not possible.

Cause: Bus voltage is not present.

Check bus connection terminals for correct polarity.

Check bus voltage by brieﬂ y pressing the

programming button (5), red programming LED

lights up if bus voltage is present.

All status LEDs ﬂashing

Cause: The loaded application program and appli-

cation module are not compatible.

Install new application program or mount suit-

able application module

Accessories

Sheet of labels for labelling ﬁeld WST900

Bus connector TG008

Infrared remote control EE809

Trim See correlation table

on ﬁrst page

Touching live parts can result in an electric

shock!

An electric shock can be lethal!

Disconnect the connecting cables before

working on the device and cover all live

parts in the area!

Correct Disposal of This product

(Waste Electrical & Electronic Equipment).

(Applicable in the European Union and

other European countries with separate

collection systems).

This marking shown on the product or its literature

indicates that it should not be disposed with other

household waste at the end of its working life. To

prevent possible harm to the environment or human

health from uncontrolled waste disposal,

please separate this from other types of waste and

recycle it responsibly to promote the sustainable

reuse of material resources.

Household users should contact either the retailer

where they purchased this product, or their local

government oce, for details of where and how they

can take this item for environmentally safe recycling.

Business users should contact their supplier and

check the terms and conditions of the purchase con-

tract. This product should not be mixed with other

commercial waste for disposal.

Usable in all Europe and in Switzerland M

Figure 4 : Mounting the product

(1.1) Label holder cover

(1.2) Label holder inlay for push-button with and without LED

(1.3) Label holder inlay for IR push-button IR receiver

(4.1) Trim (not supplied)

(4.2) Push-button

(4.2.1) Notches to unclip

(5) Illuminated programming button

(6) Design plate (not supplied)

(7) Supporting frame (not supplied)

2 6LE005164B

This device must be installed according

to the installation standards in force

in the country.

(7)

(5)

(1.1)

(1.3)

(1.2)

(4.1)

(4.2.1)

(6)

(4.2)
